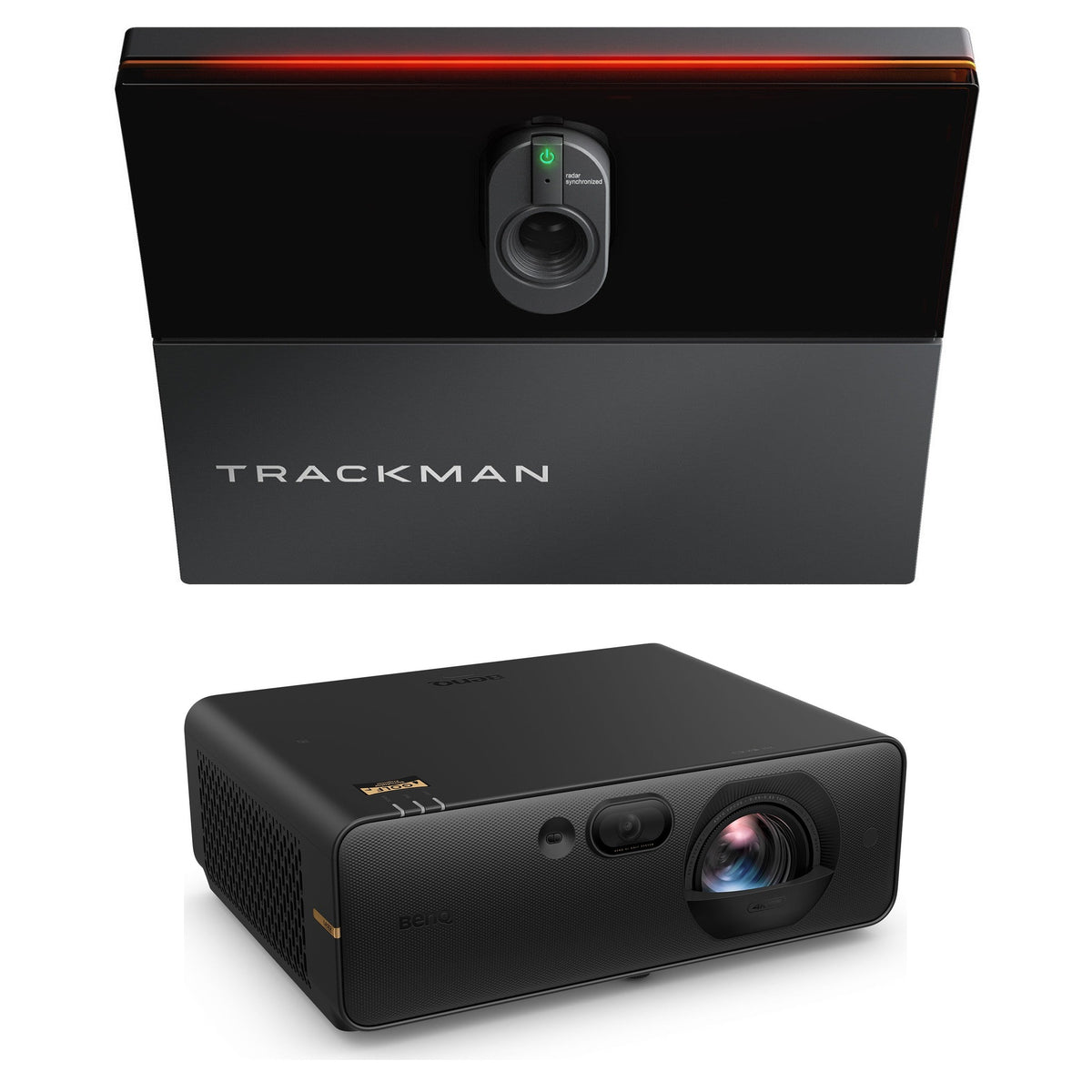

Trackman iO Launch Monitor + BenQ AK800ST 4K Projector Combo
By Trackman
Build Your Dream Home Golf Simulator
Pair the Trackman iO Launch Monitor + BenQ AK800ST 4K Projector Combo with a launch monitor, projector, and hitting mat in the SimKit Builder.
Start Building in the SimKit Builder →
Trackman iO + BenQ AK800ST in one order
This combo pairs the Trackman iO Launch Monitor with the BenQ AK800ST, BenQ’s 5,000-lumen AI-tuned 4K golf projector. It covers tracking and display on one order, and leaves the enclosure, impact screen, and hitting mat open so the rest of the bay can follow the room.
Trackman iO Launch Monitor
Ceiling-mounted radar + infrared + high-speed imaging, measured 3D spin and spin axis, 1-year Home Edition software included.
BenQ AK800ST 4K AI Short-Throw Golf Simulator Projector
4K UHD 3840 × 2160 · 5,000 ANSI lumens · 0.69–0.83:1 short throw · 1.2× motorized zoom.
Bought separately, these components total $17,994 to $27,994 depending on the options selected (Trackman iO $13,995–$23,995 + BenQ AK800ST $3,999).
The BenQ AK800ST is currently a pre-order item expected to ship mid-November 2026. Elite Sim Golf will confirm ship timing for every component in this order after purchase. Pre-order estimates are not guaranteed delivery dates.
Authorized Dealer
Elite Sim Golf is an authorized BenQ dealer
5,000 Lumen AI 4K
AI Sim Sense™ picture tuning
One Order
Tracking and display on a single checkout
ESG-Backed Support
Mounting, alignment, and software setup
Trackman iO — purpose-built for the indoor game
Trackman iO is Trackman’s first launch monitor built from the ground up for indoor golf. The ceiling-mounted unit combines radar, infrared, and high-speed imaging to deliver measured ball data, including true 3D spin and spin axis. The floor stays clear, both right- and left-handed golfers use the same setup, and no additional room lighting is required.
Ceiling-Mounted Design
Clean, floor-free bay with nothing beside the ball. Installs to a VESA 100 × 100 ceiling bracket.
Radar + Infrared + Imaging
Combines dual radar, infrared, and high-speed imaging to measure real ball and club data.
True 3D Spin + Spin Axis
Measured 3D spin and spin axis on every shot rather than values modeled from ball speed and launch angle.
Both Handedness
Right- and left-handed golfers use the same overhead setup without moving the unit.
No Extra Lighting
Trackman iO does not require room lighting rigs or specialty bulbs to perform.
Three Software Tiers
Home, Home Complete (adds measured club data), or Commercial licensing — selected in the dropdown above.
Trackman iO mounts 3′3″ to 3′5″ in front of the tee, with 9′8″ as the ideal calibration height. Choose the ceiling-height profile that matches your hitting-surface-to-ceiling measurement: Low (8′10″–9′6″), Mid (9′4″–10′), or High (9′10″–10′6″). Ceilings above 10′6″ need a VESA 100 × 100 drop mount, sold separately.
Trackman iO ships with a 1-year Home Edition software subscription included. After year one, an active Trackman subscription is required to keep Virtual Golf courses and premium features active — Home Edition renewal starts at $700/year.
BenQ AK800ST — AI-tuned 4K for the home sim room
The AK800ST brings BenQ AI Sim Sense™ into the core of the golf lineup. A built-in AI processing unit reads the course on screen, the room light, and the impact screen, then tunes color, contrast, and clarity automatically. It pairs 5,000 ANSI lumens and true 4K UHD with the same 0.69–0.83:1 short-throw geometry as the AK700ST and camera-driven Auto Screen Fit 2.0 with curved-screen support.
AI Sim Sense™ Processing
A built-in APU powers AI Picture Quality, AI-Enhanced Contrast, AI Super Resolution, and AI Noise Reduction for sharper grass texture and deeper contrast without manual tuning.
5,000 Lumens For Lit Rooms
A step up from the AK700ST’s 4,000 lumens, with strong ambient-light resistance so the course stays sharp and colorful with the lights on.
Auto Screen Fit 2.0
ToF sensing and an onboard camera detect the impact screen’s exact geometry, flat or curved, and snap to a distortion-free fill. Smart warping refines curved screens point by point.
Auto Focus + Golf Mode
One-touch motorized autofocus, an Ambient Light Enhancer, and BenQ Golf Mode with HDR Golf reproduce natural fairway greens and bunker sand at 97% Rec. 709.
| Specification | BenQ AK800ST |
|---|---|
| Projection System | DLP |
| Resolution | 4K UHD (3840 × 2160) |
| Brightness | 5,000 ANSI lumens |
| Contrast Ratio | 3,000,000:1 (FOFO) |
| Color | 97% Rec. 709; 30-bit (1.07 billion colors) |
| Light Source | Laser (20,000 hrs Normal / 30,000 hrs Eco) |
| AI Processing | BenQ AI Sim Sense™ with built-in APU |
| Throw Ratio | 0.69–0.83:1 |
| Zoom | 1.2× motorized |
| Projection Offset | 102.5% (full-height) |
| Lens Shift | None |
| Keystone | 3D (±30° vertical, ±30° horizontal, ±30° rotation) |
| Screen Size | Up to 300″ diagonal |
| Aspect Ratios | Native 16:9; Screen Fill for 16:10, 3:2, 4:3, 5:4, 1:1 |
| Input Lag | 18.1 ms (4K 60Hz), 4.8 ms (1080p 240Hz) |
| Inputs | 3× HDMI 2.1 (HDCP 2.3, one with eARC), 2× USB-A, RJ45 LAN, RS232 |
| Noise Level | 34 dB (Normal) / 29 dB (Eco) |
| Weight | ~13 lbs (5.9 kg) |
The AK800ST has no optical lens shift, so plan the mount centered on the screen and let Auto Screen Fit 2.0, 3D Keystone, and Corner Fit handle final alignment. Run the numbers through the projector fitment tool and throw calculator before drilling. At roughly 13 lbs, the AK800ST works with the BenQ Universal Ceiling Mount CM00G3 (sold separately).
In the box
Two components, one order. Items may arrive in separate cartons or on separate tracking numbers depending on warehouse routing and the AK800ST pre-order timeline.
- Trackman iO launch monitor
- Ceiling bracket and mounting plate (VESA 100 × 100)
- Software license for the selected tier, first year included
- Manufacturer documentation
- BenQ AK800ST projector unit
- Remote control
- Power cable
- Manufacturer documentation and warranty card
Simulator PC, enclosure, impact screen, hitting mat, projector ceiling mount, and HDMI/power cabling are not included and are sold separately. For a complete bay, use the SimKit bundle builder.
Who this combo is built for
Tour-Grade Data At Home
Golfers who want measured 3D spin and spin axis from the brand used on tour.
Commercial Bays
Sim bars, studios, and clubs that need the Commercial license and a bright, durable 4K image.
Mixed-Handedness Rooms
Right- and left-handed players using the same overhead setup.
Premium Room Builds
Rooms that pair a flagship tracker with BenQ’s AI-tuned AK800ST.
Keep planning the build
Projector Fitment Tool
Confirm AK800ST mounting distance against your screen and room.
Run the calculatorInstallation Services
Professional mounting, alignment, and calibration for the whole bay.
See installation servicesCombo questions
What exactly comes in this combo?
One Trackman iO Launch Monitor, one BenQ AK800ST 4K short-throw projector. Projector mounting hardware and HDMI/power cabling are sold separately.
How do I confirm the AK800ST fits my room?
Use the Elite Sim Golf projector fitment tool and throw calculator. The AK800ST’s 0.69–0.83:1 throw ratio and 1.2× motorized zoom give placement latitude, but it has no optical lens shift, so the mount should be centered on the screen and the exact lens-to-screen distance depends on screen size and aspect ratio.
Which software tier should I choose?
Home includes full measured ball data and Trackman Virtual Golf 2. Home Complete adds measured club data. Commercial adds a commercial-use license for sim bars, studios, and clubs. The software tier changes the price of this package.
Which ceiling-height option do I need?
Measure from the finished hitting surface to the ceiling. Low covers 8′10″–9′6″, Mid covers 9′4″–10′, and High covers 9′10″–10′6″. Ceilings above 10′6″ need a VESA 100 × 100 drop mount, sold separately.
Is a Trackman subscription required?
The first year of Home Edition software is included. After year one an active Trackman subscription is required to keep Virtual Golf courses and premium features active.
What room size does Trackman recommend?
Trackman recommends at least a 10 ft ceiling, 15 ft room width, and 18 ft depth for full driver swings with comfortable clearance.
When does the BenQ AK800ST ship?
The AK800ST is a pre-order item expected to ship mid-November 2026. Elite Sim Golf confirms ship timing for every component after the order is placed.
Are a projector mount and cables included?
No. Projector mounting hardware and HDMI/power cabling are sold separately. At about 13 lbs, the AK800ST works with the BenQ CM00G3 universal ceiling mount.
What warranty applies?
Each component carries its own manufacturer warranty — Trackman covers the iO with a 1-year manufacturer warranty, and BenQ covers the projector.
Why buy the combo instead of separate orders
One Checkout
A single order instead of separate purchases to reconcile.
Authorized Dealer
Elite Sim Golf is an authorized dealer for the launch monitor and projector in this combo.
Vetted Pairing
Every component here is sold and supported by Elite Sim Golf as part of a simulator build.
Support That Covers It All
Mounting, alignment, activation, and software questions handled in one place.
Trackman iO handles the tracking with measured 3D spin. The BenQ AK800ST puts a 5,000-lumen AI-tuned 4K image on the screen.
