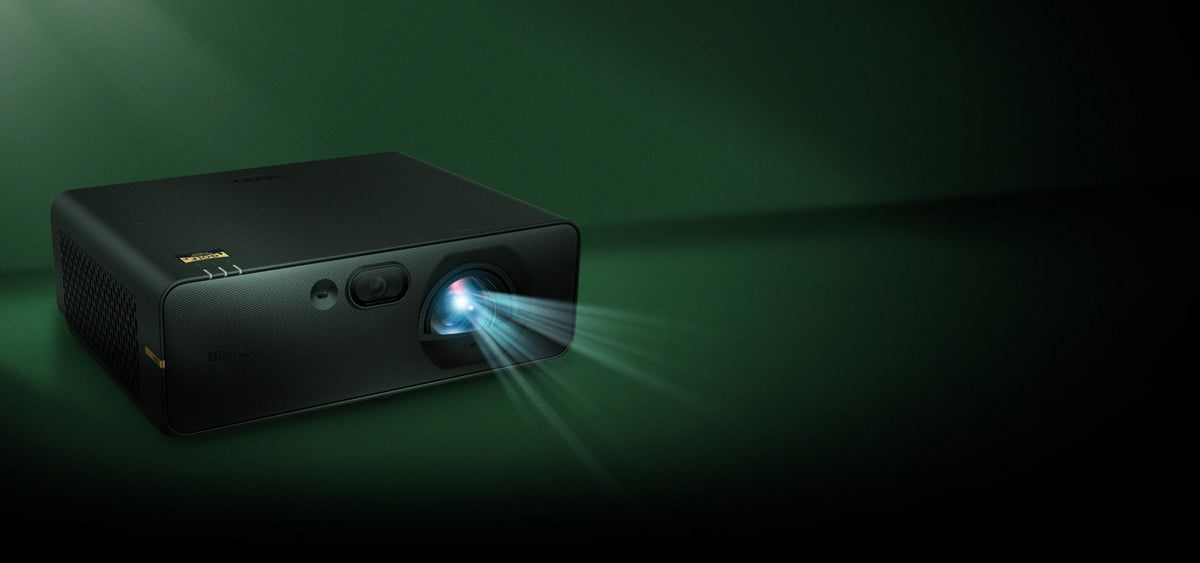

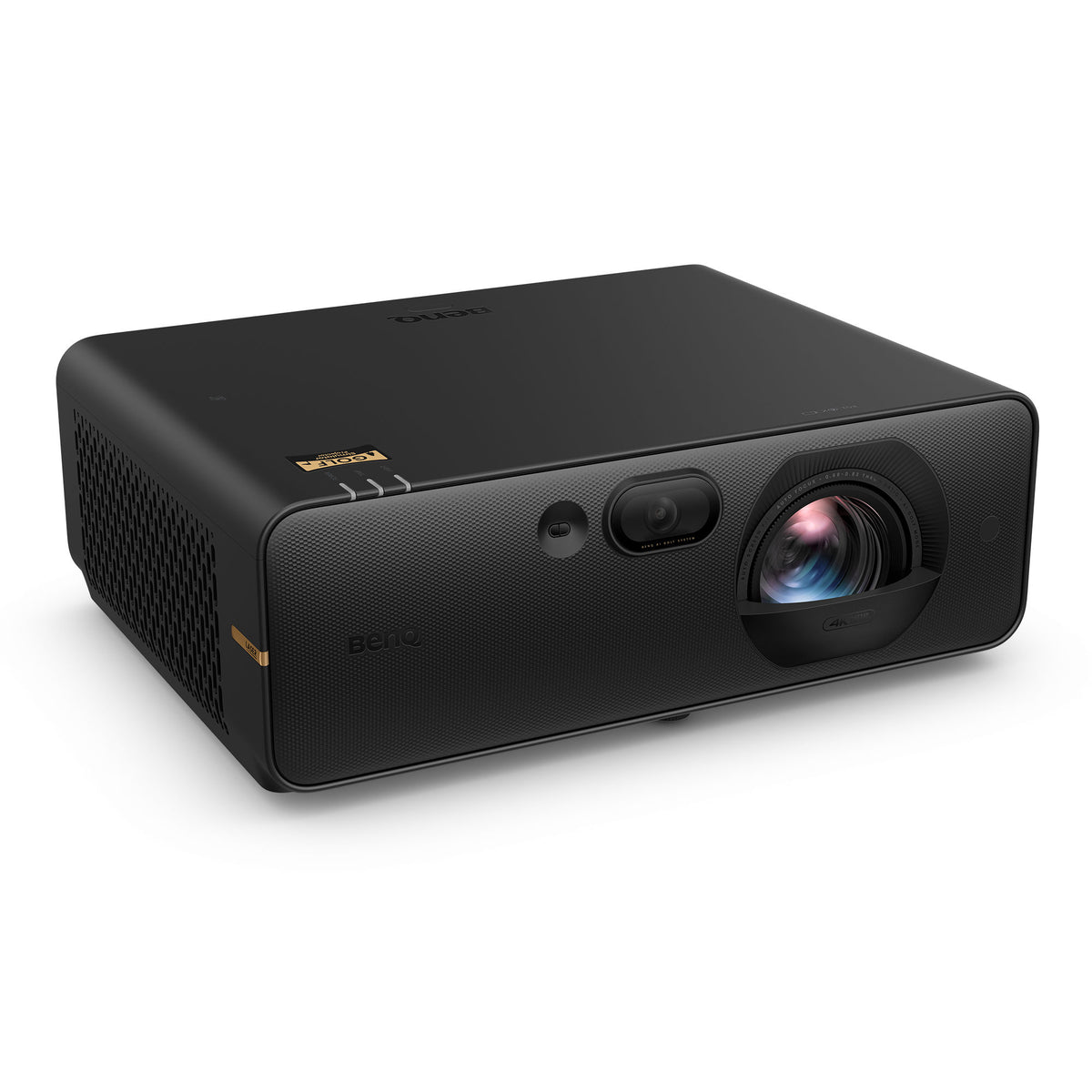

BenQ AK800ST: 5000-Lumen 4K AI Short-Throw Golf Simulator Projector
By BenQ

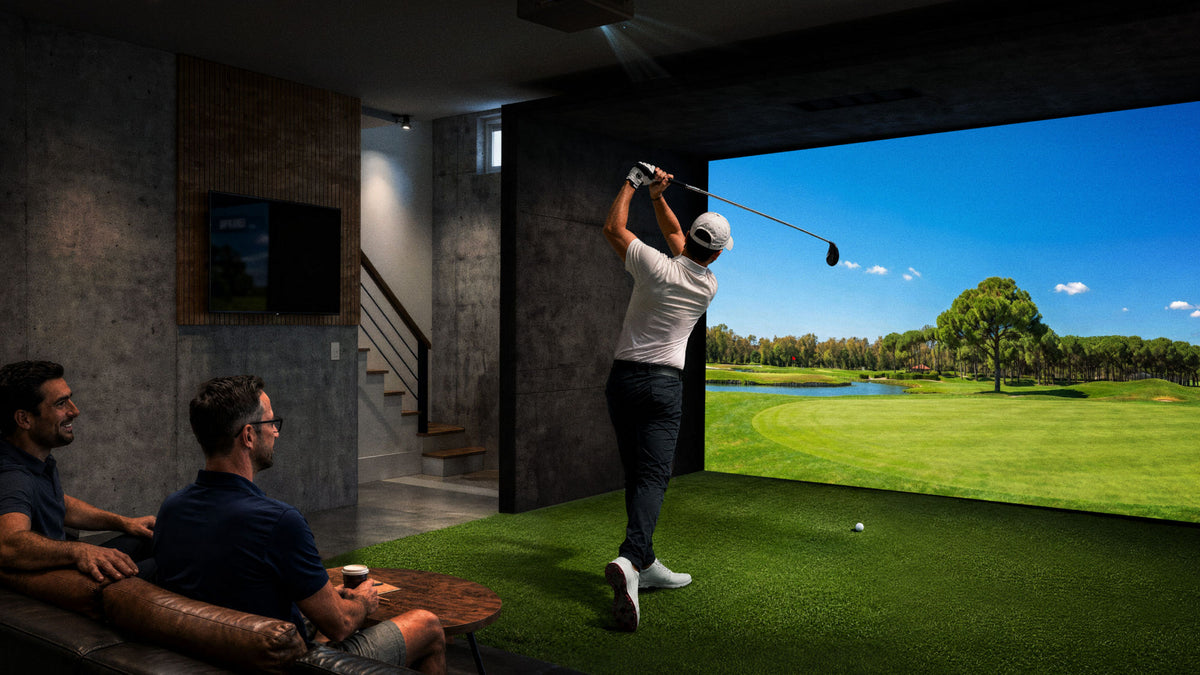

AI-Tuned 4K For The Home Sim Room.
The AK800ST brings BenQ AI Sim Sense™ into the core of the golf lineup. A built-in AI processing unit reads the course on screen, the room light, and the impact screen, then tunes color, contrast, and clarity automatically. Pair that with 5,000 ANSI lumens, true 4K UHD, the same 0.69–0.83:1 short-throw geometry as the AK700ST, and camera-driven Auto Screen Fit 2.0 with curved-screen support, and the result is a bright, easy-to-install projector for rooms that do golf, movies, and game night.
Flagship Intelligence At A Home-Bay Price.
AI Sim Sense™ Processing
A built-in APU powers AI Picture Quality, AI-Enhanced Contrast, AI Super Resolution, and AI Noise Reduction. Launch-monitor content gets sharper grass texture, deeper contrast, and less shimmer without any manual tuning.
5,000 Lumens For Lit Rooms
A step up from the AK700ST’s 4,000 lumens, with strong ambient-light resistance so the course stays sharp and colorful with the lights on or daylight coming into the room.

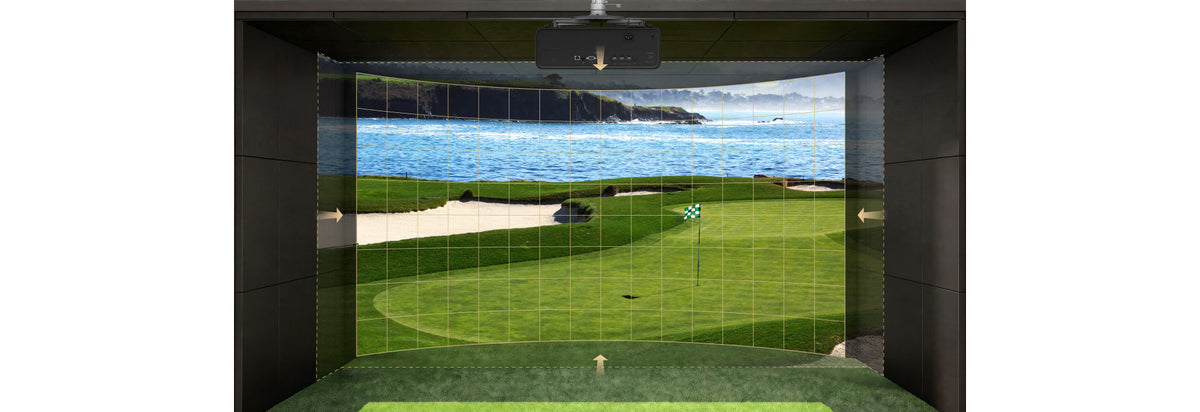

Auto Screen Fit 2.0
ToF sensing, BenQ algorithms, and an onboard camera detect the impact screen’s exact geometry, flat or curved, and snap to a distortion-free fill in seconds. Smart warping then refines curved screens point by point.
Auto Focus + Ambient Light Enhancer
One-touch motorized autofocus delivers sharp 4K from the remote. The built-in camera reads ambient light on the screen and recalibrates course colors for darkness, daylight, or anything in between.
Golf Mode + HDR Golf
BenQ’s exclusive Golf Mode reproduces natural fairway greens and bunker sand at 97% Rec. 709. HDR Golf adds global and local contrast enhancement across roughly 5,000 zones plus Dynamic Black.
Scene Memory + Picture-in-Picture
Save up to five complete display profiles covering picture mode, screen fill, zoom, focus, geometry, audio, and input. Dual-source PiP lets a tournament or lesson run alongside the sim.
Who Is It Best For?
Home simulator builders and multi-use recreation rooms that want brighter output than the AK700ST, AI-driven picture tuning, and one-press setup for flat or curved screens, without paying for the AK900ST’s lens shift and 6,000-lumen engine.
Shadow-Free Mounting, One-Press Alignment.
Short-Throw Geometry
The AK800ST is built for bays where the projector stays behind the golfer and out of the swing path while still filling a large impact screen.
- 0.69–0.83:1 short-throw ratio for shadow-free mounting
- 1.2× motorized zoom adjusts image size from the remote without moving the mount
- 102.5% projection offset (full-height) for standard ceiling mounting
- Image sizes up to 300″ diagonal
- Screen Fill presets for 16:9, 16:10, 3:2, 4:3, 5:4, and 1:1
Auto Screen Fit 2.0 & Smart Setup
Camera-driven automation handles alignment and focus so setup happens from the ground, not the ladder.
- Auto Screen Fit 2.0 fits flat or curved impact screens with one press
- Motorized Auto Focus for sharp 4K clarity from the remote
- 3D Keystone with ±30° vertical, horizontal, and rotation
- Corner Fit for corner-by-corner adjustment when the projector cannot be perfectly centered
- Confirm throw distance with the ESG fitment tool before mounting
BenQ’s AI Golf Projector For Home Recreation Hubs.
The AK800ST is a 4K UHD short-throw DLP projector driven by a laser light source rated for 20,000 hours in Normal mode and 30,000 hours in Eco mode. That is years of daily simulator use with no bulbs to replace and no lamp-style brightness drop-off.
With a 0.69–0.83:1 throw ratio and 1.2× motorized zoom, the AK800ST mounts behind the hitting area, above the swing plane, and supports image sizes up to 300″ diagonal. It does not have optical lens shift, so plan the mount centered on the screen and let Auto Screen Fit 2.0, 3D Keystone, and Corner Fit handle final alignment. For the exact lens-to-screen distance for your screen size and aspect ratio, run the numbers in the ESG projector fitment tool and throw calculator before mounting.
Ceiling mount notes: at roughly 13 lbs and 15.3″ wide, the AK800ST is far more compact than the AK900ST and works with the BenQ Universal Ceiling Mount CM00G3. The motorized zoom gives meaningful slack on install position.
For PC-based simulators running GSPro, E6 Connect, TGC 2019, or Awesome Golf, the AK800ST connects through three HDMI 2.1 inputs with HDCP 2.3, accepting 4K at 60Hz or 1080p up to 240Hz. AI Super Resolution and AI-Enhanced Contrast lift standard launch-monitor output so sim software looks sharper and deeper than its native render.
The Full AK800ST Feature Set.
True 4K UHD Resolution
Native 3840 × 2160 with 8.3 million addressable pixels delivers crisp course textures, sharp ball-flight tracers, and clean UI overlays at simulator-sized image dimensions.
Short Throw With Motorized Zoom
0.69–0.83:1 throw ratio and 1.2× motorized zoom fine-tune image size from the remote with no need to reposition the projector.
5,000 ANSI Lumens
High output for garages, basements, and bonus rooms with ambient light, backed by the camera-based Ambient Light Enhancer that adjusts color to the room.
HDR Golf + Cinema Modes
HDR Golf, HDR10, and HLG support with 24p cinema playback and MEMC for sports. Golf, Bright Golf, Cinema, Game, and Sports modes cover every use of the room.
Low Input Lag Up To 240Hz
18.1 ms at 4K 60Hz and as low as 4.8 ms at 1080p 240Hz, with ALLM for automatic low-latency switching when gaming content is detected.
Modern Connectivity
3× HDMI 2.1 (HDCP 2.3, one with eARC 7.1 audio return), 2× USB-A, RJ45 LAN, RS232, 3D sync out, 3.5 mm audio out, and wireless projection with iOS mirroring, Google Cast, and Miracast.
AK800ST Key Specifications.
| Projection System | DLP |
|---|---|
| Resolution | 4K UHD (3840 × 2160) |
| Brightness | 5,000 ANSI lumens |
| Contrast Ratio | 3,000,000:1 (FOFO) |
| Color | 97% Rec. 709; 30-bit (1.07 billion colors) |
| Light Source | Laser (20,000 hrs Normal / 30,000 hrs Eco) |
| AI Processing | BenQ AI Sim Sense™ with built-in APU |
| Throw Ratio | 0.69–0.83:1 |
| Zoom | 1.2× motorized |
| Projection Offset | 102.5% (full-height) |
| Lens Shift | None |
| Keystone | 3D (±30° vertical, ±30° horizontal, ±30° rotation) |
| Screen Size | Up to 300″ diagonal |
| Aspect Ratios | Native 16:9; Screen Fill for 16:10, 3:2, 4:3, 5:4, 1:1 |
| HDR Support | HDR Golf, HDR10, HLG |
| Input Lag | 18.1 ms (4K 60Hz), 9.7 ms (1080p 120Hz), 4.8 ms (1080p 240Hz) |
| Inputs | 3× HDMI 2.1 (HDCP 2.3, ALLM on HDMI 1–2), 2× USB-A, RJ45 LAN, RS232, 3D sync out |
| Audio | 10W speaker, 3.5 mm out, eARC 7.1 |
| Noise Level | 34 dB (Normal) / 29 dB (Eco) |
| Power Consumption | 285.1W typical (110V) |
| Dimensions (W × H × D) | 15.3″ × 5.5″ × 11.9″ (387.9 × 140 × 301.9 mm, with feet) |
| Weight | ~13 lbs (5.9 kg) |
| Optional Accessories | CM00G3 ceiling mount, EZC-5201BS wireless dongle |
| Dealer Status | Elite Sim Golf Authorized BenQ Dealer |
BenQ 4K Golf Simulator Projectors.
All three BenQ 4K laser projectors below are built for golf simulation. The right pick depends on bay size, ambient light, mounting flexibility, and budget.
- Resolution: 4K UHD (3840×2160)
- Brightness: 4,000 ANSI lumens
- Color: 95% Rec. 709
- Throw Ratio: 0.69–0.83:1
- Zoom: 1.2× motorized
- Lens Shift: None
- Setup: Auto Screen Fit, Quick Focus
- Inputs: 2× HDMI 2.0 + USB-C DP Alt
- Resolution: 4K UHD (3840×2160)
- Brightness: 5,000 ANSI lumens
- Color: 97% Rec. 709
- Throw Ratio: 0.69–0.83:1
- Zoom: 1.2× motorized
- Lens Shift: None
- Setup: AI Sim Sense™, Auto Screen Fit 2.0, Auto Focus
- Inputs: 3× HDMI 2.1, up to 240Hz
- Resolution: 4K UHD (3840×2160)
- Brightness: 6,000 ANSI lumens
- Color: 97% Rec. 709
- Throw Ratio: 0.81–0.89:1
- Zoom: 1.1× motorized
- Lens Shift: ±60% V / ±23% H
- Setup: AI Sim Sense™, Auto Screen Fit 2.0, Auto Focus
- Inputs: 2× HDMI 2.1 + 1× HDMI, up to 240Hz
The Smart Upgrade For A Home Sim Bay.
Choose the BenQ AK800ST for AI-tuned 4K golf visuals, 5,000 lumens for rooms that are not fully dark, one-press alignment on flat or curved screens, and saved profiles that move the room from a round of golf to movie night with a single button.
Pair It With An Elite Sim Golf Enclosure
The AK800ST shines in a properly sized Eagle 12 enclosure with a 4K-ready impact screen, or step up to the Albatross 13 for a wider bay.
Build A Complete SimKit
Build a custom bay around the AK800ST — launch monitor, enclosure, hitting mat, and projector — using the SimKit Bundle Builder.
