Trackman iO Launch Monitor
By Trackman
Popular Trackman Accessories3 add-ons Trackman buyers order most
Purpose-Built For The Indoor Game. Ceiling-Mounted. Tour-Grade Data.
Trackman iO is Trackman's first launch monitor built from the ground up for indoor golf. A sleek ceiling-mounted unit combines radar, infrared, and high-speed imaging to deliver measured ball and club data — including true 3D spin and spin axis — for home simulators and commercial bays alike.
Because Trackman iO is overhead, the floor stays clear, both right- and left-handed golfers use the same setup, and no additional room lighting is required. There is no minimum distance in front of or behind the ball — just enough room to swing a club and mount the unit at the correct height.
Three Software Tiers. Two Hardware Options.
Every Trackman iO ships with the same measured ball data hardware. The Software selection unlocks additional club-data measurement and commercial licensing. The Ceiling Height selection sets the calibration profile — plus the option to add a second unit (DUO) for dual-dexterity play in bays under 14 ft wide.
Home
- Full measured ball data (speed, launch, spin, 3D spin axis, carry, total)
- Trackman Virtual Golf 2 — 300+ courses
- Home Edition software, 1-year included
- Non-commercial home use license
- Home Edition renewal $700/year
Home Complete
- Everything in Home plus measured club data
- Club speed, attack angle, club path, face angle, impact location
- Full Trackman data set for practice and coaching
- Non-commercial home use license
- Home Complete renewal ~$1,100/year
Commercial
- Full measured ball and club data
- Commercial-use license (sim bars, studios, clubs)
- Multi-bay operator features and reporting
- Trackman Virtual Golf 2 — 300+ courses
- Commercial renewal ~$1,100/year
Add A Second Unit For Dual-Dexterity Bays Under 14 ft Wide.
Any software tier can be paired with the Trackman iO DUO configuration — a second overhead unit installed side-by-side so left- and right-handed golfers share the same bay without repositioning. Required when bay width is under 14 ft and both dexterities will play. Choose a DUO ceiling-height option to add the second unit. DUO adds $5,000 to Home ($18,995 total) and $4,500 to Home Complete or Commercial ($28,495 total).
Ceiling Height
Three single-unit calibration profiles (8'9"–9'5", 9'4"–10', 9'10"–10'6") plus two DUO profiles (9'4"–10', 9'10"–10'6"). Select the range that matches your finished hitting-surface-to-ceiling measurement.
Unsure which software tier or ceiling profile is right for your build? The Elite Sim Golf team is happy to help — reach out before ordering.
Ideal Mounting Height 9'8" — Range 9'4" To 10'.
Trackman iO installs directly to the ceiling above the tee. The unit ships with the required ceiling bracket and mounting plate for a standard VESA 100 × 100 install between 9'4" and 10' above the finished hitting surface, with 9'8" as the ideal calibration height.
For ceilings above 10'6", a VESA 100 × 100 drop mount is required (sold separately). Three calibration heights (LOW, MID, HIGH) cover 8'10" to 10'6" so the unit can adapt to most residential and commercial rooms.
Mount In Front Of The Tee
Trackman iO mounts 3'3" to 3'5" in front of the tee (measured from tee to center of mount) for the correct camera and radar geometry.
LOW Calibration
8'10" to 9'6" from hitting surface to ceiling. Ideal for lower-ceiling residential rooms.
MID Calibration
9'4" to 10' from hitting surface to ceiling. The most common and recommended range.
HIGH Calibration
9'10" to 10'6" from hitting surface to ceiling. Supported by both iO and iO DUO.
Above 10'6"
Add a VESA 100 × 100 drop mount or adjustable mounting solution (sold separately).
Room Requirement — 10 ft Ceiling, 15 ft Wide, 18 ft Deep (Recommended)
Trackman recommends at least 10 ft ceiling, 15 ft room width, and 18 ft depth for full driver swings with comfortable clearance. The DUO configuration reduces the minimum bay width down to 10 ft for dual-dexterity play.
Software Subscription Required For Full Simulator Use
Trackman iO hardware ships with a 1-year Home Edition software subscription included. After year one, an active Trackman subscription (Home Edition starts at $700/year) is required to keep Virtual Golf courses and premium features active.
Every Advantage Of Overhead. None Of The Compromise.
Ceiling-Mounted Design
Clean, floor-free bay. Nothing beside the ball, nothing on the mat. Sleek and compact housing.

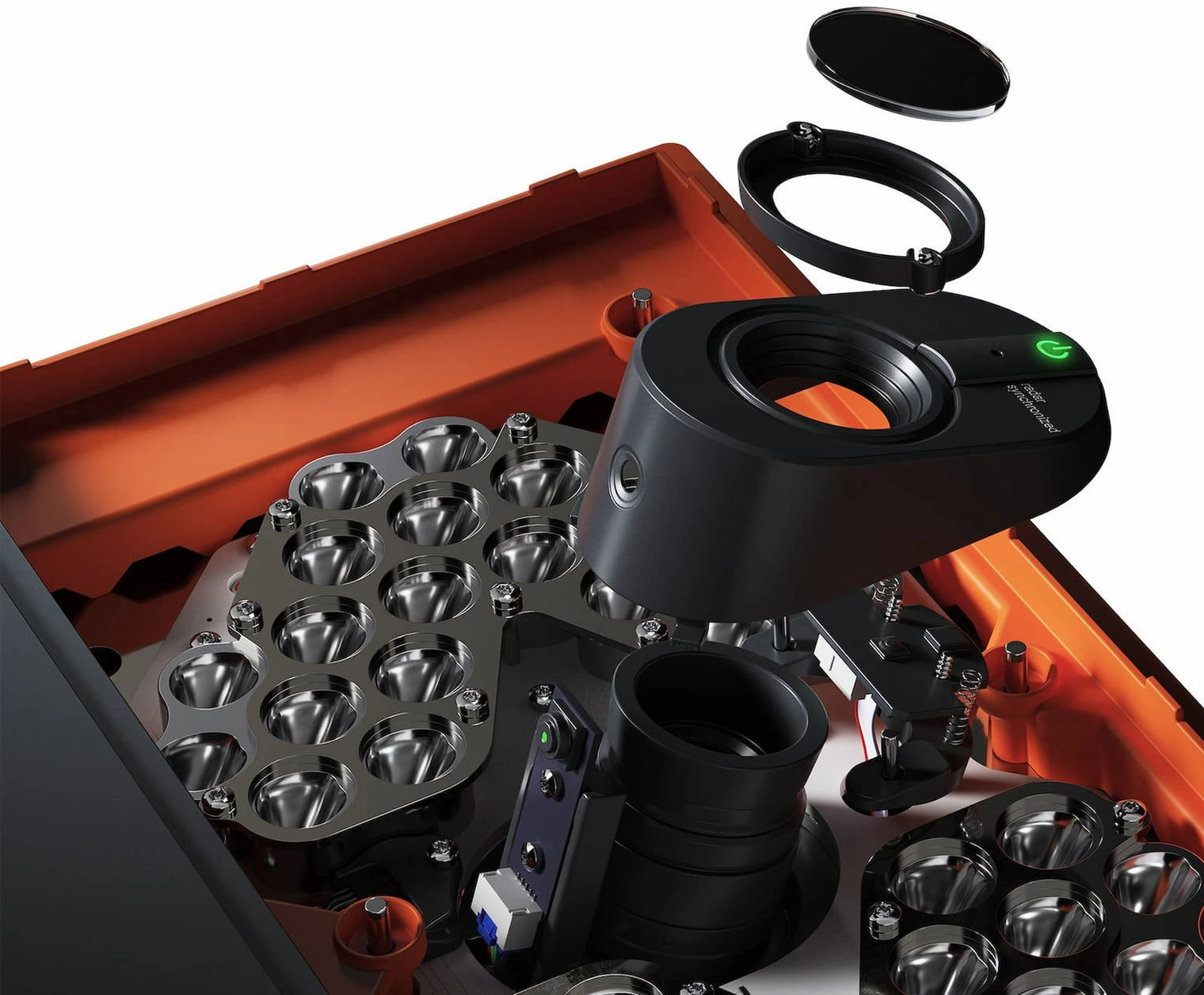

Radar + Infrared + Imaging
Combines dual radar, infrared, and high-speed imaging to measure real ball and club data.
True 3D Spin + Spin Axis
Measured 3D spin and spin axis on every shot — not modeled from ball speed and launch angle.
Both Handedness
Right- and left-handed golfers use the same overhead setup without moving the unit.
No Extra Lighting
Trackman iO does not require room lighting rigs or specialty bulbs to perform.
No Minimum Distance
No minimum distance in front of or behind the ball. Just enough room to swing a club.
Real-Time Analytics
Live club and ball analytics delivered in real time for practice and simulator play.
DUO For Narrow Bays
The iO DUO configuration supports dual-dexterity play in bays as narrow as 10 ft wide.
By The Numbers.
Full Trackman Stack, Home Edition.
Trackman Performance Studio (TPS)
- Range analysis with shot dispersion and club averages
- Practice and training modes with structured drills
- Test Center for club fitting sessions
- Cloud storage and shareable session reports
- Tracy AI coaching and personalized practice
Trackman Virtual Golf 2
- 300+ courses including 40+ real tour venues
- ~3 new courses added monthly to the library
- All games and challenges included with Home Edition
- Tour player library for swing and shot comparison
- Multiplayer and online events across the Trackman network
Measured Ball And Club Data. Real 3D Spin.
Trackman iO delivers the depth of data expected from Trackman, adapted for the indoor game. The combined radar, infrared, and high-speed imaging system captures real ball speed, launch, spin, and club delivery — with measured 3D spin and spin axis rather than modeled outputs.
Club Data
Measured at impact by high-speed imaging.
- Club Speed
- Attack Angle
- Club Path
- Face Angle
- Face-To-Path
- Dynamic Loft
- Impact Location
- Smash Factor
- Swing Direction
Ball Data
Measured, with real 3D spin and spin axis.
- Ball Speed
- Launch Angle
- Launch Direction
- Spin Rate
- Spin Axis
- 3D Spin
- Carry Distance
- Total Distance
- Apex Height
- Land Angle
- Curve
Real Time
Immediate feedback for practice and play.
- Live Feedback
- Shot Session Log
- Club Averages
- Dispersion Charts
- Cloud Sync
- Session Sharing
Plus: Home Edition Software Suite
Every Trackman iO includes a 1-year Home Edition subscription covering Trackman Performance Studio, Trackman Virtual Golf 2 with 300+ courses, Tracy AI coaching, practice tools, and cloud storage. Home Edition renewal is $700/year after the first year.
Indoor Simulator Builds, Home And Commercial.
Clean Home Simulators
Owners who want a distraction-free bay with nothing on the floor and no lighting rig required.
Narrow-Bay Setups
Basements and garages where the iO DUO can turn a 10 ft bay into a dual-dexterity room.
Commercial Operators
Sim bars, fitting studios, and country clubs that need Trackman-grade data in a compact indoor unit.
Data-Driven Practice
Players who want measured 3D spin, spin axis, and real club delivery, not modeled outputs.
Everything You Need To Mount And Calibrate.
Every Trackman iO order from Elite Sim Golf ships with the full mounting and calibration kit. The DUO configuration includes two complete Trackman iO units with two full mounting kits.
- Trackman iO Unit
- Ceiling Bracket + Mounting Plate
- Calibration Board + Accessories
- Power Cable + Adapter
- USB Stick (Software + Guides)
- Flashlight, Tee, Tee Marker, AAA Batteries
Note: M6 12mm VESA 100 × 100 mounting screws (4 required plus 2 spare) are included in the box. A standard drop mount for ceilings taller than 10'6" is sold separately.
Trackman iO Buyer FAQ.
What are the three software tiers?
Home ($13,995) is single-unit hardware with full measured ball data and a non-commercial home license — renewal is ~$700/year after the included first year. Home Complete ($23,995) adds full measured club data (club speed, attack angle, path, face angle, impact location) on top of the same ball data and stays on the non-commercial license — renewal is ~$1,100/year. Commercial ($23,995) includes both full ball and club data plus a commercial-use license for sim bars, studios, and clubs — renewal is ~$1,100/year.
What is the DUO configuration?
DUO pairs two ceiling-mounted iO units side-by-side and is required for dual-dexterity play in bays under 14 ft wide. Any of the three software tiers can be ordered in the DUO configuration by selecting a DUO ceiling-height option. DUO is offered at 9'4"–10' and 9'10"–10'6" only — the LOW range (8'9"–9'5") does not support DUO. DUO adds $5,000 to the Home tier and $4,500 to Home Complete or Commercial.
What ceiling height does Trackman iO require?
The ideal mount height is 9'8" above the finished hitting surface, with a supported range of 9'4" to 10' for the MID calibration profile. LOW covers 8'10" to 9'6" and HIGH covers 9'10" to 10'6". Ceilings above 10'6" require a VESA 100 × 100 drop mount, sold separately.
How far in front of the tee does Trackman iO mount?
The unit mounts 3'3" to 3'5" in front of the tee measured from the tee to the center of the mount. This is required for the correct camera and radar geometry.
Does Trackman iO work outdoors?
No. Trackman iO is purpose-built for indoor golf. For indoor and outdoor use in the same unit, choose Trackman 4 instead.
Does Trackman iO require a subscription?
Every Trackman iO ships with a 1-year Home Edition software subscription included. After year one, an active Trackman subscription is required to keep Virtual Golf courses and premium features. Home Edition starts at $700/year.
Do I need special golf balls or club stickers?
No stickers or marked balls are required. Trackman iO tracks any tour-quality golf ball straight from the sleeve.
Does Trackman iO work for both right- and left-handed golfers?
Yes. Because Trackman iO is ceiling-mounted, both right- and left-handed golfers can use the standard iO configuration without moving the unit. For narrow bays under 12 ft wide where both dexterities will play, the Trackman iO DUO is required.
What data does Trackman iO measure?
Trackman iO measures real ball data (including 3D spin and spin axis), real club data (including path, face angle, attack angle, and impact location), and delivers all values in real time. It is the first Trackman built specifically for the indoor game.
Do I need extra lighting?
No. Trackman iO does not require additional room lighting or a specialty lighting rig — the system handles standard indoor room conditions on its own.
How does Trackman iO connect to my simulator PC?
Trackman iO uses a wired Ethernet RJ45 connection (10/100/1000 Mbps) to the simulator PC. Standard AC power is required. The unit does not use wireless connectivity for the primary data stream.
What warranty is included with Trackman iO?
Trackman iO ships with a 1-year manufacturer warranty covering defects in materials and workmanship. Elite Sim Golf provides ongoing setup and support alongside the manufacturer warranty.
Is Elite Sim Golf an authorized Trackman reseller?
Yes. Elite Sim Golf is an authorized Trackman reseller. Every unit ships new, factory-sealed, and registered under the buyer's account with the included 1-year software subscription and full manufacturer warranty.
How does Elite Sim Golf ship Trackman iO?
Trackman iO ships free via UPS Ground and is fully insured. Expedited shipping options are available at checkout. DUO configurations ship in two boxes — one per unit.
The Best Way To Buy Trackman iO — Backed By A Team That Runs Simulators.
Trackman iO is a premium simulator investment. Elite Sim Golf backs every order with real installation experience, fast fulfillment, and post-purchase support from a team that lives inside simulator builds every day.
Authorized Trackman Reseller
Every unit ships new and factory-sealed, registered under the buyer's account with the full 1-year software subscription and manufacturer warranty.
Free UPS Ground Shipping
Free, fully insured UPS Ground shipping on every Trackman iO order. DUO configurations ship in two boxes.
Install & Mounting Guidance
The ESG team helps confirm ceiling height, mount position, and simulator PC specs before the unit arrives.
Real Post-Purchase Support
Setup, calibration, and software help from a team that installs Trackman iO in real bays.
