Commercial Series 2" EMT Golf Simulator Enclosure by Elite Sim Golf
A Facility-Grade Bay Built on a 2″ EMT Frame
Built for high-traffic practice spaces and serious home studios, the Commercial Series delivers the clean look, premium ball containment, and simulator-ready design of the Elite Sim Golf lineup — now built around a heavy-duty 2″ EMT frame system. The upgraded 2″ tubing gives the structure the rigidity demanded by commercial settings while keeping installation straightforward, with all corner connectors included. Choose from a range of preconfigured sizes, or order a fully custom build — select a size to get started.

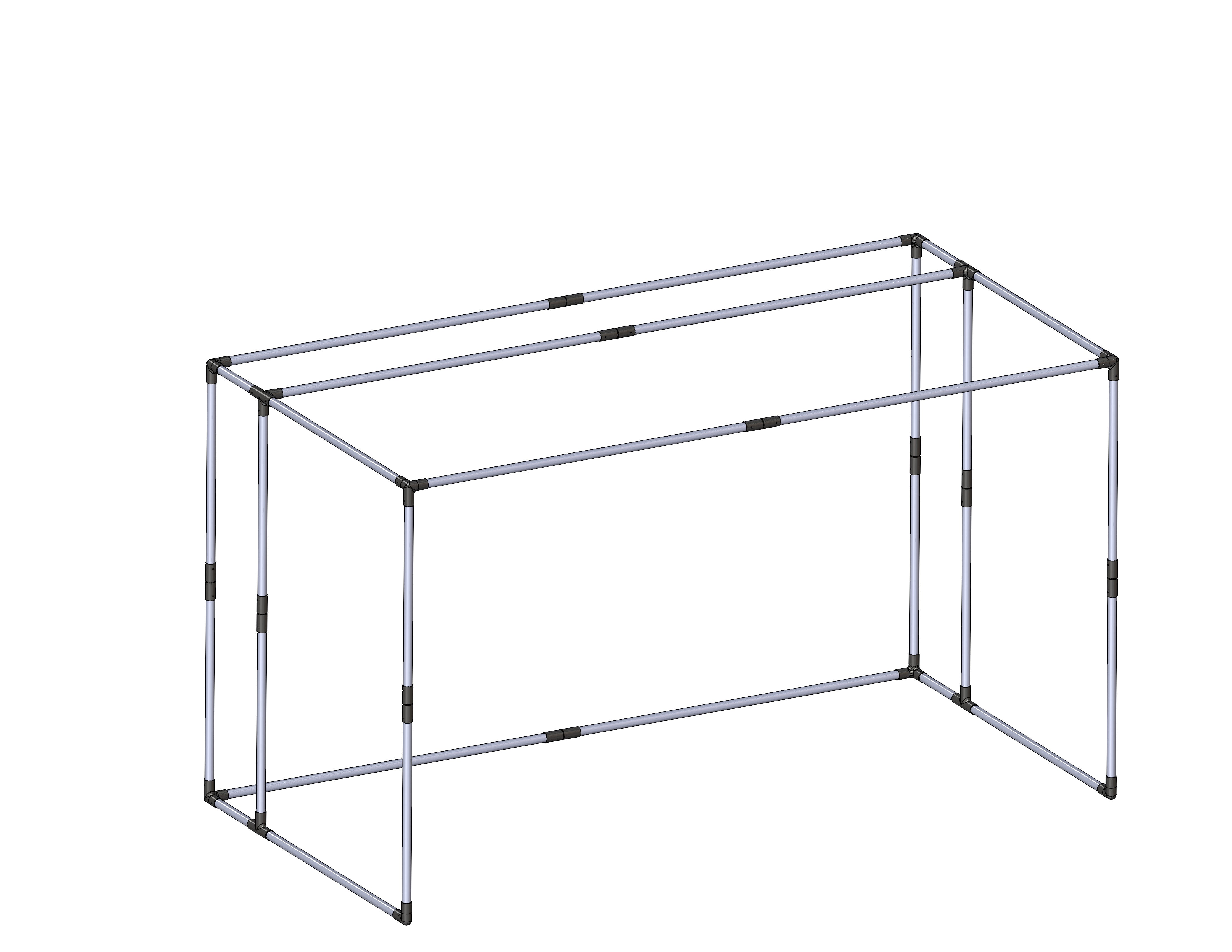

2″ EMT Frame System
The Commercial Series is built around heavy-duty 2″ EMT tubing for a stronger, more rigid structure than a standard 1″ frame — the right foundation for high-use practice spaces. The kit includes all necessary corner connectors, so the EMT can be sourced locally or ordered pre-cut from Elite Sim Golf for a faster, easier build.
Upgraded 2″ Tubing
The 2″ EMT frame delivers commercial-grade rigidity and a rock-solid feel built for repeated, high-volume practice sessions.
Corner Connectors Included
All necessary corner connectors come in the kit, so the frame can be sourced locally or ordered pre-cut without hunting for extra hardware.
Pre-Cut EMT Option
Order pre-cut 2″ EMT from Elite Sim Golf for a quicker install with less measuring and prep on-site.
Built-In Stand-Off and Standard Triple-Layer Screen
Unlike a basic flat-wall layout, the Commercial Series includes a built-in 1’ stand-off to help keep golf balls from impacting the wall behind the enclosure — an important detail for higher-use environments and cleaner long-term installs. A white triple-layer impact screen comes standard for a bright projected image and long-term durability.
Built-In 1FT Stand-Off
Total enclosure depth is 6’, with 5’ of playable depth between the front of the enclosure and the impact screen, and a built-in 1’ rear stand-off to help protect the wall behind the bay.
White Triple-Layer Screen
A white triple-layer impact screen ships standard, designed for clean image projection, strong durability, and the premium look expected from a commercial-grade enclosure. A gray screen upgrade is available.
Select a Preconfigured Size or Build Fully Custom
The Commercial Series is offered in a range of preconfigured sizes — pick the bay that fits the room using the size selector at the top of the page. Beyond the standard sizes, every Commercial Series enclosure can be built to custom width, height, and depth so the bay fits the exact facility rather than forcing the facility to fit the bay.
Preconfigured Sizes (W × H × D, ft)
Custom Width
Widen or narrow the bay to match the available wall and the swing window needed for right- and left-handed play.
Custom Height
Set the total height to the ceiling, keeping full containment for high swings while clearing overhead obstructions and mounts.
Custom Depth
Adjust depth and rear clearance to the room, with the built-in stand-off concept carried into the custom build for wall protection.
Need a Non-Standard Size?
Request a Custom BuildAll the Standard Elite Sim Golf Enclosure Features
The Commercial Series carries the core enclosure benefits found across the Elite Sim Golf lineup, upgraded for a larger, more demanding environment.
Premium Ball Containment
- Designed to keep shots in the bay and reduce rebound energy
- Clean, professional look for home or facility installs
Simulator-Ready Fit & Finish
- Built for common projector and impact screen layouts
- Clean edges and a tight build for a polished studio feel
Durable Construction
- Materials selected for repeated, high-volume practice sessions
- Made to hold up in garages, basements, and commercial spaces
Turn-Key Friendly
- Pairs with launch monitors, hitting mats, and projectors
- An ideal foundation for premium plug-and-play simulator packages
Available Upgrades and Key Specs
Customize the enclosure to better fit the room, image preferences, and assembly needs.
Rear Blackout Panel
Helps reduce light bleed behind the screen for a cleaner presentation.
Gray Screen Upgrade
A great option for a more vibrant, higher-contrast image in many simulator environments.
Bungee Cord Bottom
Creates a smoother screen-to-turf transition for a more immersive look, and helps reduce bounceback by eliminating the need for a lower frame crossbar to hold the screen in position.
Pre-Cut 2″ EMT Pipes
Available for quick, easy assembly with less measuring and prep on-site.
| Preconfigured Sizes | 18×10×6, 16×10×6, 16×9×6, 15.5×10×6, 13×10×6, 12×9×6 (W × H × D, ft) — select at top of page |
| Custom Sizes | Custom width, height, and depth available on request |
| Custom Depth | Customizable to the application — common options of 8’, 10’, 12’, and 15’ in addition to the standard 6’ |
| Screen Depth | 5’ from the front of the enclosure to the impact screen (standard 6’ depth) |
| Rear Stand-Off | Built-in 1’ stand-off behind the impact screen |
| Standard Screen | White triple-layer impact screen (gray upgrade available) |
| Frame | 2″ EMT frame design with heavy-duty commercial tubing |
| Included Hardware | All necessary corner connectors included |
| Options | Rear blackout panel, gray screen upgrade, bungee cord bottom, and pre-cut 2″ EMT pipes |
Standard, PRO Series, and Commercial — Find the Right Tier
The Commercial Series sits at the top of the range. For smaller rooms or tighter budgets, the standard lineup and the PRO Series 12x9 cover home builds at a lower price — the difference is bay size, frame strength, and included finishing details.
Standard Lineup
- Steel-tube frame, white triple-layer screen, velvet lining
- 4:3 and 16:9 screen options
- Best for home rooms and standard garages
- The most affordable way into a full bay
PRO Series 12x9
- High Contrast Gray Triple Layer screen standard
- RipStop surround, bungee bottom, foam-lined flaps
- Built-in 1FT wall stand-off, fully customizable
- EMT pipe frame kit available as an add-on
Commercial Series
- Heavy-duty 2″ EMT frame for high-use spaces
- White triple-layer screen, gray upgrade available
- Built-in 1FT rear stand-off, custom sizes available
- Widest, strongest bays in the range
Build a True Facility-Grade Simulator Bay
Select a Commercial Series size, then pair it with a launch monitor, hitting mat, and projector for a complete plug-and-play setup built to handle real practice volume with a clean Elite Sim Golf finish. The team configures commercial and custom-sized bays every week and can help with size selection, room fit, frame planning, and projector throw confirmation.
Talk to a Simulator SpecialistCommercial Series Questions
What frame does the Commercial Series use?
The Commercial Series is built around a heavy-duty 2″ EMT frame system for commercial-grade rigidity. All necessary corner connectors are included, and the EMT can be sourced locally or ordered pre-cut from Elite Sim Golf for a faster build.
What size is the Commercial Series, and are custom sizes available?
Preconfigured sizes are 18×10×6, 16×10×6, 16×9×6, 15.5×10×6, 13×10×6, and 12×9×6 (width × height × depth, in feet), with the 16’ × 10’ × 6’ bay as a common full-commercial choice. Fully custom width, height, and depth are also available — depth in particular can be customized to the application, with common options of 8’, 10’, 12’, and 15’ in addition to the standard 6’.
What is the built-in stand-off?
The Commercial Series includes a built-in 1’ rear stand-off to help keep golf balls from impacting the wall behind the enclosure. Total depth is 6’, with 5’ of playable depth from the front of the enclosure to the impact screen.
What impact screen comes standard?
A white triple-layer impact screen comes standard for a bright projected image and long-term durability. A gray screen upgrade is available for higher contrast in many simulator environments.
Can I supply my own EMT or buy it pre-cut?
Both. The kit includes all necessary corner connectors, so 2″ EMT can be sourced locally or ordered pre-cut from Elite Sim Golf for quicker assembly with less measuring on-site.
What options and upgrades are available?
Available options include a rear blackout panel, gray screen upgrade, bungee cord bottom, and pre-cut 2″ EMT pipes.
How is the Commercial Series different from the Standard lineup and the PRO Series 12x9?
The standard Birdie 10, Eagle 12, and Albatross 13 are the most cost-effective home bays with a steel-tube frame and white screen. The PRO Series 12x9 is the premium home tier with a gray triple-layer screen, RipStop surround, and built-in finishing details. The Commercial Series is the top tier: a larger 16’ bay on a heavy-duty 2″ EMT frame, built for high-use facilities, with custom sizes available.
Can I build a complete simulator with this enclosure?
Yes. The Commercial Series pairs with a launch monitor, projector, and hitting mat for a complete plug-and-play setup. Use the SimKit Bundle Builder to configure a full package.
