SimSlide Pro Automated Launch Monitor Slider — Motorized Ceiling Rail For ProTee VX & VTrack
Build Your Dream Home Golf Simulator
Pair the SimSlide Pro Automated Launch Monitor Slider — Motorized Ceiling Rail For ProTee VX & VTrack with a launch monitor, projector, and hitting mat in the SimKit Builder.
Start Building in the SimKit Builder →The Right Sensor Position For Every Golfer. No Ladder, No Re-Mounting.
An overhead launch monitor has to sit on the correct side of the hitting area for the golfer at the tee. In a narrow basement, spare bedroom, or garage bay, that usually means left-handed golfers get a compromised setup — or someone climbs a ladder to move the sensor between players. SimSlide Pro removes that problem.
SimSlide Pro is the Elite Sim Golf motorized ceiling rail for the VTrack and ProTee VX. It reads the active player from GSPro, Infinite Tees, or PurePlay and slides the launch monitor across 46″ of travel to the correct side on its own — lefty or righty — and repositions automatically when the player or the club changes. SimSlide Pro is assembled in the USA and licensed for sale exclusively through Elite Sim Golf.
Motion Instead Of Width.
A fixed overhead sensor serves one handedness well. In a room without the width to center the sensor between both sides of the hitting area, the opposite golfer’s tracking suffers. SimSlide Pro solves it with motion: the launch monitor physically travels to the correct side before the shot.
The rail mounts overhead with a low-profile black canvas finish, and a cable drag chain carries the launch monitor cable along with the carriage. The floor stays clear, and switching between golfers becomes automatic instead of a mid-round interruption.
What This Means
SimSlide Pro turns a single-handed overhead simulator into a true two-golfer bay without buying a second launch monitor, widening the room, or accepting a compromised sensor position for lefties.
46″ Of Travel
Measured center-to-center of the carriage plate across the full length of the rail.
Custom Club Positions
Assign any club to the left, right, or center position — or to an exact spot on the rail.
Per-Golfer Profiles
Save separate profiles for each golfer and switch between them instantly.
Fail-Safe Center Park
If the PC or Wi-Fi connection drops, the carriage parks at center.
Installation Requirement — Ceiling Studs And Power
Cut an X in the canvas at each mounting point and screw the rail into the ceiling studs, mount the drag chain for the launch monitor cable, then plug it in. The rail assembly weighs 35 lb before the launch monitor is added, and the included 100W USB-C power supply needs an outlet within reach of the control box. Sensor mounting and clearance guidance is on the VTrack setup and support page and the ProTee VX setup and support page.
System Requirement — Windows PC, 2.4 GHz Wi-Fi, GSPro, Infinite Tees, Or PurePlay
SimSlide Pro connects over 2.4 GHz Wi-Fi to a Windows 10/11 app. Automatic handedness switching reads the active player from GSPro, Infinite Tees, or PurePlay. Each simulator platform is licensed separately.
Built For Tight Simulator Bays.
Automatic Handedness Switching
Reads the active player from GSPro, Infinite Tees, or PurePlay and slides the launch monitor to the correct side on its own.
Custom Club Positions
Assign any club to left, right, center, or an exact spot on the rail — a center putting position, for example.
Saved Golfer Profiles
Separate profiles for each golfer, switchable instantly from the app.
Closed-Loop NEMA 23 Drive
A NEMA 23 closed-loop servo drives the carriage with adjustable speed.
One-Click Calibration
Auto-calibration finds both travel limits in about 90 seconds.
Smooth, Rigid Motion
Dual supported linear rails and a GT2 belt drive carry the aluminum carriage plate through the full 46″ of travel.
Wi-Fi + Windows App
Live position, fine jog control from ¼″ to 3″, settings backup, and automatic updates over 2.4 GHz Wi-Fi.
Simple Install, Hardware Included
Screws into ceiling studs, with mounting hardware and a cable drag chain in the box. Low profile, black canvas finish.
By The Numbers.
Built Around Two Overhead Sensors.
Compatible Launch Monitors
Compatible Simulator Software
- GSPro — automatic handedness switching
- Infinite Tees — automatic handedness switching
- PurePlay — automatic handedness switching
What You’ll Need
- Windows 10/11 PC
- 2.4 GHz Wi-Fi
- GSPro, Infinite Tees, or PurePlay
- Ceiling studs at the rail location
Left, Center, Right — Or An Exact Spot.
Positions are set in the Windows app and recalled automatically. The rail moves when the active player changes in GSPro, Infinite Tees, or PurePlay, and when the club changes to one with an assigned position.
Right-Handed Position
Recalled automatically for right-handed golfers
- Set in the Windows app
- Fine jog from ¼″ to 3″
- Stored and repeatable
Shared Club Position
Assign any club to this position
- Ideal for putting
- Club-triggered
- One spot for both golfers
Left-Handed Position
Recalled automatically for left-handed golfers
- Set in the Windows app
- Fine jog from ¼″ to 3″
- Stored and repeatable
Plus: Exact Spots And Golfer Profiles
Any club can also be assigned to an exact spot anywhere on the rail, and each golfer can have a saved profile that switches instantly. Settings can be backed up from the app.
Closed-Loop Drive, Dedicated Control Box.

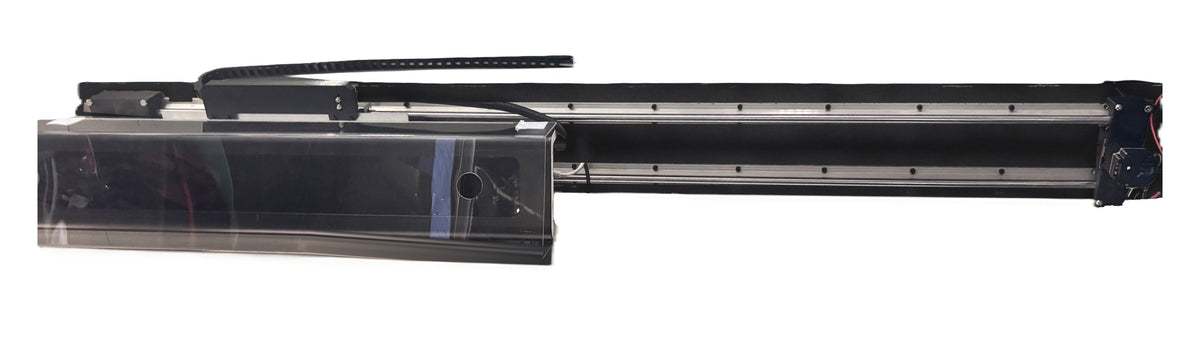

Installed · Launch Monitor On Carriage

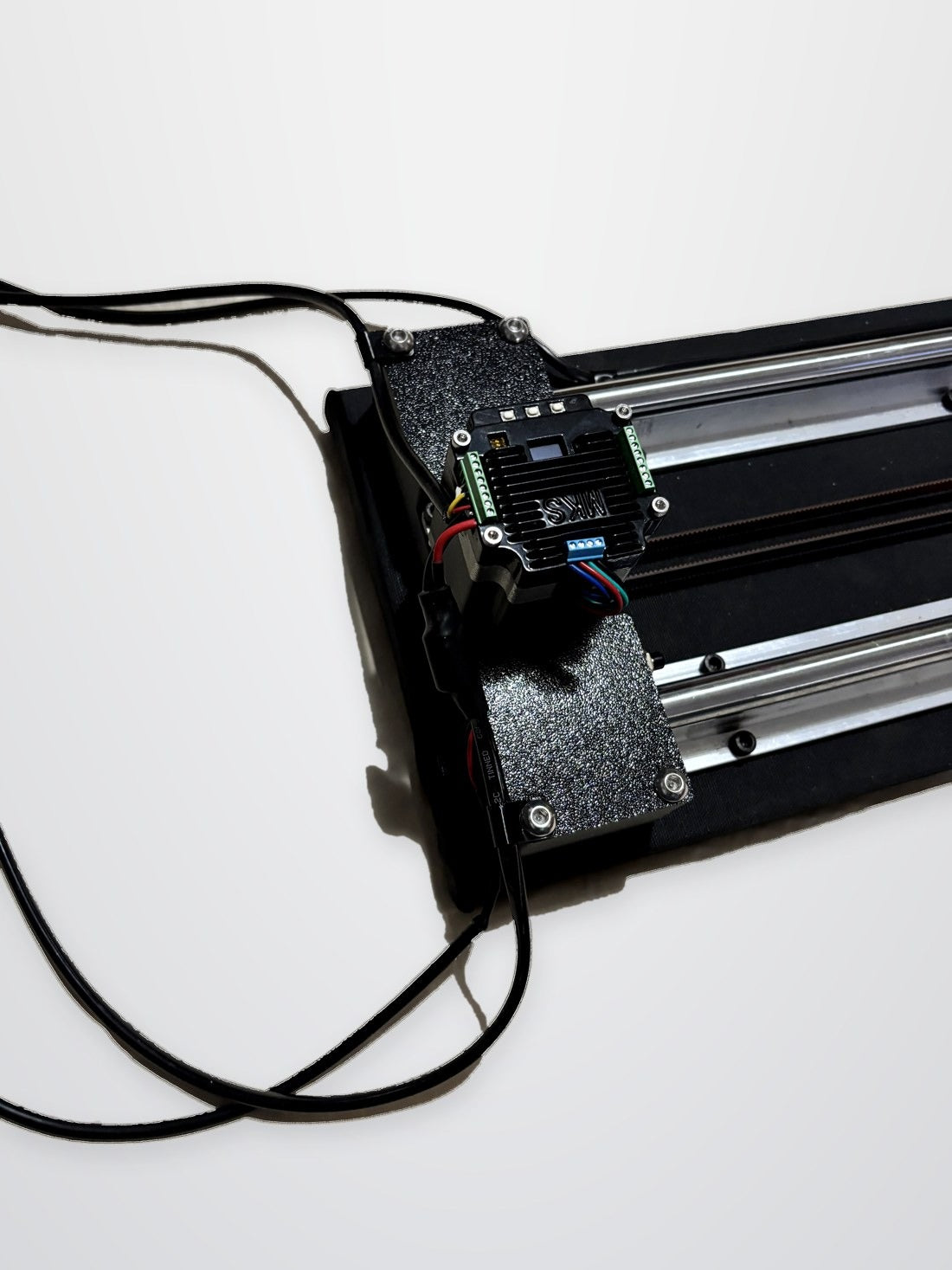

Drive · NEMA 23 Closed-Loop Servo

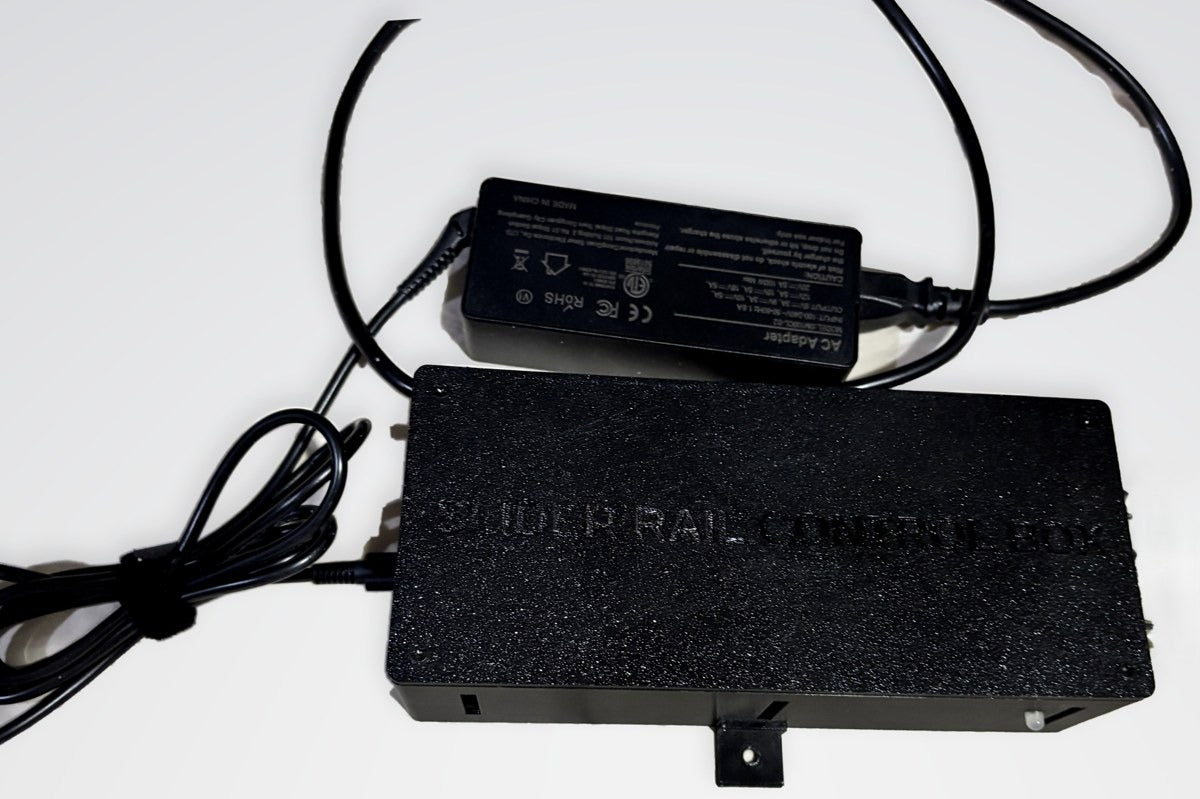

Control Box · 100W USB-C Supply
Everything To Get The Rail On The Ceiling.
The launch monitor is sold separately. Everything needed to mount, power, and control the rail ships in the box.

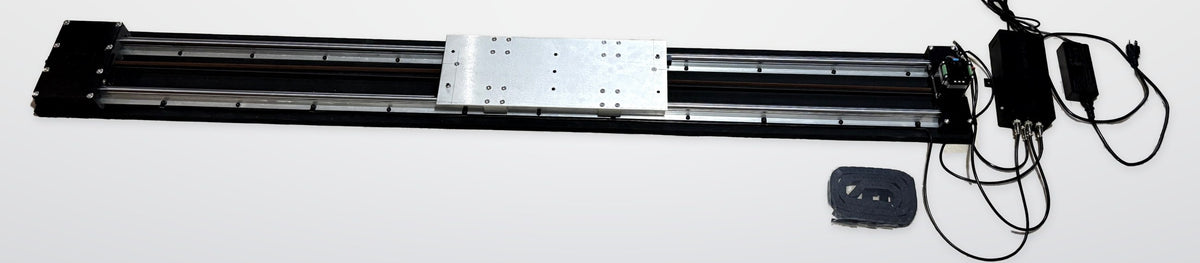

Rail Assembly
Dual linear rails, GT2 belt drive, and NEMA 23 servo with the aluminum carriage plate installed.
Control Box
Wi-Fi controller that links the rail to the Windows app.
100W USB-C Power Supply & Cable
Powers the control box and drive.
Cable Drag Chain
Carries the launch monitor cable with the carriage through its travel.
Mounting Hardware
For screwing the rail into ceiling studs.
Setup Guide
Install, calibration, and app setup steps.
Launch monitor mounting and clearance guidance is on the VTrack setup and support page and the ProTee VX setup and support page.
SimSlide Pro Vs. SimSlide LM.
Both rails solve the same room-fit problem. SimSlide LM is the manual version with lockable travel-stops. SimSlide Pro adds the closed-loop motor drive, Wi-Fi control, and automatic handedness switching.
| Feature | SimSlide LM (Manual) | SimSlide Pro (Motorized) |
|---|---|---|
| Actuation | Hand-operated slide with lockable travel-stops | NEMA 23 closed-loop servo, GT2 belt drive |
| Handedness Switching | Manual | Automatic in GSPro, Infinite Tees, and PurePlay |
| Positions | Two, set by travel-stops | Left, center, right, or any exact spot; per-club and per-golfer |
| Travel | 21, 28, 36, or 48 in. by size | 46″ center-to-center of plate |
| Control | None | Windows 10/11 app over 2.4 GHz Wi-Fi |
| Power | None | 100W USB-C power supply (included) |
| Price | From $375 | $995 |
Rooms Where Width Is The Constraint.
Mixed-Handedness Households
A right-handed and a left-handed golfer sharing one bay, without either side accepting a compromised sensor position.
Narrow Home Builds
Basements, spare bedrooms, and garage bays where a fixed dual-handed overhead layout does not fit.
VTrack And ProTee VX Owners
Existing overhead builds that need left-handed play added without widening the room or buying a second sensor.
Studios And Instructors
Teaching bays that cycle between students of both handedness, with saved profiles for each player.
Building The Whole Bay, Not Just The Rail.
SimSlide Pro is an add-on for an overhead simulator build. If the launch monitor, projector, enclosure, and hitting mat are still being sourced, start from a complete package and add the rail on top.
Pre-Built SimKit Packages
Complete overhead simulator packages built around VTrack or ProTee VX, each with a matched enclosure, projector, and hitting mat.
Build Your Own SimKit
Configure a custom SimKit around the room the rail is going into — including narrow rooms where SimSlide Pro does the heavy lifting.
Setup, Support, And Partner Resources.
VTrack Setup & Support
Overhead mounting, clearance, calibration, and software setup for VTrack installations.
Open VTrack Support →ProTee VX Setup & Support
Mounting, calibration, activation, and troubleshooting for ProTee VX installations.
Open ProTee VX Support →Reseller & Installer Program
Dealer pricing and install partnership for pro installers, dealers, and integrators.
Become A Partner →SimSlide Pro Buyer FAQ.
What does SimSlide Pro do?
SimSlide Pro is the Elite Sim Golf motorized ceiling rail for overhead launch monitors. It reads the active player from GSPro, Infinite Tees, or PurePlay and slides a VTrack or ProTee VX to the correct side of the hitting area on its own, repositioning automatically when the player or club changes.
Which simulator software does SimSlide Pro work with?
SimSlide Pro works with GSPro, Infinite Tees, and PurePlay. Automatic handedness switching reads the active player from any of the three platforms. Each software platform is licensed separately.
Which launch monitors is SimSlide Pro compatible with?
SimSlide Pro is built for the VTrack and ProTee VX overhead launch monitors.
How far does the rail travel?
Travel is 46 inches, measured center-to-center of the carriage plate.
What are the dimensions and weight?
The rail is 73½ inches long overall, 8 inches wide overall, and 4 inches tall to the surface of the carriage plate. The rail assembly weighs 35 lb before the launch monitor is added.
Can specific clubs trigger specific positions?
Yes. Any club can be assigned to the left, right, or center position or to an exact spot on the rail. A common setup assigns the putter to center so both golfers putt from the same spot.
Can each golfer have their own settings?
Yes. Separate profiles can be saved for each golfer and switched instantly.
What drives the carriage?
A NEMA 23 closed-loop servo with adjustable speed drives a GT2 belt. Dual supported linear rails carry the aluminum carriage plate through the full 46 inches of travel.
How is SimSlide Pro calibrated?
Calibration is one click. Auto-calibration finds both travel limits in about 90 seconds.
What happens if the PC or Wi-Fi connection drops?
SimSlide Pro parks the carriage at center if the PC or Wi-Fi connection drops.
How does SimSlide Pro connect and what do I need?
SimSlide Pro connects over 2.4 GHz Wi-Fi to a Windows 10/11 app with live position, fine jog control from ¼ inch to 3 inches, settings backup, and automatic updates. You will need a Windows 10/11 PC, 2.4 GHz Wi-Fi, and GSPro, Infinite Tees, or PurePlay.
How does SimSlide Pro install?
Cut an X in the canvas at each mounting point and screw the rail into the ceiling studs, mount the drag chain for the launch monitor cable, then plug it in. Mounting hardware is included. Launch monitor mounting guidance is on the VTrack and ProTee VX setup and support pages.
What is in the box?
Rail assembly with carriage plate, control box, 100W USB-C power supply and cable, cable drag chain, mounting hardware, and setup guide. The launch monitor is sold separately.
How is SimSlide Pro different from SimSlide LM?
SimSlide LM is a manual rail with lockable travel-stops and no power requirement, starting at $375. SimSlide Pro is motorized with a NEMA 23 closed-loop servo, controlled from a Windows app over Wi-Fi, and switches handedness automatically in GSPro, Infinite Tees, and PurePlay for $995.
Where is SimSlide Pro assembled?
SimSlide Pro is assembled in the USA.
Where can I buy SimSlide Pro?
SimSlide Pro is licensed for sale exclusively through Elite Sim Golf. It is not sold by other retailers or marketplaces.
What support is available after purchase?
Elite Sim Golf provides post-purchase support, including mounting guidance, calibration, club positions, golfer profiles, and help connecting the rail to GSPro, Infinite Tees, or PurePlay.
Assembled In The USA. Sold Only Through Elite Sim Golf.
SimSlide Pro is assembled in the USA and licensed for sale exclusively through Elite Sim Golf. It is sold alongside the VTrack and ProTee VX launch monitors, enclosures, projectors, and mats that surround it, by a team that installs these systems.
Exclusive License
Licensed for sale exclusively through Elite Sim Golf — not available from marketplaces or other retailers.
Full Build Under One Roof
Launch monitors, enclosures, projectors, mats, and accessories from a single source.
Install Guidance Included
Overhead mounting and software setup guidance from a team that does these installs.
Post-Purchase Support
Help with calibration, club positions, golfer profiles, and the GSPro, Infinite Tees, or PurePlay connection.
Bottom line: SimSlide Pro buys width the room does not have. Assembled in the USA and sold exclusively through Elite Sim Golf. One VTrack or ProTee VX, 46″ of closed-loop motorized travel, automatic handedness switching in GSPro, Infinite Tees, or PurePlay, and a floor that stays clear.
