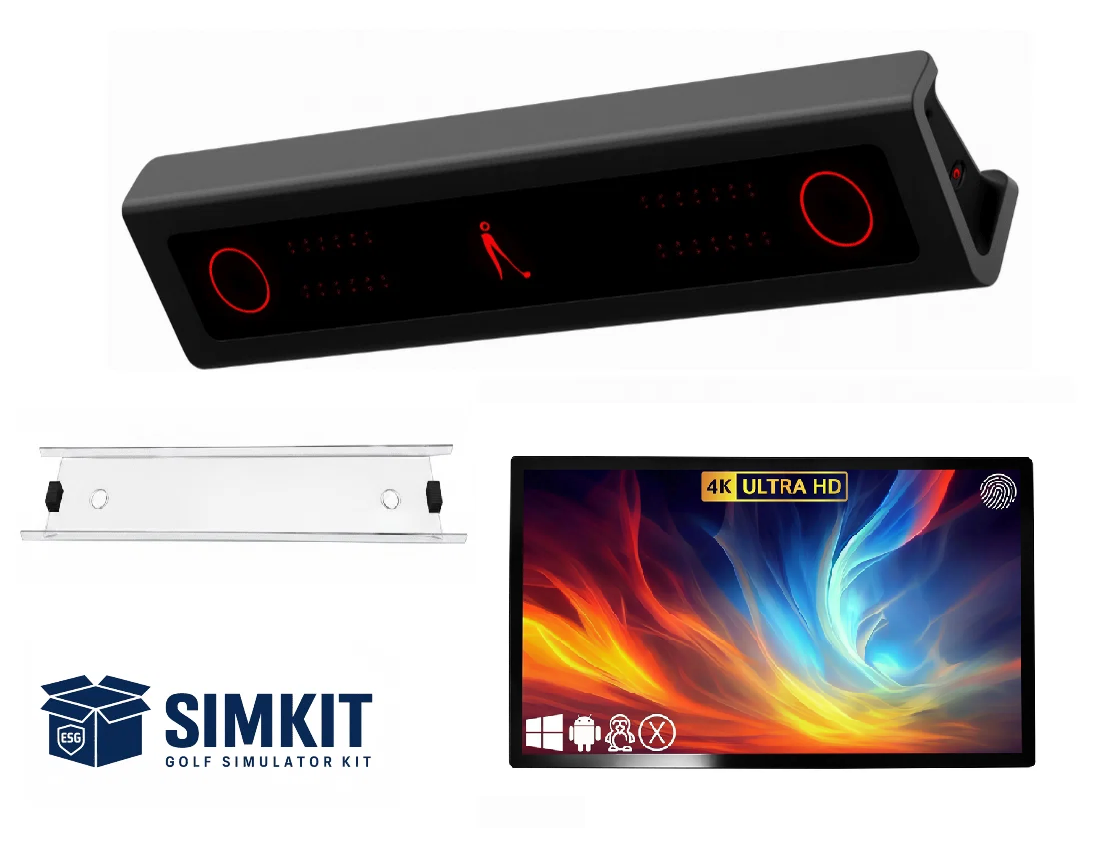

VTrack Overhead Launch Monitor + Impact Protector + 4K Touch Screen Monitor Combo
Tracking, protection, and control in a single package
A VTrack overhead launch monitor tracks every shot from the ceiling and leaves the floor completely clear. The Impact Protector shields it from the shot that gets away. A 4K touch screen puts GSPro menus, tee selection, and shot data under your hand instead of on a keyboard across the room.
This combo puts all three together and prices the touch monitor and Impact Protector as a pair for $499.99 on the 27″ build. Pick the monitor size that fits the bay from the dropdown above — the VTrack and the Impact Protector are identical in every configuration.
The three-part package
VTrack Overhead Launch Monitor
Ceiling-mounted tracking with nothing on the floor beside the mat. Full club and ball data, automatic handedness, impact video, and no required subscription.
VTrack Impact Protector
One-piece thermoformed clear polycarbonate shield that takes the hit from a shanked or topped ball. Patent-pending, backed by a lifetime replacement guarantee.

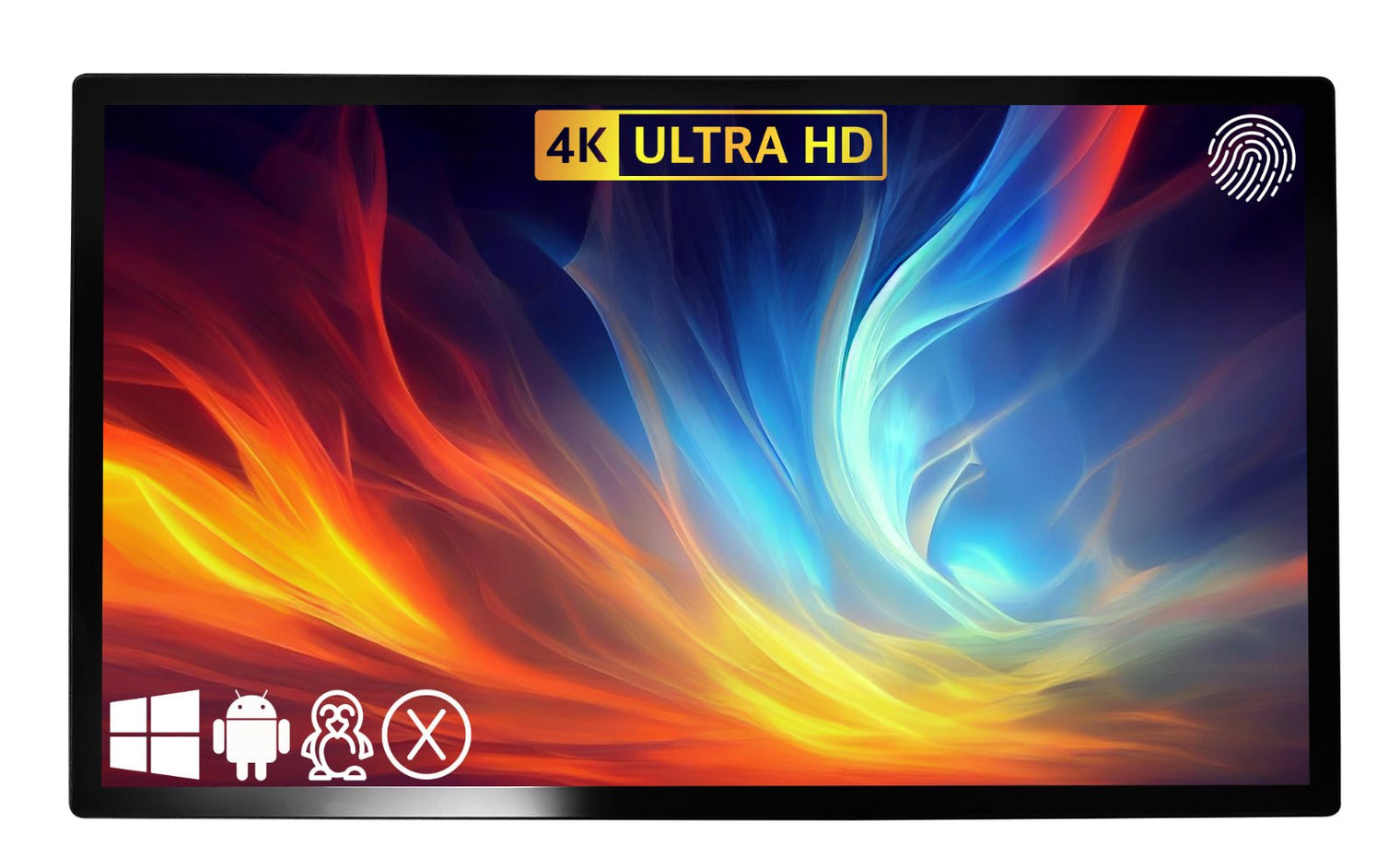

Ultra-Series 4K Touch Monitor
Your choice of 27, 32, 43, or 55 inches. 4K UHD, 10-point PCAP touch, IP65 sealed zero-bezel glass, and 50,000-hour commercial duty rating.
What each configuration costs
| Monitor size | 27″ | 32″ | 43″ | 55″ |
|---|---|---|---|---|
| VTrack launch monitor | $5,000.00 | $5,000.00 | $5,000.00 | $5,000.00 |
| Ultra-Series monitor | $999.00 | $1,199.00 | $1,699.00 | $2,299.00 |
| VTrack Impact Protector | $179.99 | $179.99 | $179.99 | $179.99 |
| Bought separately | $6,178.99 | $6,378.99 | $6,878.99 | $7,478.99 |
| Combo price | $5,499.99 | $5,699.99 | $6,199.99 | $6,799.99 |
| You save | $679.00 | $679.00 | $679.00 | $679.00 |
Every variant saves the same $679.00. The VTrack holds at its $5,000.00 MAP price in all four configurations — the savings come entirely from the touch monitor and the Impact Protector, which are bundled together for $499.99 on the 27″ build. Larger sizes add only the difference in monitor cost: +$200.00 for the 32″, +$700.00 for the 43″, +$1,300.00 for the 55″.
VTrack Overhead Launch Monitor
The tracking foundation of the package, and the reason the floor stays clear. Priced at $5,000.00 MAP in this combo and in every other ESG bundle.
Overhead, Floor Clear
Mounts to the ceiling above the hitting area, so there is no unit beside the mat to step on, kick, or re-level between sessions.
Full Club And Ball Data
Club and ball metrics captured on every strike, with impact video and swing replay through the VTrack ToolKit.
Automatic Handedness
Reads left- and right-handed players without switching a setting, which matters when the bay gets shared.
No Subscription
ToolKit software and firmware updates are included. The VTrack also drives third-party simulator software you already own.
Free Remote Setup
ESG will walk mounting, calibration, and software configuration over video on your schedule, at no charge.
Built By LAON People
VTrack is manufactured by LAON People in Korea. Elite Sim Golf handles fulfillment, support, dealer access, and accessories in-house.
Mounting height, calibration, and ToolKit setup are all covered on the VTrack Setup and Support page, including a free remote setup booking. Full specs are on the standalone VTrack product page.
VTrack Impact Protector
A ceiling-mounted launch monitor sits directly in the flight path of a topped or shanked ball. The Impact Protector is the $179.99 piece of insurance on a $5,000.00 unit — and in this combo it is bundled with the 27″ monitor for $499.99 together.
Clear Polycarbonate
Optically clear so it does not interfere with the VTrack's view of the ball or the club.
One-Piece Thermoformed
Formed as a single piece rather than assembled from panels — no seams or fasteners to fail on impact.
Patent-Pending Design
Shaped specifically for the VTrack housing, not a generic shield adapted to fit.
Lifetime Replacement
If it takes a hit hard enough to crack, it gets replaced. That guarantee does not expire.
Sold on its own at $179.99, regularly $299.95. See the standalone Impact Protector page.
Pick the touch monitor that fits the bay
The dropdown at the top of this page sets the monitor size. Every size uses the same 4K panel resolution, the same 10-point PCAP touch layer, and the same sealed IP65 front glass. Brightness, mounting hardware, and weight are what separate them.
Dedicated control display. Tight bays, side-wall or cart mounting, and builds where the screen is purely for control — not viewing.
- 500+ nits brightness
- LG Nano IPS (AHVA)
- VESA 100 × 100 mm
- 16.7 lb · stand included
Control display + secondary view. Residential and light-commercial bays that want one screen for control, stats, and over-the-shoulder viewing.
- 500+ nits brightness
- AHVA commercial IPS
- VESA 100 / 200 / 400 mm
- 19.1 lb · stand included
Control display + standalone play screen. Commercial bays, brightly lit garages, and short-game or putting setups that run without a projector.
- 700+ nits brightness
- LG IPS
- VESA 400 × 400 mm
- 53 lb · mount required
Standalone play screen + signage. Commercial facilities, lounges, golf retail, and no-projector rooms where the monitor is the primary display.
- 700+ nits brightness
- LG IPS
- VESA 400 × 400 mm
- 90 lb · mount required
Menus and shot data only → 27″ or 32″. Has to be readable from the mat, or the room has daylight → 43″, where the 700-nit LG IPS panel starts. Replacing the projector as the primary screen, or a commercial bay → 55″.
27″ vs 32″ vs 43″ vs 55″
The four monitor options side by side.
| Spec | 27″ | 32″ | 43″ | 55″ |
|---|---|---|---|---|
| Best role | Dedicated control display | Control display + secondary view | Control display + standalone play screen | Standalone play screen + signage |
| Panel | LG Nano IPS (AHVA) | AHVA commercial IPS | LG IPS | LG IPS |
| Brightness | 500+ nits | 500+ nits | 700+ nits | 700+ nits |
| Static contrast | 3000:1 static | 3000:1 static | 1000:1 static | 1000:1 static |
| Colors | 16.7M | 16.7M | 1.07B | 1.07B |
| Resolution | 3840 × 2160 · 16:9 | 3840 × 2160 · 16:9 | 3840 × 2160 · 16:9 | 3840 × 2160 · 16:9 |
| Touch | 10-point PCAP · 5 ms | 10-point PCAP · 5 ms | 10-point PCAP · 5 ms | 10-point PCAP · 5 ms |
| Video inputs | HDMI 2.0 · DisplayPort · USB-C | HDMI 2.0 · DisplayPort · USB-C | HDMI 2.0 · DisplayPort · USB-C | HDMI 2.0 · DisplayPort |
| VESA | 100 × 100 mm | 100 × 100 / 200 × 200 / 400 × 200 mm | 400 × 400 mm | 400 × 400 mm |
| Dimensions | 24.25″ W × 14.44″ H × 1.75″ D | 29″ W × 17″ H × 2.25″ D | 39.18″ W × 23″ H × 2.38″ D | 50.13″ W × 29.32″ H × 2.75″ D |
| Weight | 16.7 lb | 19.1 lb | 53 lb | 90 lb |
| Desktop stand | Included ✓ | Included ✓ | Not included — VESA mount | Not included — VESA mount |
| Orientation | Landscape | Landscape | Landscape | Landscape + portrait |
| Monitor warranty | 3-year | 3-year | 2-year | 2-year |
All four share the same 4K resolution, 10-point PCAP touch layer, IP65 sealed front glass, and 50,000-hour MTBF rating. Full detail on each is on the individual product pages, or compare them in the touch screen monitor collection.
In the box
The VTrack hardware ships free Next Day Air Saver. The touch monitor ships separately by ground or freight depending on size — the 55″ carton alone is 102 lb — so the two arrive on different days under separate tracking numbers.
Add to the build
Add SwingEZ AI Cameras
SwingEZ layers AI pose analysis, swing diagnosis, and synced camera replay onto the same VTrack. It runs inside ToolKit and third-party software.
View The SwingEZ PackageBuild The Whole Bay
Need the projector, enclosure, and hitting mat too? The SimKit Bundle Builder configures the full simulator around this same VTrack and prices it in one place.
Open The SimKit BuilderPrefer to buy the pieces separately? VTrack · Impact Protector · Touch screen monitors · Golf simulator PCs.
Keep planning the build
VTrack Setup and Support
Mounting, calibration, downloads, troubleshooting, and free remote setup booking.
Open Support →Combo questions
What exactly comes in this combo?
Three products in one checkout: the VTrack Overhead Launch Monitor, the VTrack Impact Protector, and one Ultra-Series 4K touch screen monitor in the size you pick from the dropdown. Every cable, mount plate, and power supply that ships with each product is included.
Which monitor size should I pick?
If the screen is only running GSPro menus, tee selection, and shot data, the 27″ or 32″ is enough. If it also has to be readable from the hitting mat or the room gets daylight, take the 43″ — that is where the 700-nit LG IPS panel starts. If it is doubling as a play screen or you are building a commercial bay, take the 55″.
How much does the combo actually save?
$679.00 on every variant. Bought separately the three products run from $6,178.99 to $7,478.99 depending on monitor size; the combo prices are $5,499.99, $5,699.99, $6,199.99, and $6,799.99.
Why is the VTrack the same price in every variant?
The VTrack is sold at its $5,000.00 MAP price and is not discounted in any configuration. The combo savings come from the touch monitor and the Impact Protector, which are packaged together for $499.99 on the 27″ build. Stepping up a size only adds the difference in monitor cost.
Does the price difference between sizes match the standalone monitors?
Yes. The 32″ adds $200.00, the 43″ adds $700.00, and the 55″ adds $1,300.00 over the 27″ combo — the exact retail gaps between the standalone monitors. There is no size upcharge baked into the bundle.
Do I need a mount for the monitor?
The 27″ and 32″ ship with a desktop stand and mount to 100 × 100 mm (the 32″ also supports 200 × 200 and 400 × 200 mm). The 43″ and 55″ have no stand and use 400 × 400 mm VESA only, so plan a stud-anchored wall plate or a heavy-duty arm rated above 53 lb and 90 lb respectively.
What does the Impact Protector do?
It is a one-piece thermoformed clear polycarbonate shield that mounts under the VTrack and takes the hit from a shanked or topped ball, protecting the unit's lenses and housing. Patent-pending design, backed by a lifetime replacement guarantee. Details on the Impact Protector page.
Does the touch monitor work with GSPro and E6?
Yes. The Ultra-Series is a standard 4K display with a USB HID touch layer, so it works with any simulator software your PC runs — GSPro, E6 Connect, FSX Play, TGC 2019, and Awesome Golf included. Touch is plug-and-play on Windows, Linux, and Android; macOS needs a vendor driver. Need a machine to drive it? See the Golf Simulator PC collection.
Does touch work with a golf glove on?
Yes. The PCAP layer registers finger, capacitive stylus, and nitrile, latex, or vinyl gloves through the sealed glass, so a glove does not have to come off to change a setting mid-session.
Is there a subscription with the VTrack?
No. VTrack has no required subscription. The ToolKit software and firmware updates are included, and the unit works with third-party simulator software you already own.
How does this ship?
The VTrack hardware ships free Next Day Air Saver. The touch monitor ships separately by ground or freight depending on size — the 55″ carton is 102 lb — so expect the two to arrive on different days and under separate tracking numbers.
What is the warranty on each piece?
The VTrack carries its standard manufacturer warranty, the Impact Protector has a lifetime replacement guarantee, and the touch monitor carries 3 years on the 27″ and 32″ or 2 years on the 43″ and 55″.
Can I add SwingEZ or a projector to this?
Yes. The SwingEZ add-on package layers AI swing cameras onto the same VTrack, and the SimKit Bundle Builder lets you configure a projector, enclosure, and hitting mat around it if you are building the whole bay.
What support comes with it?
Free remote setup over video on your schedule, plus mounting, calibration, and software walkthroughs on the VTrack Setup and Support page. ESG handles VTrack support, fulfillment, and accessories in-house — VTrack itself is built by LAON People in Korea.
Why buy the combo instead of three orders
Buying a launch monitor, a shield for it, and a control screen as three separate purchases usually means three shipments, three support paths, and no savings. This is the same hardware, priced as a package.
One Checkout, One Order
Three products, one order number, one point of contact if anything needs sorting out.
MAP-Safe Pricing
The VTrack stays at its $5,000.00 MAP price. The savings are real and come from the monitor and protector.
Free Remote Setup
Mounting, calibration, and software configuration walked through over video, on your schedule.
In-House Accessories
ESG designs and stocks the Impact Protector and the rest of the VTrack accessory line directly.
Bottom line: the VTrack does the tracking, the Impact Protector keeps it alive, and the touch screen makes it usable without a keyboard. $679.00 off in every configuration, and the monitor size is the only decision left.
