Trackman USB Swing Camera
By Trackman
Build Your Dream Home Golf Simulator
Pair the Trackman USB Swing Camera with a launch monitor, projector, and hitting mat in the SimKit Builder.
Start Building in the SimKit Builder →
120 FPS Swing Video, Synced To Every Trackman Shot.

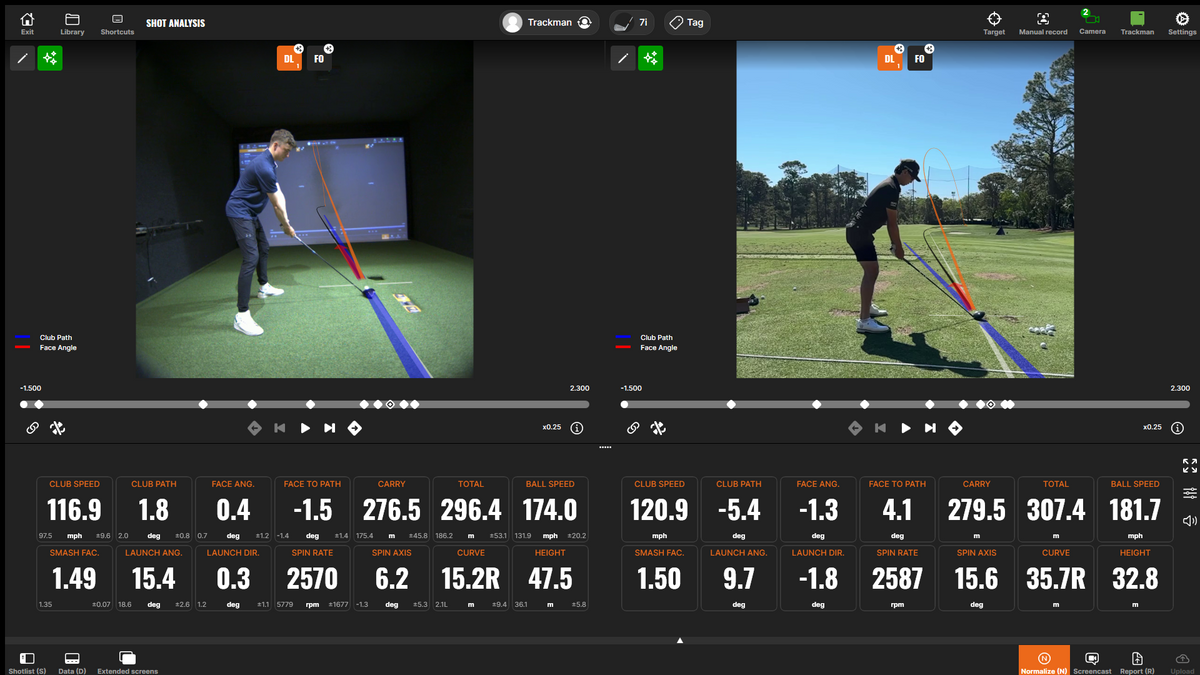

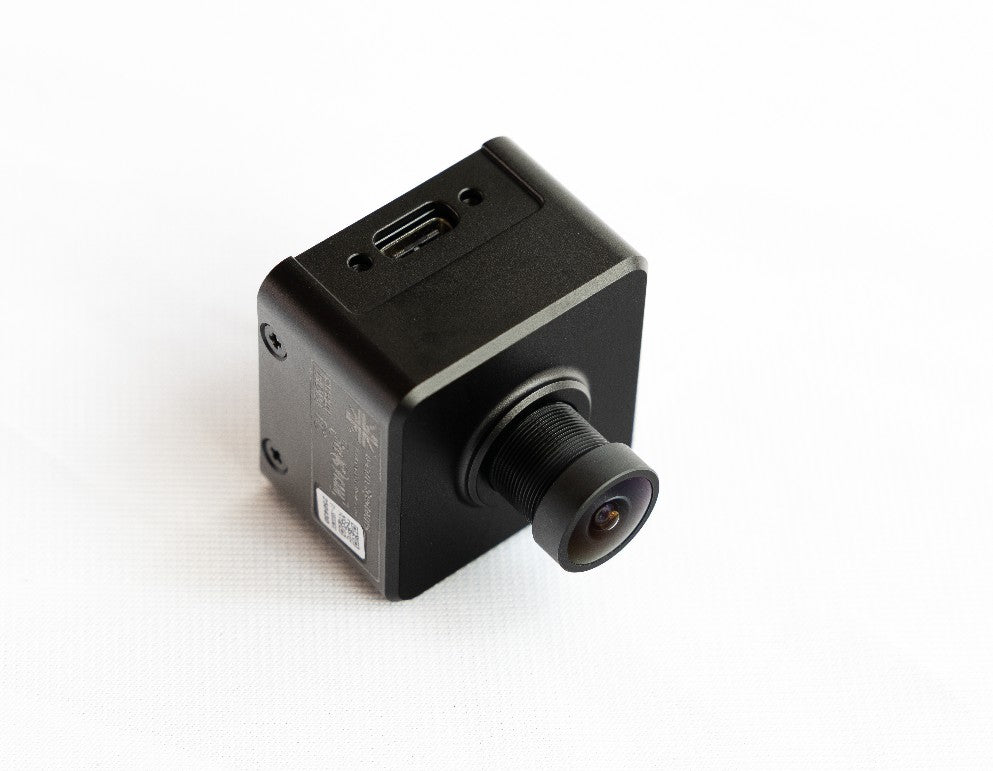

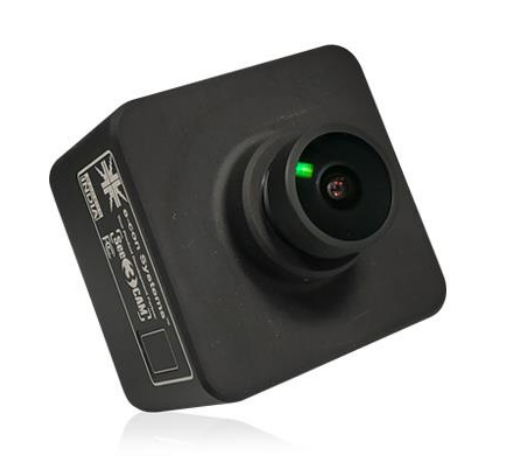

The Trackman USB Swing Camera is the official 120 FPS global-shutter camera for Trackman Performance Studio (TPS). Plug it into the simulator PC, and every swing is recorded and paired automatically with the ball and club data from Trackman iO, iO DUO, or Trackman 4 — no separate app, no manual clipping, no syncing video after the fact.
It is also the camera behind Trackman AI Motion Analysis in TPS, which detects body joints and club positions throughout the swing and auto-marks P-positions. Choose the Standard Angle lens for placement 6–10 ft from the golfer, or the Wide Angle lens for tight rooms where the camera sits 2–5 ft away.
Two Lenses. Pick By Camera Distance.
Both versions use the same 120 FPS camera body, cables, and mounting adapter. The only difference is the lens field of view — which sets how far the camera needs to sit from the golfer to frame the full swing.
Standard Angle
- Tighter framing on the golfer and club path
- Best for rooms with space behind and beside the hitting area
- Ideal for down-the-line placement behind the golfer
- Minimal edge distortion at normal distances
- Trackman part USEU1034
Wide Angle
- Wider field of view captures the full body and swing arc
- Built for compact bays and close mounting positions
- Ideal for face-on placement on a side wall or enclosure frame
- Keeps club and body in frame from close range
- Trackman part USEU1036
Building a two-camera setup? A common pairing is a Standard Angle camera down-the-line and a Wide Angle camera face-on. The Elite Sim Golf team can help confirm lens choice from room measurements before ordering.
A Capable Windows PC Is Required.
High-speed video and AI Motion Analysis run on the simulator PC, not on the launch monitor. Trackman lists the following minimum specs for the USB Swing Camera. Mac is not supported.
Not Sure About Your PC?
Send the simulator PC specs to Elite Sim Golf before ordering and the team will confirm compatibility with TPS video and AI Motion Analysis.
Operating System
Windows 10 or Windows 11 (64-bit). macOS is not compatible.
Processor + Memory
Intel i7 processor or higher with 32 GB RAM or higher.
Graphics
Nvidia RTX 4070 Ti with 12 GB VRAM or better.
Storage
1 TB SSD. Swing video adds up quickly across sessions.
Multiple Cameras — Independent USB 3.1 Hubs
More than one camera can run on the same PC, but each camera must connect to its own independent USB 3.1 hub. Setups with three or more cameras require a PCIe USB card in the PC (sold separately).
Tripod Or Wall Mount Sold Separately
The camera ships with a mounting plate and adapter for mono-/tripods and fixed mounts. A tripod or wall mount is not included.
Built For Trackman. Synced On Every Shot.
120 FPS Capture
High-speed recording built for golf swing analysis, with a dedicated 120 FPS preset in TPS.
Global Shutter
Captures the entire frame at once, reducing the distortion and shaft bend seen with rolling-shutter cameras.
Auto-Synced Video
Each swing clip is tied automatically to the matching Trackman shot and its full data set.
AI Motion Analysis
Powers TPS AI Motion Analysis — automatic body and club tracking with detected P-positions.
Club Analysis Preset
A dedicated TPS profile tuned to reduce shaft blur while holding 120 FPS.
Custom Image Control
Adjust exposure, gain, and brightness in TPS to match room lighting.
Two Lens Options
Standard Angle for 6–10 ft placement or Wide Angle for 2–5 ft in compact bays.
Multi-Camera Ready
Run face-on and down-the-line views on one PC using independent USB 3.1 hubs.
By The Numbers.
Made For The Trackman Ecosystem.
Compatible Launch Monitors
- Trackman iO — single-unit ceiling mount
- Trackman iO DUO — dual-dexterity ceiling mount
- Trackman 4 — indoor and outdoor
Software Features
- TPS swing video synced with shot data
- AI Motion Analysis with auto-detected P-positions
- 120 FPS, Club Analysis, and Custom camera presets
- Side-by-side review across sessions and players
Two Views Cover The Whole Swing.
One camera is enough to start. Most coaching bays end up with two — face-on and down-the-line — so body motion and club delivery are visible on every shot.
Face-On
Square to the golfer, opposite the chest. Shows weight shift, hip and shoulder turn, and impact position. Wide Angle suits side-wall or enclosure-frame mounting in narrower bays.
Down-The-Line
Behind the golfer, on the target line at hand height. Shows swing plane, club path, and posture. Standard Angle suits the extra distance behind the hitting area.
Longer Cable Runs

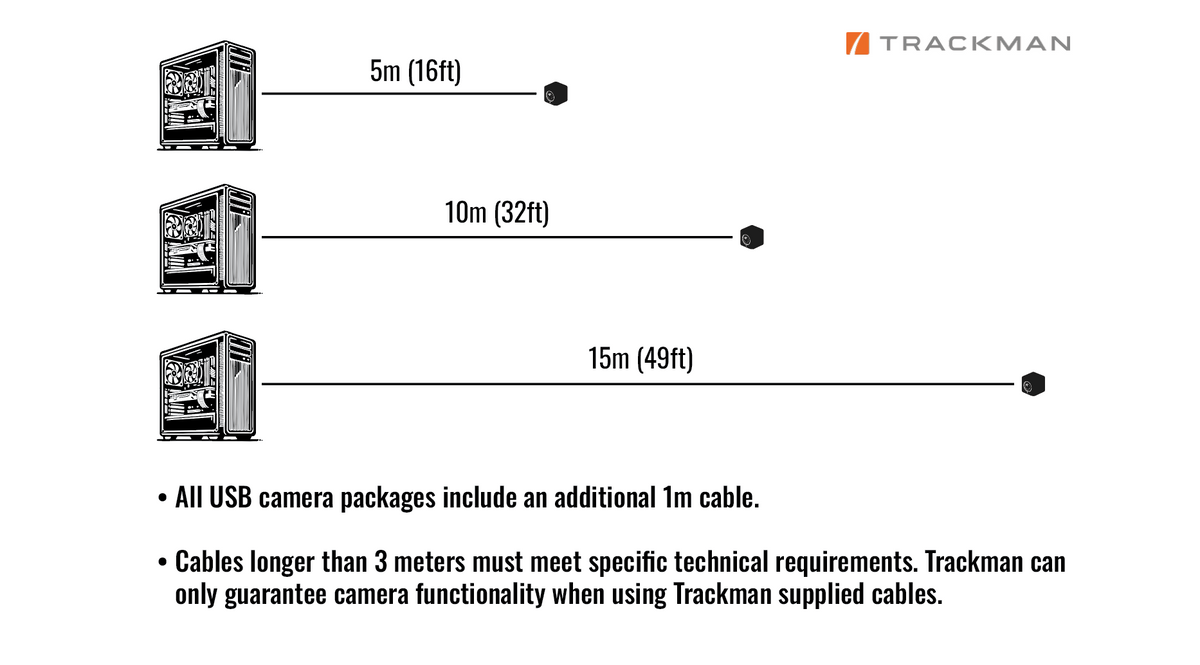

The included 5 m cable reaches most PC locations. For longer runs, add a 10 m or 15 m USB 3.1 booster extension cable.
Using a DLP projector? Some DLP projectors can cause visible flicker in high-speed camera footage. Adjusting exposure in the TPS Custom profile typically reduces the effect.
Camera, Cables, And Mounting Hardware.
Every Trackman USB Swing Camera ships with the cables and mounting adapter needed to connect it to the simulator PC and attach it to a tripod or fixed mount.
- 1× USB Swing Camera (Standard Or Wide Lens)
- 1× 5 m (16 ft) USB 3.1 Cable
- 1× 1 m (3 ft) USB 3.1 Cable
- 1× Mounting Adapter + 4 Screws
Note: Tripod, wall mount, booster extension cables, and PCIe USB card are not included and are sold separately.
Trackman USB Swing Camera FAQ.
Which Trackman launch monitors work with the USB Swing Camera?
The USB Swing Camera works with Trackman iO, Trackman iO DUO, and Trackman 4 through Trackman Performance Studio (TPS) on the simulator PC.
Should I choose the Standard Angle or Wide Angle lens?
Choose by camera distance. The Standard Angle lens is designed for placement 6–10 ft from the player. The Wide Angle lens is designed for 2–5 ft from the player, which suits compact bays and side-wall or enclosure-frame mounting.
What PC specs does the camera require?
Trackman lists Windows 10 or 11 (64-bit), an Intel i7 processor or higher, 32 GB RAM or higher, a 1 TB SSD, and an Nvidia RTX 4070 Ti with 12 GB VRAM. macOS is not supported.
Does the camera always record at 120 FPS?
Not always. The 120 FPS and Club Analysis presets in TPS hold 120 FPS. Custom profiles can lower the frame rate depending on exposure settings — keeping exposure time faster than 1/128s maintains 120 FPS.
Can I use more than one camera on the same PC?
Yes. Each camera must connect to its own independent USB 3.1 hub. Setups with three or more cameras require a PCIe USB card in the PC, sold separately.
Does the camera work with Trackman AI Motion Analysis?
Yes. The USB Swing Camera is the camera used for AI Motion Analysis in TPS, which detects body joints and club positions throughout the swing and auto-marks P-positions.
Is a tripod or wall mount included?
No. The camera includes a mounting adapter with 4 screws for tripods and fixed mounts. A tripod or wall mount is sold separately.
What if the included cable is too short?
The included 5 m (16 ft) cable can be extended with a 10 m or 15 m USB 3.1 booster extension cable, sold separately.
Will my projector cause flicker in the video?
Some DLP projectors can cause visible flicker in high-speed camera footage. Adjusting exposure in the TPS Custom profile typically reduces the effect.
Where should the camera be placed?
The two most useful views are face-on (square to the golfer, opposite the chest) and down-the-line (behind the golfer on the target line at hand height). Many coaching bays use one camera for each view.
What is included in the box?
One USB Swing Camera with the selected lens, one 5 m (16 ft) USB 3.1 cable, one 1 m (3 ft) USB 3.1 cable, and a mounting adapter with 4 screws.
Is Elite Sim Golf an authorized Trackman reseller?
Yes. Elite Sim Golf is an authorized Trackman reseller. Every camera ships new and is covered by the Trackman manufacturer warranty.
