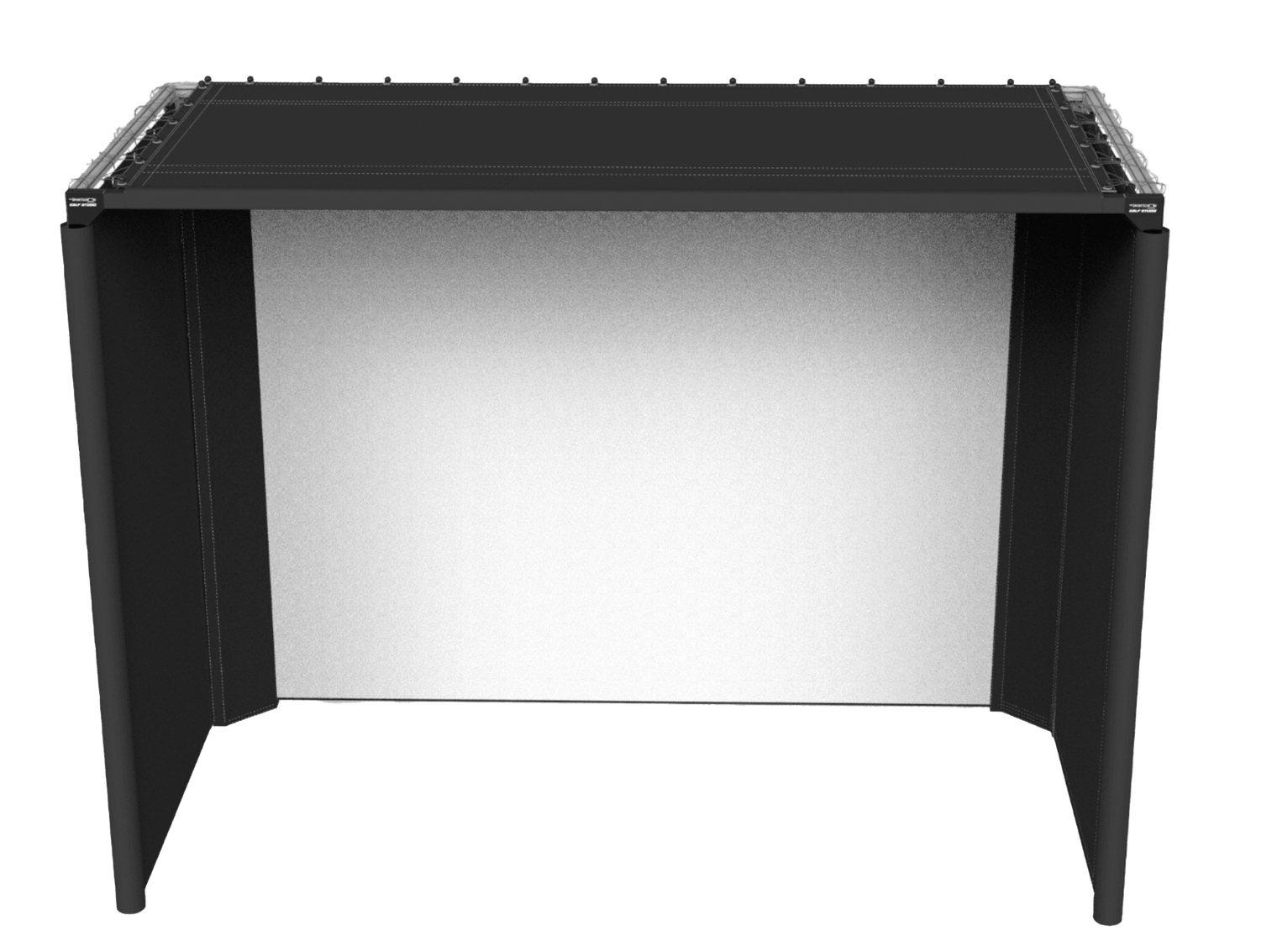

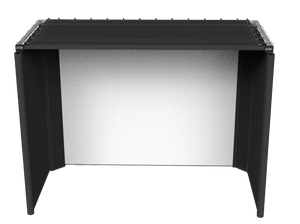

SportScreen Parlour Series Freestanding Golf Simulator Enclosure
A Freestanding Studio Bay on a Lifetime Aluminum Frame
The SportScreen Parlour Series is a freestanding golf enclosure built on a 40mm × 40mm T-slot aluminum frame — no wall mounting, no ceiling anchors, no drilling. Three models cover 4:3 and 16:9 aspect ratios from 11 ft to 16.5 ft wide, all sharing 5.5 ft of enclosure depth, a 3-ply impact screen option, and an included rear blackout membrane. A dedicated frame-mounted launch monitor bracket keeps the floor clear and the bay tight.
Industrial Aluminum Frame. Studio-Grade Bay.
The Parlour Series borrows its frame technology from CNC machine construction and industrial framing — the same 4040 T-slot extrusion used in precision equipment. The result is a lightweight, modular, fully freestanding golf bay that goes up without tools, comes apart without damage to the room, and carries a lifetime warranty on the frame.
4040 T-Slot Aluminum Frame
40mm × 40mm aluminum T-slot extrusion — the same modular format used in CNC machine frames and industrial fixtures. Bolted T-slot assembly with half-round nuts, angle joiners, and gussets. No wall or floor drilling required. Backed by a lifetime warranty on all frame components.
3-Ply Impact Screen Option
The Parlour ships with a choice of 1-ply standard or 3-ply premium impact screen. The 3-ply is the same grade SportScreen uses across the Vanish and Vanish LITE lines — approximately 1/8″ thick, custom polyester blend, quieter on impact, resistant to puckering and burn-in from high-spin shots.
Rear Blackout Membrane Included
Every Parlour Series includes a rear impact support membrane that sits behind the impact screen. It absorbs ball energy to extend primary screen life, blocks ambient light for sharper projection contrast, reduces ball bounce-back, and seals the gap to prevent balls from slipping behind the frame.
Frame-Mounted Launch Monitor Bracket
An optional frame-mounted launch monitor bracket (sold separately, $199) attaches directly to the front of the Parlour frame. It mounts the launch monitor overhead and out of the way — no tripod stand, no floor hardware. Compatible with Parlour 11, 13H, and 16H. Verify placement with your launch monitor manufacturer before ordering.
Multi-Sport Compatible
The Parlour frame accepts a standard SportScreen roll-up tarp insert (sold separately), converting the bay into a practice space for hockey, baseball, lacrosse, or soccer. No other configuration change needed — the same frame hosts both golf and multi-sport use.
Lifetime Frame + 2-Year Components
The 4040 aluminum frame carries a lifetime warranty. All remaining components — impact screen, side screens, rear membrane, ceiling panel, baffles, corner strips, and hardware — are covered for 2 years. No wall or floor drilling means no damage if the enclosure is moved or disassembled.
Who the Parlour Series Is Built For
The Parlour trades the velvet lining of the ESG lineup for a modular aluminum frame, a 5.5 ft side depth, a frame-mounted launch monitor bracket option, and a longer warranty — for buyers who prioritize build quality and flexibility over finished aesthetics.
Long-Term Dedicated Bay
Wants the bay to be permanent but wants the assurance of a lifetime frame warranty and a modular structure that can be disassembled and rebuilt if the room changes. The Parlour’s T-slot frame is designed for exactly that kind of longevity.
Floor-Based Launch Monitor
The optional frame-mounted launch monitor bracket mounts the LM directly to the Parlour frame, clearing the floor of tripod hardware. For setups using a forward-facing ground-based launch monitor, this keeps the hitting area clean and unobstructed.
Multi-Sport Household
The Parlour frame accepts a standard SportScreen roll-up tarp inside the bay, adding hockey, baseball, lacrosse, and soccer capability. No other enclosure on the ESG lineup offers this — it is a Parlour-exclusive feature.
Wider Bay, 16:9 Ratio
The Parlour 16H is 198″ wide (16 ft 6″) with a 183″ × 90″ projectable screen and 16:9 aspect ratio — the widest freestanding enclosure option available through ESG, suited for commercial-style bays and large bonus rooms.
Dimensions, Room Requirements & Construction
All three Parlour models share 66″ (5.5 ft) of side depth and the same 4040 aluminum frame system. Width, height, projectable area, and ceiling requirements vary by model.
Model Dimensions & Projectable Area
| Model | Frame Width (Overall) | Enclosure Height | Enclosure Depth | Projectable W × H | Screen Ratio |
|---|---|---|---|---|---|
| Parlour 11 | 136″ (11 ft 4″) | 102″ (8 ft 6″) | 66″ (5 ft 6″) | 120″ × 90″ | 4:3 |
| Parlour 13H | 151″ (12 ft 7″) | 114″ (9 ft 6″) | 66″ (5 ft 6″) | 138″ × 103″ | 4:3 |
| Parlour 16H | 198″ (16 ft 6″) | 114″ (9 ft 6″) | 66″ (5 ft 6″) | 183″ × 90″ | 16:9 |
Room Size Requirements by Model
| Model | Min Room Width | Min Room Depth | Min Ceiling Height | Rear Clearance | Side Clearance |
|---|---|---|---|---|---|
| Parlour 11 | 144″ (12 ft 0″) | 204″ (17 ft 0″) | 108″ (9 ft 0″) | 6″ minimum | 4″ minimum |
| Parlour 13H | ~159″+ (13 ft 3″+) | 204″ (17 ft 0″) | ~120″ (10 ft 0″) est. | 6″ minimum | 4″ minimum |
| Parlour 16H | 204″ (17 ft 0″) | 204″ (17 ft 0″) | 120″ (10 ft 0″) | 6″ minimum | 2.5″ minimum |
Frame & Construction
| Component | Specification |
|---|---|
| Frame material | 4040 T-slot aluminum extrusion — 40mm × 40mm (1.6″) profile |
| Frame assembly | Bolted T-slot with half-round nuts, angle joiners, and gussets; Allen wrench included; no wall or floor drilling required |
| Impact screen | Choice of 1-ply (standard) or 3-ply premium polyester blend spacer screen — ~1/8″ thick |
| Rear membrane | Rear impact support / blackout membrane — included standard on all models |
| Side screens | 2 × construction-grade mesh side walls — included standard |
| Ceiling panel | Included standard |
| Corner strips | 2 × included — seal gaps at front corners between side screens and impact screen |
| Baffles | 2 side baffles + 1 front baffle — all included standard |
| Hardware | All assembly hardware included (Allen wrench, 1/2″ driver bit); ladder and tape measure required separately |
| Unit weight | Approximately 250 lbs assembled |
| Frame warranty | Lifetime |
| Component warranty | 2-year limited (all components except frame) |
| Custom widths | Available — contact Elite Sim Golf for quote |
Not Included
| Launch monitor, simulator computer, golf simulator software |
| Projector |
| Hitting mat and landing pad |
| Frame-mounted launch monitor bracket (available add-on — see below) |
Optional Add-On: Frame-Mounted Launch Monitor Bracket — $199
Mounts directly to the front of the Parlour frame using two 11.5″ pieces of 4080 aluminum + all mounting hardware. Compatible with Parlour 11, 13H, 16H, and most custom widths. Not compatible with any other enclosure brand. Verify mounting placement and compatibility with your specific launch monitor manufacturer before ordering.
Which Parlour Is Right for Your Room?
Three standard widths from 11 ft to 16.5 ft. The Parlour 11 and 13H use 4:3 ratios; the Parlour 16H uses 16:9 for widescreen projection. The “H” designation on the 13H and 16H indicates a taller enclosure height (9 ft 6″) vs. the Parlour 11 (8 ft 6″).
Parlour 11
- Frame height: 8 ft 6″
- Depth: 5 ft 6″
- Min ceiling: 9 ft 0″
- Min room width: 12 ft 0″
- 4:3 ratio — standard golf simulation aspect
- Most compact Parlour model
Parlour 13H
- Frame height: 9 ft 6″
- Depth: 5 ft 6″
- Min ceiling: ~10 ft 0″ (est.)
- Min room width: ~13 ft 3″+
- 4:3 ratio with extra image height
- Widest 4:3 option in the lineup
Parlour 16H
- Frame height: 9 ft 6″
- Depth: 5 ft 6″
- Min ceiling: 10 ft 0″
- Min room width: 17 ft 0″
- 16:9 widescreen projection
- Widest freestanding bay in the ESG lineup
Looking for a Different Price Point or Retractability?
The Parlour is the right choice for buyers who want a lifetime-warranted aluminum frame, deeper bay, and launch monitor bracket option. For buyers who want a lower price point, velvet-lined finish, or the ability to retract the enclosure when not in use, two other paths are available.
ESG Fixed Enclosures — Birdie 10, Eagle 12, Albatross 13
Freestanding, tool-free snap-together steel frame enclosures with premium velvet inner lining, anti-collision padding, and triple-layer 4K impact screen included standard. Lower starting price than the Parlour. Best for buyers who want a fully finished, aesthetics-first permanent bay.
SportScreen Vanish Series — Fully Retractable
Wall or ceiling-mounted aluminum roller system that retracts the entire enclosure in under five minutes — front screen, side screens, ceiling panel, and all baffles roll away when not in use. Best for garages, basements, and multi-use rooms where a permanent footprint is not acceptable.
Choose a Projector for the Parlour Series
The right projector depends on room depth, ceiling height, and whether a ceiling or frame-mounted overhead launch monitor will be installed. The Parlour’s 5.5 ft depth and optional frame-mounted LM bracket affect projector mounting position — use the Projector Fitment Tool to confirm throw distance before purchasing.
BenQ AK700ST — 4K Laser Short-Throw
- 4K UHD resolution
- 4,000 ANSI lumens
- Throw ratio: 0.69–0.83:1
- Laser light source — 20,000 hr rated
- Auto Screen Fit, Golf Mode, IP5X dust protection
Optoma GT2400HDR — 1080p Ultra-Short-Throw
- 1080p Full HD resolution
- 4,200 ANSI lumens
- Throw ratio: 0.496:1 fixed
- DuraCore laser — 30,000 hr rated
- 8.4ms lag, IP6X, HDR10/HLG, 360° placement
Not Sure Which Projector Fits Your Room?
Enclosure depth, launch monitor bracket position, and ceiling height all affect projector placement for the Parlour Series.
Pair the Parlour Series with a Complete SimKit
The Parlour Series provides the frame and screen. These pre-configured SimKit packages add a launch monitor, projector, and hitting mat — everything needed for a full golf simulator in one order.
VTrack Premium 4K SimKit
The complete overhead build. VTrack ceiling-mount launch monitor + 4K projector, pre-configured and ready to install. Note: the VTrack requires a ceiling mount — this is separate from the Parlour’s optional frame-mounted LM bracket.
- VTrack Overhead Launch Monitor — ceiling-mounted, out of swing path
- BenQ AK700ST 4K laser projector — overhead-monitor compatible
- Enclosure choice at checkout — pair with the Parlour Series
- Ideal for Parlour setups with ceiling height to accommodate overhead mounting
Eye Mini Lite SimKit
Ground-based tracking — works well in combination with the Parlour’s optional frame-mounted LM bracket to keep the launch monitor positioned at the front of the frame.
- Uneekor Eye Mini Lite — ground-based, camera-driven tracking
- BenQ AH700ST 1080p laser projector — bright, short-throw
- Mat + landing pad included — add the Parlour Series separately
- Compatible with the optional Parlour frame-mounted LM bracket ($199)
Questions on the Parlour Series?
Ceiling height, model selection, launch monitor bracket compatibility, and projector fit are all worth confirming before ordering. The ESG team can walk through your room dimensions and build goals to find the right Parlour configuration.
Contact Elite Sim Golf →SportScreen Parlour Series — FAQ
Does the Parlour Series require wall or ceiling mounting?
No. The Parlour Series is fully freestanding — the 4040 aluminum T-slot frame stands on its own footprint. No wall anchoring, no ceiling mounting, and no floor drilling is required. Frame legs can optionally be mounted to the floor for added stability, but it is not required for standard use. This makes it one of the few premium freestanding enclosures that can be disassembled and moved without leaving any marks on the room.
What ceiling height does the Parlour Series require?
The Parlour 11 requires a minimum ceiling height of 108″ (9 ft 0″). The Parlour 16H requires a minimum of 120″ (10 ft 0″). The Parlour 13H stands 114″ (9 ft 6″) tall — the same height as the 16H — and a 120″ (10 ft) ceiling is strongly recommended. Contact Elite Sim Golf to confirm before ordering the 13H.
What is the difference between the 1-ply and 3-ply impact screen?
The Parlour Series ships with a choice of standard 1-ply or premium 3-ply impact screen. The 3-ply is a custom polyester blend spacer material — approximately 1/8″ thick — that is quieter on impact, more durable over time, and resistant to puckering and burn-in from high-spin, high-velocity shots. The 3-ply is the same screen grade SportScreen uses across the Vanish and Vanish LITE product lines. The 1-ply is suitable for lower-frequency use or entry budgets; the 3-ply is recommended for regular practice.
What is included with the Parlour Series?
Every Parlour Series purchase includes: the full 4040 aluminum frame structure with all hardware, one rear impact support / blackout membrane, two side screens, one impact screen (1-ply or 3-ply based on selection), one ceiling panel, two corner strips, two side baffles, one front baffle, and all assembly hardware (Allen wrench, 1/2″ driver bit). Not included: launch monitor, simulator computer, golf simulation software, projector, hitting mat, landing pad, and the optional frame-mounted launch monitor bracket ($199 add-on).
What is the frame-mounted launch monitor bracket and how does it work?
The Launch Monitor Bracket Kit ($199, sold separately) attaches two pieces of 4080 aluminum to the front rail of the Parlour Series frame, creating a mount point for a launch monitor directly on the enclosure. This eliminates the need for a floor tripod or separate stand and keeps the hitting area clear. The bracket is compatible with the Parlour 11, 13H, 16H, and most custom widths. It is not compatible with any other enclosure brand. Before ordering, verify with your launch monitor manufacturer that overhead or frame-mounted placement is approved for your specific model.
Can the Parlour be used for sports other than golf?
Yes. The Parlour Series frame accepts a standard SportScreen roll-up tarp insert (sold separately) that converts the bay into a practice space for hockey, baseball, lacrosse, and soccer. No modification to the frame is required — the same structure hosts both configurations. This multi-sport capability is exclusive to the Parlour Series and is not available on any ESG fixed enclosure.
How does the Parlour Series compare to the ESG Birdie 10, Eagle 12, and Albatross 13?
Both product lines are fully freestanding — neither requires wall or ceiling mounting. The key differences: the Parlour uses a 4040 aluminum T-slot frame (lifetime warranty) while the ESG enclosures use 1-1/4″ powder-coated steel tubing. The Parlour is 5.5 ft deep vs. 5 ft for the ESG standard models. ESG enclosures include premium velvet inner lining and a triple-layer 4K impact screen standard; the Parlour uses construction-grade mesh side walls and offers a 1-ply or 3-ply screen choice. The Parlour supports a frame-mounted LM bracket accessory and multi-sport use; ESG enclosures do not. ESG enclosures have a lower starting price. See the Birdie 10, Eagle 12, and Albatross 13 for direct comparisons.
Can the Parlour Series be used with a ceiling-mounted overhead launch monitor?
Yes. The Parlour is compatible with ceiling-mounted overhead launch monitors such as the VTrack. In this configuration, the ceiling mount is independent of the Parlour frame — the two do not interfere. If using both a ceiling-mounted launch monitor and the optional Parlour frame-mounted LM bracket, verify that the two positions do not conflict in your room. Use the Projector Fitment Tool and contact Elite Sim Golf to confirm the full layout before purchasing.
What projector works best with the Parlour Series?
The BenQ AK700ST is the premium 4K option and is confirmed compatible with overhead ceiling-mounted launch monitors. The Optoma GT2400HDR is the best-value 1080p laser option but requires careful mounting verification when an overhead or frame-mounted launch monitor is present. Use the Projector Fitment Tool to confirm throw distances before ordering.
How long does the Parlour Series take to assemble?
Assembly time is not officially published by SportScreen. Based on installer video documentation, the Parlour 16H (the largest model) takes approximately 2–3 hours for two people. The 11 and 13H models will be faster. Assembly uses an Allen wrench and optional power driver — both included. No wall drilling, no floor anchoring, and no specialized tools are required beyond what is in the box plus a ladder and tape measure.
Can I upgrade to a complete simulator package?
Yes. The Parlour Series provides the enclosure — add a launch monitor, projector, and hitting mat to complete the simulator. The VTrack Premium 4K SimKit is the recommended overhead package; the Eye Mini Lite SimKit is the recommended floor-based option. The optional $199 frame-mounted LM bracket works well with ground-based launch monitors like the Eye Mini Lite. Use the Bundle Builder to configure a custom package.
