SIMRail™ Automated Launch Monitor Slider — Motorized Ceiling Rail System
By SIMRail Golf
Build Your Dream Home Golf Simulator
Pair the SIMRail™ Automated Launch Monitor Slider — Motorized Ceiling Rail System with a launch monitor, projector, and hitting mat in the SimKit Builder.
Start Building in the SimKit Builder →
Full Left- And Right-Handed Play In A Room That Was Never Wide Enough.
Overhead launch monitors need the sensor sitting on the correct side of the hitting area for the golfer at the tee. In a wide commercial bay that is easy. In a spare bedroom, basement, or garage bay it usually means one handedness gets a compromised setup — or someone climbs a ladder every time a lefty steps in. SIMRail removes that problem entirely.

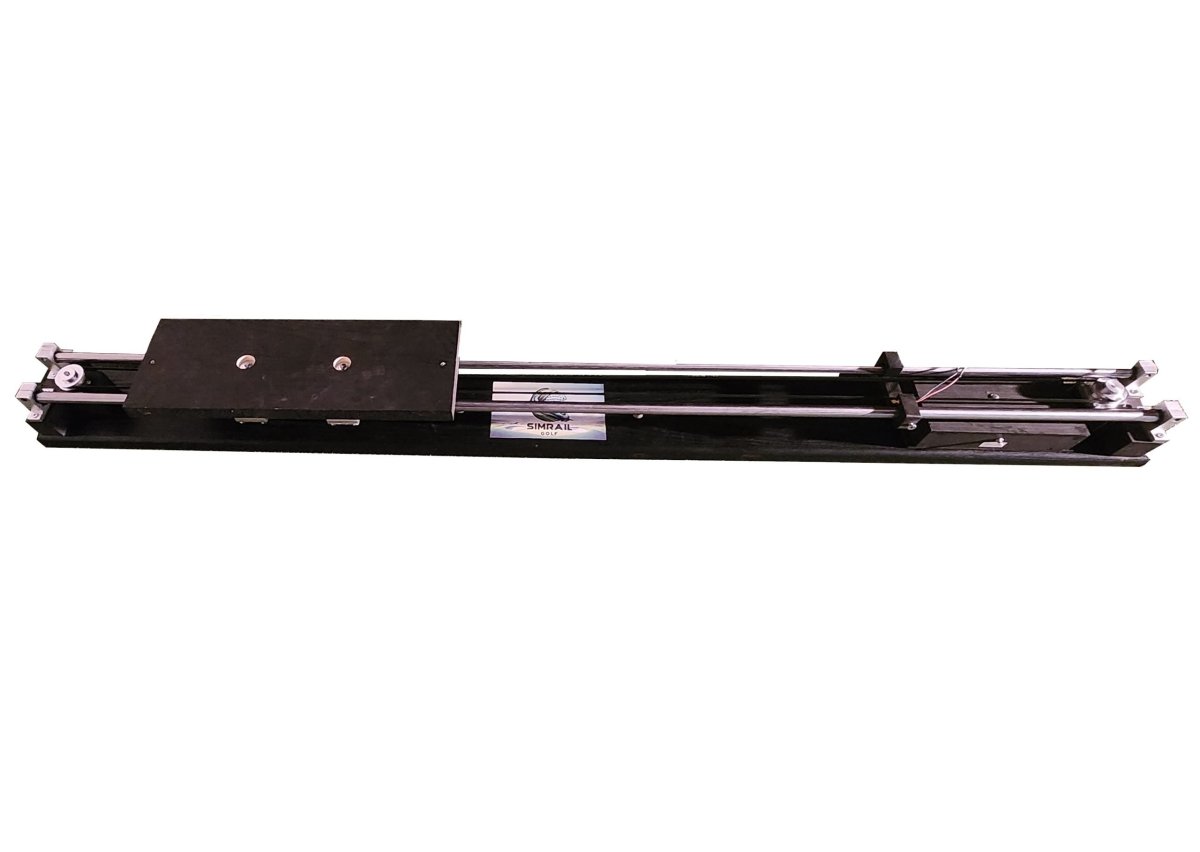

SIMRail is a motorized, ceiling-mounted rail system that carries an overhead launch monitor along 4′6″ of lateral travel and repositions it automatically based on the golfer's handedness in GSPro. It makes a single overhead sensor fully dual-handed in rooms as narrow as roughly 10 feet, with three programmable stop positions — left, center, and right — and no manual adjustment between players.
One Sensor. Two Handedness Positions. No Ladder.
A dual-handed overhead build normally wants 13 to 15 feet of width so the sensor can stay centered over a hitting area that serves both sides. Below that, the sensor ends up biased toward one golfer, and tracking on the other side suffers. SIMRail solves it with motion instead of width: the monitor physically travels to the correct side before the shot.
Because the rail mounts overhead, floor space stays completely clear. Cables stay tucked along the ceiling, the hitting area stays open, and switching between a right-handed and left-handed golfer becomes automatic rather than a mid-session interruption.
What This Means
SIMRail turns a single-handed overhead simulator into a true two-golfer bay without buying a second launch monitor, widening the room, or accepting a compromised sensor position for lefties.
4′6″ Of Rail Travel
Full lateral travel across the rail, giving a standard offset capability of ±2′3″ from center.
Three Stop Positions
Left, center, and right positions are all user-defined and stored, so every shot starts from a repeatable location.
GSPro-Linked Motion
SIMRail reads the active golfer's hand setting in GSPro and moves the sensor to the matching side before the shot.
Tunable Speed
Slide speed and acceleration are adjustable for a gentle, quiet reposition or a faster transition between players.
Installation Requirement — Overhead Ceiling Mounting
SIMRail is a ceiling-mounted rail and must be anchored into structure capable of carrying the rail plus the launch monitor. Confirm ceiling height and clearance for your overhead sensor before ordering. Overhead mounting and clearance guidance is covered on the overhead launch monitor setup and support page.
Software Requirement — GSPro For Automatic Handedness
Automatic left/right repositioning is driven by GSPro. GSPro requires its own separate license. SIMRail motion control, position programming, and speed settings are configured through the SIMRail interface over Bluetooth or Wi-Fi.
SIMRail Automated Slider Demo
Watch SIMRail reposition an overhead launch monitor between left, center, and right stop positions during live GSPro play, including a center position assigned to the putter so both right- and left-handed golfers putt from the same spot.
Built For Tight Simulator Bays.
Motorized Ceiling Rail
A driven carriage moves the launch monitor along the rail on command — no manual sliding, no ladder, no unmounting.
Functional At ~10′ Width
Deploys full left- and right-handed capability in rooms that are too narrow for a fixed dual-handed overhead setup.
GSPro Handedness Sync
Reads the player's hand setting in GSPro and positions the sensor accordingly before the shot is taken.
Programmable Center Stop
Assign specific clubs — a putter, for example — to trigger the center position so both golfers use one spot.
Wireless Control
Communicates over Bluetooth or Wi-Fi, so no control run has to be pulled down from the ceiling.
Speed And Acceleration Tuning
Dial in how quickly and how gently the carriage travels to suit the room, the mount, and personal preference.
Repeatable Positioning
Stored stop positions return the sensor to the same coordinates every time, keeping tracking geometry consistent.
Clear Floor, Clean Install
Everything lives overhead. The hitting area, mat, and walk-in space stay completely unobstructed.
By The Numbers.
Sensor Agnostic.
Designed For Overhead Launch Monitors
- Built to carry ceiling-mounted overhead sensors rather than floor or side-mounted units
- Handedness automation is driven through GSPro, so any overhead monitor running GSPro can benefit
- Confirm the mounting footprint and weight of your specific monitor bracket before installation
- Pairs naturally with the VTrack Overhead Launch Monitor and other overhead sensors sold by Elite Sim Golf
What You Configure
- Left position for right-handed golfers
- Right position for left-handed golfers
- Center position plus the clubs that should trigger it
- Travel speed and acceleration for the carriage
- Connection method — Bluetooth or Wi-Fi
Three Programmable Stops Across 4′6″ Of Travel.
Every stop position is set once during configuration and recalled automatically afterward. The result is a repeatable sensor location for right-handed play, left-handed play, and any club assigned to the center of the hitting area.
Right-Handed Stop
Recalled automatically for right-handed golfers
- User-defined position
- Optimal sensor offset for RH swings
- Stored and repeatable
Shared Club Stop
Assign specific clubs to this position
- Ideal for putting
- Club-triggered, not handedness-triggered
- One spot for both golfers
Left-Handed Stop
Recalled automatically for left-handed golfers
- User-defined position
- Optimal sensor offset for LH swings
- Stored and repeatable
Plus: Motion Behavior You Control
Travel speed and acceleration are adjustable, so the carriage can be tuned for a slow and quiet reposition or a quick transition between players. Because control is wireless, adjustments are made without touching the rail.
Rooms Where Width Is The Constraint.
Mixed-Handedness Households
A right-handed golfer and a left-handed golfer sharing one bay, without either side accepting a compromised sensor position.
Narrow Home Builds
Basements, spare bedrooms, and garage bays around 10 to 12 feet wide where a fixed dual-handed overhead layout does not fit.
Retrofit Installations
Existing overhead simulator builds that need left-handed capability added without widening the room or relocating the enclosure.
Studios And Instructors
Teaching bays that cycle between students of both handedness and cannot lose time to manual sensor repositioning.
The Alternatives, And Why Motion Wins.
A Second Launch Monitor
Buying a dedicated sensor for each handedness costs multiples of a rail system and still requires ceiling space for both units.
Manual Repositioning
Unmounting and remounting a sensor between golfers risks calibration drift, hardware wear, and a ladder in the hitting bay.
A Compromised Center Mount
Splitting the difference leaves both golfers slightly off the sensor's ideal capture zone instead of putting each one in it.
Building The Whole Bay, Not Just The Rail.
SIMRail is an add-on for an overhead simulator build. If the launch monitor, projector, enclosure, and hitting mat are still being sourced, start from a complete package and add the rail on top of it.
Pre-Built SimKit Bundles
Ready-made simulator packages curated by Elite Sim Golf. Each SimKit pairs an overhead launch monitor with a matched enclosure, projector, hitting mat, and accessories — no sourcing required.
Build Your Own SimKit
Configure a custom SimKit from the ground up. Pick the enclosure size, projector tier, and hitting mat around the room the rail is going into — including narrow rooms where SIMRail does the heavy lifting.
Need the sensor first? Start with the VTrack Overhead Golf Launch Monitor, then add SIMRail to make the bay fully dual-handed.
Setup, Support, And Partner Resources.
Everything needed before and after purchase — overhead mounting guidance, sensor pairing, and reseller or installer opportunities.
Overhead Setup & Support
Overhead mounting, clearance, calibration, and software setup guidance for ceiling-mounted launch monitor installations, plus free remote setup help.
Open Setup & Support →VTrack Overhead Launch Monitor
The overhead sensor SIMRail was built to carry. High-speed photometric tracking, no required subscription, and GSPro compatibility.
View The Launch Monitor →Reseller & Installer Program
Sell or install simulator hardware. Dealer pricing, factory-direct projector pricing, and deep discounts on Elite Sim Golf enclosures.
Become A Partner →SIMRail Buyer FAQ.
What does SIMRail actually do?
SIMRail is a motorized ceiling-mounted rail system that carries an overhead golf launch monitor and repositions it laterally. It moves the sensor to the correct side of the hitting area based on whether a right-handed or left-handed golfer is playing, using the hand setting in GSPro.
How narrow a room can SIMRail work in?
SIMRail is designed to deliver full left- and right-handed capability in rooms as narrow as roughly 10 feet of width. That is well below the width a fixed dual-handed overhead setup normally requires.
How far does the rail travel?
Total rail travel is 4 feet 6 inches, which provides a standard offset capability of plus or minus 2 feet 3 inches from the center position.
How many positions can be programmed?
Three: left, center, and right. All three are customizable, and the center position can be assigned to specific clubs so that both golfers use it for those shots.
Why would the center position be used?
Putting is the most common reason. Assigning the putter to the center position means both right- and left-handed golfers putt from the same spot in the middle of the hitting area rather than from the side stops.
Does SIMRail require GSPro?
Automatic handedness-based repositioning is driven by GSPro, so GSPro is required for that behavior. GSPro is licensed separately from SIMRail.
How does SIMRail communicate?
Communication is wireless over Bluetooth or Wi-Fi. No dedicated control cable has to be run down from the ceiling to a PC.
Can the movement speed be adjusted?
Yes. Both travel speed and acceleration are adjustable, which allows the carriage to move gently for stability or faster for quicker transitions between players.
Which launch monitors is SIMRail compatible with?
SIMRail is built for ceiling-mounted overhead launch monitors and is intended to work with any overhead sensor running GSPro. Confirm the mounting footprint and weight of the specific monitor bracket before installation. It pairs naturally with the VTrack Overhead Launch Monitor.
Does SIMRail take up floor space?
No. The rail, carriage, and cabling all mount overhead, so the hitting area, mat, and walk-in space remain unobstructed.
What kind of ceiling is needed?
SIMRail must be anchored into structure that can carry the rail assembly plus the launch monitor mounted to it. Ceiling height also has to satisfy the clearance requirement of the overhead sensor being used. Overhead mounting guidance is available on the setup and support page.
Is a launch monitor included with SIMRail?
No. SIMRail is a rail and motion system only. The overhead launch monitor is purchased separately, either on its own or as part of a SimKit package.
Is SIMRail cheaper than a second launch monitor?
In nearly every case, yes. A second overhead sensor dedicated to the opposite handedness costs a multiple of a rail system and also consumes additional ceiling space and cabling.
What support is available after purchase?
Elite Sim Golf provides post-purchase support for the products it sells, including installation guidance and help getting the rail communicating with GSPro. Support is reachable through the setup and support page.
Bought From A Builder, Not A Marketplace.
SIMRail is sold alongside the enclosures, projectors, mats, and overhead launch monitors that surround it, by a team that installs these systems. That means the rail is specified against a real build rather than sold as a standalone box.
Specified Against Your Room
Room width, ceiling height, and sensor choice reviewed together before the rail ships.
Full Build Under One Roof
Launch monitors, enclosures, projectors, mats, and accessories from a single source.
Install Guidance Included
Overhead mounting and software setup guidance from a team that does these installs.
Post-Purchase Support
Direct help getting the rail programmed and communicating with GSPro after delivery.
Bottom line: SIMRail buys width the room does not have. One overhead sensor, two handedness positions, 4′6″ of automated travel, and a floor that stays completely clear.
