Parlour Series Launch Monitor Bracket
Mount your overhead launch monitor to the front of your SportScreen Parlour Series frame — no ceiling anchors, no floor tripod, no drilling. Two 4080 aluminum extrusion rails bolt straight to the Parlour's 4040 T-slot frame for a clean, space-saving mounting point above the hitting area.
A Frame-Mounted Home for Your Launch Monitor
Keeps the Floor Clear
Mounts to the top front of the Parlour frame instead of a tripod or ceiling anchor, so there's nothing to trip over and nothing to drill into your ceiling.
Bolts Straight to the Frame
Built around the same 4040 T-slot system as the Parlour Series frame, so the bracket integrates cleanly with hardware that's already included.
Sleek, Space-Saving Profile
Two slim 11.5" rails hold the launch monitor above the hitting area without adding bulk to the front of your bay.
Built to Match Your Parlour Studio
| Model | Price | SKU |
|---|---|---|
| Parlour 13H | $199.99 | G5420 |
| Parlour 16H | $199.99 | G5420 |
Select the Parlour model you own so the bracket ships matched to your studio's frame width.

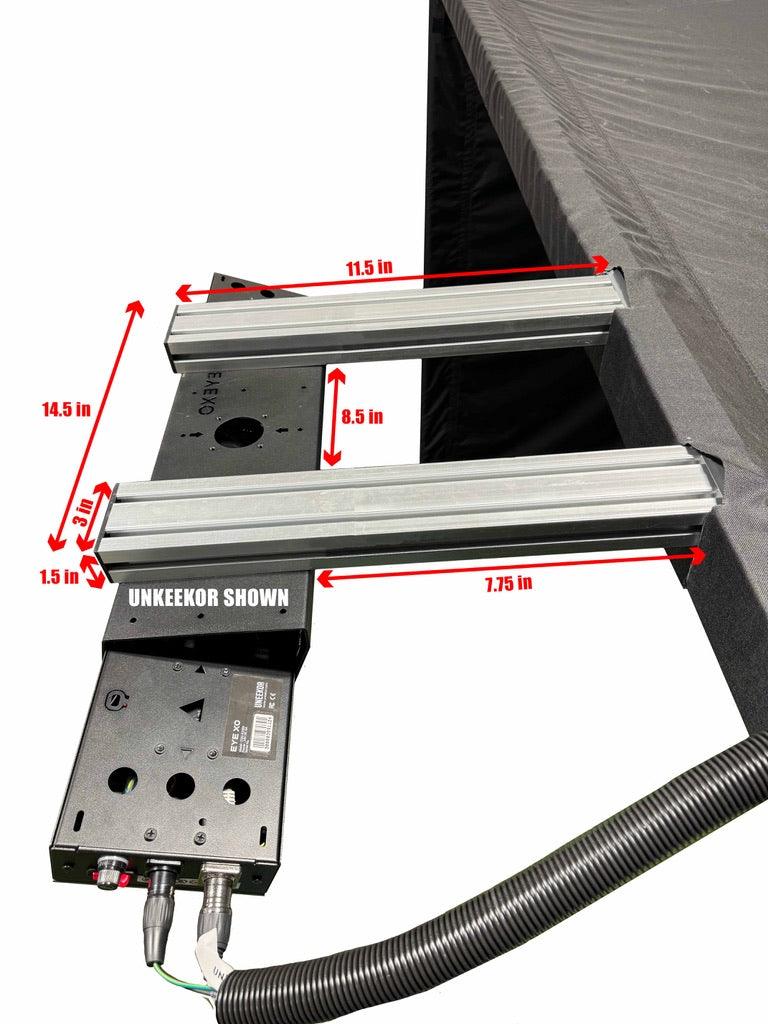

| What's Included | 2 × 11.5" 4080 aluminum extrusion rails, plus all mounting hardware |
| Material | 4080 aluminum T-slot extrusion |
| Rail Length | 11.5" per rail (2 rails) |

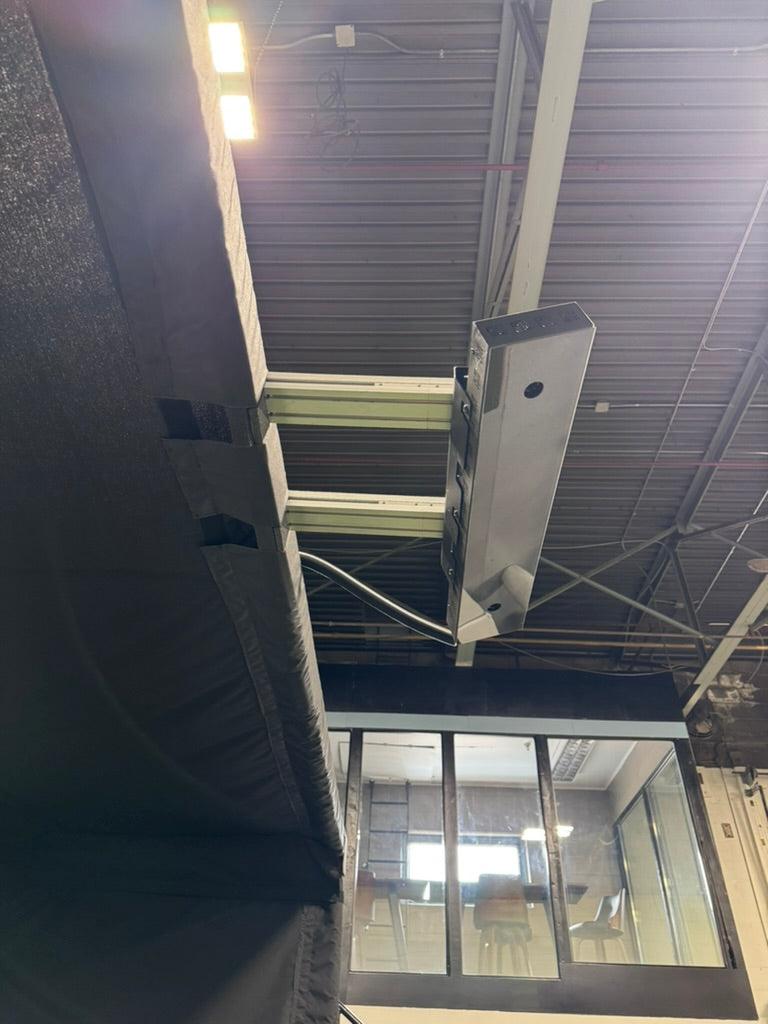

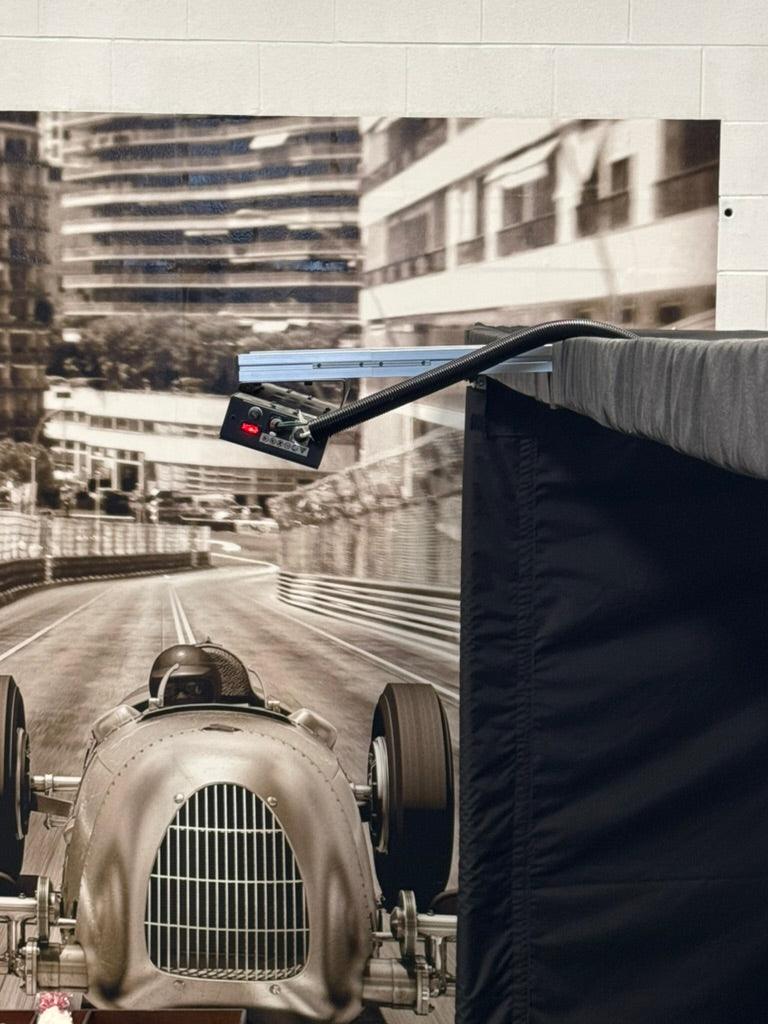

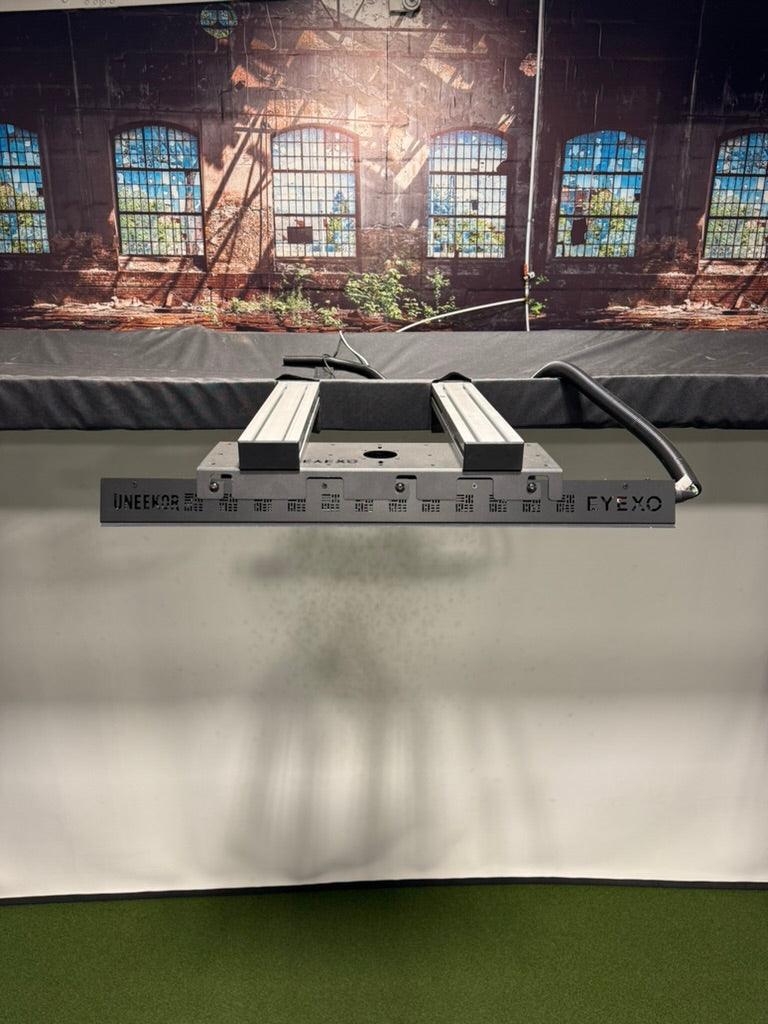

| Mounting Location | Front top bar of the Parlour Series frame, above the hitting area |
| Compatibility | SportScreen Parlour 13H, Parlour 16H, and most custom Parlour studios |
| Not Compatible With | Vanish Series, Vanish LITE, or other non-Parlour SportScreen enclosures |
Ordering the Parlour Series Enclosure?

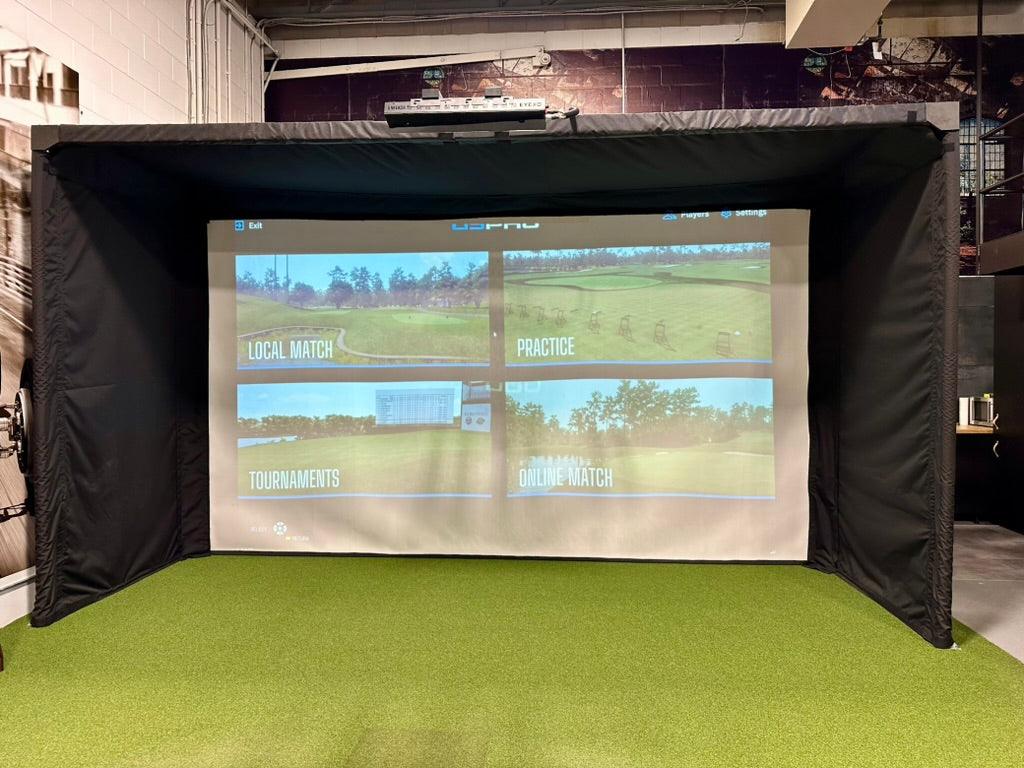

Add this bracket to your Parlour 13H or 16H build for a clean overhead launch monitor mount.
Parlour Series Launch Monitor Bracket
A clean, frame-mounted way to position your overhead launch monitor above the Parlour Series hitting area — no floor tripod, no ceiling work.
Contact UsCommon Questions
Which Parlour models does this bracket fit?
It fits the Parlour 13H and Parlour 16H, and most custom Parlour studio builds. Select your model at checkout so the bracket is matched to your frame width.
Does this work with any other SportScreen enclosure?
No. This bracket is designed specifically for The SportScreen Parlour Series frame and is not compatible with the Vanish Series, Vanish LITE, or other SportScreen product lines.
Will my launch monitor fit on this bracket?
Most overhead launch monitors mount fine, but placement and clearance vary by manufacturer. Confirm with your launch monitor's maker that overhead mounting above the frame works for your specific model before ordering.
Does this include the launch monitor?
No — this is the mounting bracket only. It ships with the two aluminum rails and mounting hardware; the launch monitor itself is sold separately.
What tools do I need to install it?
Basic hand tools are all that's typically needed since the bracket bolts to the existing Parlour frame using the included hardware. Full installation steps are covered in the SportScreen installation guide.
