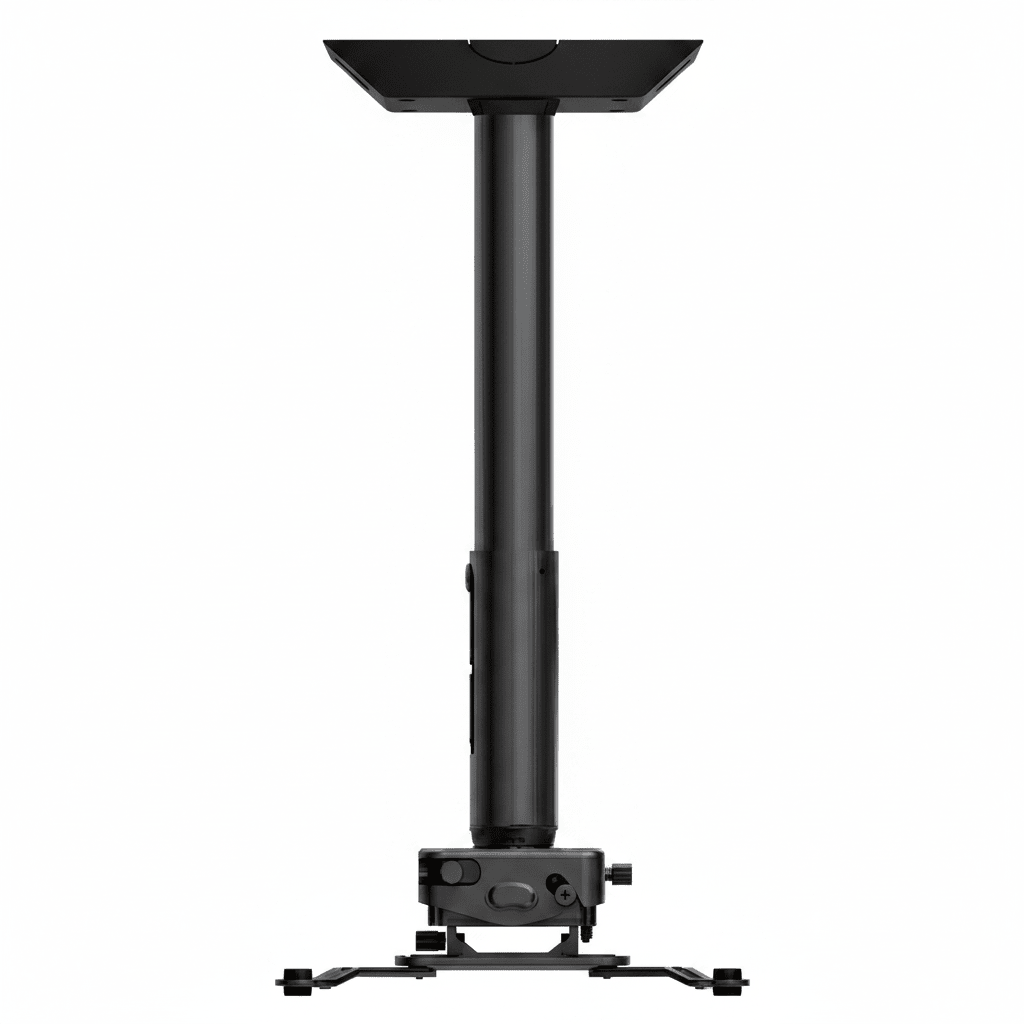

Ceiling projector kit with JR3 universal adapter 18"-24" Drop by Crimson AV JKR3-24A
By Crimson AV
A Complete Projector Drop, Pre-Matched To Your Ceiling.
This kit pairs the Crimson AV JR3 universal projector mount with an adjustable extension column pre-set to the 18″–24″ drop range — so the ceiling adapter, column, and mount head all arrive ready to assemble around one measurement: the distance from your ceiling to where the projector lens needs to sit.
Built To Disappear Into The Ceiling.
Pre-Matched Drop Range
The extension column in this kit is set for 18″ to 24″ of ceiling-to-lens drop, so there is no separate column to size or order — just measure and confirm the fit.
Tool-Free Micro Adjustment
The JR3 mount head has built-in roll, pitch, and yaw adjustment for fast alignment, plus a quick-release mechanism that lets the projector come down for service without re-mounting the column.
Hidden Cable Routing
Power and video cable run through the column itself, so the finished install has a single clean pipe from ceiling to projector with no exposed cable runs.
Pre-Assembled Mounting Interface
The mounting interface arrives pre-assembled and the hardware pack is pre-sorted, cutting install time down to attaching the ceiling plate, extending the column, and securing the projector.
Universal 1.5″ NPT Standard
Every Crimson AV component — ceiling adapters, columns, connectors, and mount heads — shares the same 1.5″ NPT threaded interface, so parts from the wider Crimson AV system stay compatible if the install changes later.
Security Hardware Included
Security fasteners are included at every connection point in the column and mount head, discouraging tampering on ceiling-mounted hardware in shared or commercial bays.
Who Is It Best For?
Builders who have already measured a ceiling-to-lens drop that falls between 18″ and 24″ and want a single pre-matched kit instead of ordering a ceiling adapter, column, and mount head separately.
Confirm The Drop Before You Order.
How To Measure Your Drop
Measure straight down from the ceiling attachment point to where the center of the projector lens needs to sit. That number is the target drop — this kit covers targets from 18″ to 24″.
- Standard flat or joist ceilings only — vaulted ceilings need the CAV1 adapter instead
- Column adjusts in 1″ increments without disassembly
- Confirm projector weight is at or under the 70 lb JR3 rating
- Use the ESG fitment tool to confirm projector placement and throw distance before mounting
If Your Drop Falls Outside 18″–24″
Crimson AV JR3 kits are sold in three fixed drop ranges. If your measured drop does not fall inside this kit's range, choose the matching kit instead of forcing a fit:
- 6″–11″ Drop kit (SKU JKR3-11A)
- 12″–18″ Drop kit (SKU JKR3-18A)
- Drop shorter than 6″, longer than 24″, or on a vaulted ceiling? Use the Custom Projector Mount Builder by Crimson AV to configure the exact ceiling adapter, column, and mount head for your install.
Ceiling To Lens, One Connected System.
This kit ships as a ceiling adapter, an adjustable extension column pre-set to the 18″–24″ drop range, and a JR3 universal projector mount head — all sharing the same 1.5″ NPT threaded interface so assembly is straightforward.
The extension column telescopes within its 18″–24″ range in 1″ increments, which means the exact final drop can be fine-tuned after the ceiling plate is installed — useful for dialing in the last inch of alignment once the projector is test-fit against the screen. For exact lens-to-screen throw distance based on screen size and the projector being mounted, run the numbers in the ESG projector fitment tool and throw calculator before final placement.
The JR3 mount head at the bottom of the column accepts most golf simulator projectors up to 70 lb, with roll, pitch, and yaw adjustment built in for squaring the image without shimming or re-mounting. A quick-release mechanism lets the projector be removed for service, firmware updates, or bulb/laser maintenance without disturbing the column or ceiling plate.
Cable routing runs through the inside of the column itself, with a cable outlet sized for standard HDMI and power connectors — so the finished install shows a single clean pipe from ceiling to projector instead of a run of exposed cable.
The Full JKR3-24A Feature Set.
18″–24″ Drop Adjustable Column
Telescopes in 1″ increments across the full 18″–24″ range without disassembly, for fine-tuning drop height after the ceiling plate is installed.
JR3 Universal Mount Head
Fits most golf simulator projectors up to 70 lb with built-in roll, pitch, and yaw micro-adjustment for squaring the projected image.
Quick-Release Service Access
Detach the projector from the mount head for service or replacement without touching the column or ceiling plate.
Through-Column Cable Routing
Power and video cable run hidden inside the column for a finished, uncluttered look from ceiling to projector.
Universal 1.5″ NPT Threading
Every connection point uses the same threaded pipe standard as the rest of the Crimson AV system, keeping future upgrades or ceiling changes compatible.
Pre-Sorted Hardware Pack
All mounting hardware arrives sorted and matched to each step of assembly, with security fasteners included at every connection point.
JKR3-24A Key Specifications.
| Drop Range | 18″–24″ (adjustable, 1″ increments) |
|---|---|
| Weight Capacity | Up to 70 lb |
| Mount Head | Crimson AV JR3 universal projector mount |
| Alignment | Roll, pitch & yaw micro-adjustment, tool-free |
| Threaded Interface | Universal 1.5″ NPT |
| Cable Routing | Through-column, hidden |
| Service Access | Quick-release projector detach |
| Hardware | Pre-sorted pack with security fasteners at all connection points |
| Ceiling Type | Flat / standard joist ceilings (use CAV1 adapter via the mount builder for vaulted ceilings) |
| SKU | JKR3-24A |
| Dealer Status | Elite Sim Golf Authorized Crimson AV Dealer |
Crimson AV JR3 Fixed-Drop Kits.
All three kits share the same JR3 mount head and ceiling adapter — only the adjustable column's drop range changes. Measure your ceiling-to-lens drop, then pick the kit that covers it.
- Drop Range: 6″–11″
- Adjustment: 1″ increments, tool-free
- Weight Capacity: up to 70 lb
- Interface: Universal 1.5″ NPT threaded pipe
- Price: $325.19
- Drop Range: 12″–18″
- Adjustment: 1″ increments, tool-free
- Weight Capacity: up to 70 lb
- Interface: Universal 1.5″ NPT threaded pipe
- Price: $335.99
- Drop Range: 18″–24″
- Adjustment: 1″ increments, tool-free
- Weight Capacity: up to 70 lb
- Interface: Universal 1.5″ NPT threaded pipe
- Price: $341.99
The Right Drop, Ready To Install.
Choose this kit when a measured ceiling-to-lens drop of 18″ to 24″ is confirmed. It arrives with the ceiling adapter, adjustable column, and JR3 mount head all matched and ready to assemble, so the only remaining step is mounting and aligning the projector.
Not Sure This Is The Right Drop?
If the measured drop falls outside 18″–24″, or the ceiling is vaulted, use the Custom Projector Mount Builder by Crimson AV to configure the exact ceiling adapter, column, and mount head for the install.
Confirm Projector Fitment First
Before mounting, confirm throw distance and screen size fit with the ESG projector fitment tool and throw calculator, or explore a complete package with the SimKit Bundle Builder.
