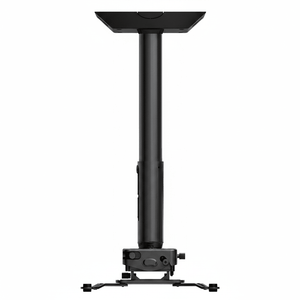

Crimson AV Mount Builder kit
CA1C ceiling adapter Extension column JR3 SyncPro projector mount

Crimson AV Ceiling Mount System

Build Your Projector Mount

$0.00 complete kit, priced live as you build

★★★★★ Trusted ceiling-mount hardware for golf simulator projectors

Match a Crimson AV ceiling adapter, extension column, and JR3 SyncPro projector mount to your exact ceiling type and drop height. All parts share Crimson AV's universal 1.5″ NPT interface, so every combination below is fully compatible — pick your options and the kit price updates instantly.

1 Ceiling Type
2 Drop Height
3 Mount Model

Ceiling Type

Crimson AV CA1C single joist ceiling adapter

Flat / Standard

CA1C • $49.99

Crimson AV CAV1 vaulted ceiling interface

Vaulted / Cathedral

CAV1 • $69.59

CA1C single-joist adapter with decorative cover. Mounts to wood joist, structural wood, or concrete. 300 lb rated.

Drop Height 48″ from ceiling to projector

4' 0"
6″5ft10ft15ft20ft

Recommended part: —

JR3 SyncPro Mount Model

Crimson AV JR3 SyncPro projector mount

JR3 Standard

$201.99

Crimson AV JR3XL SyncPro projector mount, long arm

JR3XL Long-Arm

$249.99

JR3 SyncPro: tool-free micro adjustment, 70 lb capacity, 13.8″ max mounting pattern. Fits most golf simulator projectors.

Your Mount Kit

Total $0.00

Ships as separate components — assembly required, no tools needed for adjustable columns.

Universal 1.5″ NPT 300–500 lb rated Free UPS Ground

Universal 1.5″ NPT

Every part interconnects

6″ to 20ft Drop

Fixed & adjustable columns

300–500 lb Rated

Per-component capacity

10-Year Warranty

Lifetime on JR3 mount head

How The System Works

Four Parts, One Drop

A complete mount is built from four building blocks stacked from your ceiling down to your projector.

1
Ceiling Adapter
CA1C or CAV1 — attaches to your ceiling structure
→
2
Extension Column
E or EA series — sets your drop height
→
3
EC1 Connector
Only needed to join two columns for longer drops
→
4
JR3 Projector Mount
SyncPro head — holds & aligns your projector

Choosing Your Mount Head

JR3 vs. JR3XL

Both mount heads share the same tool-free SyncPro adjustment mechanism. The JR3XL simply reaches farther — use it when your projector's lens sits off-center or the chassis is larger than average.

Model Best For Capacity Max Mounting Pattern Price
JR3 Standard Most golf simulator projectors with centered lenses 70 lb 13.8″ $201.99
JR3XL Long-Arm Larger projectors or off-center lens designs — e.g. BenQ LK936ST and Optoma ZK608TST 70 lb Extended arm reach for larger chassis $249.99

Not sure which fits your projector? Use the E-Z Mount Finder / Projector Fitment Tool to verify compatibility before ordering.

Full Part Reference

Component Spec Sheet

Every SKU the builder can select from, with weight capacity and drop range.

Model Type Drop Range Capacity Price
CA1C Ceiling Adapter (flat) — 300 lb $49.99
CAV1 Ceiling Adapter (vaulted, 0–94°) — 300 lb $69.59
E06 Fixed Column 6″ 500 lb $26.99
E1 Fixed Column 12″ 500 lb $32.99
E2–E10 Fixed Column 2ft–10ft 500 lb $41.99–$189.99
EA0611 Adjustable Column 6–11″ 500 lb $61.99
EA01218 Adjustable Column 12–18″ 500 lb $72.99
EA01824 Adjustable Column 18–24″ 500 lb $79.99
EA23–EA810 Adjustable Column 2ft–10ft 500 lb $98.99–$212.99
EC1 Pipe Connector Joins two columns 500 lb $17.99
JR3 Projector Mount — 70 lb $201.99
JR3XL Projector Mount (long-arm) — 70 lb $249.99

Common Questions

Mount Builder FAQ

How do I measure my drop height? −
Measure straight down from your ceiling attachment point to where you want the projector lens to sit. That number is your target drop height — enter it in the slider and the builder recommends the closest matching column.
What's the difference between fixed and adjustable columns? +
Fixed-length E-series columns are a single set length. Adjustable EA-series columns telescope within a range in 1″ increments without disassembly, which is useful if you're not 100% certain of your final drop height or need to fine-tune alignment after install.
What if my drop height is longer than any single column? +
The builder automatically splits drops beyond 10ft into two columns joined by an EC1 pipe connector, which is rated for the same 500 lb load as the columns themselves.
Do I need different parts for a vaulted ceiling? +
Only the ceiling adapter changes. Swap the CA1C for the CAV1, which adjusts 0–94° to plumb your column on angled or cathedral ceilings. Every column, connector, and JR3 mount head stay the same.
When should I choose the JR3XL instead of the standard JR3? +
Choose the JR3XL if your projector has an off-center lens or a larger chassis that needs extra arm reach to clear the mount head — for example the BenQ LK936ST or Optoma ZK608TST. Both mount heads share the same tool-free SyncPro adjustment mechanism and 70 lb capacity; the JR3XL just extends farther. Use the Projector Fitment Tool to confirm which one your model needs.
Is cable routing included? +
Yes. Every E and EA column includes internal cord routing with a 1″x2″ cable outlet that fits standard HDMI/VGA connectors, so power and video cable run hidden inside the column.
