Build a Permanent Indoor Simulator
Around the Uneekor EYE MINI Lite

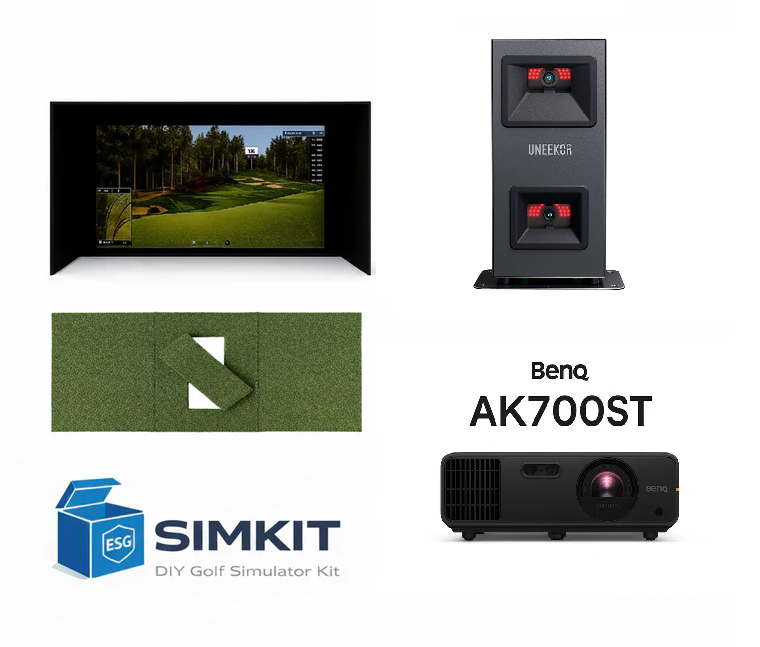

The EYE MINI Lite SimKit pairs Uneekor’s entry-level photometric launch monitor with a fixed BenQ AK700ST 4K laser short-throw projector and the Beaver Tail 4×8.25 hitting mat, plus the aluminum enclosure of your choice. It’s a fixed-installation package built for garage bays, dedicated sim rooms, and anywhere a permanent, PC-connected setup makes sense. Choose your enclosure size at checkout — the projector and mat are set, and everything ships together via free UPS Ground.
Uneekor EYE MINI Lite
Ground-Based Placement
Sits in front of the mat facing the golfer. No ceiling mount, no overhead bracket, no drilling required.
Dimple Optix — Any Ball
Reads any standard golf ball by its dimple pattern. No stickers, no markings, no special balls required for ball data.
19 Ball & Club Data Points
Dual-camera system captures ball speed, spin, launch angle, club path, face angle, attack angle, and more across every shot.
Full Uneekor Software Ecosystem
Ships with Uneekor Launcher and VIEW. Compatible with GSPro, E6 Connect, and TGC 2019. Refine and GAME DAY trial included.
- Ball Speed
- Back Spin
- Side Spin
- Launch Angle
- Launch Direction
- Carry Distance
- Total Distance
- Max Height
- Descent Angle
- Flight Time
- Side Carry
- Spin Axis
- Total Spin
- Curve
- Club Head Speed
- Club Path
- Face Angle
- Attack Angle
- Face to Path
The EYE MINI Lite requires a wired Ethernet connection to a Windows PC and AC power. It is designed for permanent indoor simulator installations — it does not have a battery or built-in screen. Club stickers near the clubface toe are recommended for complete club data tracking.
BenQ AK700ST — 4K Laser Short Throw
This SimKit ships with the BenQ AK700ST, a 4K UHD laser short-throw projector built specifically for golf simulators. Four thousand lumens and a 0.69–0.83:1 short throw with 1.2× motorized zoom fill the enclosure with a bright, sharp image from a ceiling mount close to the screen, and the laser light source is rated up to 20,000 hours with no lamp to replace.
4K UHD Resolution
Native 3840 × 2160 for sharp course detail and readable on-screen data across the full screen.
4,000 Lumens
Bright laser engine for rooms with ambient light, holding contrast on a full-size impact screen.
0.69–0.83:1 Short Throw
Short throw with 1.2× motorized zoom mounts close to the screen, keeping the projector out of the swing path.
Auto Screen Fit
Auto Screen Fit, Quick Focus, and ±30° 3D keystone make squaring the image to the screen fast.
Choose Your Enclosure — 3 Sizes
All three enclosures use a tool-free aluminum frame and ship flat for assembly in your space. Choose the size that fits your room and desired screen width. Confirm ceiling clearance and throw distance with the Projector Fitment Tool before ordering.
Eagle 12 Enclosure
The Eagle 12 is the most versatile SimKit enclosure — wide enough for a generous screen, short enough in depth to fit a standard two-car garage bay or spare room. Tool-free aluminum frame, 4:3 aspect ratio screen, and 6×12 landing mat included with enclosure purchase.
Birdie 10 Enclosure
The Birdie 10 fits rooms where width is limited — a single-car garage, a basement lane, or a tighter dedicated sim room. At 120″ wide, it still delivers a full sim experience with a 4:3 screen and includes the 6×12 landing mat. Tool-free aluminum frame ships flat.
Albatross 13 Enclosure
The Albatross 13 is the widest enclosure in the lineup — 156″ wide with a 16:9 aspect ratio screen and the deeper 6×15 landing mat. Built for rooms with the horizontal space to support a cinema-scale sim display. Tool-free aluminum frame, 72″ depth.
Beaver Tail 4×8.25 Double-Wide
This SimKit ships with the Beaver Tail 4×8.25 double-wide hitting mat. Because the EYE MINI Lite sits on the floor in front of the mat facing the golfer, mat length matters — the double-wide platform extends well behind the hitting strip so right- and left-handed golfers get a full, comfortable stance without crowding the monitor footprint up front.
4×8.25 Double-Wide
Wide, long platform that suits right- and left-handed golfers and keeps the ground-based monitor clear of your stance.
Replaceable Strip
The hitting strip insert swaps out when it wears, so the mat lasts well past the life of the strip.
Joint-Friendly Feel
The realistic hitting surface is designed to reduce joint impact through long practice sessions.
Stable Bay Surface
Dense, flat base stays put through full swings, protects the floor, and pairs with the included landing mat.
The enclosure landing mat is included (6×12 with Birdie 10 or Eagle 12; 6×15 with Albatross 13). A putting green is an optional add-on available at checkout.
EYE MINI Lite SimKit — Eagle 12 Bay
Eagle 12 enclosure pictured. EYE MINI Lite launch monitor placement and putting green not shown. Putting green not included unless selected at checkout.
What Completes the Build
The SimKit ships with the launch monitor, projector, enclosure, and mat. These three items round out the installation.
Projector Install Kit
BenQ CM00G3 projector ceiling mount, 25ft HDMI cable, and 25ft power cable. Positions the short-throw projector at the correct throw distance from the screen without running cables across the floor.
Landing Mat (Included)
6×12 with Birdie 10 or Eagle 12 enclosures; 6×15 with Albatross 13. Sits at the base of the enclosure in front of the hitting mat. Included in the SimKit — sized automatically to the enclosure selected at checkout.
Windows PC
The EYE MINI Lite requires a Windows PC connected via wired Ethernet. A compatible gaming PC is not included in the SimKit — it must be purchased separately. A capable PC also unlocks GSPro, E6 Connect, and the full Uneekor software suite.
Browse Golf Simulator PCsWhat’s In The Box
- Uneekor EYE MINI Lite Launch Monitor
- BenQ AK700ST 4K laser projector
- Enclosure (size chosen at checkout)
- Beaver Tail 4×8.25 hitting mat
- BenQ CM00G3 projector ceiling mount
- Landing mat (6×12 / 6×15 by enclosure)
- 25ft HDMI cable
- 25ft power cable
- Uneekor Launcher software (free download)
- VIEW virtual driving range (free)
- Refine / Refine+ / GAME DAY trial license
- Windows PC (required — sold separately)
- Putting green (optional add-on)
Quick Specs
| Launch Monitor | Uneekor EYE MINI Lite |
| Tracking | Dual High-Speed IR Cameras (Photometric) |
| Placement | Ground-Based (in front of mat) |
| Hitting Zone | 12″ × 8″ |
| Ball Recognition | Dimple Optix (any ball) |
| Data Points | 19 ball & club metrics |
| Software | Uneekor Launcher, VIEW, Refine, GSPro, E6 Connect, TGC 2019 |
| PC Required | Yes (Windows, wired Ethernet) |
| Projector | BenQ AK700ST 4K Laser (included) |
| Enclosure | Birdie 10, Eagle 12, or Albatross 13 |
| Hitting Mat | Beaver Tail 4×8.25 (included) |
| Shipping | Free UPS Ground (Continental US) |
Why the EYE MINI Lite SimKit?
- Uneekor photometric accuracy at the lowest Uneekor price point
- Ground placement with no ceiling hardware or drilling required
- Any-ball Dimple Optix tracking — no proprietary accessories
- Full GSPro and E6 software compatibility via Windows PC
Who This SimKit Is Built For
The Uneekor Buyer
Wants into the Uneekor photometric ecosystem at the lowest price point without compromising on tracking quality.
The Permanent Builder
Setting up a dedicated sim room or garage bay and wants a fixed, wired installation with no portability trade-offs.
The GSPro Player
Prioritizes GSPro or E6 for course play and wants photometric data to back it up. PC-first approach is a feature, not a limitation.
The Upgrader
Moving up from a radar-based or portable device to a proper indoor sim build with permanent hardware and full software access.
Build Your Own or Compare Alternatives
Want a different projector, a different mix of components, or weighing other launch monitors? Compare the same kit with the Optoma projector, start from the bundle builder, or compare other pre-configured alternatives.
Same Kit with the Optoma ZK521ST-B
The identical EYE MINI Lite SimKit built around the Optoma ZK521ST-B instead of the BenQ AK700ST. The Optoma runs brighter at 5,000 lumens with a fixed 0.79:1 throw and up to 30,000-hour laser life — the better pick for rooms with more ambient light. Same enclosure choices, same Beaver Tail mat.
View the Optoma ZK521ST-B KitBuild Your Own SimKit
Prefer to choose every component yourself? The SimKit Bundle Builder lets you pick your launch monitor, projector, enclosure, and mat individually and confirm fitment as you go.
Open the Bundle BuilderGarmin R50 SimKit
Ground-based photometric launch monitor with the same enclosure and projector options — no Windows PC required. Home Tee Hero runs directly on the R50’s built-in 10″ touchscreen. The right alternative for builders who want floor placement without a PC dependency.
View Garmin R50 SimKitVTrack Overhead SimKit
Ceiling-mounted overhead launch monitor with the same enclosure and projector options. Requires a Windows PC for GSPro and E6 — same as the EYE MINI Lite. The difference is mount position: overhead vs. in front of the mat.
View VTrack SimKitResources
EYE MINI Lite SimKit — FAQ
The ESG Advantage
Three reasons this SimKit ships from Elite Sim Golf rather than a general-purpose retailer.
Uneekor Authorized Dealer
Elite Sim Golf is an authorized source for the EYE MINI Lite with full Uneekor manufacturer warranty support. Buying from an authorized dealer is the only way to ensure warranty coverage is valid from day one.
Pre-Configured Package
The launch monitor, projector, enclosure, and mat are configured and shipped as a single coordinated package via free UPS Ground. No assembling a build from four separate vendors or worrying about compatibility gaps.
ESG-Backed Support
Post-purchase setup and software guidance is available. Getting Uneekor Launcher, GSPro, and E6 Connect running correctly on a new Windows PC can take troubleshooting — ESG support is there to walk through it.
