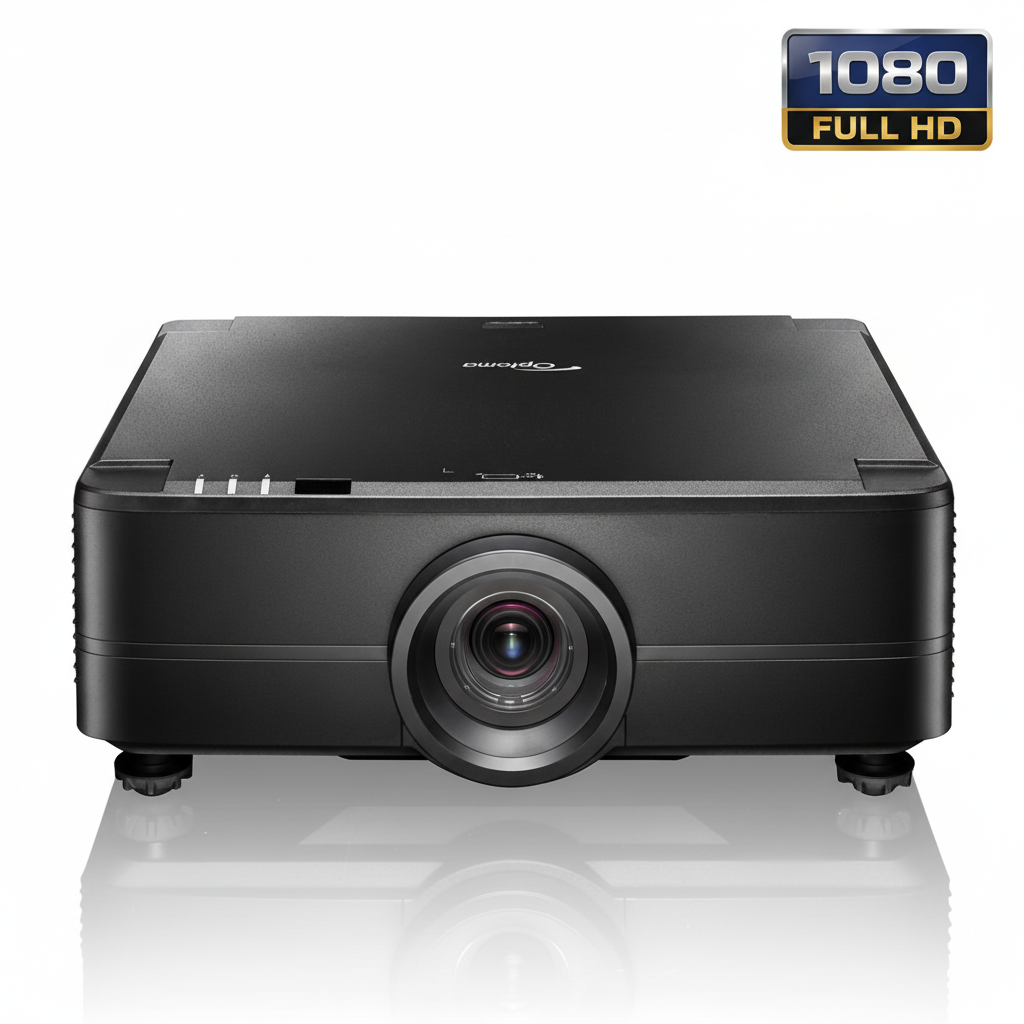

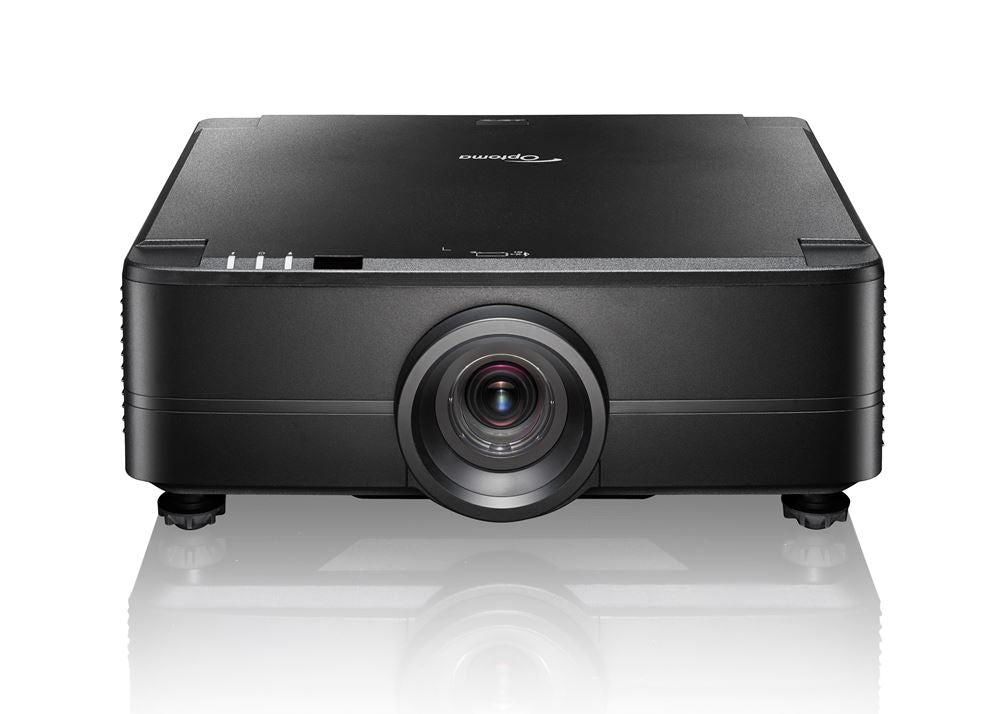

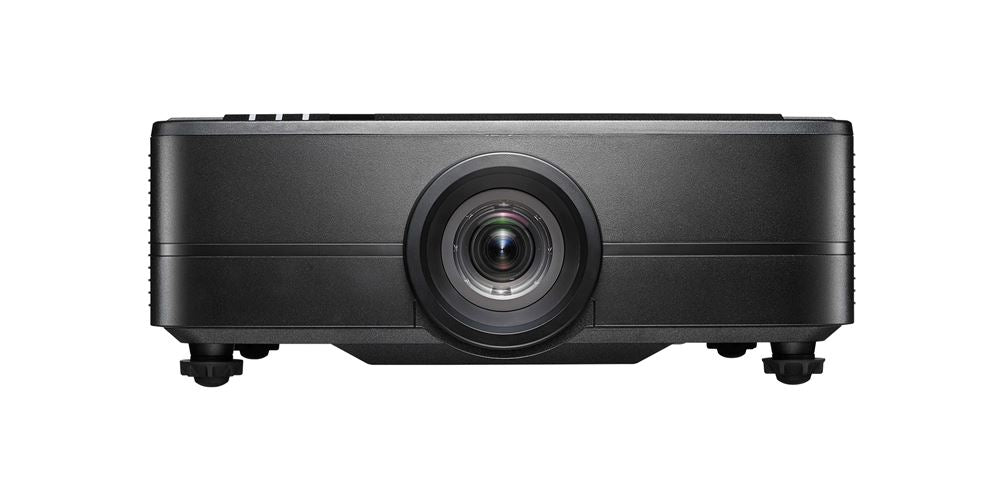

Optoma ZU820TST 8200-Lumens WUXGA Short Throw Golf Simulator Projector
By Optoma
More Headroom, Same Proven Mounting Geometry.
The ZU820TST sits in the middle of Optoma's WUXGA short-throw trio — it keeps the same 0.75–0.95:1 lens geometry as the ZU725TST but steps up to a brighter laser engine for bays with more ambient light or larger impact screens. It is a professional installation projector at its core, built with a sealed dust-resistant engine and full motorized lens shift rather than adapted from a home-theater design.
Brighter Output Without Changing The Install Plan.
Stepped-Up DuraCore Laser Engine
6,900 ANSI lumens (8,200 lumens white light output) gives noticeably more headroom than the ZU725TST for rooms with windows, ambient light, or larger screens.
Proven Golf Short-Throw Lens
The same 0.75–0.95:1 throw ratio and 1.26× motorized zoom as the ZU725TST means an install plan built around one model transfers directly to the other.
Full Motorized Lens Shift
Vertical shift up to ±50% and horizontal up to ±15% correct for off-center mounting without moving the ceiling bracket.
HDBaseT And LAN Ready
Built-in HDBaseT and RJ45 LAN control support long cable runs and integration with Crestron, AMX, or Extron control systems.
Dust-Resistant IP5X Engine
Certified to IEC 60529 for dust resistance and rated for 24/7 operation, built to hold brightness through months of daily hitting-bay use.
4K And HDR Signal Compatible
Accepts 4K and HDR10/HLG source signals for expanded dynamic range on course visuals and entertainment content alike.
Who Is It Best For?
Builders who like the ZU725TST's mounting geometry but need more brightness for a room with ambient light, a wider screen, or a commercial space that gets more daytime traffic than a closed garage bay.
The Same Reliable Geometry, More Lumens Behind It.
Short-Throw Geometry
The ZU820TST carries the same throw range as the ZU725TST, so bays already planned around that lens geometry do not need to change mounting depth to get more brightness.
- 0.75–0.95:1 throw ratio for standard sim-bay mounting depths
- 1.26× motorized zoom to dial in image size without relocating the mount
- Screen size range of roughly 50″–300″ diagonal
- Native 16:10 plus 4:3 and 16:9 support
Lens Shift & Alignment
Full motorized lens shift and digital keystone correction handle final image alignment from the remote, without repositioning the projector body.
- Vertical lens shift up to ±50% via remote
- Horizontal lens shift up to ±15% via remote
- Digital keystone correction, ±30° horizontal and vertical, for final squaring
- Use the ESG fitment tool to confirm exact mounting distance before drilling
A Brighter Laser Engine On The Same Golf-Ready Lens.
The ZU820TST is a WUXGA short-throw laser projector built on Optoma's ProScene installation platform. The DuraCore laser light source is rated for approximately 30,000 hours in Eco mode, meaning stable brightness through years of nightly simulator use rather than the gradual dimming that comes with lamp-based projectors after 1,000–2,000 hours.
The 0.75–0.95:1 short-throw range and 1.26× motorized zoom mount the ZU820TST behind the hitting area, clear of the swing path, using the same published projection distance and screen size range Optoma specifies for the lens. Because those figures depend on the specific screen width and enclosure depth in a bay, run the numbers in the ESG projector fitment tool and throw calculator before finalizing a mount location.
Ceiling mount notes: full motorized lens shift (vertical ±50%, horizontal ±15%) gives real slack on where the mount point sits relative to the screen center, and digital keystone correction squares up the final image from the remote.
For PC-based simulators running GSPro, E6 Connect, TGC 2019, or Awesome Golf, the ZU820TST connects via HDMI 2.0, HDMI 1.4a, or HDBaseT, giving flexibility on cable runs when the sim PC is mounted away from the projector.
The Full ZU820TST Feature Set.
WUXGA Native Resolution
Native 1920 × 1200 resolution at a 16:10 aspect ratio, with 4:3 and 16:9 support for source material shot in different formats.
Short-Throw Projection
0.75–0.95:1 throw ratio with 1.26× motorized zoom covers roughly 50″–300″ screens from typical simulator-bay mounting depths.
6,900 ANSI Lumens
Rated at 8,200 lumens white light output — a meaningful step up in brightness for rooms with ambient light or larger screens.
3,000,000:1 Contrast
Dynamic contrast ratio of 3,000,000:1 keeps shadow and highlight detail distinct on course textures and ball-flight overlays.
HDR10 + HLG Signal Support
Accepts HDR10 and HLG source signals along with 4K input up to 60p for more dynamic range in both sim play and entertainment use.
Full Installer Connectivity

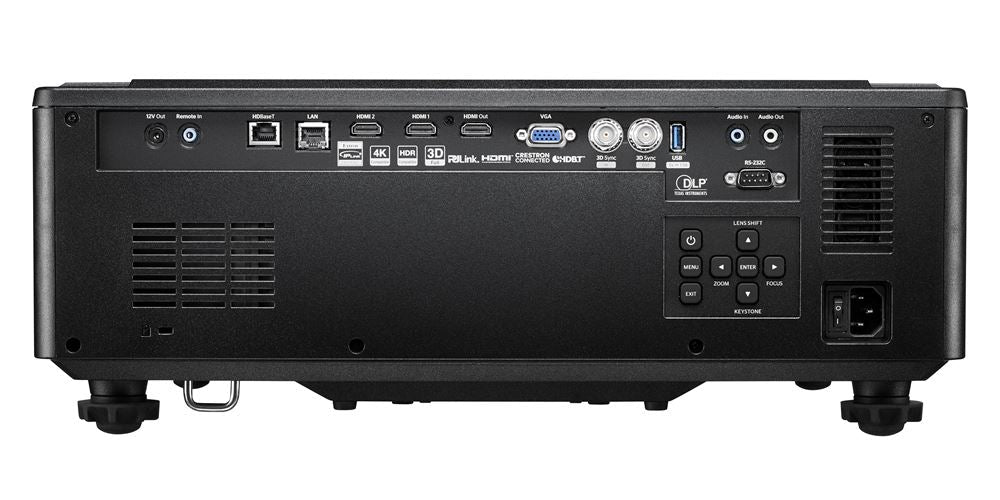

HDBaseT, HDMI 2.0, HDMI 1.4a with 3D support, VGA, dual USB-A power, RS232, RJ45 LAN, and dual 10W built-in speakers.
ZU820TST Key Specifications.
| Resolution | WUXGA native (1920 × 1200), 16:10 |
|---|---|
| Brightness | 6,900 ANSI lumens (8,200 lumens white light output) |
| Contrast Ratio | 3,000,000:1 dynamic / 1,100:1 full on-off |
| Light Source | DuraCore laser (up to 30,000-hour life, Eco mode) |
| Throw Ratio | 0.75:1 – 0.95:1 |
| Zoom | 1.26× motorized |
| Lens Shift | Vertical ±50%, horizontal ±15% (motorized) |
| Keystone | Digital, ±30° horizontal, ±30° vertical |
| Native Aspect Ratio | 16:10 (supports 4:3, 16:9) |
| HDR Support | HDR10, HLG (4K signal compatible) |
| 3D Support | Full 3D (DLP-Link and 3D sync) |
| Inputs | HDBaseT, HDMI 2.0, HDMI 1.4a (3D), VGA, 3D sync, audio 3.5mm |
| Outputs / Control | HDMI out, 2× USB-A power, RS232, RJ45 LAN, 12V trigger, USB-B service |
| Optical Engine | IP5X dust-resistant, rated for 24/7 operation |
| Screen Size Range | ~50″–300″ diagonal |
| Noise Level | ~34 dB (Eco) / ~36 dB (Normal) |
| Power Consumption | ~265W typical / 598W max |
| Dimensions (W × D × H) | ~19.1″ × 15.5″ × 6.9″ (486 × 394.5 × 176mm) |
| Weight | ~27.8 lbs net (14 kg) |
| Dealer Status | Elite Sim Golf Authorized Optoma Dealer |
Optoma ZU7/8/9TST Short-Throw Laser Projectors.
All three share the same WUXGA panel, DuraCore laser engine, and golf-appropriate short-throw geometry — the difference across the family is brightness headroom and lens shift range. Builders who need even more resolution can also step up to Optoma's 4K ZK810TST, but for WUXGA short-throw installs, the choice comes down to these three.
- Resolution: WUXGA (1920×1200)
- Brightness: 6,000 ANSI lumens
- Light Source: DuraCore laser (~30,000 hrs)
- Throw Ratio: 0.75:1 – 0.95:1
- Zoom: 1.26× motorized
- Lens Shift: V ±50% / H ±15%
- Contrast: up to 3,000,000:1
- Weight: ~27.8 lbs
- Resolution: WUXGA (1920×1200)
- Brightness: 6,900 ANSI lumens
- Light Source: DuraCore laser (~30,000 hrs)
- Throw Ratio: 0.75:1 – 0.95:1
- Zoom: 1.26× motorized
- Lens Shift: V ±50% / H ±15%
- Contrast: up to 3,000,000:1
- Weight: ~27.8 lbs
- Resolution: WUXGA (1920×1200)
- Brightness: 8,200 ANSI lumens
- Light Source: DuraCore laser (~30,000 hrs)
- Throw Ratio: 0.65:1 – 0.75:1
- Zoom: 1.15× motorized
- Lens Shift: V ±55% / H ±25%
- Contrast: up to 3,000,000:1
- Weight: ~30.9 lbs
Extra Brightness For Bays That Need It.
Choose the Optoma ZU820TST for the same proven short-throw lens geometry as the ZU725TST, paired with a brighter DuraCore laser engine for rooms with ambient light, larger screens, or commercial spaces that see more daytime traffic — without moving up to the ZU920TST's shorter throw range or full price jump.
Pair It With An Elite Sim Golf Enclosure
The ZU820TST is a strong match for a properly sized Eagle 12 enclosure, a laser-ready impact screen, and a mounting location built around its short-throw geometry. Confirm exact placement with the fitment tool before drilling anything.
Build A Complete SimKit
Configure a full enclosure, screen, and projector package or build a custom bay around the ZU820TST from the ground up using the SimKit Bundle Builder.
