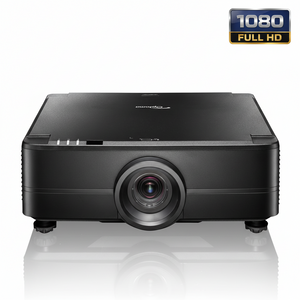

Optoma ZU725TST 7200-Lumens WUXGA Short Throw Golf Simulator Projector
By Optoma
A Bright, Short-Throw Workhorse Built For Sim Bays.
The ZU725TST is Optoma's most accessible ProScene short-throw laser projector, and it was never designed as a home-theater unit pressed into simulator duty — it is a professional installation projector with a golf-appropriate throw range, a sealed dust-resistant engine, and enough brightness to hold up in a garage or bonus room with some ambient light. It is the value entry point into a three-model Optoma family that scales up in brightness and mounting flexibility.
Professional Installation Optics At A Sim-Friendly Price.
DuraCore Laser Engine
A sealed laser light source rated for up to 30,000 hours in Eco mode means no lamp swaps and stable brightness over years of daily simulator sessions.
Golf-Ready Short Throw
The 0.75–0.95:1 throw ratio with 1.26× motorized zoom is built for mounting behind the hitting area, clearing the swing path while filling a large impact screen.
Full Motorized Lens Shift
Vertical shift up to ±50% and horizontal up to ±15% give real placement flexibility when the ceiling joist or enclosure frame is not exactly centered.
4K And HDR Signal Compatible
Accepts 4K and HDR10/HLG source signals for punchy highlights and shadow detail on course visuals, even though the imaging chip is native WUXGA.
Dust-Resistant IP5X Engine
Certified to IEC 60529 for dust resistance and rated for 24/7 operation — built for the debris a hitting bay generates over months of use.
Full Installer Connectivity
HDBaseT, RS232, and LAN control support Crestron, AMX, and Extron integration for builders who want the projector on a managed control system.
Who Is It Best For?
Builders working with a defined budget who still want laser reliability, professional-grade lens shift, and a real short-throw ratio instead of a repurposed home-theater projector. The right call for single-bay residential builds where 6,000 ANSI lumens is enough headroom for the room's ambient light.
Mount It Right, Fill The Screen, Move On.
Short-Throw Geometry
The ZU725TST is built for rooms where the projector has to sit behind the golfer without creeping into the swing zone, while still filling a wide impact screen edge to edge.
- 0.75–0.95:1 throw ratio for standard sim-bay mounting depths
- 1.26× motorized zoom to dial in image size without relocating the mount
- Screen size range of roughly 50″–300″ diagonal
- Native 16:10 plus 4:3 and 16:9 support
Lens Shift & Alignment
Full motorized lens shift takes the guesswork out of centering the image when the mount point is not perfectly aligned with the screen.
- Vertical lens shift up to ±50% via remote
- Horizontal lens shift up to ±15% via remote
- Digital keystone correction, ±30° horizontal and vertical, for final squaring
- Use the ESG fitment tool to confirm exact mounting distance before drilling
A Pro-Install Laser Projector Adapted To Golf Geometry.
The ZU725TST is a WUXGA short-throw laser projector built on Optoma's ProScene installation platform, not a consumer home-theater line. The DuraCore laser light source is rated for approximately 30,000 hours in Eco mode — years of nightly simulator use without the steady lumen loss that lamp-based projectors show after 1,000–2,000 hours.
With a 0.75–0.95:1 short-throw range, 1.26× motorized zoom, and published projection distances and screen size range from Optoma, the ZU725TST mounts behind the hitting area and clears the swing path when properly positioned. Screen size and mounting distance depend on the exact enclosure and impact-screen width in a given bay, so run those numbers in the ESG projector fitment tool and throw calculator before finalizing a mount location.
Ceiling mount notes: the motorized zoom and full lens shift (vertical ±50%, horizontal ±15%) provide meaningful slack on the install position, so a mount does not need to be perfectly centered over the screen to produce a clean, square image.
For PC-based simulators running GSPro, E6 Connect, TGC 2019, or Awesome Golf, the ZU725TST connects via HDMI 2.0, HDMI 1.4a, or HDBaseT — giving builders flexibility on cable runs when the sim PC sits away from the projector mount.
The Full ZU725TST Feature Set.
WUXGA Native Resolution
Native 1920 × 1200 resolution at a 16:10 aspect ratio, with 4:3 and 16:9 support for source material shot in different formats.
Short-Throw Projection
0.75–0.95:1 throw ratio with 1.26× motorized zoom covers roughly 50″–300″ screens from typical simulator-bay mounting depths.
6,000 ANSI Lumens
High-output brightness rated at 7,200 lumens white light output, enough to hold contrast in garages and bonus rooms with some ambient light.
3,000,000:1 Contrast
Dynamic contrast ratio of 3,000,000:1 keeps shadow detail and highlight punch distinct on course textures and ball-flight overlays.
HDR10 + HLG Signal Support
Accepts HDR10 and HLG source signals along with 4K input up to 60p for more dynamic range in both sim play and entertainment use.
Full Installer Connectivity
HDBaseT, HDMI 2.0, HDMI 1.4a with 3D support, VGA, USB-A power, RS232, RJ45 LAN, and dual 10W built-in speakers.
ZU725TST Key Specifications.
| Resolution | WUXGA native (1920 × 1200), 16:10 |
|---|---|
| Brightness | 6,000 ANSI lumens (7,200 lumens white light output) |
| Contrast Ratio | 3,000,000:1 dynamic / 1,100:1 full on-off |
| Light Source | DuraCore laser (up to 30,000-hour life, Eco mode) |
| Throw Ratio | 0.75:1 – 0.95:1 |
| Zoom | 1.26× motorized |
| Lens Shift | Vertical ±50%, horizontal ±15% (motorized) |
| Keystone | Digital, ±30° horizontal, ±30° vertical |
| Native Aspect Ratio | 16:10 (supports 4:3, 16:9) |
| HDR Support | HDR10, HLG (4K signal compatible) |
| 3D Support | Full 3D (DLP-Link and 3D sync) |
| Inputs | HDBaseT, HDMI 2.0, HDMI 1.4a (3D), VGA, 3D sync, audio 3.5mm |
| Outputs / Control | HDMI 2.0 out, USB-A power, RS232, RJ45 LAN, 12V trigger |
| Optical Engine | IP5X dust-resistant, rated for 24/7 operation |
| Screen Size Range | ~50″–300″ diagonal |
| Noise Level | ~34 dB (Eco) / ~36 dB (Normal) |
| Power Consumption | ~260W typical / 520W max |
| Dimensions (W × D × H) | 19.1″ × 15.5″ × 7.3″ (486 × 394.5 × 185.4mm) |
| Weight | ~27.8 lbs (12.6 kg) |
| Dealer Status | Elite Sim Golf Authorized Optoma Dealer |
Optoma ZU7/8/9TST Short-Throw Laser Projectors.
All three share the same WUXGA panel, DuraCore laser engine, and golf-appropriate short-throw geometry — the difference across the family is brightness headroom and lens shift range. Builders who need even more resolution can also step up to Optoma's 4K ZK810TST, but for WUXGA short-throw installs, the choice comes down to these three.
- Resolution: WUXGA (1920×1200)
- Brightness: 6,000 ANSI lumens
- Light Source: DuraCore laser (~30,000 hrs)
- Throw Ratio: 0.75:1 – 0.95:1
- Zoom: 1.26× motorized
- Lens Shift: V ±50% / H ±15%
- Contrast: up to 3,000,000:1
- Weight: ~27.8 lbs
- Resolution: WUXGA (1920×1200)
- Brightness: 6,900 ANSI lumens
- Light Source: DuraCore laser (~30,000 hrs)
- Throw Ratio: 0.75:1 – 0.95:1
- Zoom: 1.26× motorized
- Lens Shift: V ±50% / H ±15%
- Contrast: up to 3,000,000:1
- Weight: ~27.8 lbs
- Resolution: WUXGA (1920×1200)
- Brightness: 8,200 ANSI lumens
- Light Source: DuraCore laser (~30,000 hrs)
- Throw Ratio: 0.65:1 – 0.75:1
- Zoom: 1.15× motorized
- Lens Shift: V ±55% / H ±25%
- Contrast: up to 3,000,000:1
- Weight: ~30.9 lbs
A Dependable Laser Projector For A First Serious Sim Build.
Choose the Optoma ZU725TST for a professional-grade laser projector with real short-throw geometry, full motorized lens shift, and 30,000-hour laser life at the most accessible price point in Optoma's short-throw golf lineup — without giving up the dust-resistant, 24/7-rated build quality found on the pricier models above it.
Pair It With An Elite Sim Golf Enclosure
The ZU725TST is a strong match for a properly sized Eagle 12 enclosure, a laser-ready impact screen, and a mounting location built around its short-throw geometry. Confirm exact placement with the fitment tool before drilling anything.
Build A Complete SimKit
Configure a full enclosure, screen, and projector package or build a custom bay around the ZU725TST from the ground up using the SimKit Bundle Builder.
