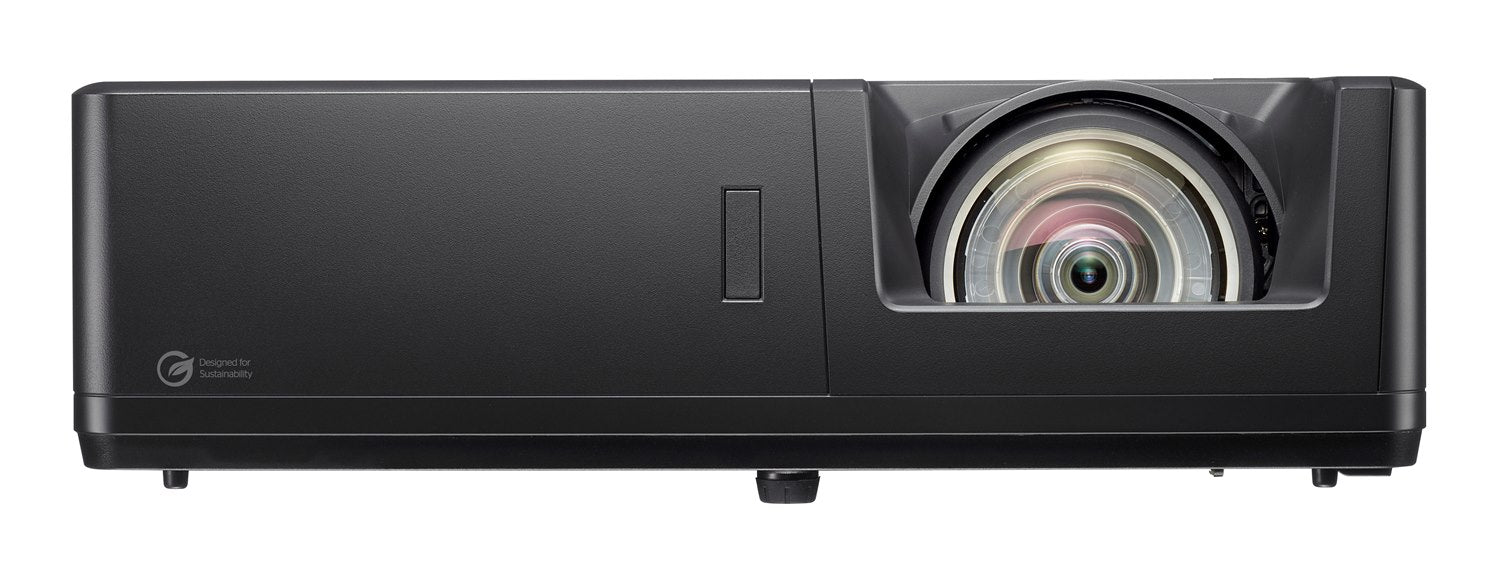

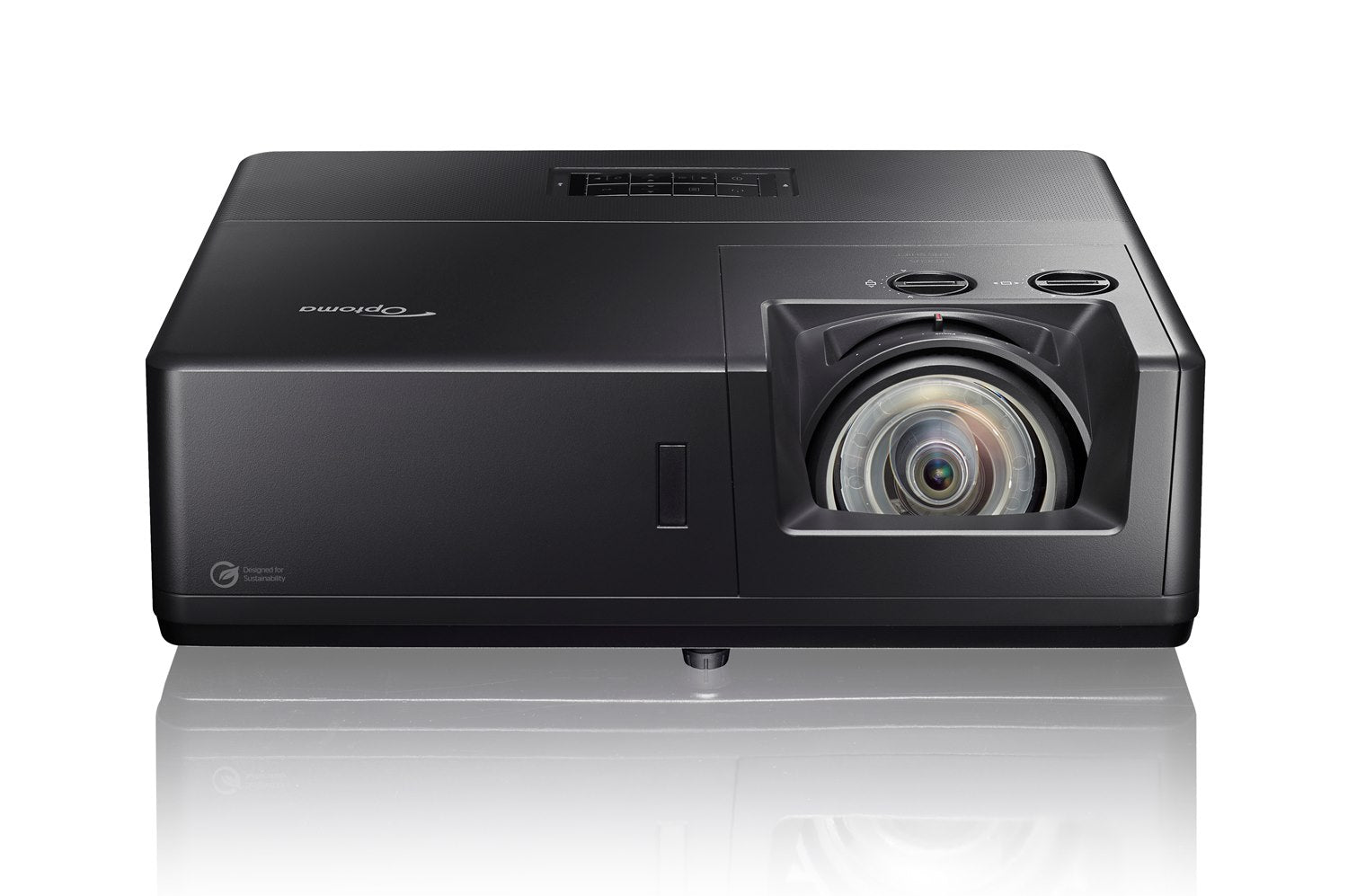

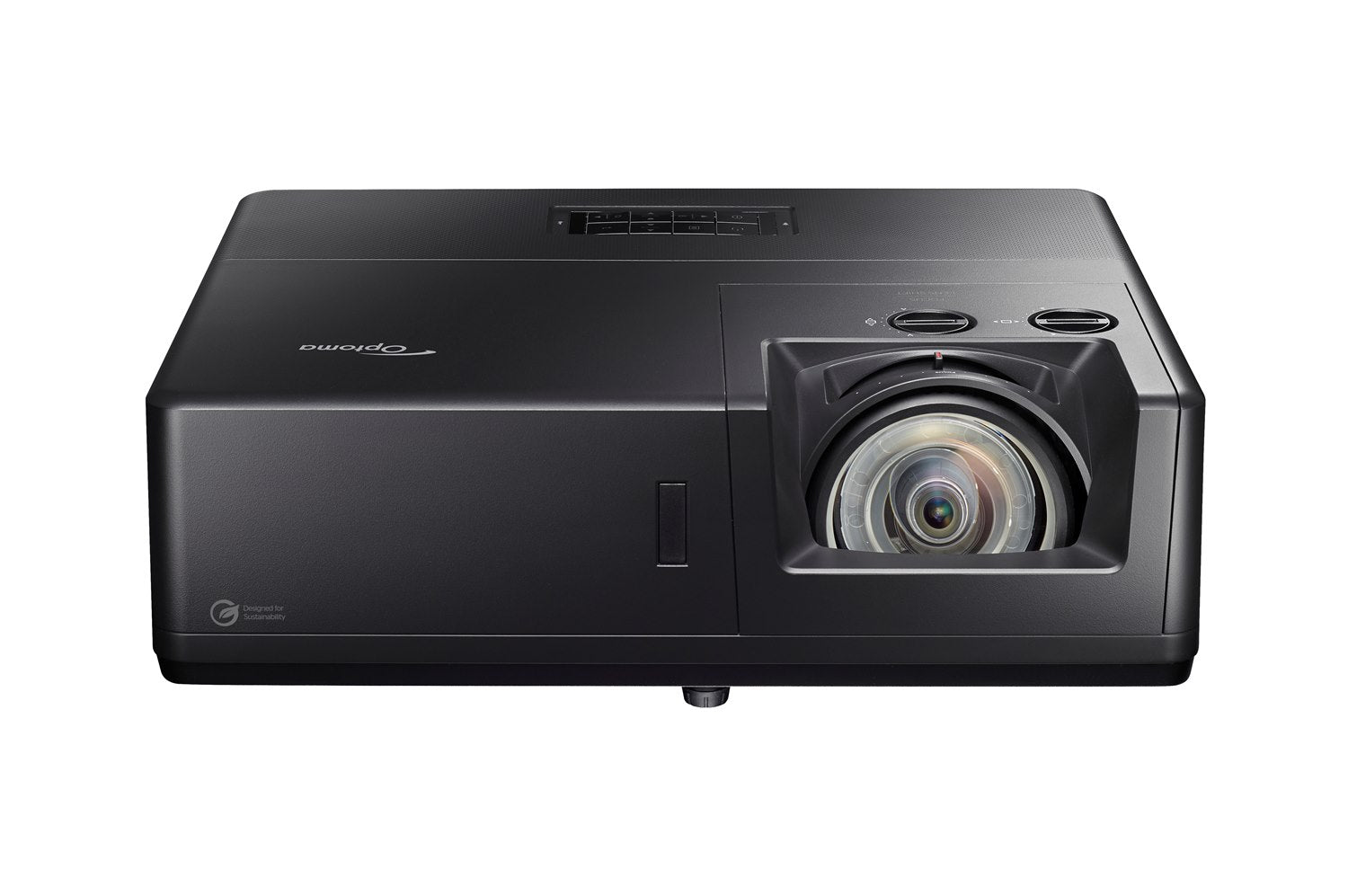

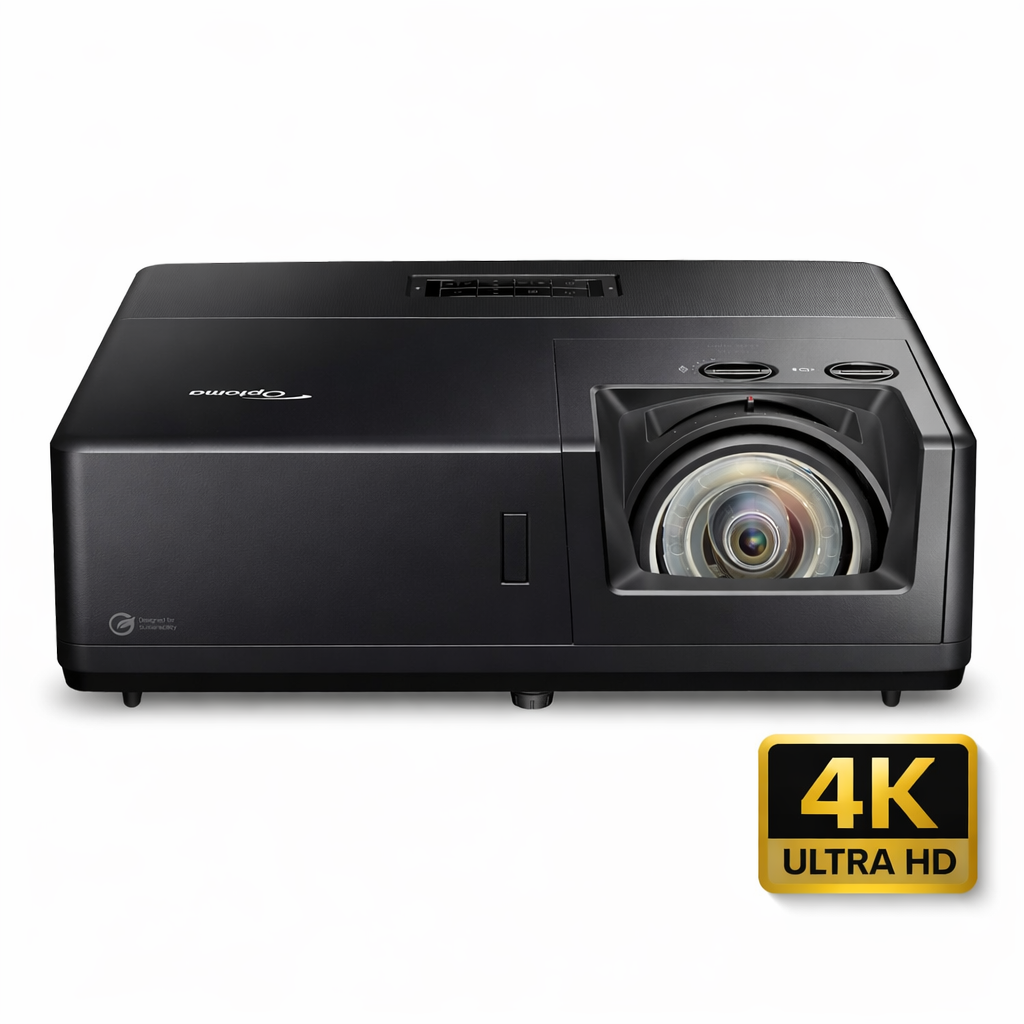

Optoma ZK608TST 4K 6000-Lumens UHD Short Throw Golf Simulator Projector
By Optoma
Will This Projector Fit My Space?
4K UHD · Laser · Pro ProAV
6,000 Lumens. IP6X Sealed. Built To Run.
The Optoma ZK608TST is the top tier of Optoma’s dedicated golf sim lineup. 6,000 ANSI lumens, a sealed DuraCore laser engine, an IP6X dust-rated optical block, and full ProAV connectivity including HDBaseT make it the build for the largest screens, the brightest rooms, and the busiest commercial bays.
4K
UHD Resolution
3840 × 2160 native
6,000
ANSI Lumens
Bright-room headroom
0.58:1
Throw Ratio
Fixed short throw
IP6X
Sealed Engine
Dust-rated optical block
Why The ZK608TST
The Commercial-Grade Anchor Of The Optoma 4K Lineup
The ZK608TST is the build for the largest screens and the most demanding install conditions. More brightness, an IP6X-sealed engine, lens shift, and HDBaseT extend the install reach beyond what the entry and mid-tier models can do.
6,000 ANSI Lumens
The brightest projector in the Optoma golf sim trio. Drives the largest impact screens and holds image contrast in bays with ambient light or commercial overhead lighting.
True 4K UHD
3840 × 2160 native resolution renders sharp fairway detail, readable simulator overlays, and clean tracer lines at screen sizes all the way up to 300″.
0.58:1 Short Throw
Fixed short-throw lens designed for ceiling-mount installs in commercial-depth bays. Projects 30″ to 300″ from roughly 1.2 ft to 12.3 ft.
IP6X Sealed Engine
The optical engine is IP6X dust-rated. The laser block is sealed against ingress so dust and airborne particles cannot degrade brightness or color across 30,000 hours.
30,000-Hour Laser
DuraCore laser light source eliminates lamp replacements entirely and holds rated brightness across the full life of the projector.

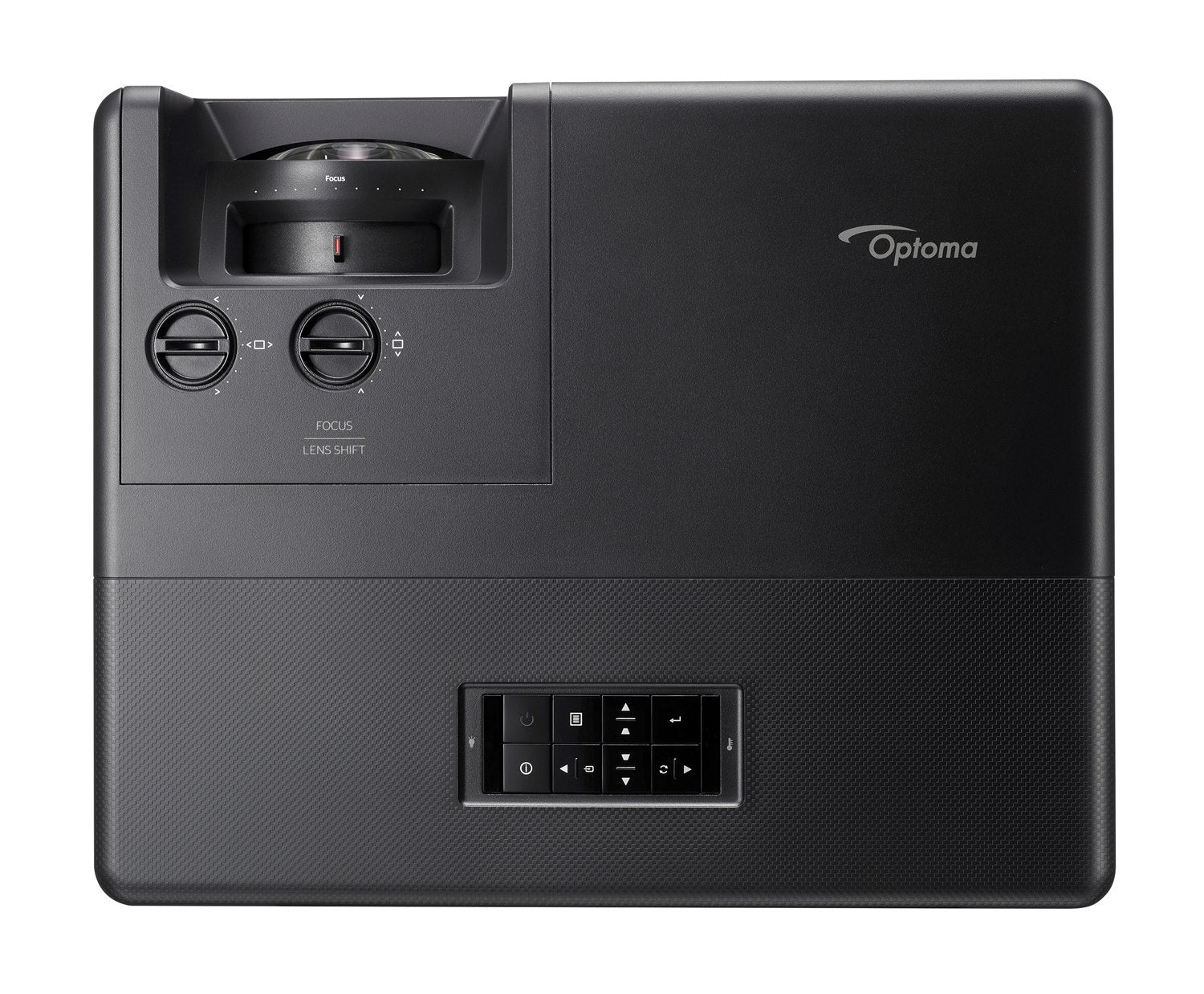

Vertical & Horizontal Lens Shift
Manual vertical lens shift from -106% to 116% and horizontal ±4%. Aligns the image to the screen without keystone distortion — critical on commercial screen sizes.
HDBaseT 3.0
HDBaseT input runs uncompressed 4K, control, and power over a single Cat6 cable up to 100 m. Clean rack-to-projector wiring in commercial installs and AV racks.
Dedicated Golf Sim Mode
Optoma’s Golf Sim Mode tunes color, contrast, and response for simulator gameplay — brighter blue skies, deeper shadows, natural greens. One-touch from the backlit ProAV remote.
Who Is It Best For?
- Commercial sim bays and golf studios
- Largest impact screens up to 300″
- Rooms with ambient light or overhead lighting
- AV-integrated installs needing HDBaseT
- Dust-heavy environments or high-use facilities
- Multi-bay rooms running long daily hours
Short Throw & Setup
The Pro-Grade Lens And Geometry Toolkit
Placement Flexibility
The 0.58:1 fixed short-throw lens pairs with full lens shift and four-corner correction — the toolkit you need to fit a 300″ screen into a commercial bay without distortion.
- Projection distance: ~1.2 ft to 12.3 ft
- Screen size: 30″ to 300″ diagonal
- Vertical lens shift: -106% to 116%
- Horizontal lens shift: ±4%
- Keystone: horizontal ±15°, vertical ±15°
- Four-corner correction
Installer Checklist
Short-throw 4K commercial installs need pre-planning. Confirm clearance and HDBaseT runs before mounting.
- Confirm screen width and final aspect ratio
- Verify ceiling height and bay depth
- Use the ESG fitment tool for exact mounting distance
- Plan HDMI or HDBaseT cable runs
- Plan 12V trigger and RS232 to AV rack if needed
- Test image placement and lens shift before permanent mount
What Is The ZK608TST
The Pro Anchor Of Optoma’s 4K Golf Sim Lineup
The ZK608TST is the top tier of Optoma’s purpose-built 4K golf simulator lineup — brighter, sealed, and ProAV-equipped versus the compact ZK431ST-B and mid-tier ZK521ST-B. It uses a single-chip DLP engine with a true 4K UHD pixel array, a sealed IP6X-rated DuraCore laser optical block rated up to 30,000 hours, and a fixed 0.58:1 short-throw lens.
Placement range: the ZK608TST supports a projection distance of roughly 1.2 ft to 12.3 ft and a screen size range of 30″ to 300″ diagonal. For the exact lens-to-screen distance based on your screen size and aspect ratio, run the numbers in the ESG projector fitment tool and throw calculator before mounting.
Ceiling mount notes: the ZK608TST weighs 13.89 lbs and supports 360° orientation. The chassis measures 14.72″ × 11.89″ × 4.61″ and uses a 50% post-consumer recycled plastic eco housing. Native offset is 106%. Alignment uses manual vertical (-106 to 116%) and horizontal (±4%) lens shift, four-corner correction, and ±15° keystone in both axes.

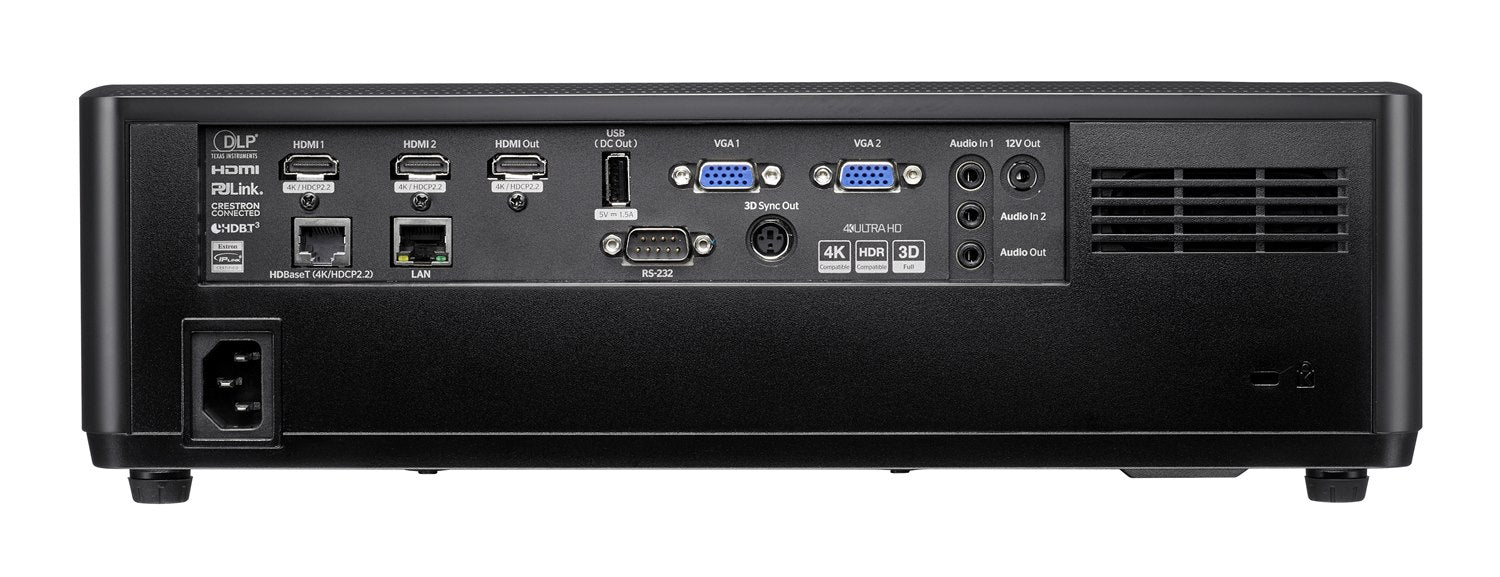

Connectivity: 2 × HDMI 2.0 inputs, 1 × HDBaseT 4K input, 2 × VGA, 2 × audio in, 1 × HDMI 2.0 out, 1 × audio out, 1 × 3D sync, 1 × 12V trigger, 1 × USB-A 1.5A, RJ45 LAN, and RS232 control. The included backlit ProAV remote ships standard.
Simulator software: the ZK608TST works with all major sim platforms including GSPro, E6 Connect, TGC 2019, Awesome Golf, and Foresight FSX. The dedicated Golf Sim picture mode is built into the projector OSD and is purpose-built for third-party simulation software.
Everything It Does
Spec-By-Spec Breakdown
Resolution & Color
4K UHD 3840 × 2160 with HDR10 and HLG support. Native 16:9 with full support for 4:3, 16:9, and 16:10 simulator aspect ratios.
Throw & Projection
0.58:1 fixed short throw. Projection distance ~1.2 ft to 12.3 ft. Screen size 30″ to 300″. Native offset 106%.
Brightness & Contrast
6,000 ANSI lumens with a 300,000:1 dynamic contrast ratio. DuraCore laser delivers consistent brightness across the full 30,000-hour rated life.
IP6X Optical Engine
Fully dust-sealed laser optical block prevents particle ingress — critical in commercial bays, high-traffic studios, and dust-prone facilities.
Lens Shift
Manual vertical lens shift from -106% to 116% and horizontal ±4%. Geometric alignment without keystone distortion on the largest screens.
Audio & Operation
Built-in 15W speaker. 33 dB minimum operating noise, 36 dB maximum. Rated for 24/7 continuous operation in commercial sim bays.
ProAV Connectivity
2 × HDMI 2.0, 1 × HDBaseT 4K, 2 × VGA, 2 × audio in, 1 × HDMI out, RJ45, RS232, 12V trigger, USB-A 1.5A, 3D sync. Full installer toolkit.
Golf Sim Mode
Purpose-built picture mode tuned for indoor golf. Compatible with GSPro, E6 Connect, TGC 2019, Awesome Golf, and Foresight FSX without manual color tweaking.
By The Numbers
Full Specifications
| Model | Optoma ZK608TST |
|---|---|
| Display Technology | Single-chip DLP |
| Native Resolution | 4K UHD, 3840 × 2160 |
| Brightness | 6,000 ANSI lumens |
| Contrast Ratio | 300,000:1 dynamic |
| Light Source | DuraCore laser, IP6X sealed optical engine |
| Laser Life | Up to 30,000 hours |
| Throw Ratio | 0.58:1 fixed short throw |
| Projection Distance | ~1.2 ft to 12.3 ft (14.96″ to 147.64″) |
| Screen Size Range | 30″ to 300″ diagonal |
| Native Aspect Ratio | 16:9 |
| Supported Aspect Ratios | 4:3, 16:9, 16:10 |
| HDR Support | HDR10, HLG |
| Native Offset | 106% |
| Vertical Lens Shift | -106% to 116% (manual) |
| Horizontal Lens Shift | ±4% (manual) |
| Keystone Correction | Horizontal ±15°, Vertical ±15° |
| Geometric Correction | Four-corner correction |
| Picture Modes | Includes dedicated Golf Sim Mode |
| Operating Noise | 33 dB minimum, 36 dB maximum |
| Built-In Speaker | 1 × 15W |
| 24/7 Operation | Supported |
| Orientation | 360° projection |
| HDMI Inputs | 2 × HDMI 2.0 |
| HDBaseT | 1 × HDBaseT 4K (HDBaseT 3.0) |
| Other Video Inputs | 2 × VGA |
| Audio | 2 × 3.5mm audio in, 1 × audio out |
| HDMI Output | 1 × HDMI 2.0 out |
| USB | 1 × USB-A 1.5A |
| Control | RJ45 LAN, RS232, 12V trigger, 3D Sync |
| Remote | Backlit ProAV remote (included) |
| Chassis | 50% post-consumer recycled plastics |
| Dimensions | 14.72″ × 11.89″ × 4.61″ |
| Net Weight | 13.89 lbs |
| Power Supply | 100–240V, 50–60Hz |
| Dealer Status | Elite Sim Golf is an authorized Optoma dealer |
Compare The Lineup
Good, Better, Best — Optoma 4K Golf Sim Projectors
All three Optoma golf-sim projectors deliver true 4K UHD on a sealed DuraCore laser engine rated up to 30,000 hours, plus the dedicated Golf Sim picture mode. The differences are brightness, throw geometry, and how much room they can light up.
Optoma ZK431ST-B
Compact 4K ultra-short throw for tight rooms
- 4K UHD 3840 × 2160
- 4,100 ANSI lumens
- 0.496:1 fixed ultra-short throw
- 30,000-hour DuraCore laser
- Projection range 1.3 ft to 10.8 ft
- 34% smaller form factor
- Smart Fit + Golf Sim Mode
- 24/7 operation supported
Best For: Compact Rooms, Lower Ceilings
Optoma ZK521ST-B
5,000-lumen short throw, 24/7 rated
- 4K UHD 3840 × 2160
- 5,000 ANSI lumens
- 0.79:1 fixed short throw
- 30,000-hour DuraCore laser
- Projection range 2.9 ft to 9.6 ft
- 8.4ms input lag at 1080p/120Hz
- Vertical lens shift 104% to 125%
- Smart Fit + Golf Sim Mode
Best For: Bright Rooms, Premium Builds
Optoma ZK608TST
6,000-lumen pro short throw, IP6X engine
- 4K UHD 3840 × 2160
- 6,000 ANSI lumens
- 0.58:1 fixed short throw
- 30,000-hour DuraCore laser
- Projection range ~1.2 ft to 12.3 ft
- IP6X dust-sealed optical engine
- V/H lens shift + HDBaseT 3.0
- Golf Sim Mode (no Smart Fit)
Best For: Commercial Bays, Largest Screens
