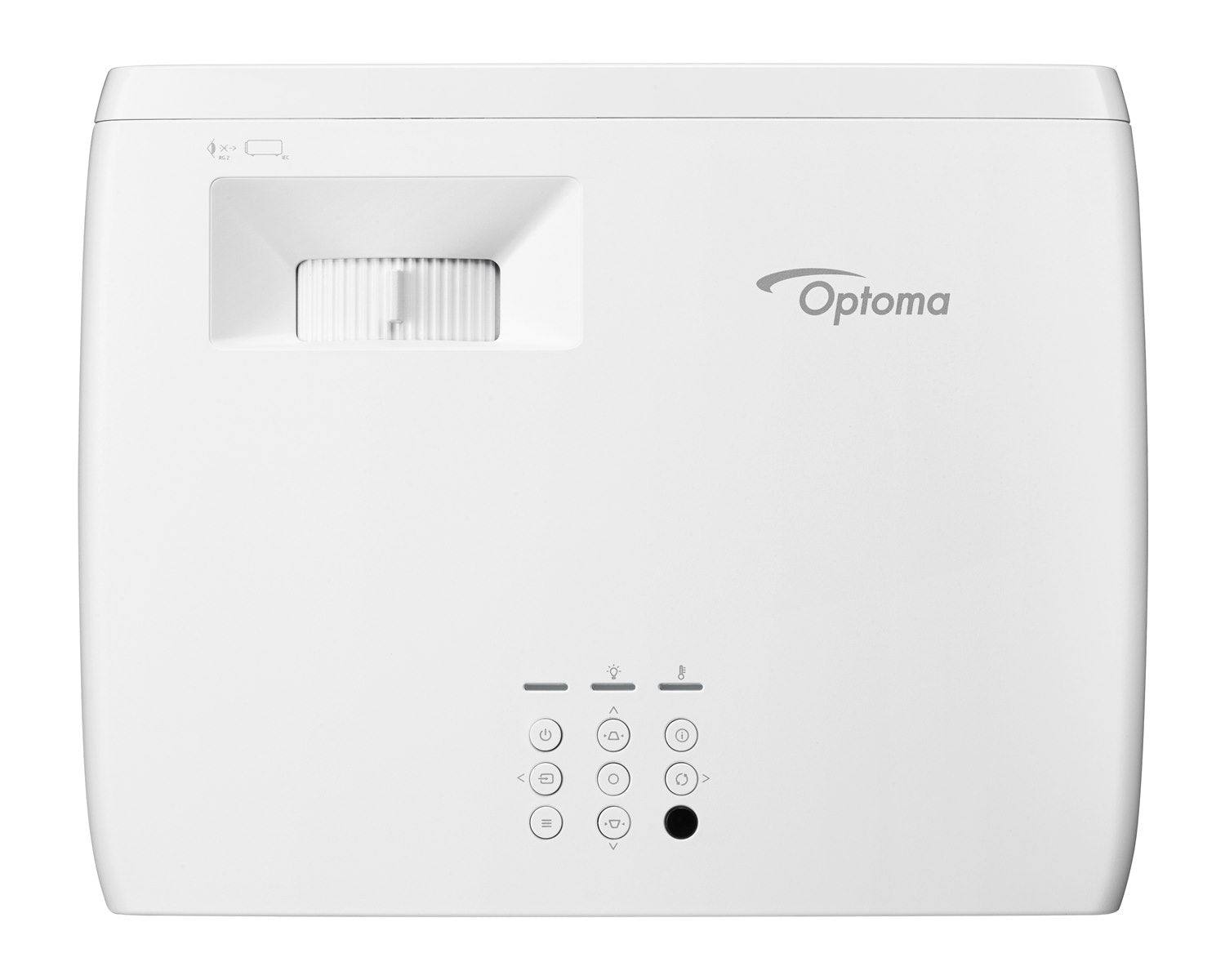

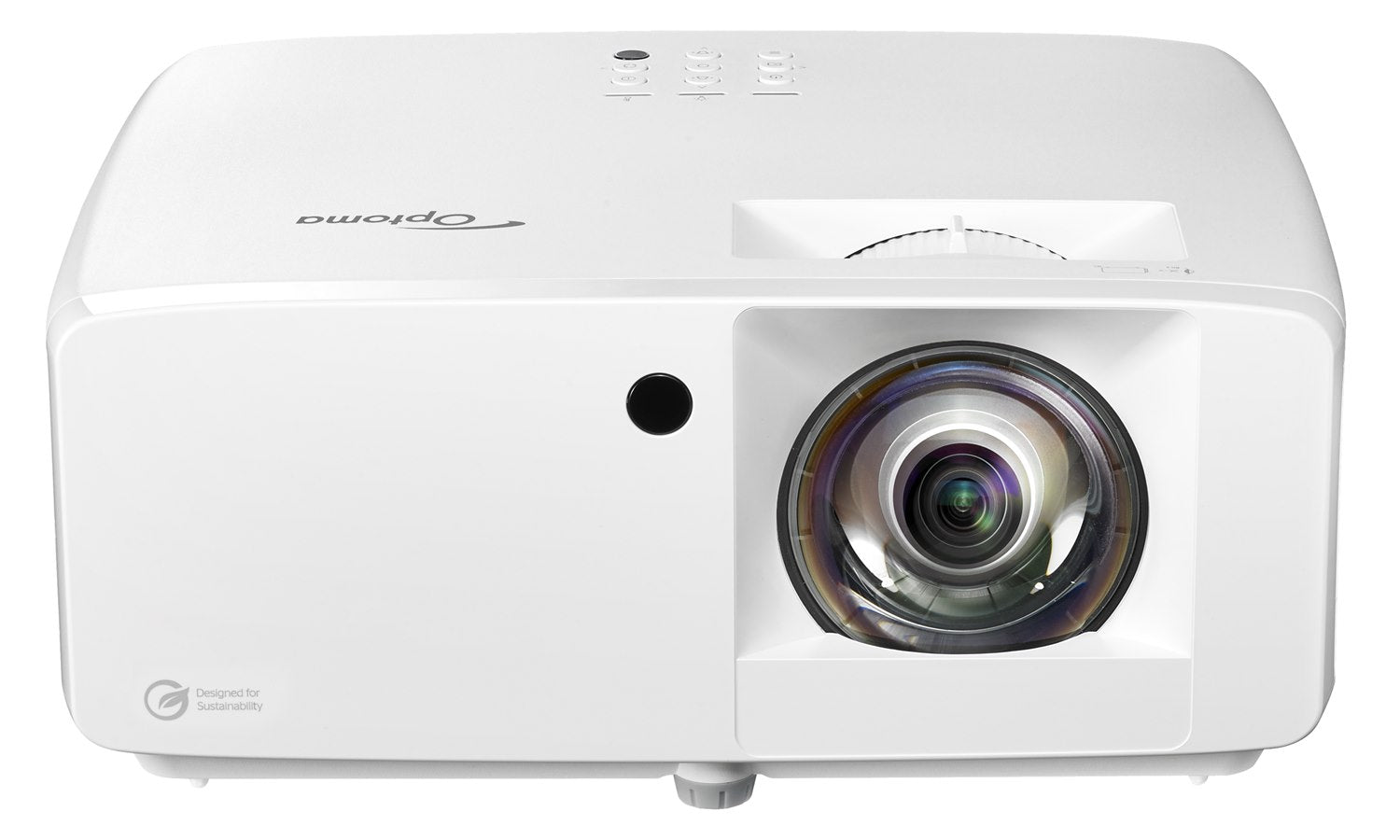

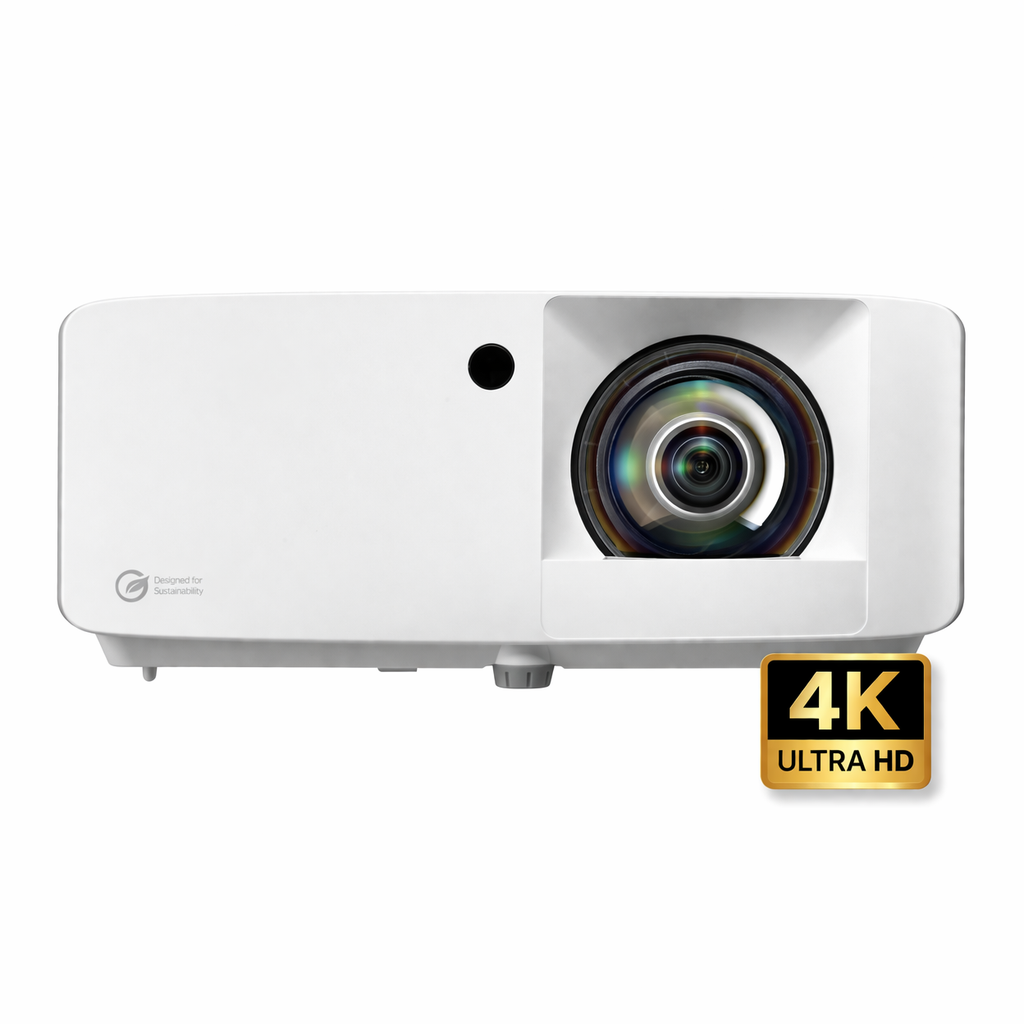

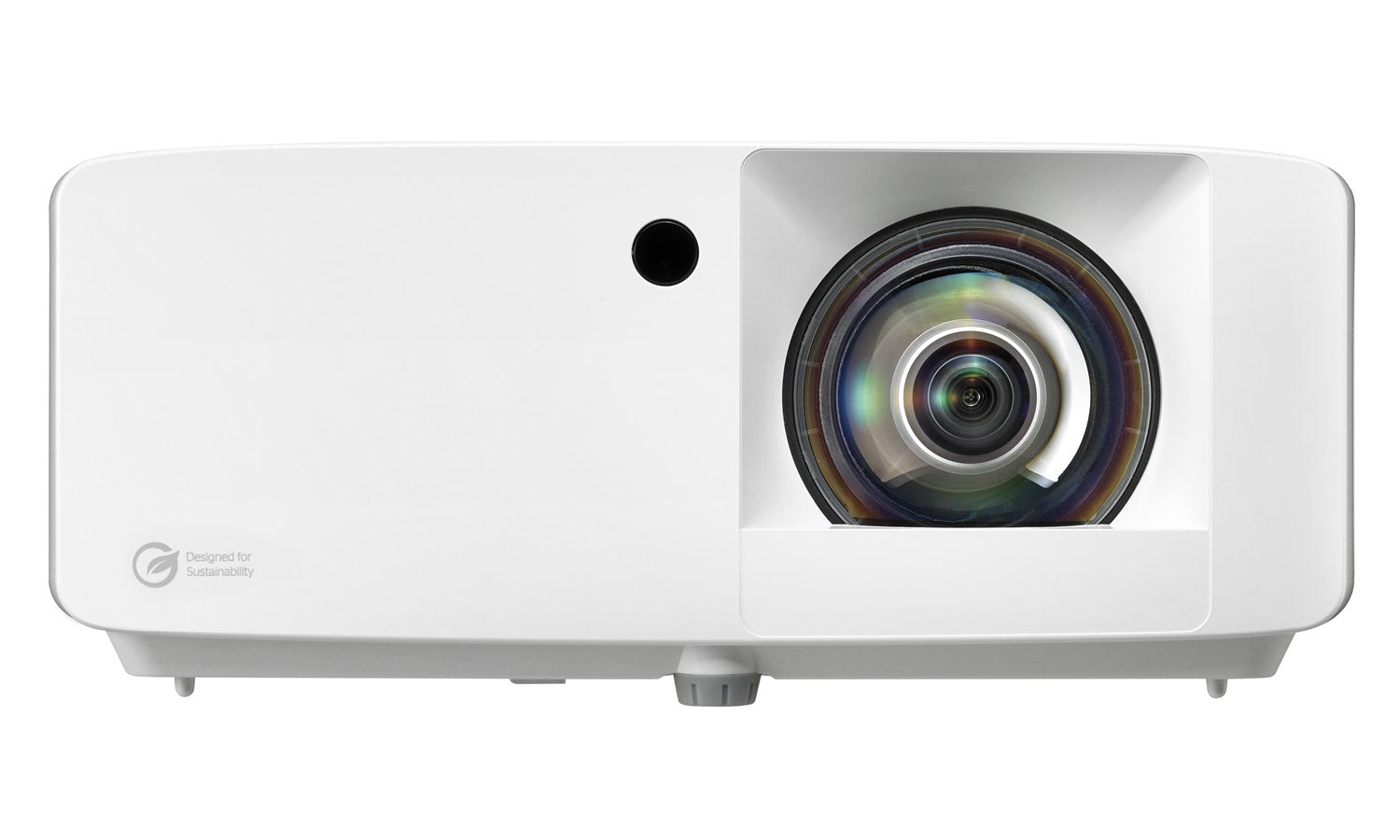

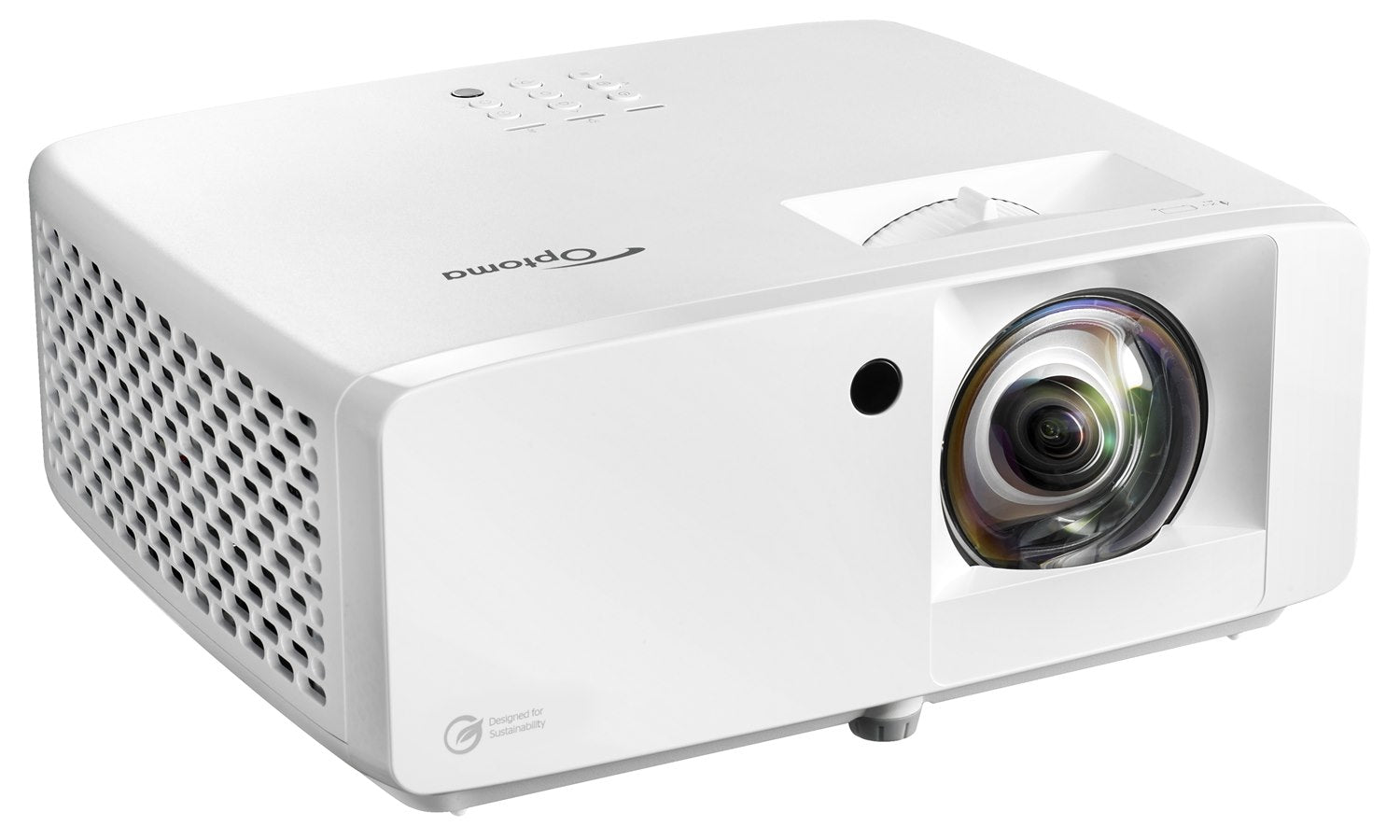

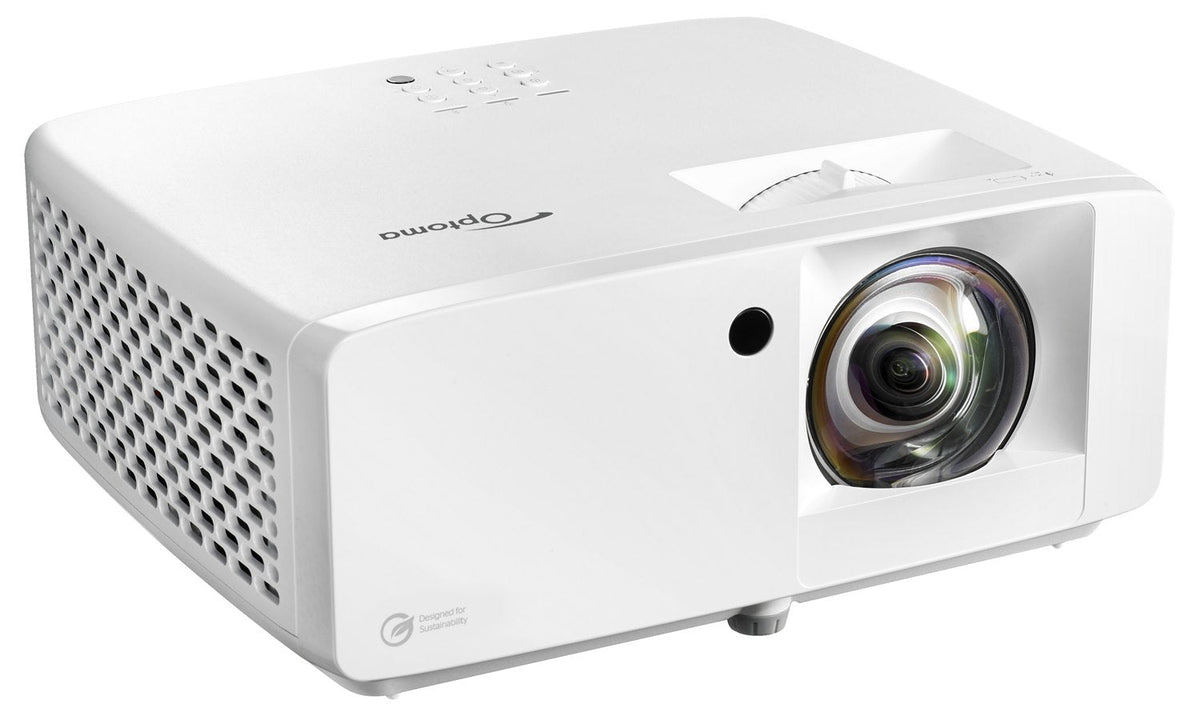

Optoma UHZ35ST 3500-Lumens 4K UHD Short Throw Golf Simulator Projector
By Optoma
4K Resolution In One Of The Smallest Bodies In The Lineup.
The UHZ35ST packs native 4K UHD resolution and a 30,000-hour DuraCore laser light source into a 6.61-pound chassis roughly the size of a large hardcover book. A fixed 0.496:1 throw ratio, sub-5-millisecond input lag at high refresh rates, and IP6X dust sealing make it a compact, low-maintenance way to get 4K into a residential sim bay.
4K UHD In A Compact, Low-Maintenance Package.
4K UHD Laser Engine
Native 3840 × 2160 resolution rendered via fast pixel-shifting from a 1080p DLP chip, paired with a 500,000:1 contrast ratio and a sealed DuraCore laser rated for 30,000 hours.
Compact, Ceiling-Friendly Chassis
At 10.79″ × 8.5″ × 4.49″ and 6.61 lbs, the UHZ35ST is one of the smallest and lightest 4K options in the Optoma sim lineup, easing ceiling-mount installs.
Sub-5ms Gaming Latency
Enhanced Gaming Mode drops input lag to as little as 4.4 ms at 1080p/240Hz, keeping shot feedback tight for launch-monitor-driven simulator software.
IP6X Dust-Sealed Optics
A fully sealed optical engine resists dust intrusion in garages and unfinished basements — common environments for home sim builds.
Maintenance-Free Laser Source
DuraCore laser technology eliminates lamp replacements entirely and cuts power consumption by up to 45% versus Optoma's lamp-based projectors.
Full Sim Connectivity
Dual HDMI 2.0 (one with eARC), USB-A power, RS232, and RJ45 network control cover PC-based sims and building integration.
Who Is It Best For?
Builders who want native 4K UHD and a maintenance-free laser light source in the smallest, lightest chassis available, without needing zoom or lens shift for a fixed mounting position.
A Tight, Predictable Mounting Footprint.
Fixed Short-Throw Geometry
The UHZ35ST's fixed 0.496:1 lens is built for bays where the projector needs to sit close to the screen while still filling a large impact surface.
- 0.496:1 fixed short-throw ratio, no zoom
- Screen size range of 36″–300″ diagonal
- Native 16:9 aspect, compatible with 4:3 and 16:10
- 116% native lens offset suited to above-centerline ceiling mounts
Manual Alignment Tools
No motorized zoom or auto-fit on this compact model, but keystone correction and a light chassis make manual alignment straightforward.
- Manual focus, fixed 7.51 mm focal length
- ±15° horizontal and vertical keystone correction
- 6.61 lb chassis simplifies ceiling-mount handling
- Use the ESG fitment tool to confirm exact mounting distance before drilling
4K UHD Built Around A Compact Laser Platform.
The UHZ35ST is a native 4K UHD short-throw projector built around Optoma's sealed DuraCore laser light engine, rated for up to 30,000 hours in Eco mode — years of daily simulator use without the brightness drop-off and lamp replacements that come with traditional light sources.
With a fixed 0.496:1 throw ratio and a published projection distance of 15.75″ to 129.92″, the UHZ35ST mounts close behind the hitting area in compact residential bays. Because the lens has no zoom to compensate for placement error, confirm the exact lens-to-screen distance for the target screen size using the ESG projector fitment tool and throw calculator before finalizing the mount.
Ceiling mount notes: the compact 6.61 lb body and 116% native offset make it a straightforward ceiling-mount candidate behind the player, and the IP6X sealed optical engine adds a layer of protection against dust common in garage and basement installs.
For PC-based simulators running GSPro, E6 Connect, TGC 2019, or Awesome Golf, the UHZ35ST connects over either of its two HDMI 2.0 inputs, with the second input supporting eARC for audio return to an external sound system.
The Full UHZ35ST Feature Set.
Native 4K UHD Resolution
3840 × 2160 resolution achieved via fast DLP pixel-shifting from a 1080p chip, delivering sharp on-screen detail for course textures and UI overlays.
Fixed Short-Throw Projection
0.496:1 throw ratio fills a 100″ image from roughly four feet, suited to compact enclosures with limited mount depth.
3,500 ANSI Lumens
Bright enough for lights-on viewing in most residential garages and bonus rooms with moderate ambient light.
500,000:1 Contrast Ratio
Strong contrast performance for the compact class, helping shadow detail and highlight separation on course visuals.
HDR10 & HLG With Low-Latency Gaming
HDR support pairs with Enhanced Gaming Mode input lag as low as 4.4 ms at 1080p/240Hz for responsive shot feedback.
Compact Connectivity Suite

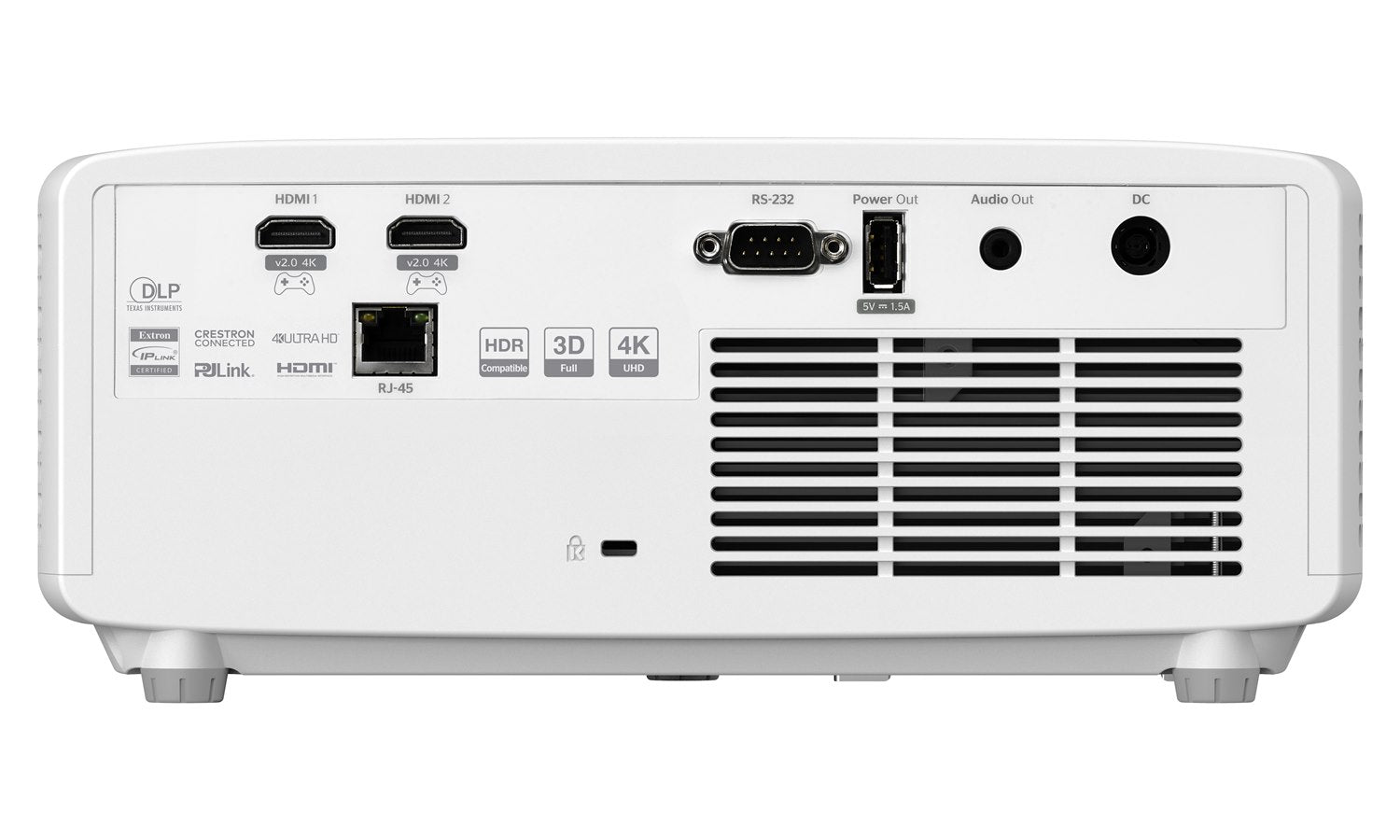

2× HDMI 2.0 (one with eARC), USB-A power (1.5A), RS232, RJ45 network control, and 3.5mm audio out.
UHZ35ST Key Specifications.
| Resolution | 4K UHD (3840 × 2160 native via pixel-shift) |
|---|---|
| Brightness | 3,500 ANSI lumens |
| Contrast Ratio | 500,000:1 |
| Light Source | DuraCore laser, up to 30,000 hours |
| Throw Ratio | 0.496:1 (fixed) |
| Zoom / Lens Shift | Fixed, manual focus — no zoom, no lens shift |
| Projection Distance | 15.75″–129.92″ |
| Screen Size Range | 36″–300″ diagonal |
| Keystone | ±15° horizontal, ±15° vertical |
| Native Aspect Ratio | 16:9 (4:3, 16:10 compatible) |
| HDR Support | HDR10, HLG |
| Input Lag | 4.4 ms (1080p/240Hz) up to 16.9 ms (4K/60Hz) |
| Inputs | 2× HDMI 2.0 (1 eARC), USB-A power (1.5A), RS232, RJ45, 3.5mm audio out |
| Dust Protection | IP6X sealed optical engine |
| 3D Support | Full HD 3D |
| Noise Level | 28 dB (typical) / 35 dB (max) |
| Power Consumption | 126W (min) / 185W (max) / under 0.5W standby |
| Dimensions (W × D × H) | 10.79″ × 8.5″ × 4.49″ |
| Weight | 6.61 lbs (net) |
| Dealer Status | Elite Sim Golf Authorized Optoma Dealer |
Optoma Golf Simulator Projectors.
The UHZ35ST is the compact laser-powered path into 4K UHD. These related Optoma models cover the lower-cost lamp-based 4K option and the step up to a brighter, larger-chassis laser build.
- Resolution: True 4K UHD (3840×2160)
- Brightness: 4,000 ANSI lumens
- Light Source: 240W lamp (4,000–15,000 hrs by mode)
- Throw Ratio: 0.5:1 (fixed)
- Contrast: 1,000,000:1
- Input Lag: 4.2 ms (1080p/240Hz)
- HDR: HDR10, HLG
- Connectivity: 2× HDMI 2.0, RS232, 12V trigger
- Resolution: 4K UHD (3840×2160)
- Brightness: 3,500 ANSI lumens
- Light Source: DuraCore laser (30,000 hrs)
- Throw Ratio: 0.496:1 (fixed)
- Contrast: 500,000:1
- Input Lag: 4.4 ms (1080p/240Hz)
- HDR: HDR10, HLG
- Connectivity: 2× HDMI 2.0, RS232, RJ45
- Resolution: 1080p Full HD (1920×1080)
- Brightness: 4,200 ANSI lumens
- Light Source: DuraCore laser (30,000 hrs)
- Throw Ratio: 0.496:1 (fixed)
- Contrast: 300,000:1 (2,000,000:1 dynamic)
- HDR: HDR10, HLG
- Connectivity: 2× HDMI 2.0, RS232, RJ45
- Dust Protection: IP6X sealed engine
4K UHD, Laser Reliability, Compact Footprint.
Choose the Optoma UHZ35ST for a compact, native 4K UHD projector built around a maintenance-free DuraCore laser light source, sub-5-millisecond gaming latency, and IP6X dust sealing, all in one of the lightest chassis options in the Optoma sim lineup.
Pair It With An Elite Sim Golf Enclosure
The UHZ35ST fits cleanly into a properly sized Eagle 12 enclosure with a 4K-ready impact screen matched to its fixed 0.496:1 throw geometry, for a compact bay with a maintenance-free light source.
Build A Complete SimKit
Configure a turnkey enclosure, screen, and UHZ35ST simulator package, or build a custom bay from the ground up using the SimKit Bundle Builder.
