Optoma LH352BST 3300-Lumens 1080p 4LED Short Throw Golf Simulator Projector
By Optoma
Build Your Dream Home Golf Simulator
Pair the Optoma LH352BST 3300-Lumens 1080p 4LED Short Throw Golf Simulator Projector with a launch monitor, projector, and hitting mat in the SimKit Builder.
Start Building in the SimKit Builder →
3,300 Lumens · Full HD 1080p · 0.69–0.83:1 Short Throw
Lamp-Free 4LED Short Throw With A Dedicated Golf Sim Mode
The Optoma LH352BST is a Full HD 1080p short-throw projector built around a lamp-free 4LED light source rated up to 30,000 hours. It delivers 3,300 lumens measured to ISO 21118, a 0.69–0.83:1 lens with 1.2x optical zoom, and a Golf Sim color mode tuned for skies, fairways, and ball flight. Input lag drops to 8.4 ms at 1080p/120Hz, and it is rated for 24/7 and 360° operation.
3,300
ISO Lumens
Measured to ISO 21118
1080p
1920 × 1080
Full HD, 4K input accepted
0.69–0.83
Throw Ratio
1.2x optical zoom
30,000
Hour 4LED Life
No lamp replacement
Why The LH352BST
An Entry Point Into Optoma Golf Sim Projection
The LH352BST brings Optoma’s Golf Sim Mode, a lamp-free light source, and a zoom lens to the most accessible price point in the Optoma golf lineup. It is a practical fit for a first simulator build, a garage bay, or a room that doubles as a movie and game space.
Lamp-Free 4LED Light
The 4LED light source holds stable color from day one and is rated up to 30,000 hours. No lamps to buy, no warm-up color drift, and no scheduled bulb swaps.
Golf Sim Color Mode
A dedicated Golf Sim picture mode tunes color and contrast for brighter blue skies, deeper shadows, and natural fairway greens, so terrain and ball flight read clearly.
Zoom Lens For Flexible Mounting

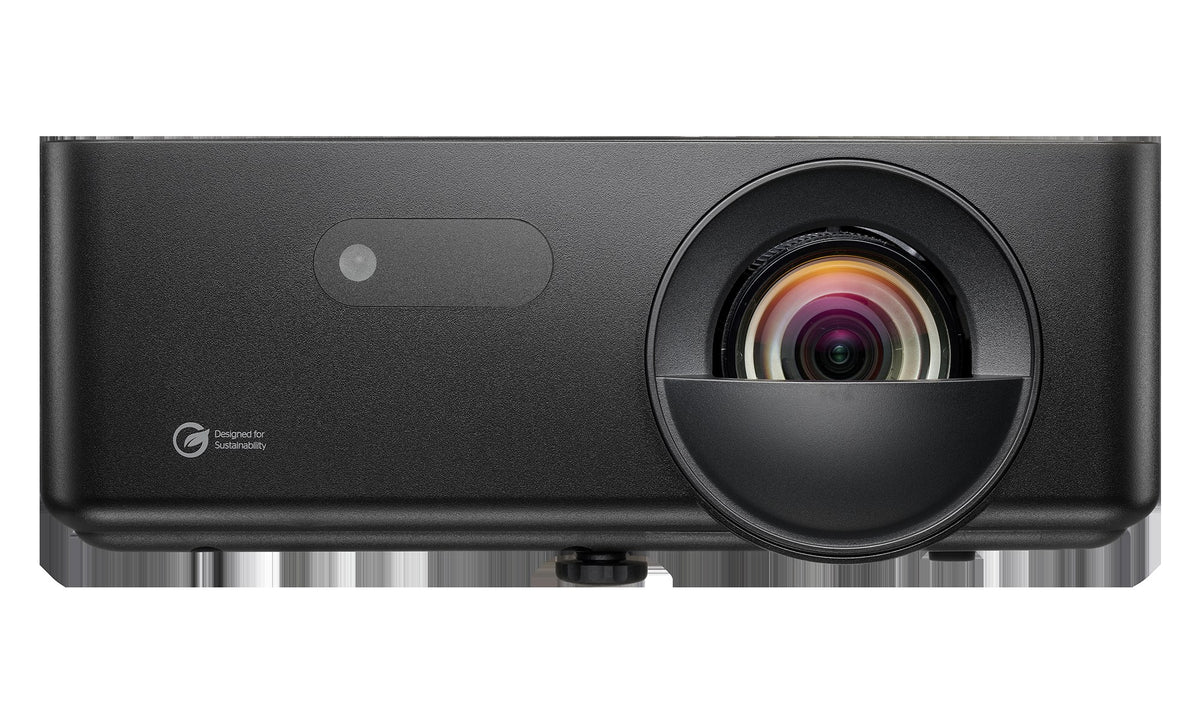

The 0.69–0.83:1 lens with 1.2x optical zoom gives a usable range of mount positions instead of one fixed spot, which makes it easier to land the image on an impact screen.
Sharp Full HD 1080p
Native 1920 × 1080 resolution with 1.07 billion displayable colors and Rec.709 color reproduction. 1080p is the resolution most golf simulator PCs run at full frame rate.
Low-Lag Gaming Response
16.7 ms at 1080p/60Hz and 8.4 ms at 1080p/120Hz. Responsive enough for sim play, console gaming, and fast-moving sports.
Fits Any Impact Screen
Supports 16:9, 16:10, 4:3, and 1:1 aspect ratios plus ±30° horizontal and vertical keystone and geometric correction to square the image to the screen frame.
Who Is It Best For?
- First-time simulator builds on a budget
- Golfers moving off a lamp-based projector
- Rooms where the mount sits farther back than an ultra-short throw allows
- Garage and basement bays with controlled lighting
- Multi-use rooms: sim, movies, sports, and gaming
- Builds pairing a 1080p simulator PC with GSPro or E6 Connect
Short Throw & Setup
Placement And Geometry Toolkit
Placement Flexibility
Optoma rates the LH352BST for an 80″–300″ image from about 4–18 ft away. The 1.2x zoom lets the image size be fine-tuned after the mount is set, and the 102% native offset projects the image just off the lens centerline for a ceiling mount.
- Throw ratio: 0.69–0.83:1
- Zoom: 1.2x optical
- Image size: 30″–300″ diagonal (Optoma rating)
- Native offset: 102% ±3%
- Keystone: horizontal ±30°, vertical ±30°
- Aspect ratios for impact screens: 16:9, 16:10, 4:3, 1:1
Installer Checklist
The zoom range gives some room for error, but mount position still sets the starting image size. Keystone and geometric correction are for final squaring, not for correcting a mount in the wrong spot.
- Confirm screen width and final aspect ratio
- Verify ceiling height and the mount’s position relative to the tee
- Confirm throw distance with the projector fitment tool
- Plan HDMI and power runs to the mount
- Center the projector on the screen; no optical lens shift is listed
- Switch to Golf Sim Mode after alignment and focus
What Is The LH352BST
Optoma’s 4LED Short Throw For Golf Sim And Home Entertainment
The LH352BST is a single-chip DLP projector with native 1920 × 1080 Full HD resolution, 3,300 lumens measured to ISO 21118, and a 300,000:1 native contrast ratio (2,000,000:1 dynamic). Instead of a lamp or laser, it uses a 4LED light source rated up to 30,000 hours, so there is no bulb to replace over the life of the projector.
Placement range: Optoma rates the LH352BST for a 30″–300″ image and an 80″–300″ image from about 4–18 ft. The 0.69–0.83:1 lens places the projector farther from the screen than a 0.5:1 ultra-short throw, which suits ceiling positions above or behind the golfer. The exact lens-to-screen distance depends on your screen width, aspect ratio, and mount, so check your room in the ESG projector fitment tool and throw calculator before you mount.
Mount notes: the chassis measures 12.09″ × 8.98″ × 4.5″ and weighs 7 lbs, so a standard universal ceiling mount handles it. It supports 360° operation and is rated for 24/7 use. Optoma lists no lens shift, so center the mount on the screen and use the 1.2x zoom, keystone, and geometric correction for final fit.
Simulator compatibility: any PC-based golf software runs over either HDMI 2.0 input, including GSPro, E6 Connect, TGC 2019, and Awesome Golf. Golf Sim Mode handles course color, and the 1080p native resolution matches what most simulator PCs output at full frame rate.
Everything It Does
Spec-By-Spec Breakdown
Resolution & Color
Full HD 1920 × 1080 single-chip DLP with 1.07 billion displayable colors. Reproduces the Rec.709 HDTV gamut, with a more saturated option for games and animation.
Throw & Projection
0.69–0.83:1 short-throw lens with 1.2x optical zoom. Image size 30″–300″, with 80″–300″ from about 4–18 ft. Native offset 102% ±3%.
Brightness & Contrast
3,300 lumens to ISO 21118 with 85% uniformity. 300,000:1 native and 2,000,000:1 dynamic contrast.
Game Mode & Input Lag
16.7 ms at 1080p/60Hz and 8.4 ms at 1080p/120Hz. Accepts a 4K/60Hz signal at 33.7 ms. Vertical scan rate of 24–120 Hz.
4LED Light Source
Lamp-free 4LED engine rated up to 30,000 hours. 29 dB in Eco mode and 31 dB in Bright mode, with 24/7 and 360° operation supported.
Connectivity

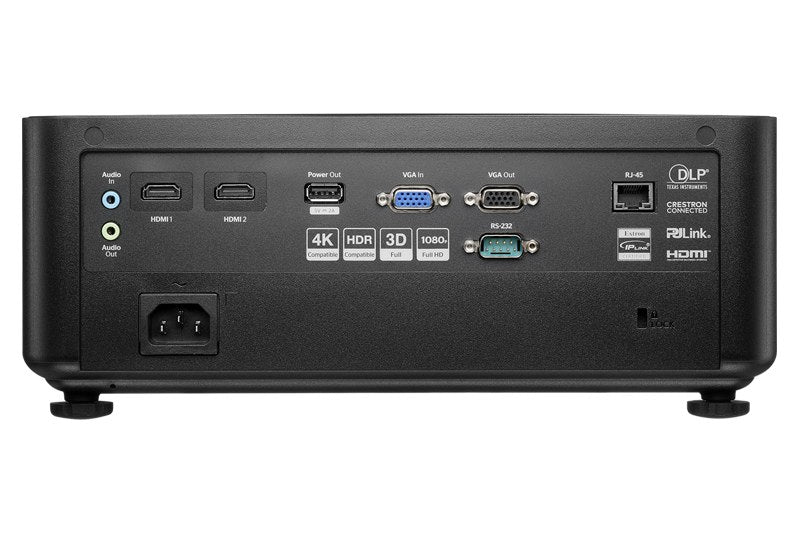

2 × HDMI 2.0, VGA in and out, 3.5 mm audio in and out, USB-A 2A power, RS232, and LAN. Built-in 10W speaker.
By The Numbers
Full Specifications
| Model | Optoma LH352BST |
|---|---|
| Display Technology | Single-chip DLP |
| Resolution | 1080p Full HD, 1920 × 1080 |
| Brightness | 3,300 lumens (ISO 21118) |
| Contrast Ratio | 300,000:1 native / 2,000,000:1 dynamic |
| Uniformity | 85% |
| Color | Rec.709, 1.07 billion displayable colors |
| Picture Modes | Includes dedicated Golf Sim Mode |
| Input Lag | 16.7 ms (1080p/60Hz), 8.4 ms (1080p/120Hz), 33.7 ms (4K/60Hz input) |
| Vertical Scan Rate | 24–120 Hz |
| Light Source | 4LED |
| Light Source Life | Up to 30,000 hours |
| Throw Ratio | 0.69–0.83:1 |
| Zoom | 1.2x optical |
| Image Size Range | 30″–300″ diagonal |
| Projection Range | 80″–300″ image from about 4–18 ft (Optoma) |
| Native Aspect Ratio | 16:9 |
| Compatible Aspect Ratios | 4:3, 16:9, 16:10 (1:1 for impact screens) |
| Native Offset | 102% ±3% |
| Keystone Correction | Horizontal ±30°, Vertical ±30° |
| Operating Noise | 29 dB Eco / 31 dB Bright |
| Built-In Speaker | 1 × 10W |
| 3D | Full 3D (DLP 3D, 120Hz frame sequential, Blu-ray 3D) |
| 24/7 Operation | Supported |
| Orientation | 360° operation |
| HDMI Inputs | 2 × HDMI 2.0 |
| Other I/O | VGA in, VGA out, 3.5 mm audio in/out, USB-A power (2A) |
| Control | RS232, LAN |
| Power Consumption | 226 W max / 124 W min / <0.5 W standby |
| Power Supply | 100–240V AC, 50–60Hz |
| Operating Conditions | 0–40°C, up to 80% RH non-condensing, max altitude 10,000 ft |
| Dimensions (W × D × H) | 12.09″ × 8.98″ × 4.5″ |
| Net Weight | 7 lbs (11 lbs shipping) |
| In The Box | AC power cord, remote control, 2 × AAA batteries |
| Dealer Status | Elite Sim Golf Authorized Optoma Dealer |
Compare The Lineup
Optoma 1080p Golf Sim Projectors
All three are Full HD 1080p short-throw projectors with Golf Sim-ready color and 24/7 operation. They differ in light source, brightness, and lens geometry: the LH352BST uses a 4LED engine and a zoom lens, while the GT models use a sealed laser and a fixed 0.496:1 lens for very shallow rooms.
Optoma LH352BST
Lamp-free 4LED short throw with zoom
- 1080p Full HD 1920 × 1080
- 3,300 ISO lumens
- 0.69–0.83:1 throw, 1.2x zoom
- 30,000-hour 4LED light source
- Golf Sim Mode
- 8.4 ms input lag at 1080p/120Hz
- ±30° keystone correction
- 2 × HDMI 2.0, VGA, RS232, LAN
Best For: First Builds, Flexible Mounting
Optoma GT2000HDR
1080p laser with a fixed short throw
- 1080p Full HD 1920 × 1080
- 3,500 ANSI lumens
- 0.496:1 fixed short throw
- 30,000-hour DuraCore laser
- HDR10 + HLG
- 8.6 ms input lag
- IP6X engine, 24/7 rated
- 2 × HDMI 2.0, RS232
Best For: Shallow Rooms, Laser Reliability
Optoma GT2400HDR
4,200-lumen 1080p laser short throw
- 1080p Full HD 1920 × 1080
- 4,200 ANSI lumens
- 0.496:1 fixed short throw
- 30,000-hour DuraCore laser
- HDR10 + HLG
- 8.4 ms input lag at 1080p/120Hz
- Smart Control app support
- 2 × HDMI 2.0, RJ45, RS232
Best For: Brighter Rooms, Bigger Screens
Build The Complete Bay
Pair The LH352BST With The Rest Of The Build
A projector is one piece of the simulator. Elite Sim Golf builds the full bay (enclosure, screen, hitting surface, launch monitor, PC, and projector) sized and shipped together so the geometry works the first time.
Pair It With An ESG Enclosure
The Birdie 10 is built for garages and spare rooms, and the Eagle 12 steps up to a wider screen. Run either enclosure through the fitment tool with the LH352BST to confirm mount distance before ordering.
Build A Complete SimKit
Pre-built SimKit bundles include the projector, enclosure, hitting surface, launch monitor, and PC, matched to your room size and budget. Or use the Bundle Builder to spec a custom kit.
