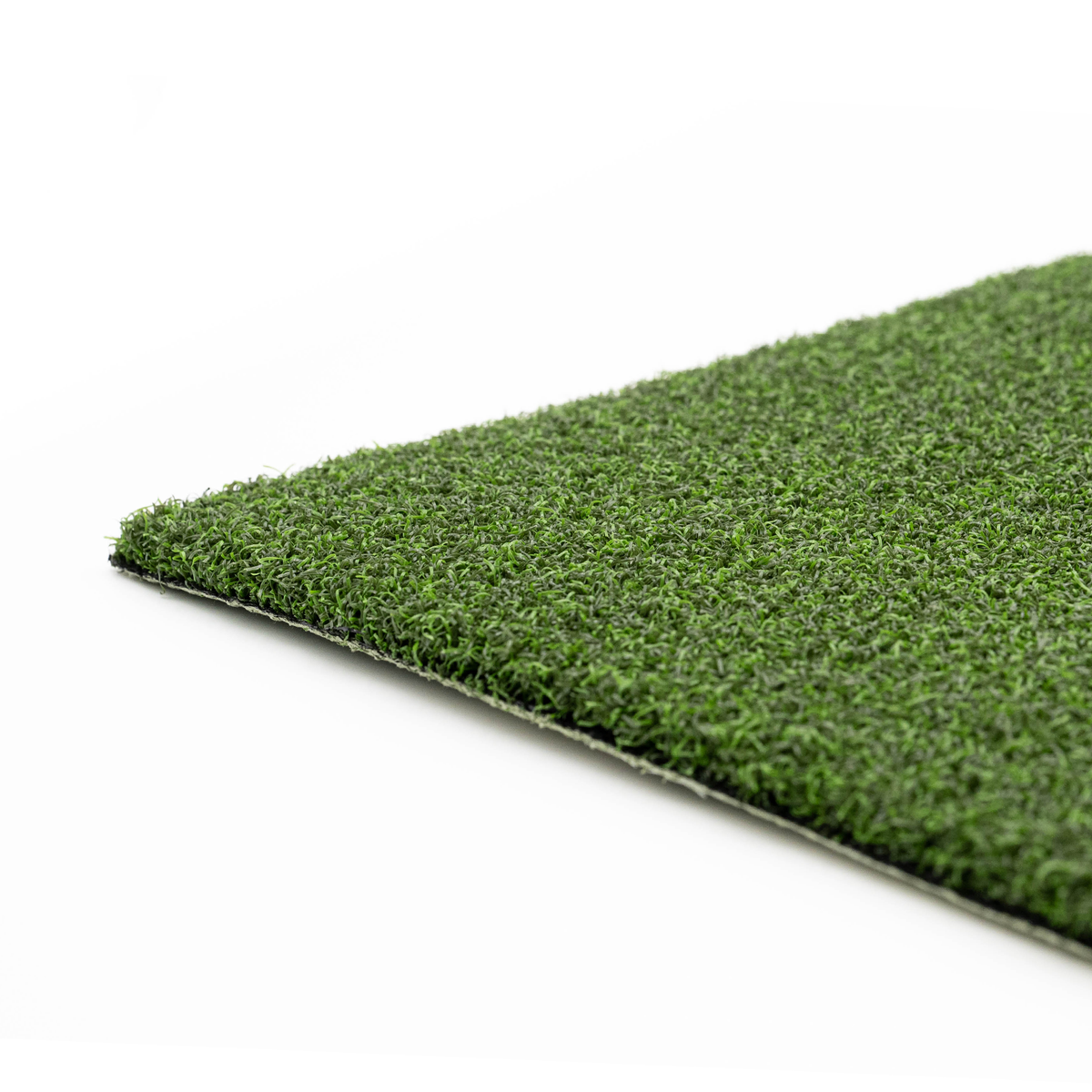

  • ESG ProPutt turf detail
  • Regulation 4.25 inch putting cup included in subfloor kit
1 4

Elite ProPutt Golf Sim Subfloor Kit – Pre-Sized Turf, 1" EVA Tile, Seaming Tape & Cups

By Elite Sim Golf

$720.99
Shipping calculated at checkout.
Estimated Ship Date Available To Order Typically 1 to 3 business days after the order is placed.
Ships —

Build Your Dream Home Golf Simulator

Pair the Elite ProPutt Golf Sim Subfloor Kit – Pre-Sized Turf, 1" EVA Tile, Seaming Tape & Cups with a launch monitor, projector, and hitting mat in the SimKit Builder.

Start Building in the SimKit Builder →
Authorized Elite Sim Golf Dealer
Premier Elite Sim Golf partner with full warranty support.
Golf Sim Pros
Questions? Chat or call to speak with a real golf pro.
Live Chat Call or Text 865-657-1028
Price Match Guarantee
Find a lower price and we'll match or beat it — no questions asked.
Financing Available
Pay over time with Shop Pay, Affirm, or Klarna.
Pre-Sized Subfloor Kit

Elite ProPutt Golf Sim Subfloor Kit

Everything you need to build a level, padded floor for your simulator bay in one order: ESG ProPutt Turf, the right number of 1″ EVA tiles for your size, double-sided seaming tape and two putting cups. It finishes at 1¾″ to sit flush with the most popular hitting mats.

1¾″Standard thickness
8′Suggested depth
10′Hitting distance
15Pre-set sizes
✓ ESG ProPutt Turf ⅝″
✓ 1″ EVA Tiles Included
✓ Seaming Tape Included
✓ 2 Putting Cups
In the Box

What's Included

Each size ships with the turf, tile and tape quantities worked out for you, so there's no math and no second order.

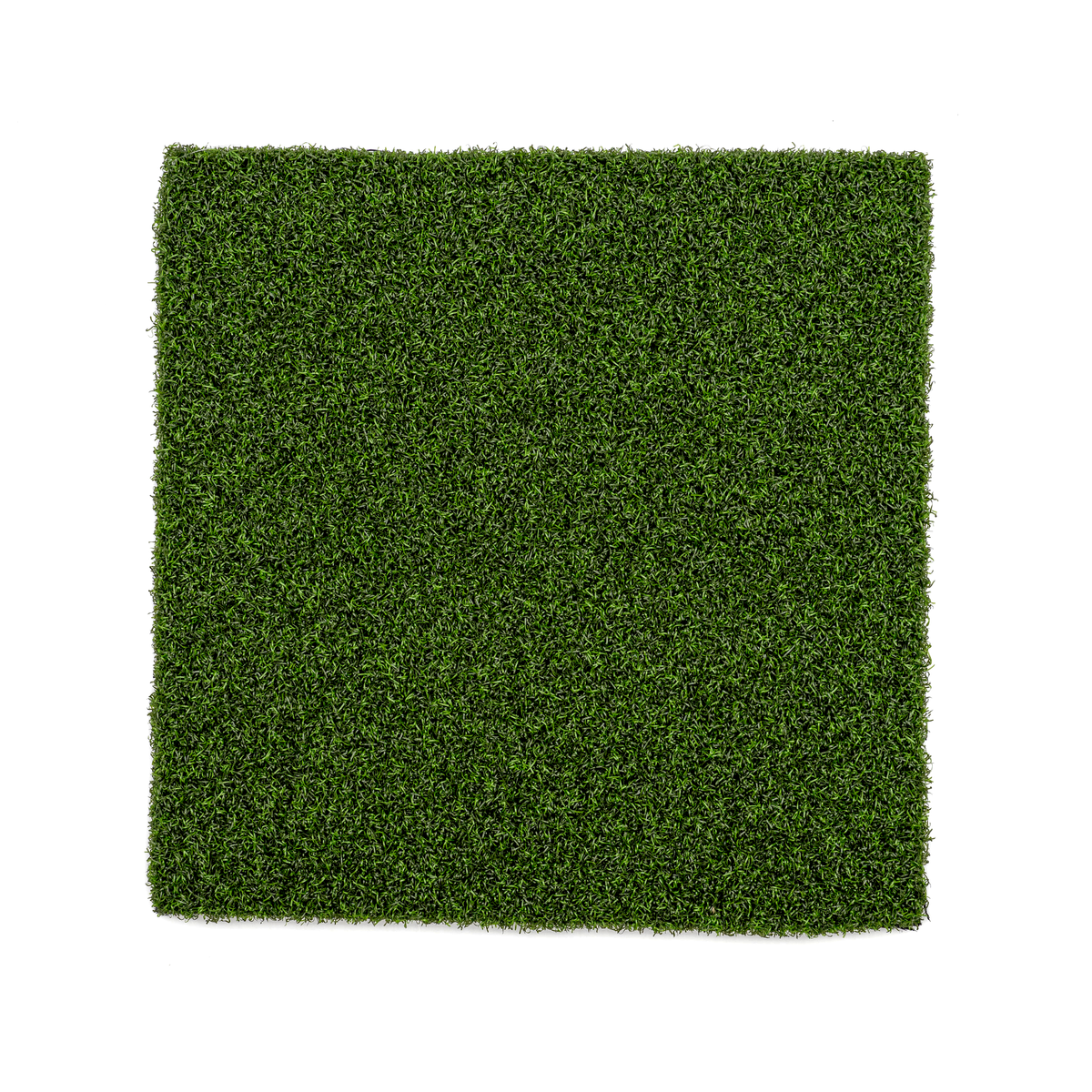

ESG ProPutt padded nylon putting turf
Top Surface

ESG ProPutt Turf ⅝″

Padded nylon putting and landing turf, cut from a 12′ or 15′ wide roll to cover your selected size.

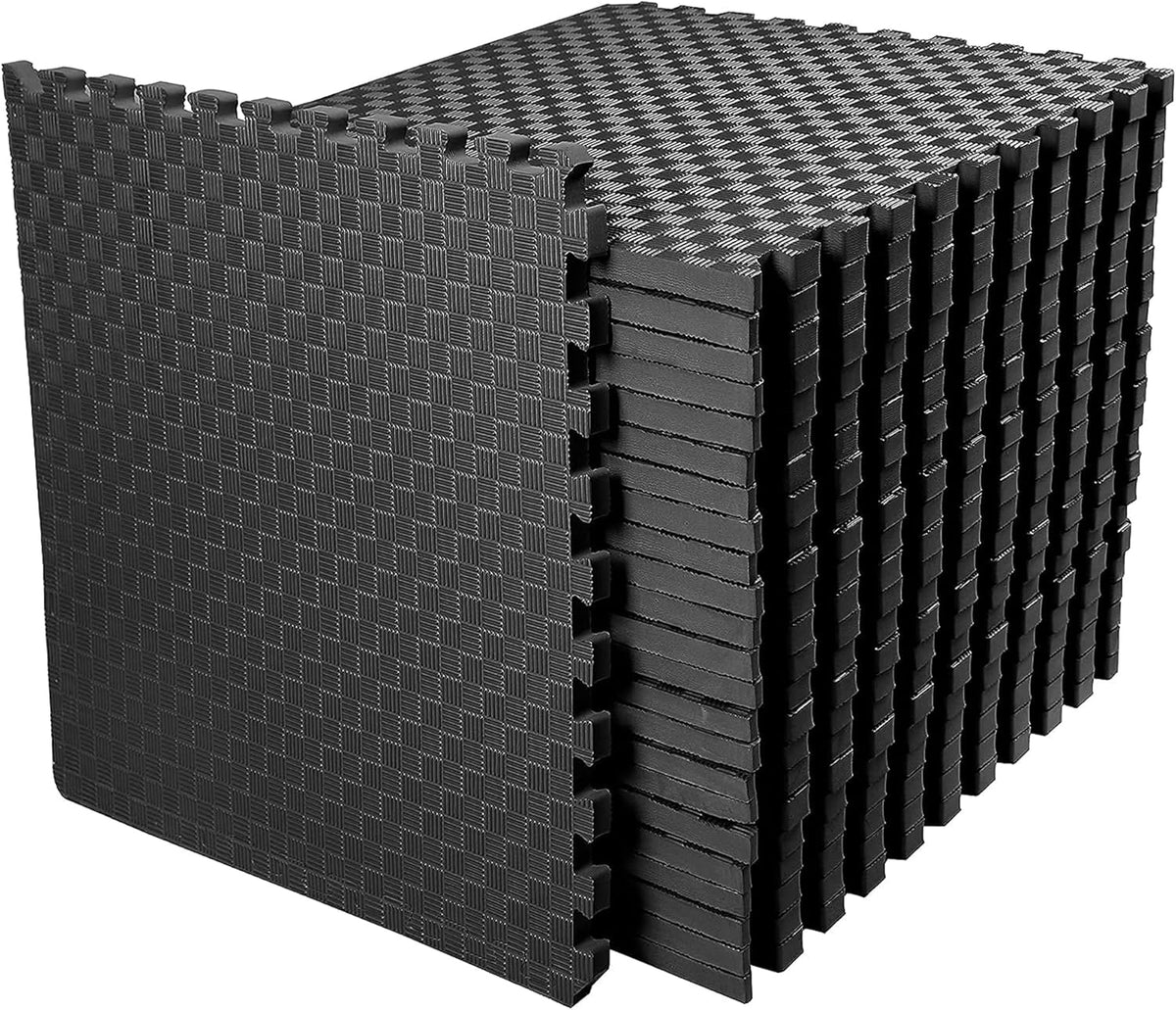

2 ft by 2 ft interlocking EVA foam tiles, 1 inch thick
Base Layer

2′ × 2′ EVA Tiles, 1″

The correct number of interlocking tiles for your size, shipped in packs of 18 with border pieces.

Install

Double-Sided Seaming Tape

Locks the turf to the tile and keeps seams tight so the surface doesn't shift under foot traffic.

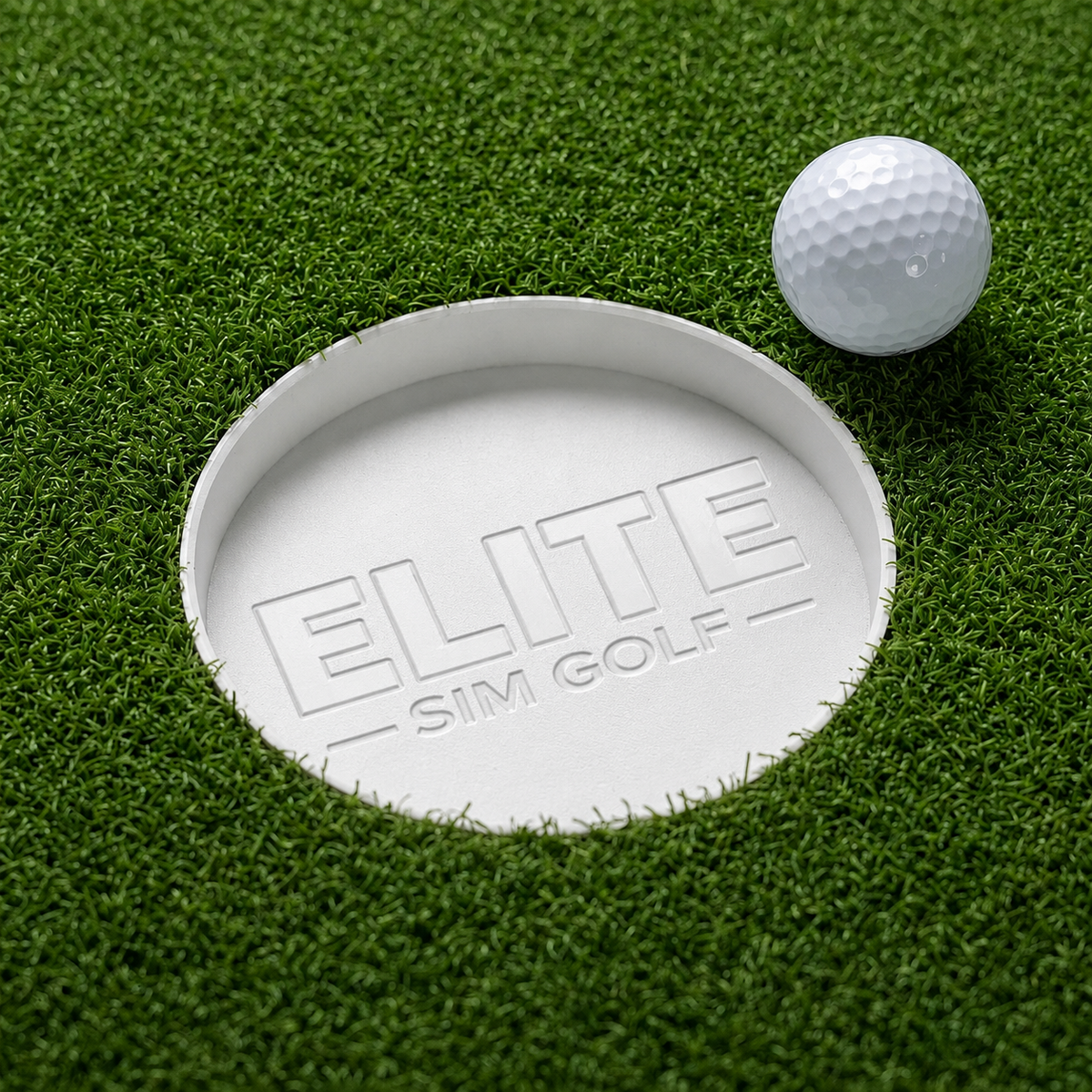

Regulation 4.25 inch simulator putting cup
Bonus

2 Putting Cups

Regulation 4.25″ cups so the same floor doubles as a practice green between rounds.

Choose Your Size

Size Chart

Sizes are listed depth × width. Depth runs from the impact screen back toward the hitting area, and width runs wall to wall. We suggest an 8′ depth, which sets up our recommended 10′ hitting distance from the impact screen.

Size (D × W) Floor Area Turf Shipped 1″ EVA Tiles Ships Via
6′ × 10′ 60 sq ft 6′ × 12′ 15 tiles (1 box) UPS Ground
6′ × 12′ 72 sq ft 6′ × 12′ 18 tiles (1 box) UPS Ground
6′ × 14′ 84 sq ft 6′ × 15′ 21 tiles (2 boxes) UPS Ground
8′ × 10′ Suggested 80 sq ft 8′ × 12′ 20 tiles (2 boxes) LTL freight · $350 flat
8′ × 12′ Suggested 96 sq ft 8′ × 12′ 24 tiles (2 boxes) LTL freight · $350 flat
8′ × 14′ Suggested 112 sq ft 8′ × 15′ 28 tiles (2 boxes) LTL freight · $350 flat
10′ × 10′ 100 sq ft 10′ × 12′ 25 tiles (2 boxes) LTL freight · $350 flat
10′ × 12′ 120 sq ft 10′ × 12′ 30 tiles (2 boxes) LTL freight · $350 flat
10′ × 14′ 140 sq ft 10′ × 15′ 35 tiles (2 boxes) LTL freight · $350 flat
12′ × 12′ 144 sq ft 12′ × 12′ 36 tiles (2 boxes) LTL freight · $350 flat
12′ × 14′ 168 sq ft 12′ × 15′ 42 tiles (3 boxes) LTL freight · $350 flat
14′ × 14′ 196 sq ft 14′ × 15′ 49 tiles (3 boxes) LTL freight · $350 flat
14′ × 16′ 224 sq ft 15′ × 16′ 56 tiles (4 boxes) LTL freight · $350 flat
14′ × 18′ 252 sq ft 15′ × 18′ 63 tiles (4 boxes) LTL freight · $350 flat
14′ × 20′ 280 sq ft 15′ × 20′ 70 tiles (4 boxes) LTL freight · $350 flat
Final trimming on site is required. Turf ships in a 12′ or 15′ total width and is cut to a length that covers your selected size, so most kits include extra turf on one side. Tile packs hold 18 tiles, so some sizes include spares. Plan to trim the turf and cut tiles to fit your room and mat on site.
Standard Thickness

Built to Sit Flush at 1¾″

One layer of 1″ EVA tile under ⅝″ ProPutt turf finishes at 1⅝″. The seaming tape raises the turf edges slightly, which brings the transition up to a level 1¾″ against your mat.

1″ EVA Tile + ⅝″ ProPutt + Seaming Tape ≈ 1¾″
Up to ⅛″ under the mat is ideal. The tape takes up the difference at the edge.

Flush Out of the Box

Matches 1¾″ mats like Elite Sim Golf ProTee Mats and Carl's HotShot.

Taller 2⅜″ Mats

For SIGPRO Soft or TrueBirdie Beaver Tail, add a layer of ¾″ EVA tile under the kit for a flush 2⅜″ finish.

Other Mat Heights

Our DIY Golf Sim Subfloor guide walks through the stack math for any mat.

Shipping

How Your Kit Ships

Turf ships rolled in a 12′ or 15′ total width. Depth decides the carrier.

6′ Depth

UPS Ground

6′ deep kits are cut short enough to ship by UPS.

$350 Flat

LTL Truck Freight

Any kit over 6′ deep ships LTL truck freight at a flat $350 rate.

Install Overview

How It Goes Together

Basic hand tools, nothing glued to your floor. See the full step-by-step guide for details.

  1. Lay the TileClean the floor, then lock the 1″ EVA tiles together across your bay, leaving a pocket for your hitting mat.
  2. Tape and Roll Out TurfRun seaming tape across the tile, let the ProPutt turf relax flat, then press it down from the center out.
  3. Trim and Set the MatTrim turf and tile to your room on site, drop in your mat and check the edge with a straightedge.
FAQ

Subfloor Kit Questions

Which size should I choose?
Match the width to your enclosure or room, wall to wall. For depth, we suggest 8′, which sets up our recommended 10′ hitting distance from the impact screen.
Does the kit arrive cut to my exact size?
No. Turf ships in a 12′ or 15′ total width and is cut to cover your size, so final trimming on site is required. You'll also cut tiles around your mat.
How thick is the finished floor?
Standard thickness is 1¾″: one layer of 1″ EVA tile plus ⅝″ ProPutt turf, with the seaming tape raising the edges slightly. It sits flush with 1¾″ mats like ESG ProTee Mats and Carl's HotShot.
Can I use it with a 2⅜″ mat?
Yes. Add a layer of ¾″ EVA tile under the kit for a 2⅜″ finish that sits flush with SIGPRO Soft and TrueBirdie Beaver Tail mats.
How much is shipping?
6′ deep kits ship UPS Ground. Anything over 6′ deep ships LTL truck freight at a flat $350 rate.

Plan Your Floor

Not sure how your mat lines up? Read the guide or ask our team before you order.

Read the Subfloor Guide →Contact Us →
