Mount an Overhead Launch Monitor Directly to Pro Enclosure Framing

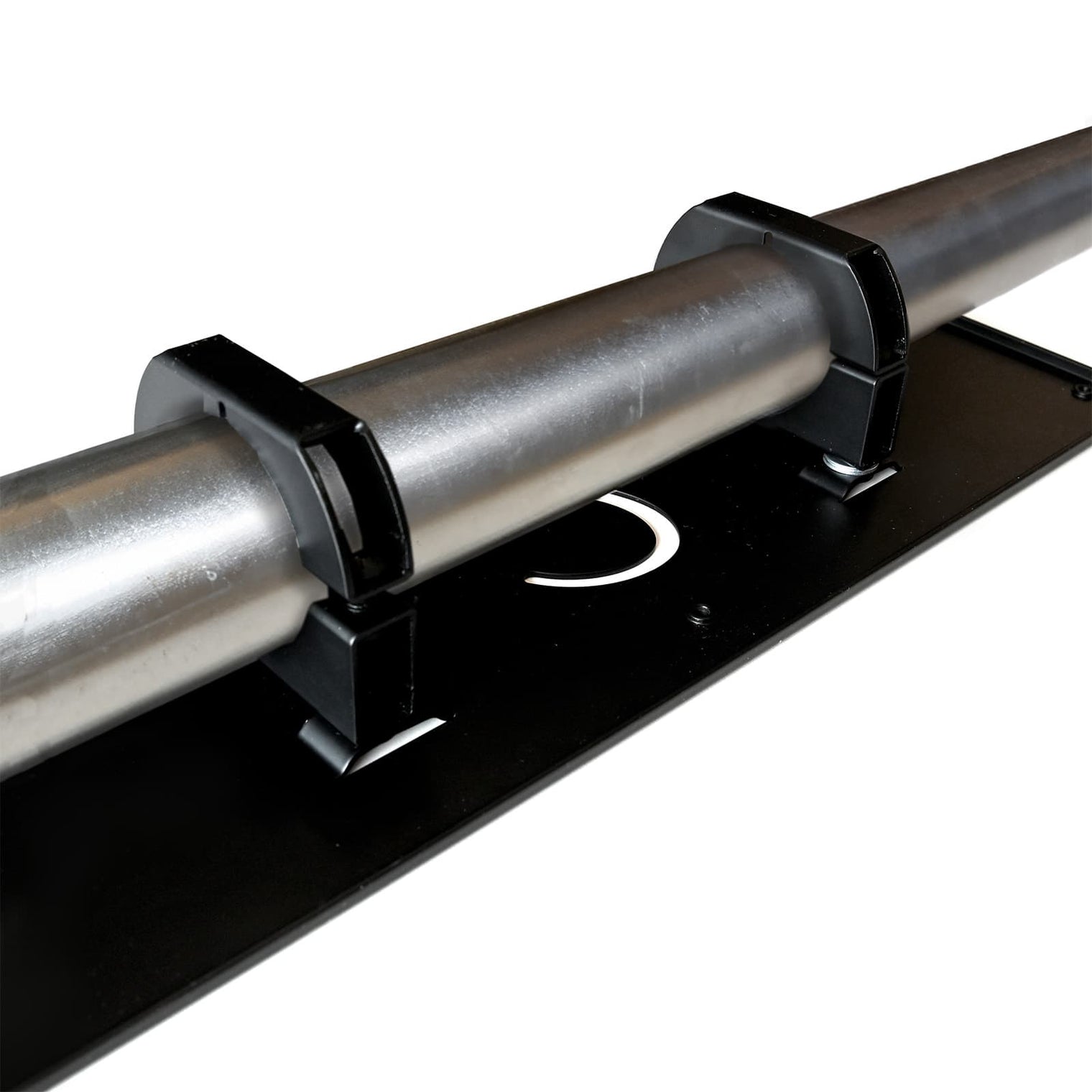

This bracket kit clamps an overhead launch monitor to the 2″ EMT pipe framing of a Carl’s Place Pro Golf Enclosure, removing the need for a separate ceiling mount. The mounting point drops only 3.5″ below the frame, so usable ceiling height is preserved. Installation uses hex keys only.
Built for the Pro Enclosure Frame
Frame Mounted
Clamps to existing 2″ EMT pipe framing on a Carl’s Place Pro Enclosure. No ceiling joist work and no separate ceiling plate.
Minimal Height Loss
Adds only 3.5″ below the frame, which keeps swing clearance and launch monitor mounting height inside spec.
Unit Specific Plate
The base plate is machined for a specific launch monitor. Select the matching unit so the bolt pattern lines up.
Tool Free Adjustment
Top and bottom clamps tighten with hex keys. No drilling and no proprietary tooling.
Rigid Under Load
Two top clamps and two bottom clamps distribute the load across the pipe rather than a single contact point.
Reversible Install
The clamp design allows repositioning along the pipe run if the tee position changes later.
- 1 base plate machined for the selected launch monitor
- 2 top clamps
- 2 bottom clamps
- 1 spacer
- Mounting screws
Mounting Height and Depth Requirements
Values below are sourced from the manufacturer fitment table. Frame mount height is 3.5″ for every unit. Depth figures assume the tee is at least 10′ from the screen.
| Launch Monitor | Mounting Height · Min Pro Enclosure Height · Mounting Depth · Min Pro Enclosure Depth |
|---|---|
| APOGEE | 108–120″ · 111.5″ · 21–25″ in front of tee · 99″ |
| Foresight GCHawk | 114–126″ · 117.5″ · 48″ in front of tee · 88″ |
| Foresight Falcon | 114–126″ · 117.5″ · 48″ in front of tee · 88″ |
| NVISAGE N1 | 108–120″ · 111.5″ · 24″ in front of tee · 96″ |
| ProTee VX | 108–120″ · 111.5″ · 42″ in front of tee · 78″ |
| Trackman iO | 112–120″ · 115.5″ · 3′ 3″–3′ 5″ in front of tee · 81″ |
| Uneekor (EYE XO / XO2) | 108–120″ · 111.5″ · 42″ in front of tee · 78″ |
| Uneekor QED | 108–126″ · 111.5″ · 42″ behind the tee · 162″ |
Check Projector Clearance Before Ordering
An overhead launch monitor and a short-throw projector compete for the same ceiling space. Verify both positions against room depth and ceiling height before committing to a mounting layout.
Use the Projector Fitment ToolConfirm Fitment for the Selected Launch Monitor
Fitment questions, ceiling height checks, and compatibility confirmations are handled before the order ships.
Contact UsFrequently Asked Questions
Which enclosure does this fit?
It is designed for the Carl’s Place Pro Golf Enclosure, which uses 2″ EMT pipe framing. It does not fit the DIY enclosure pipe framing kit.
How much ceiling height does it cost me?
The mounting point sits 3.5″ below the frame pipe. That 3.5″ is the only height penalty.
Is the base plate universal?
No. Each base plate is machined for a specific launch monitor bolt pattern. Select the matching unit from the dropdown.
What tools are needed?
Hex keys only. All required screws are included.
Does the Uneekor plate cover the EYE XO2?
The Uneekor plate covers the EYE XO family. The EYE XR uses a separate plate option.
Can it be repositioned after install?
Yes. The clamps loosen with hex keys so the assembly can slide along the pipe run if the tee position changes.
