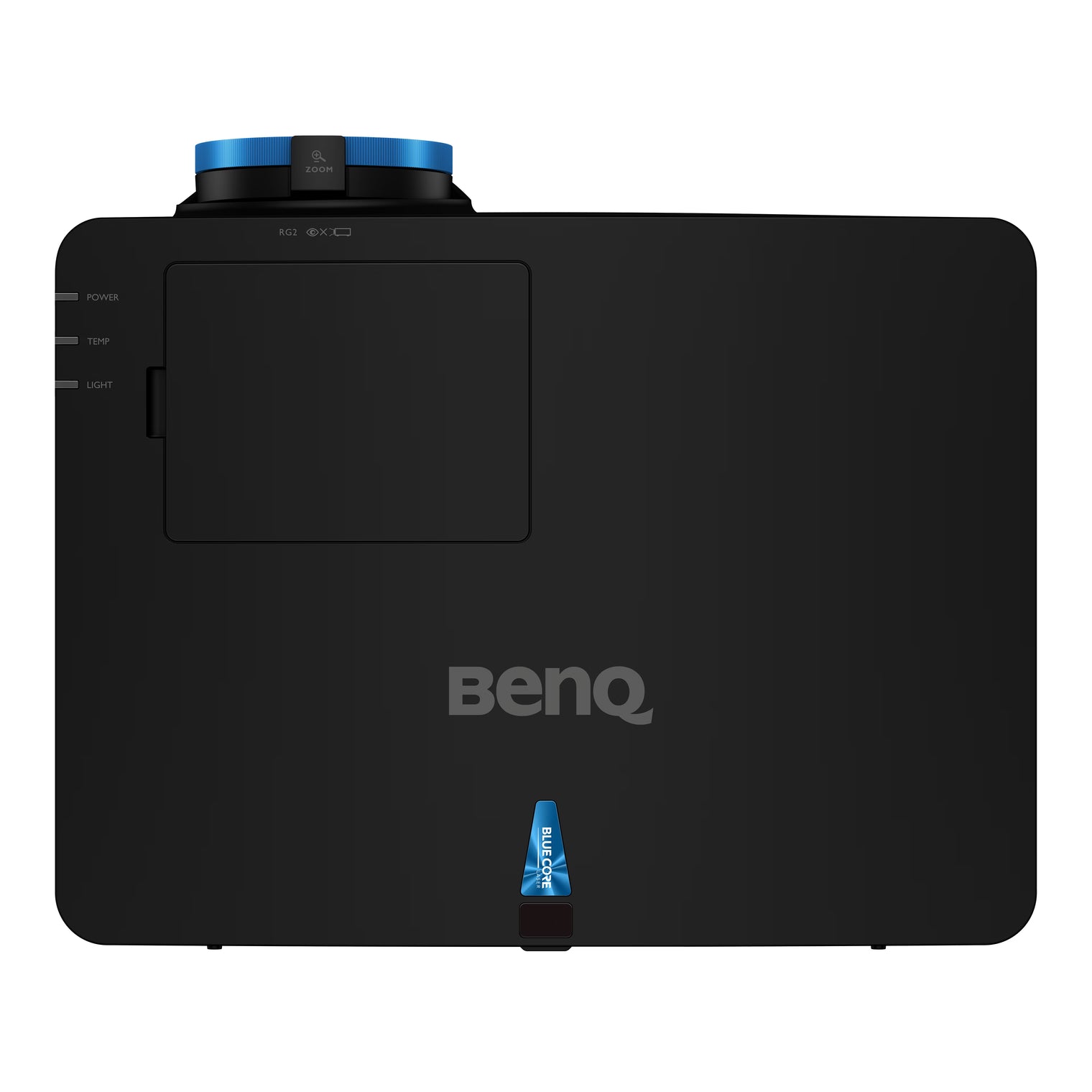

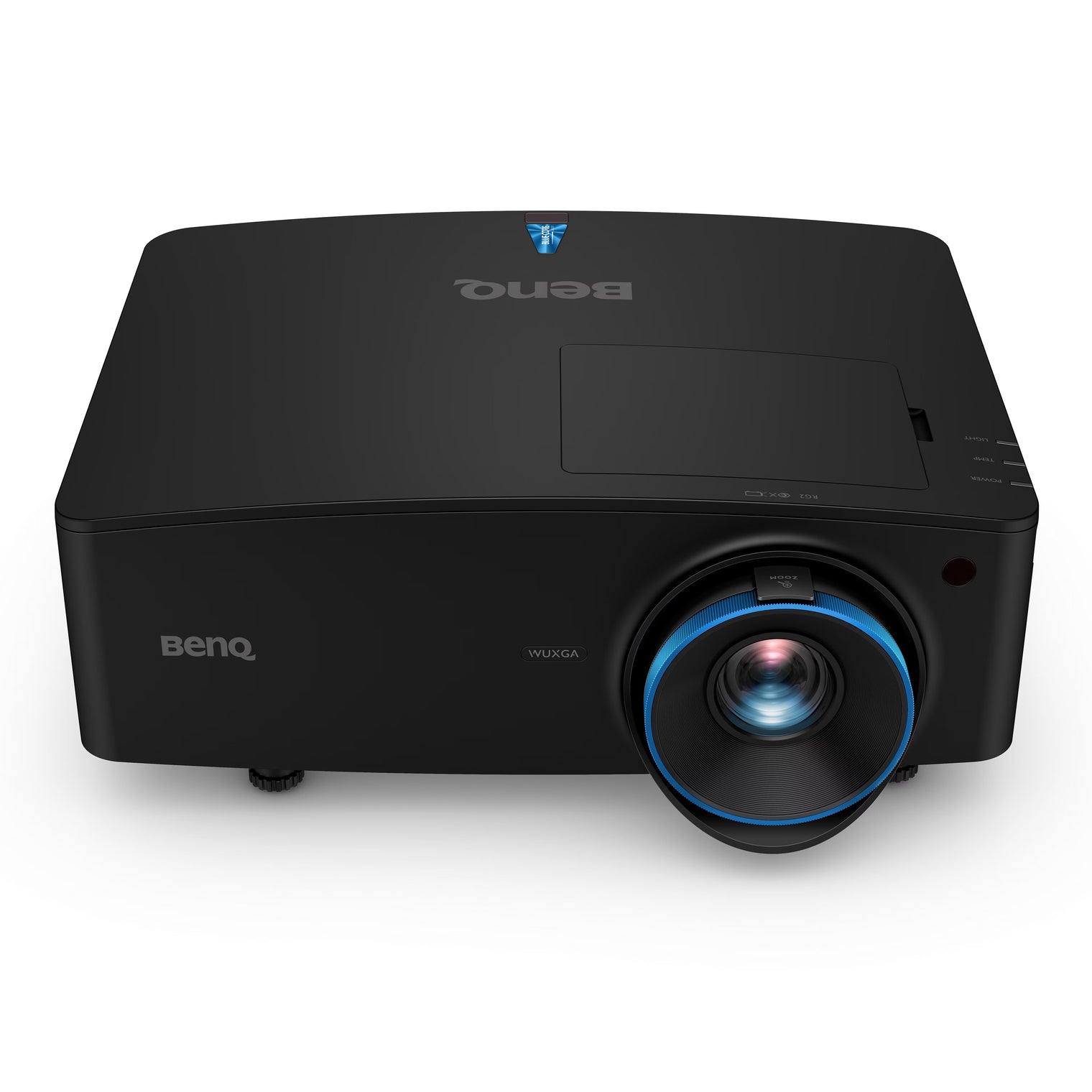

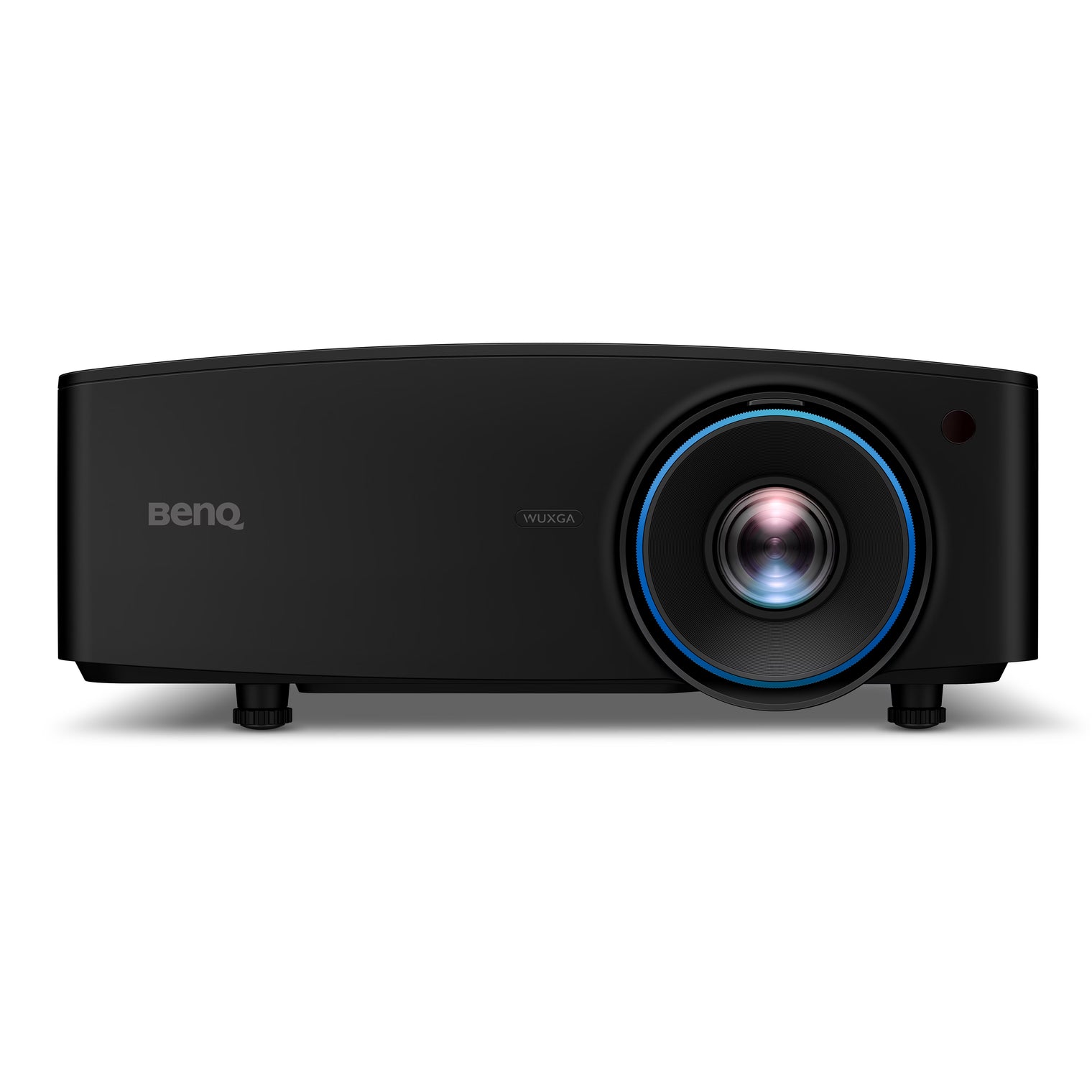

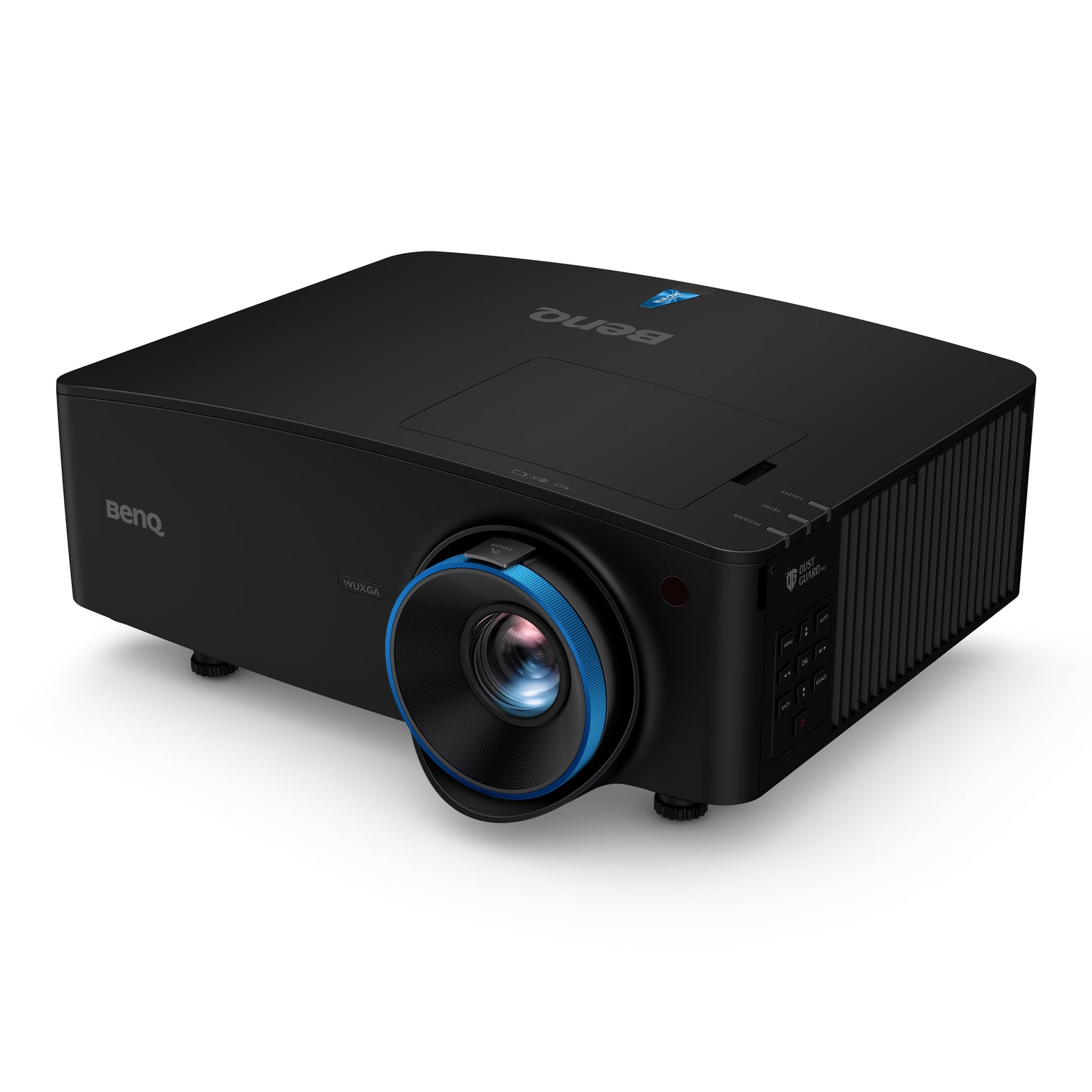

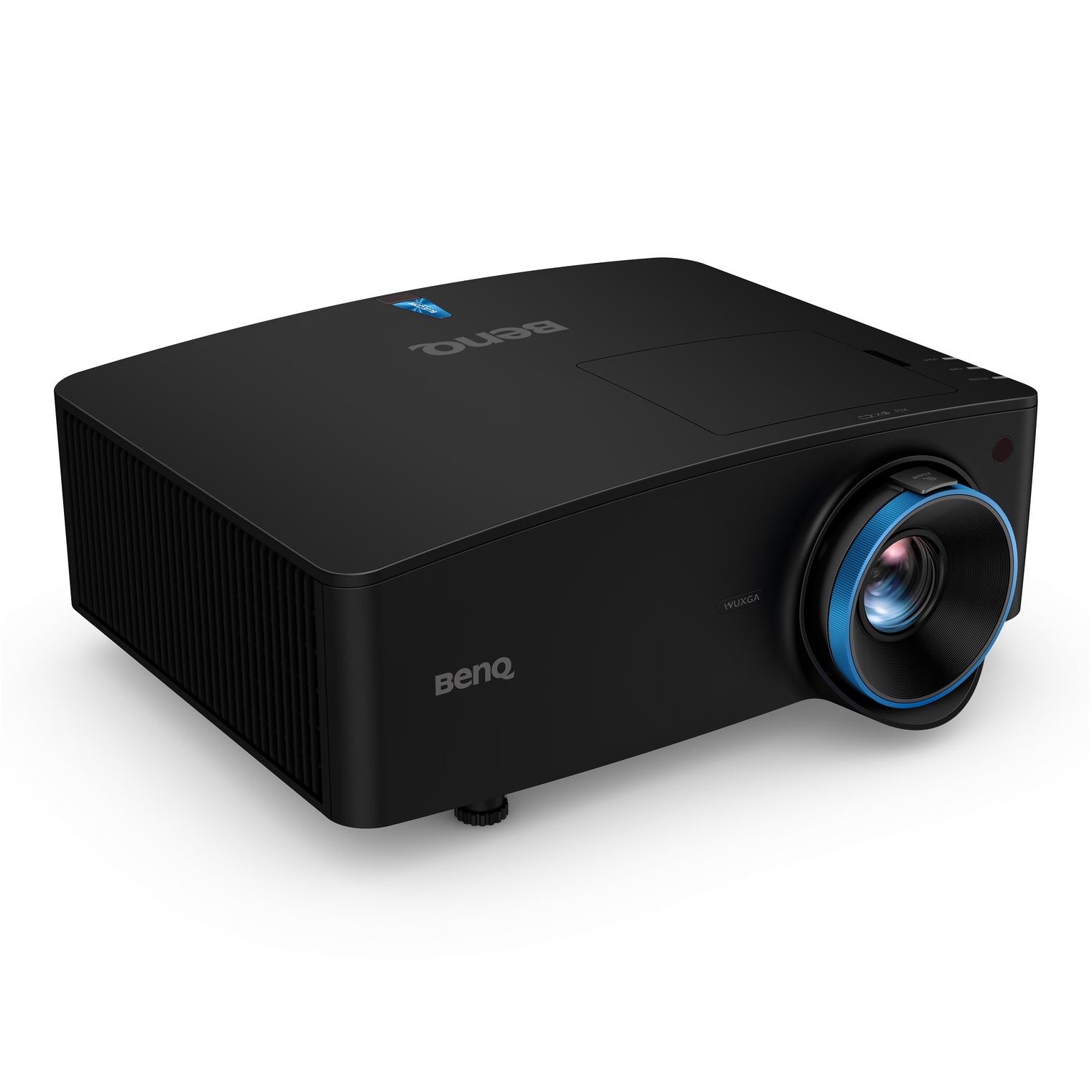

BenQ LU935ST 1080P Short-Throw 5500-Lumens Golf Simulator Projector
By BenQ
The Highest-Output Projector In The ESG Lineup.
The LU935ST is a WUXGA laser projector built for large venues and demanding installs, and it brings that same output to a golf simulator bay — 5,500 ANSI lumens, 1920×1200 resolution, and manual lens shift for precise placement without moving the projector body itself. It is the pick for commercial sim lounges, multi-bay facilities, or any build where brightness and resolution matter more than price.
Commercial-Grade Output For Serious Facilities.
5,500-Lumen Laser Engine
The brightest projector in the ESG lineup, holding up in commercial sim lounges and venues with significant ambient light.
WUXGA 1920×1200 Resolution
A step up from 1080P, with more vertical pixel real estate for sharper detail on course visuals and UI overlays.
Manual Lens Shift
±60% vertical and ±23% horizontal lens shift lets the image be repositioned without physically moving the projector.
3,000,000:1 Contrast
Deep blacks and punchy highlights for realistic course lighting and shadow detail.
20,000-Hour Laser Life
Maintenance-free operation across Normal and Eco modes, built for daily commercial use.
2D Keystone & Corner Fit
±30° keystone on both axes plus Corner Fit control for dialing in tricky or off-center mounting positions.
Who Is It Best For?
Commercial sim lounges, multi-bay facilities, and golfers who want the brightest, highest-resolution projector option available and are prioritizing output and precision placement over price.
Precision Placement For Demanding Installs.
Short-Throw Geometry
A 0.81–0.89:1 throw ratio with 1.1× zoom covers most standard sim bay depths while leaving room for fine adjustment.
- 0.81–0.89:1 throw ratio, 1.1× optical zoom
- Manual lens shift (±60% V / ±23% H) for off-axis placement
- 2D keystone (±30° V/H) plus Corner Fit
- Fixed-install grade optics rated for continuous commercial use
Installer Checklist
Lens shift means the mounting position doesn’t have to be perfectly centered on the screen — a real advantage in multi-bay facilities with fixed structural mount points.
- Confirm exact throw distance with the projector fitment tool before drilling
- Use lens shift to fine-tune image position after mounting, rather than re-drilling

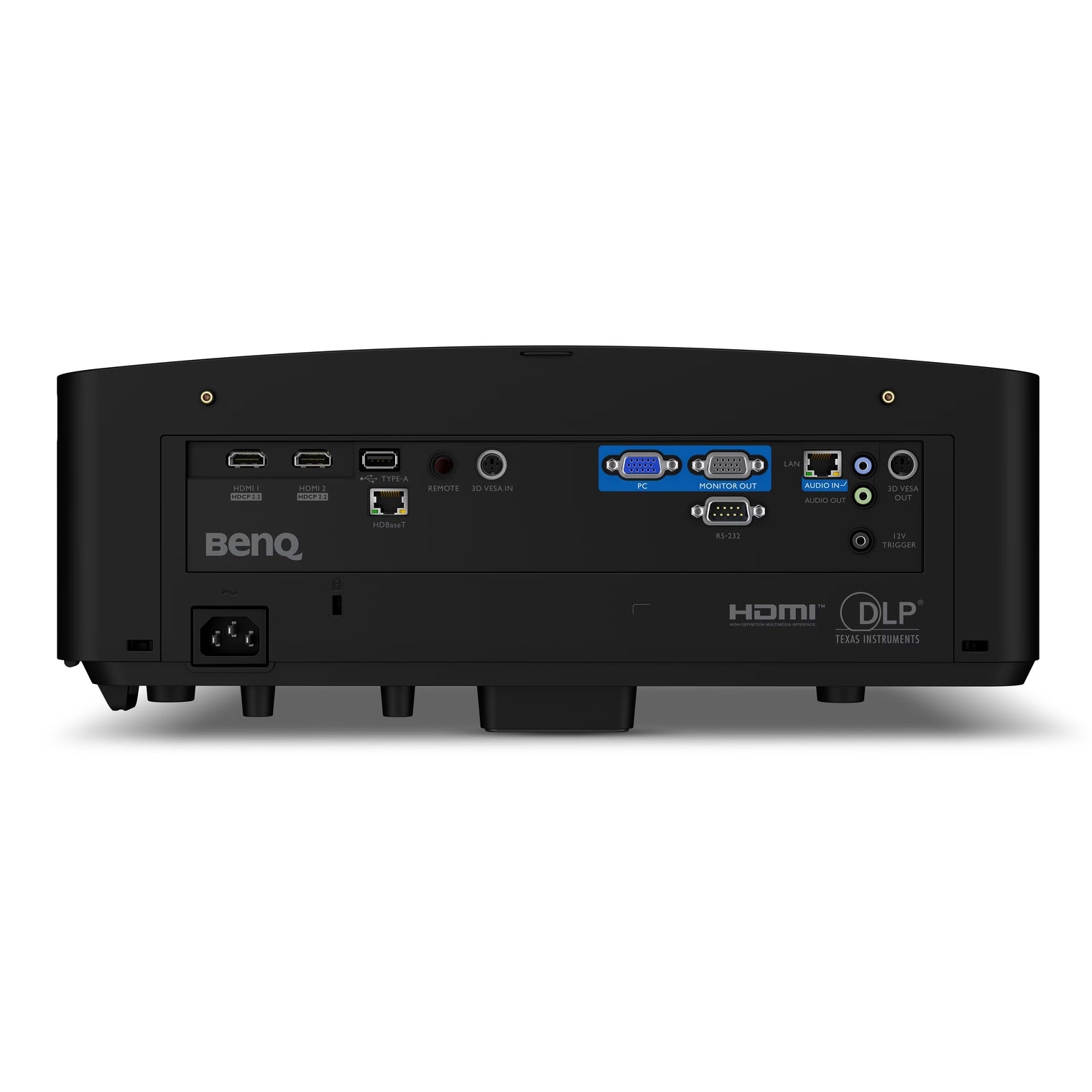

- 2× HDMI 2.0a/HDCP2.2, VGA, USB, RJ-45 LAN, and RS-232 for commercial AV integration
- RJ-45 LAN control makes the LU935ST a good fit for multi-bay facilities managed from a central system
A Commercial Laser Projector, Sized For Golf.
The LU935ST is BenQ’s WUXGA fixed-installation laser projector, more commonly found in classrooms, boardrooms, and venues than in a residential golf bay. Elite Sim Golf carries it for golfers and facility owners who want that same commercial-grade brightness, resolution, and lens flexibility in a simulator setup.
Its laser light source is rated for roughly 20,000 hours in Normal and Eco modes, keeping brightness consistent for years without a lamp swap. For exact mounting distance based on screen size and aspect ratio, run the numbers in the projector fitment tool and throw calculator before finalizing the mount — the manual lens shift then lets you fine-tune image position without re-drilling.
Ceiling mount notes: because the LU935ST supports true lens shift rather than just digital keystone, it tolerates a wider range of practical mounting positions than most short-throw golf projectors, which is especially useful in retrofits or facilities with existing structural mount points.
For PC-based simulators running GSPro, E6 Connect, TGC 2019, or Awesome Golf, the LU935ST connects via dual HDMI 2.0a inputs and handles WUXGA and 1080p signal paths cleanly, with RJ-45 LAN control available for facilities managing multiple bays from one system.
The Full LU935ST Feature Set.
WUXGA Resolution
Native 1920×1200, 16:10 aspect ratio for sharper detail than standard 1080P.
Short-Throw Projection
0.81–0.89:1 throw ratio with 1.1× optical zoom and manual lens shift.
5,500 ANSI Lumens
Commercial-grade brightness that outperforms every other projector in the ESG lineup.
3,000,000:1 Contrast
Deep, realistic shadow detail and highlight punch on course visuals.
Manual Lens Shift
±60% vertical, ±23% horizontal for precise image placement without moving the unit.
Commercial Connectivity
2× HDMI 2.0a/HDCP2.2, VGA x2, USB, RJ-45 LAN, and RS-232 for integrated AV control.
LU935ST Key Specifications.
| Resolution | WUXGA (1920 × 1200), 16:10 native |
|---|---|
| Brightness | 5,500 ANSI lumens |
| Contrast Ratio | 3,000,000:1 |
| Light Source | Laser, ~20,000-hour life (Normal/Eco) |
| Throw Ratio | 0.81–0.89:1 (fixed lens) |
| Zoom | 1.1× optical |
| Lens Shift | ±60% vertical, ±23% horizontal (manual) |
| Keystone | 2D (±30° V/H) + Corner Fit |
| Connectivity | 2× HDMI 2.0a/HDCP2.2, VGA x2, USB, RJ-45 LAN, RS-232 |
| Dimensions | 416 × 166 × 351 mm |
| Weight | ~7 kg / 15.4 lbs |
| Dealer Status | Elite Sim Golf Authorized BenQ Dealer |
BenQ Golf Simulator Projectors.
The LU935ST leads the lineup on raw brightness and resolution. Compare it against BenQ’s 1080P laser options below.
- Resolution: Full HD 1080p (1920×1080)
- Brightness: 4,000 ANSI lumens
- Light Source: Laser (~20,000 hr)
- Throw Ratio: 0.69–0.83:1
- Lens Adjustment: Digital keystone only
- Resolution: WUXGA (1920×1200)
- Brightness: 5,500 ANSI lumens
- Light Source: Laser (~20,000 hr)
- Throw Ratio: 0.81–0.89:1
- Lens Adjustment: Manual lens shift + keystone
- Resolution: Full HD 1080p (1920×1080)
- Brightness: 4,000 ANSI lumens
- Light Source: Laser (~20,000 hr)
- Throw Ratio: 0.499:1 (fixed, no zoom)
- Lens Adjustment: None (fixed lens)
Commercial Output For Facilities That Demand It.
Choose the BenQ LU935ST when a build calls for the brightest, sharpest image and the most flexible lens placement in the lineup — commercial sim lounges, multi-bay facilities, and premium residential builds where output is the priority.
Pair It With An Elite Sim Golf Enclosure
The LU935ST’s brightness and lens shift make it well suited to the Albatross 13 enclosure or larger commercial installs.
Build A Complete SimKit
Configure a turnkey VTrack + enclosure + LU935ST simulator package using the SimKit Bundle Builder.
