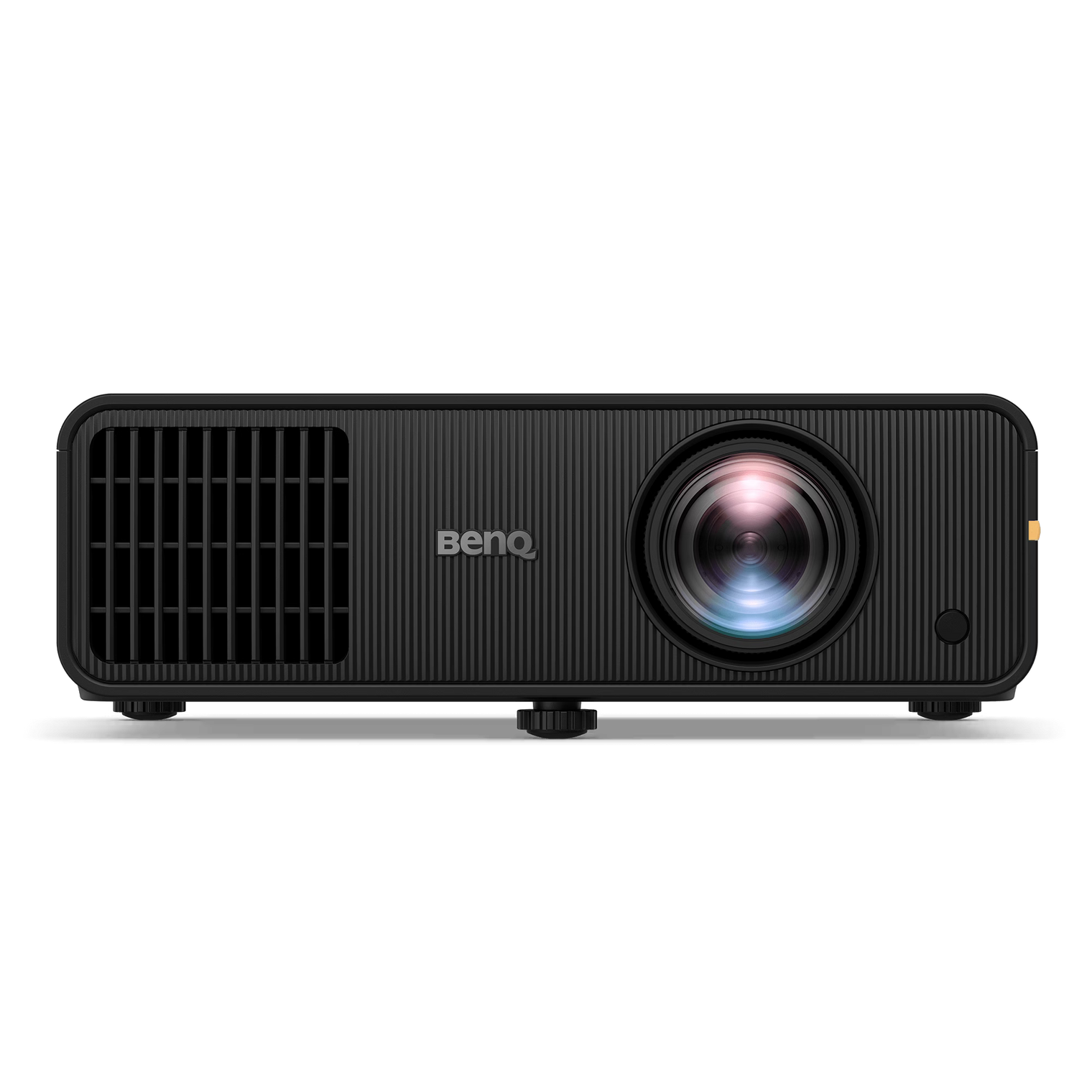

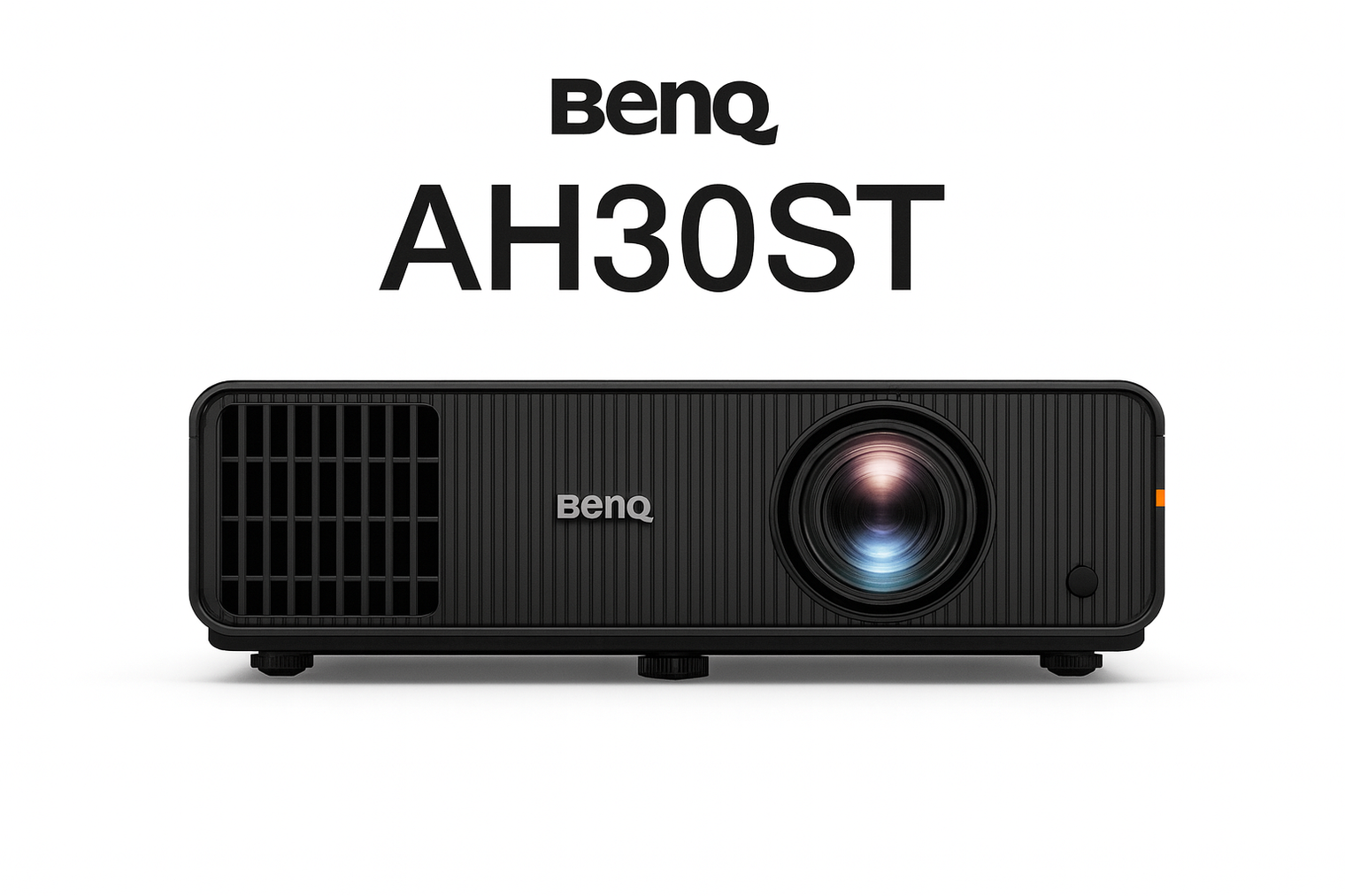

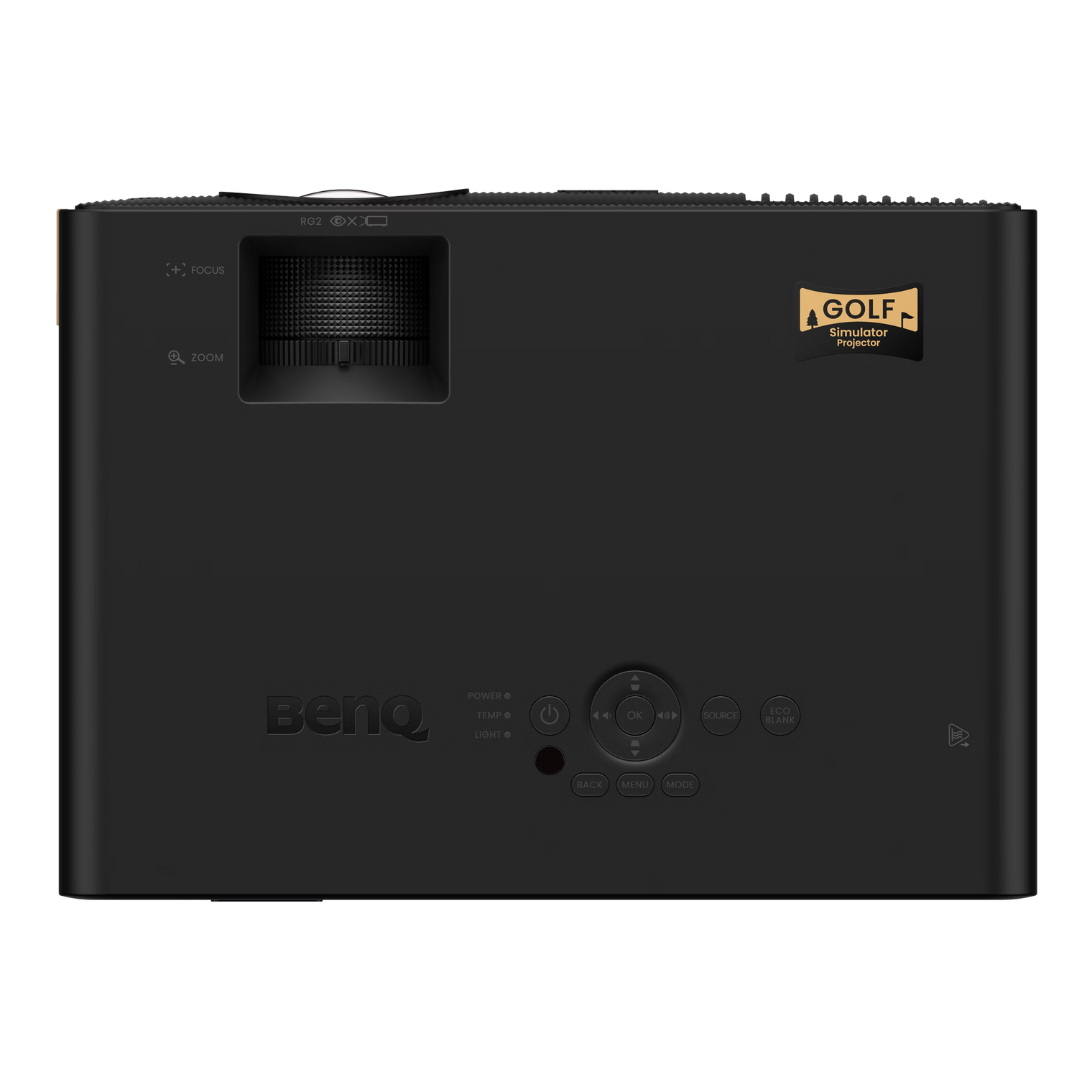

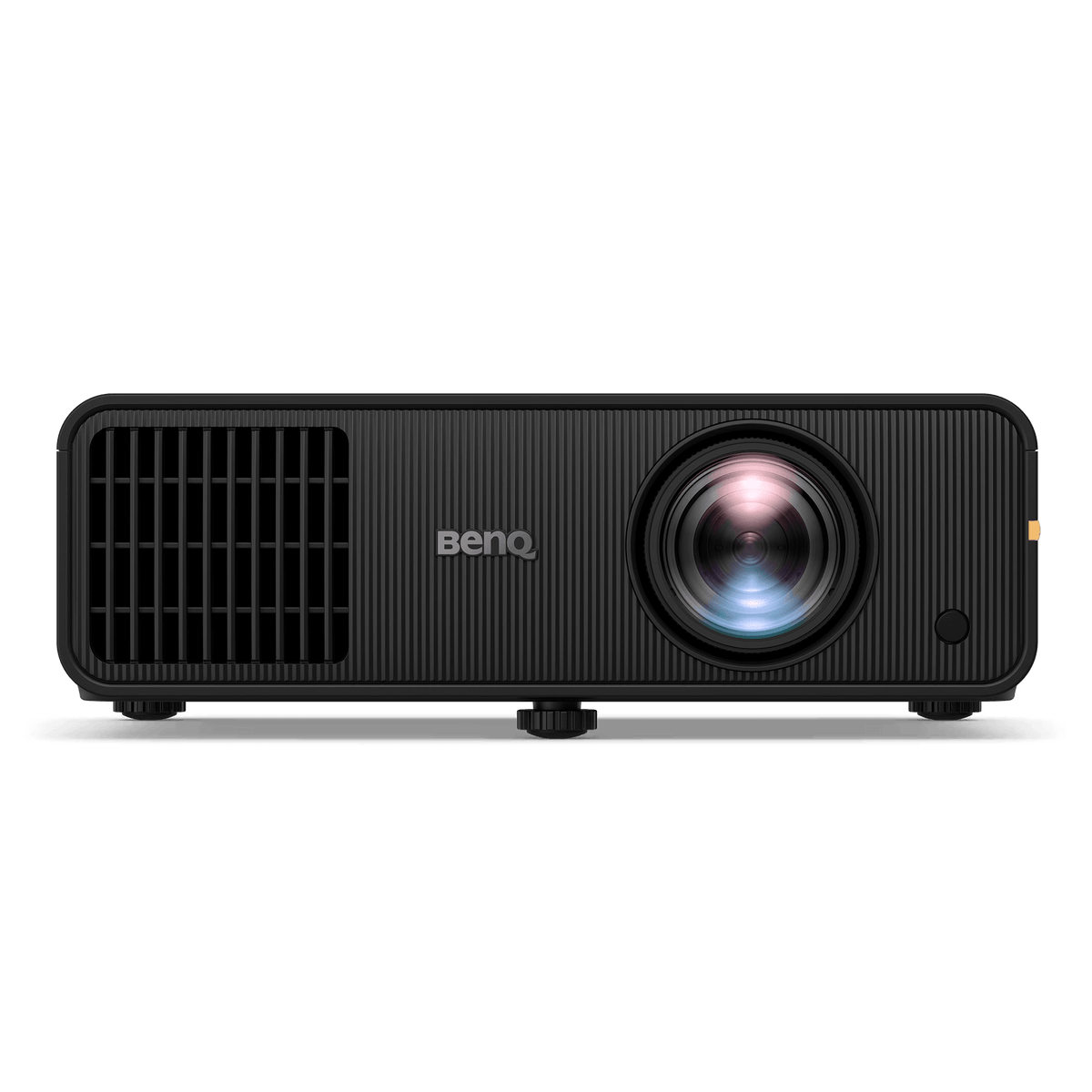

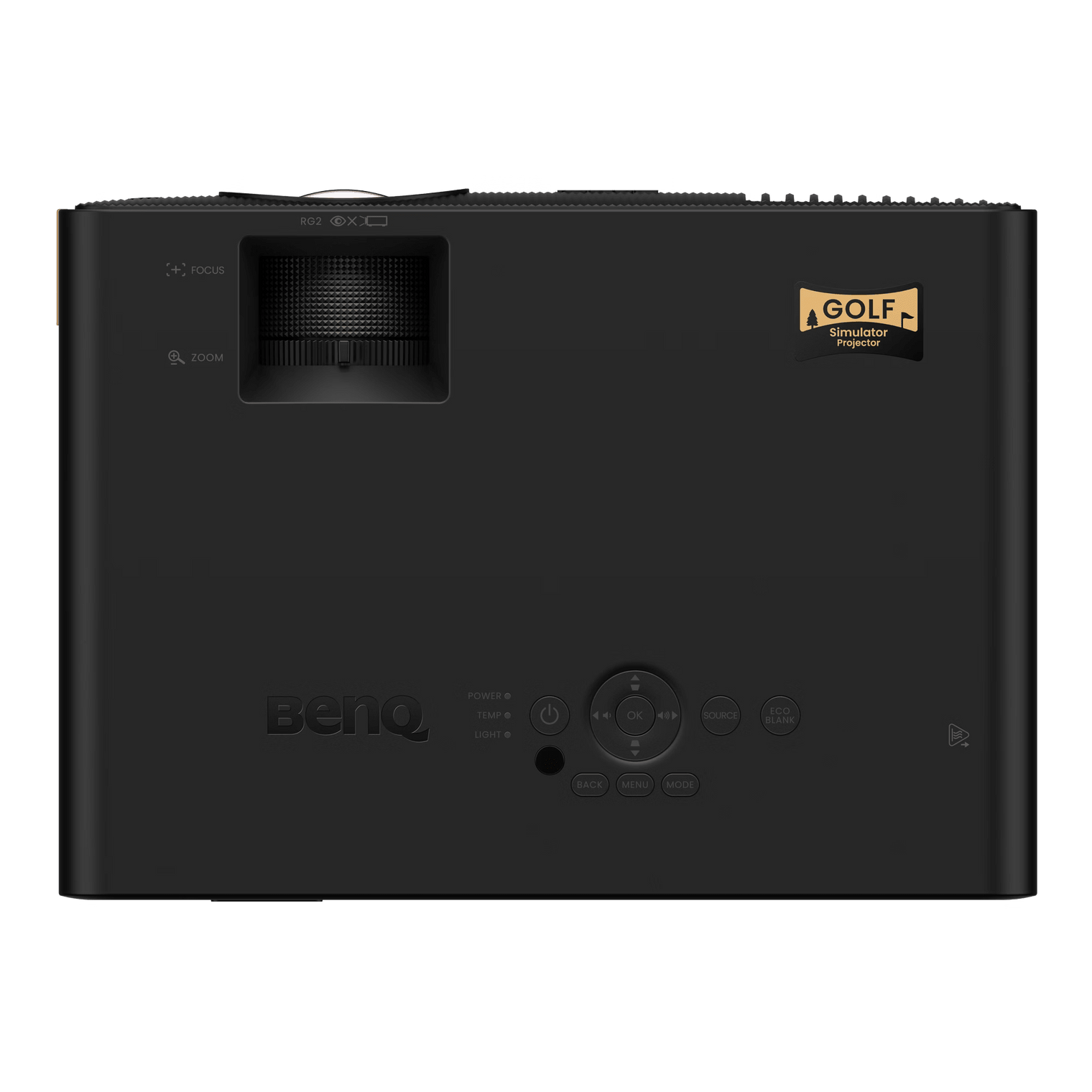

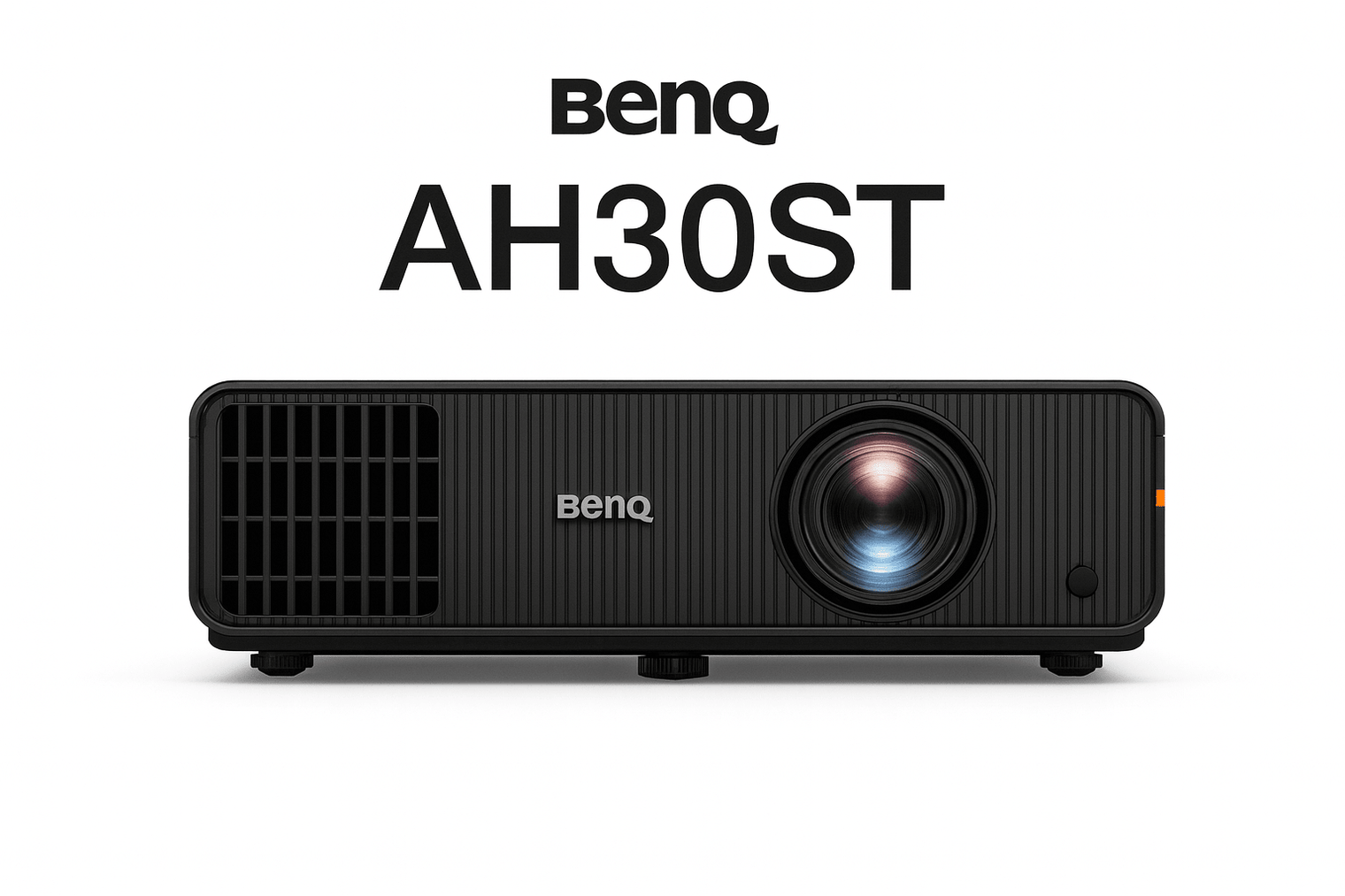

BenQ AH30ST 3000-Lumen Short Throw 1080P LED Golf Simulator Projector
By BenQ
Golf-Specific Setup Without Laser Pricing.
The AH30ST is a purpose-built golf simulator projector at a mid-tier price — a 4LED light source rated up to 30,000 hours, Screen Fill for one-touch aspect ratio switching, and Golf Mode color tuning that BenQ’s entry-level TH671ST simply does not offer. It is the step up for golfers who want golf-specific automation without paying for a laser engine.
Golf Features Without The Laser Premium.
Screen Fill Aspect Control
One-touch switching between 1:1, 4:3, 16:9, and 16:10 aspect ratios to match different simulator screen shapes.
4LED Light Source
Rated for 20,000 hours in Normal mode and up to 30,000 hours in Eco mode — far longer than a traditional lamp, without the cost of laser.
Golf Mode Color Tuning
Factory color calibration for turf, sky, and course visuals, tuned specifically for golf simulator software.
Short-Throw Flexibility
0.69–0.83:1 throw ratio with 1.2× zoom covers most standard sim bay depths and ceiling heights.
Low Input Lag
Around 16–17 ms in Game mode keeps shot feedback and ball-flight rendering responsive.
Reliable 1080P Clarity
Native 1920×1080 resolution for sharp sim UI, shot data overlays, and course detail.
Who Is It Best For?
Golfers who want a dedicated golf simulator projector with Screen Fill and Golf Mode, but don’t need the extra brightness or Auto Screen Fit of the laser-powered AH700ST.
Standard Geometry, Golf-Ready Controls.
Short-Throw Geometry
A 100″ image projects from roughly 5.7–6.9 ft away, matching most standard sim bay depths.
- 0.69–0.83:1 throw ratio, 1.2× optical zoom
- ~102.5% offset keeps the image low without extreme downward tilt
- Vertical/horizontal keystone for angled mounts

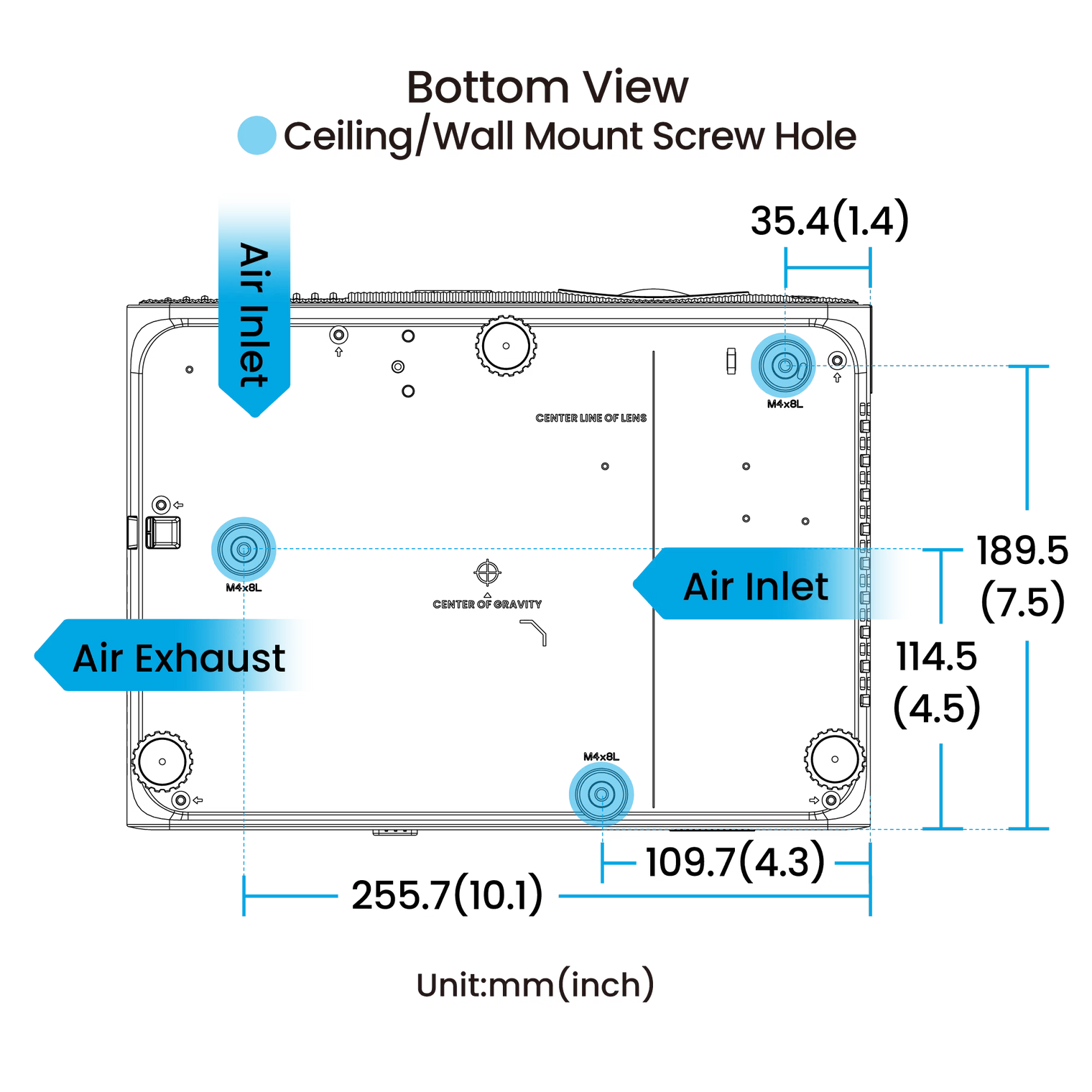

- Compatible with ceiling or floor mounting
Installer Checklist
Screen Fill is remote-triggered, not fully automatic, so plan for a short manual step during setup.
- Confirm exact throw distance with the projector fitment tool before drilling

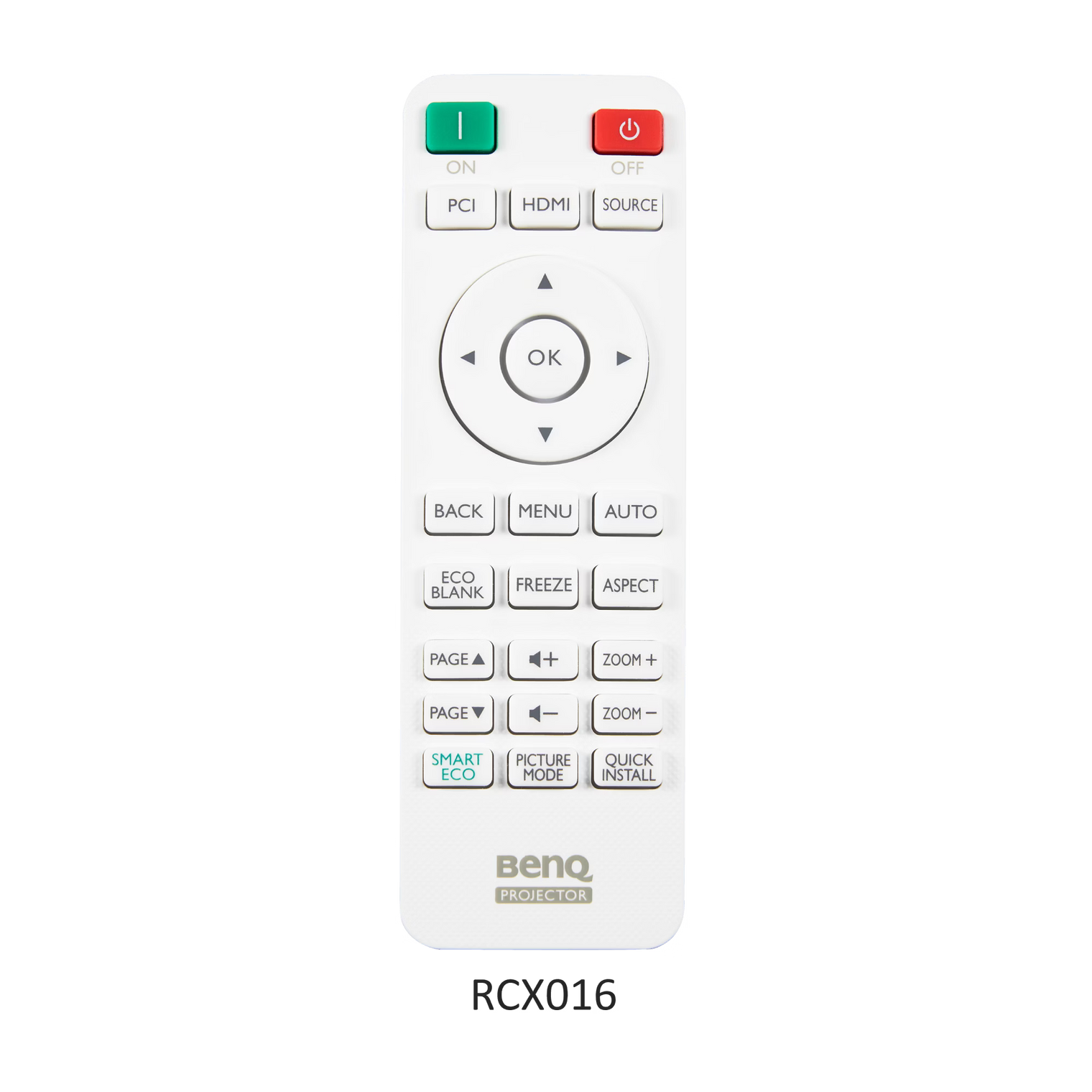

- Trigger Screen Fill from the remote to match your screen’s aspect ratio
- Standard HDMI connectivity for a straightforward PC hookup
- 4LED engine runs cooler than a lamp, useful in enclosed cabinets
A Purpose-Built Golf Simulator Projector.
The AH30ST is built specifically for golf simulator use, with Screen Fill aspect ratio control and Golf Mode color tuning that general-purpose projectors like the TH671ST don’t include. Its 4LED light source lands the value proposition between the entry-level lamp-based TH671ST and the laser-powered AH500ST/AH700ST models.
The 4LED light source is rated for roughly 20,000 hours in Normal mode and up to 30,000 hours in Eco mode — a meaningful step up from a traditional lamp without the added cost of a laser engine. For exact mounting distance based on screen size and aspect ratio, run the numbers in the projector fitment tool and throw calculator before finalizing the mount.

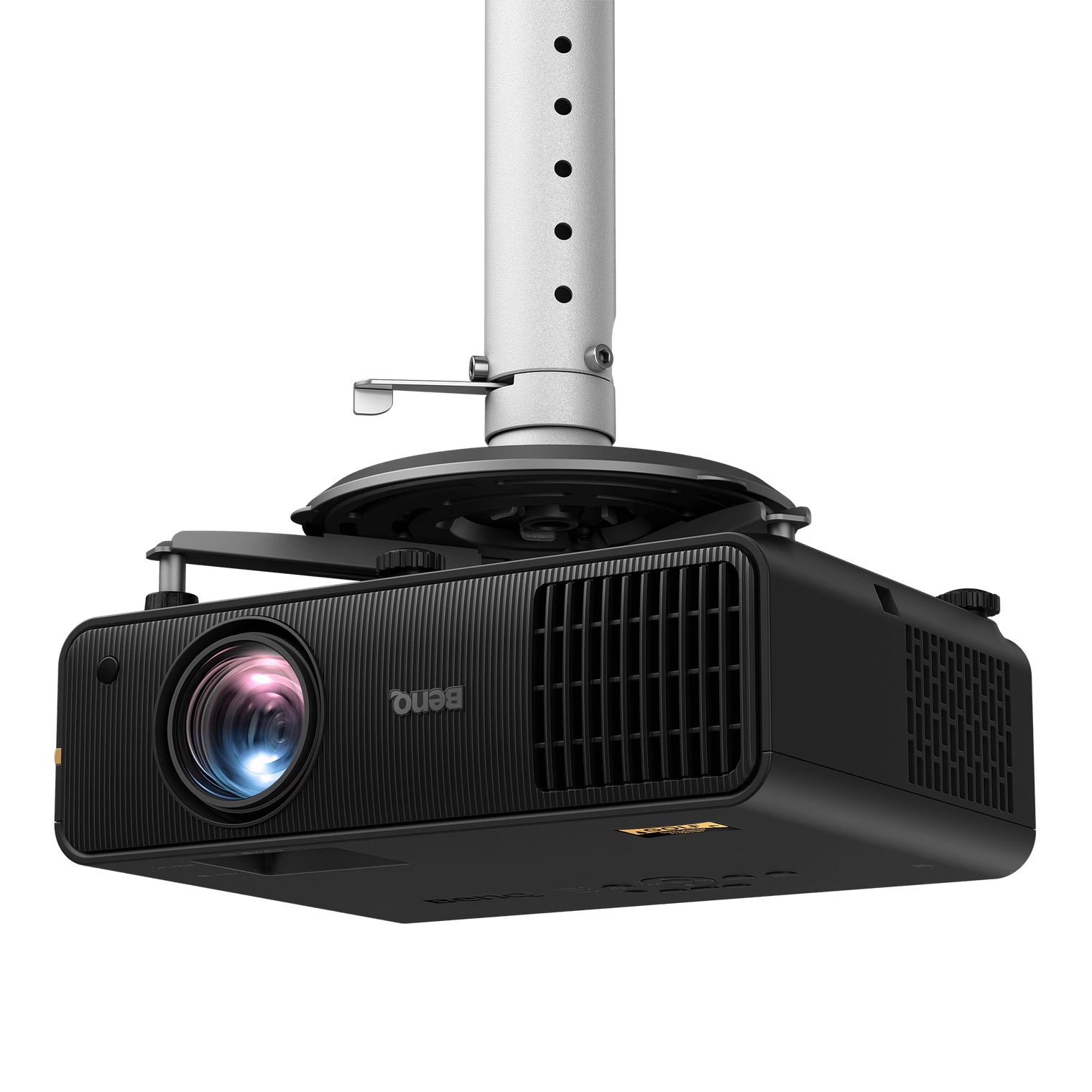

Ceiling mount notes: the 1.2× optical zoom and keystone correction give solid flexibility on install position, though Screen Fill requires a remote trigger rather than running fully automatically like Auto Screen Fit on the AH700ST.
For PC-based simulators running GSPro, E6 Connect, TGC 2019, or Awesome Golf, the AH30ST connects via HDMI and handles 1080p signal paths with input lag low enough for responsive shot feedback.
The Full AH30ST Feature Set.
1080P Full HD Resolution
Native 1920×1080 resolution for sharp sim UI and course detail.
Short-Throw Projection
0.69–0.83:1 throw ratio with 1.2× optical zoom for flexible mounting.
3,000 ANSI Lumens
Solid brightness for garages and bonus rooms with typical indoor lighting.
Screen Fill
Remote-triggered aspect ratio switching between 1:1, 4:3, 16:9, and 16:10.
Golf Mode Color
Factory color tuning calibrated for turf, sky, and fairway realism.
20,000:1 Contrast (FOFO)
Solid full-on/full-off contrast for depth in course visuals and UI elements.
AH30ST Key Specifications.
| Resolution | Full HD 1080P (1920 × 1080) |
|---|---|
| Brightness | 3,000 ANSI lumens |
| Contrast Ratio | 20,000:1 (FOFO) |
| Light Source | 4LED (~20,000 hrs Normal / 30,000 hrs Eco) |
| Throw Ratio | 0.69–0.83:1 |
| Zoom | 1.2× optical |
| Projection Offset | ~102.5% |
| Input Lag | ~16.7 ms (Game Mode) |
| Golf Features | Screen Fill, Golf Mode |

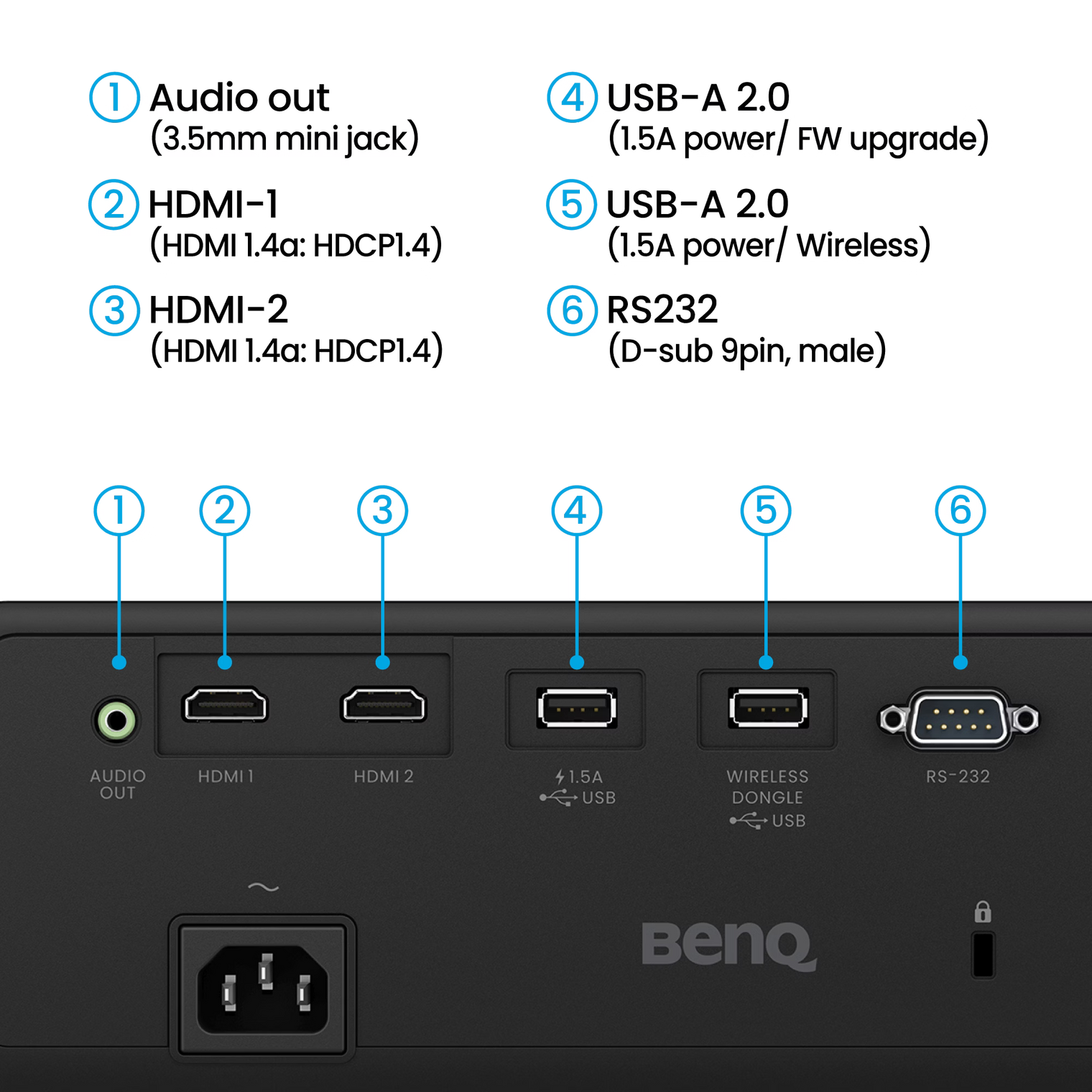

| Connectivity | HDMI, USB power |

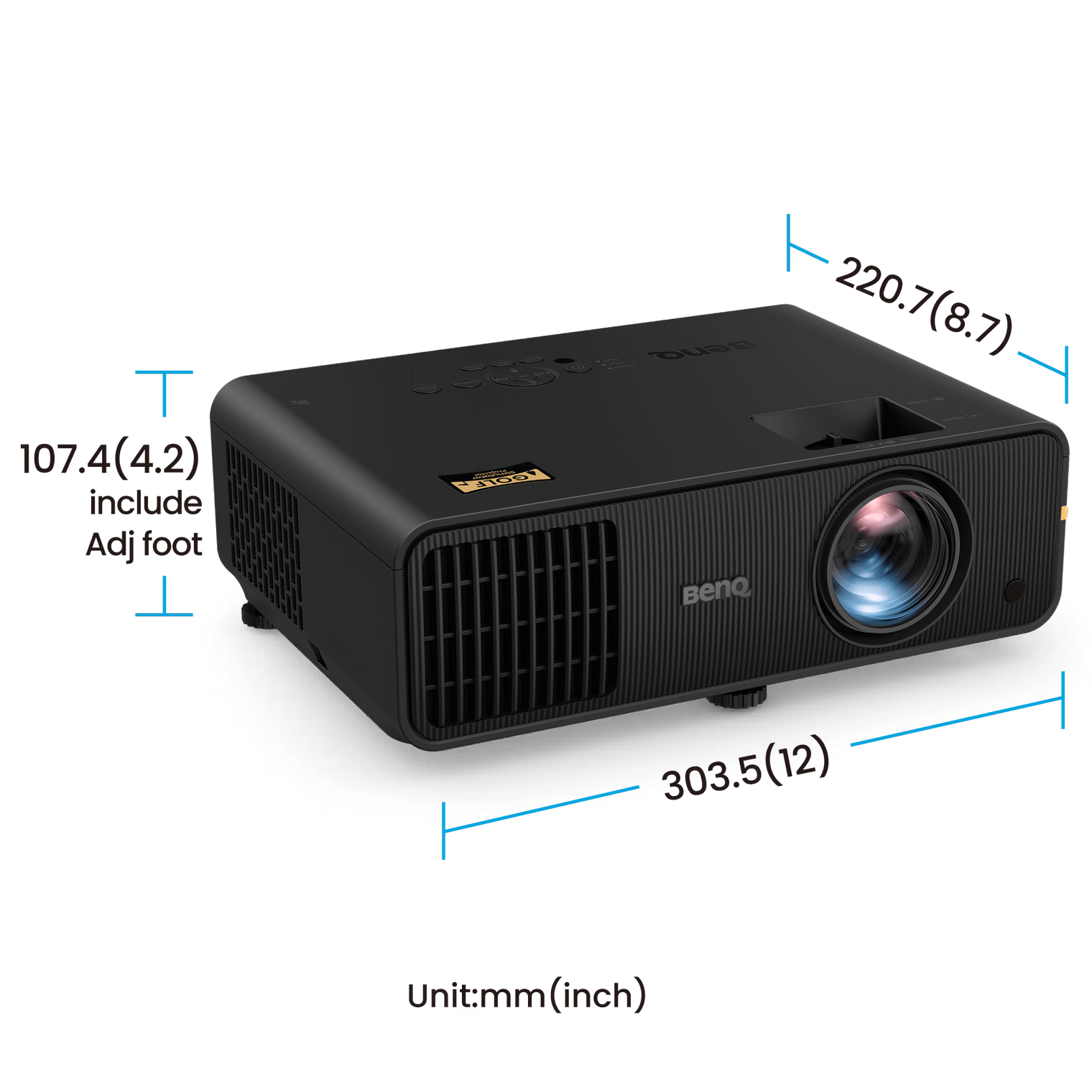

| Weight | ~7 lbs |
| Dealer Status | Elite Sim Golf Authorized BenQ Dealer |
BenQ 1080P Golf Simulator Projectors.
The AH30ST is the value pick for dedicated golf features. Compare it against the entry-level TH671ST and laser-powered AH700ST.
- Brightness: 3,000 ANSI lumens
- Light Source: Lamp (up to ~15,000 hr)
- Throw Ratio: 0.69–0.83:1
- Golf Features: None
- Brightness: 3,000 ANSI lumens
- Light Source: 4LED (20,000–30,000 hr)
- Throw Ratio: 0.69–0.83:1
- Golf Features: Screen Fill, Golf Mode
- Brightness: 4,000 ANSI lumens
- Light Source: Laser (~20,000 hr)
- Throw Ratio: 0.69–0.83:1
- Golf Features: Auto Screen Fit, Quick Focus, Golf Mode
Real Golf Features, Real Value.
Choose the BenQ AH30ST for a dedicated golf simulator projector with Screen Fill and Golf Mode color tuning, backed by a long-life 4LED light source, at a price point below BenQ’s laser-powered models.
Pair It With An Elite Sim Golf Enclosure
The AH30ST is a strong match for the Birdie 10 or Eagle 12 enclosure, balancing golf-specific features with a mid-tier budget.
Build A Complete SimKit
Configure a turnkey VTrack + enclosure + AH30ST simulator package using the SimKit Bundle Builder.
