22" FHD 24/7 Touch Monitor
Full 1080p Touch Control In The Smallest Footprint Of The FHD Lineup.
The 22″ FHD 24/7 Touch Monitor puts a full 1920 × 1080 commercial touch panel in the most compact housing Touch Screen Guru builds in this series. It is the right pick when wall space beside the hitting area is limited, when the display lives inside a kiosk or side cabinet, or when the screen is mounted close enough to the golfer that a larger panel would be more monitor than the bay needs.
Nothing is stripped out to reach the smaller size. The panel still runs over 500 nits, the front is still TRU-Flat zero-bezel 4 mm glass sealed to IP65, and the touch layer is still 10-point projected capacitive with a 5 ms touch response. It arrives as a plug-and-play USB HID device, so Windows, Linux, and Android machines recognize it without a driver install or calibration pass.
Commercial Hardware, Not A Consumer Touch Screen.
1920 × 1080 Full HD Panel
AHVA/IPS panel with 16.7 million colors, a 16:9 aspect ratio, and even brightness across the full surface.
500+ Nit Brightness
Roughly double a typical desktop monitor, so the image stays readable under bright bay lighting or projector spill.

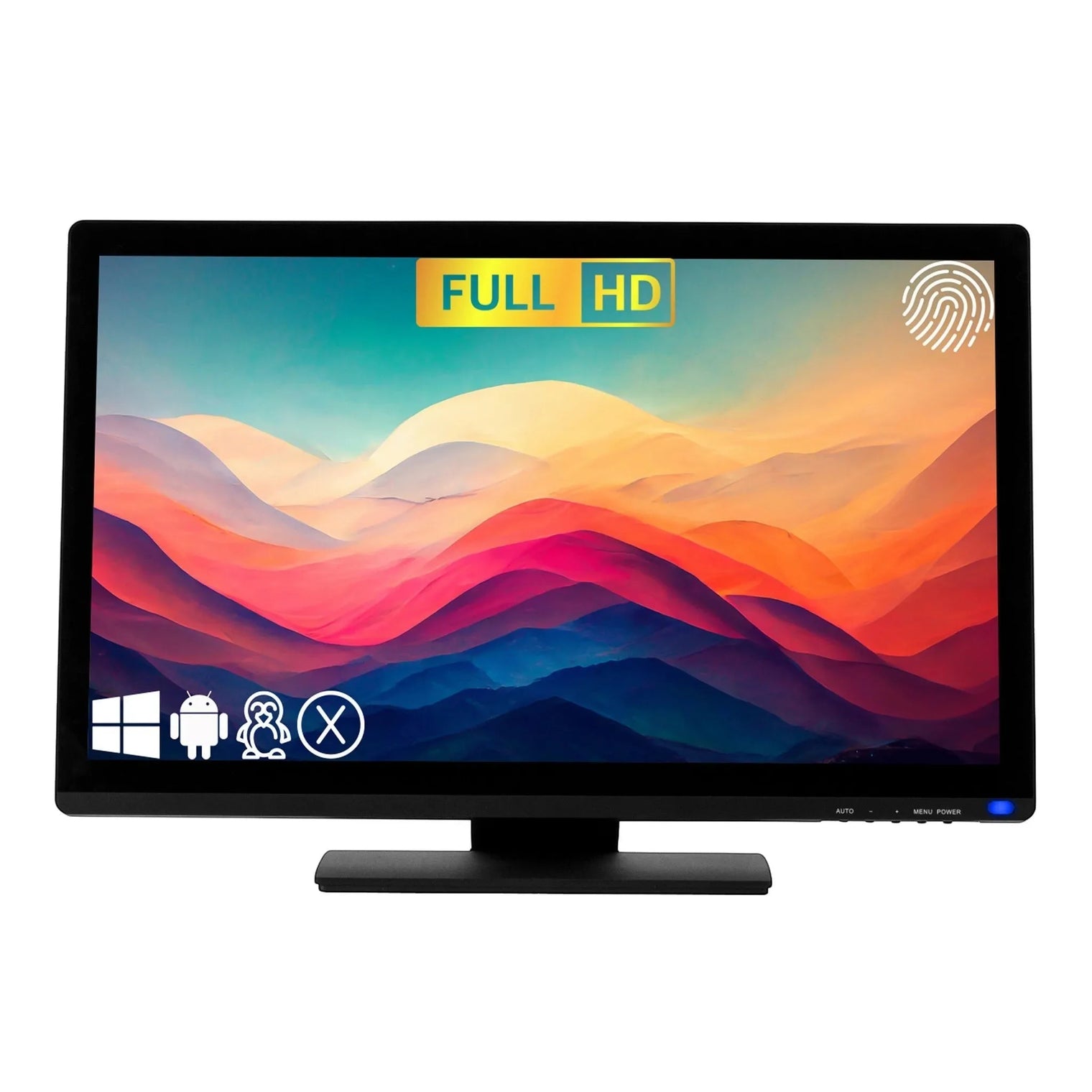

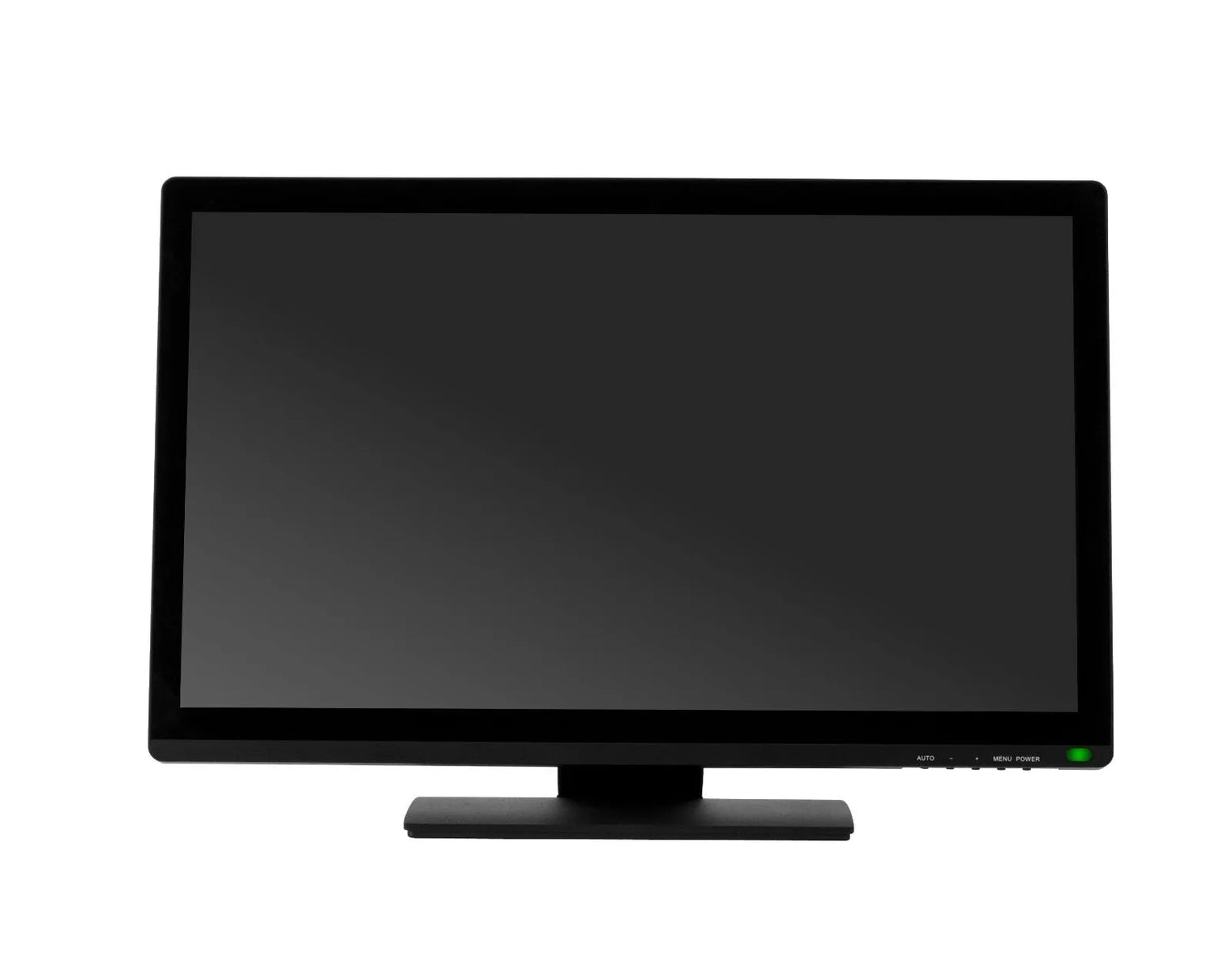

TRU-Flat Zero-Bezel Glass
A single continuous 4 mm glass surface with no bezel lip to trap dust, chalk, or grip residue.
IP65 Sealed Front
The front face is sealed against dust and water jets, so it can be wiped down without worrying about the seam.
10-Point Projected Capacitive Touch
Registers fingers, capacitive styluses, and nitrile, latex, or vinyl gloves with a 5 ms touch response.
Anti-Glare + Anti-Fingerprint
Nano-coatings diffuse reflected light and shed fingerprints while keeping the glass smooth to the touch.
Built For 24/7 Operation
LED backlight rated at a 50,000-hour MTBF with unlimited touch activations — not a consumer duty cycle.
USB HID Plug And Play
One USB cable carries touch. Windows, Linux, and Android recognize it with no driver or calibration step.
22″ FHD 24/7 Touch Monitor Specs.
Operating System Support
Recognized as a standard USB HID touch device — no driver install and no calibration step on:
- Windows 10 and Windows 11
- Linux
- Android
- macOS — a special driver is required for touch input
Runs Every Simulator Platform
The monitor is display hardware, not software, so it drives any platform your simulator PC runs:
- GSPro
- E6 Connect and E6 Apex
- FSX Play and FSX Pro
- Awesome Golf, TGC 2019, and launch monitor dashboards
USB Runs Over 6 Feet Need An Active Extender
The included USB touch cable is 6 ft. If the simulator PC sits farther away, use an active USB extender rather than a passive extension cable — passive runs drop the touch signal.
What The 24/7 Rating Actually Means.
The FHD 24/7 series is specified as commercial hardware, so the numbers that matter are the ones that describe how long it holds up under constant interaction — not a refresh rate or a gaming spec.
50,000 Hour LED MTBF
Backlight life rated for continuous operation rather than an 8-hour office day.
Roughly 5.7 years of nonstop operation.
10 Point Touch, 5 ms
Projected capacitive touch with unlimited rated activations — there is no wear-based touch life limit.
Finger, capacitive stylus, nitrile, latex, and vinyl gloves.
IP65 Sealed Front
Zero-bezel 4 mm glass sealed against dust and low-pressure water jets, with IP40 on the rear housing.
Wipe the whole face down without a bezel seam to work around.
Why This Matters In A Simulator Bay
A bay screen gets touched with sweaty hands, glove-on, and sometimes with chalk or grip residue on them, in a room that collects turf fiber and dust. A sealed, coated, zero-bezel front is what keeps that from becoming a cleaning problem or a failure point.
3-Year Commercial Warranty
Every FHD 24/7 monitor carries a 3-year commercial warranty. Claims and technical questions run through Elite Sim Golf rather than an unrelated support queue.
Three Sizes, Same Commercial Panel Spec.
All three FHD 24/7 monitors share the same 1920 × 1080 AHVA/IPS panel, 500+ nit brightness, TRU-Flat IP65 sealed glass, 10-point touch layer, and 3-year warranty. The differences are footprint, weight, rear housing, and whether a camera is on board. Stepping up to the 24″ adds screen area at nearly the same footprint; the 27″ adds a 5 MP camera and an aluminum rear housing.
Compact enough for tight bays, kiosks, and enclosures while keeping full 1080p clarity.
$649The mid-size pick: more usable screen area with the lightest housing in the lineup.
$675 View The 24″ → Also Available 27″The largest FHD panel, plus a 5 MP camera and an aluminum rear housing.
$699 View The 27″ →| Spec | 22″ FHD | 24″ FHD | 27″ FHD |
|---|---|---|---|
| Price | $649 | $675 | $699 |
| Panel | 1920 × 1080 AHVA/IPS | 1920 × 1080 AHVA/IPS | 1920 × 1080 AHVA/IPS |
| Brightness | 500+ nits | 500+ nits | 500+ nits |
| Touch System | 10-point PCAP, 5 ms | 10-point PCAP, 5 ms | 10-point PCAP, 5 ms |
| Front Rating | IP65 front / IP40 back | IP65 front / IP40 back | IP65 front / IP40 back |

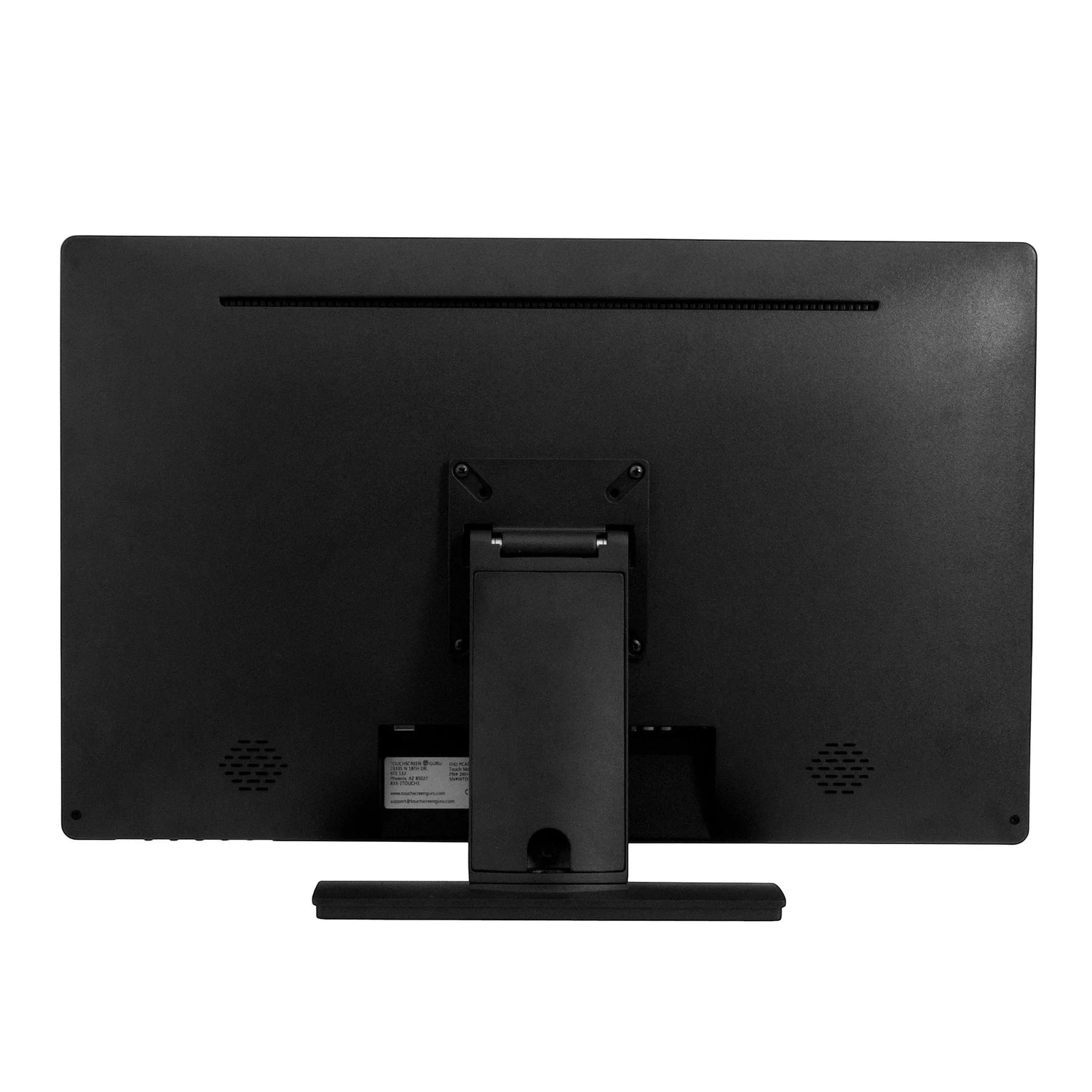

| Rear Housing | ABS | ABS (upgraded) | Aluminum |
| Built-In Camera | ✗ | ✗ | 5 MP |
| Video Inputs | DisplayPort, HDMI, DVI-D, VGA | DisplayPort 1.2, HDMI, DVI-D, VGA | HDMI, DVI-D, VGA |
| Orientation | Landscape + portrait | Landscape | Landscape |

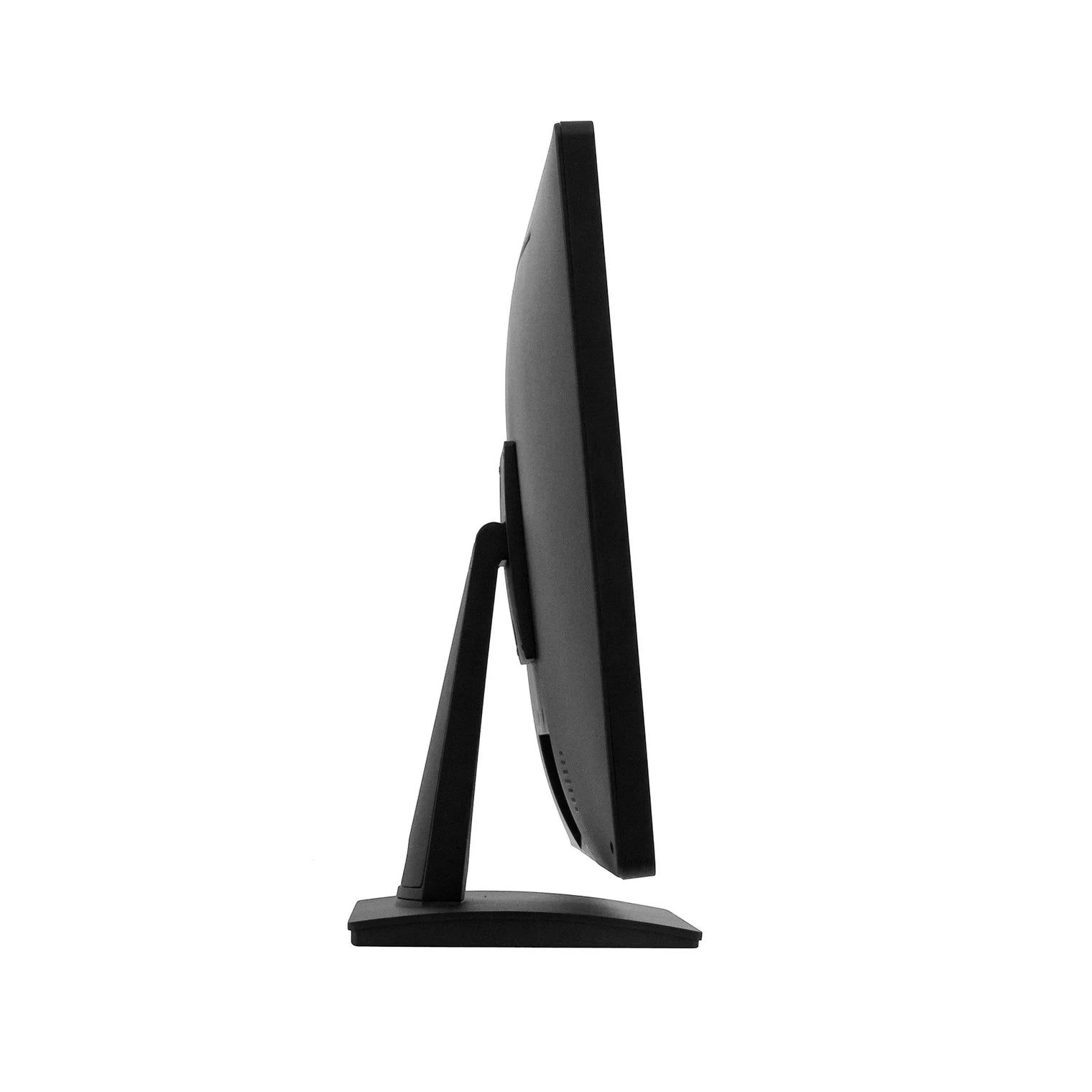

| Monitor Dimensions | 20.375″ W × 12.625″ H × 1.5″ D | 22.3″ W × 13.875″ H × 1.5″ D | 24.25″ W × 14.25″ H × 2.0″ D |
| Monitor Weight | 7.1 lb | 9.0 lb | 12.1 lb |
| VESA Mount | 100 × 100 mm | 100 × 100 mm | 100 × 100 mm |
| Warranty | 3-year commercial | 3-year commercial | 3-year commercial |
Need More Than 1080p Or More Than 27 Inches?
The 4K Ultra-Series Touch Monitors run native 4K in 27, 32, 43, and 55 inch sizes. Choose 4K when the display is also showing the simulator image, a scoreboard, or lesson video to a room — and stay with FHD when the screen's job is running the software.
Built For Bays, Counters, And Control Stations.
Tight Simulator Bays
Fits beside the hitting area in narrow rooms and garage builds where a larger panel would crowd the swing path.
Kiosk And Enclosure Builds
The compact footprint and IP65 front make it a straightforward drop-in for custom cabinets, columns, and check-in kiosks.
Portrait Installations
Supports both landscape and portrait orientation, which is useful for signage, scoring boards, and check-in screens.
Second-Screen Control
Works as a dedicated touch control screen alongside a main projector image so software is never driven from the impact screen.
Everything Needed To Mount And Connect It.
The 22″ FHD ships complete with a stand, mounting hardware, power supply, and video and touch cables. Light assembly is required to attach the desktop stand, and tools are not included.
- 22″ FHD 24/7 Touch Monitor
- Desktop Stand
- 10 ft Power Supply
- 6 ft USB Touch Cable
- 6 ft HDMI Video Cable
- 6 ft DisplayPort Video Cable
- 4× M4 VESA Mounting Screws
Planning a wall or arm mount instead of the desktop stand? The 100 × 100 mm VESA pattern accepts standard monitor arms and low-profile wall plates. For help specifying a mount or a multi-bay install, the reseller and installer program covers volume and integration support.
A Touch Monitor Keeps Software Off The Impact Screen.
In a finished bay, the projector image is for golf and the touch monitor is for everything else — loading rounds, changing players, adjusting settings, and reviewing shot data without walking back to a keyboard.
Build Your Own SimKit
Configure a complete package — launch monitor, projector, enclosure, and hitting mat — then add a touch monitor as the control screen.
Open The SimKit Bundle Builder →Step Up To 4K
The 4K Ultra-Series covers 27, 32, 43, and 55 inch native 4K touch panels for bays where the monitor is also a display screen.
View The 4K Ultra-Series →Keep Building.
4K Ultra-Series Touch Monitors
Step up to native 4K in 27, 32, 43, and 55 inch sizes when the screen is doing more than running software.
View The 4K Lineup →Build Your Own SimKit
Configure a full simulator package — launch monitor, projector, enclosure, and mat — and add a touch monitor to it.
Open The Builder →Reseller And Installer Program
Volume pricing and install support for integrators specifying touch displays across multiple bays or locations.
See The Program →22″ FHD 24/7 Touch Monitor FAQ.
Is This Monitor Bright Enough For A Simulator Bay?
Yes. The panel is rated at over 500 nits, roughly double a typical desktop monitor. That headroom matters in a bay where projector spill, overhead lighting, or a garage door window would wash out a standard display.
What Resolution Is This Monitor?
1920 × 1080 (Full HD) at a 16:9 aspect ratio, with 16.7 million colors on an AHVA/IPS panel. For native 4K, see the 4K Ultra-Series Touch Monitors.
Does The Touch Screen Need A Driver Or Calibration?
No. Touch is delivered over a single USB B-Type connection as a USB HID device, so Windows, Linux, and Android recognize it as a touch display with no driver install and no calibration pass. macOS requires a special driver for touch input.
Will Touch Work With Gloves On?
Yes. The 10-point projected capacitive layer is rated for fingers, capacitive styluses, and nitrile, latex, and vinyl gloves, with a 5 ms touch response.
What Video Inputs Does The 22″ FHD Have?

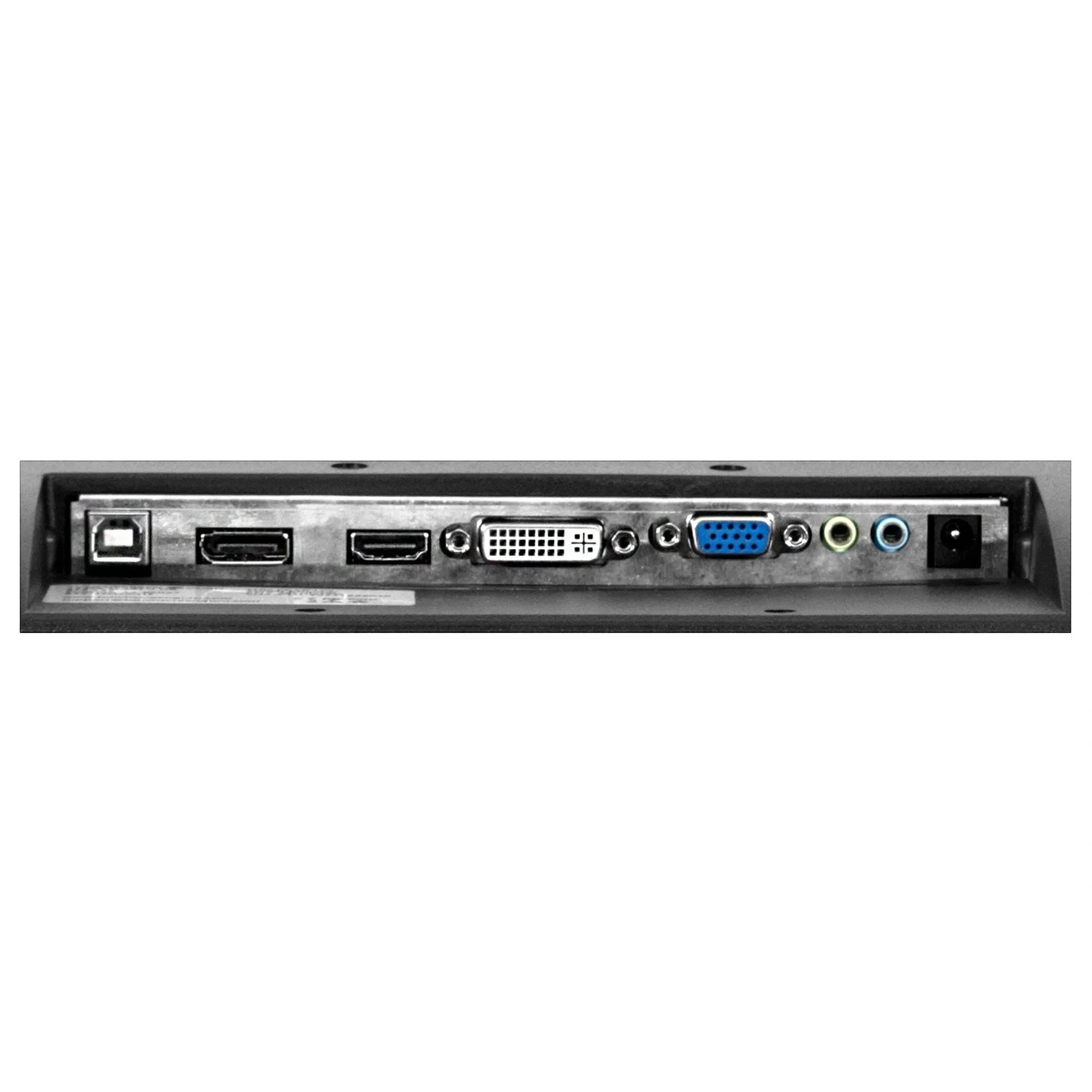

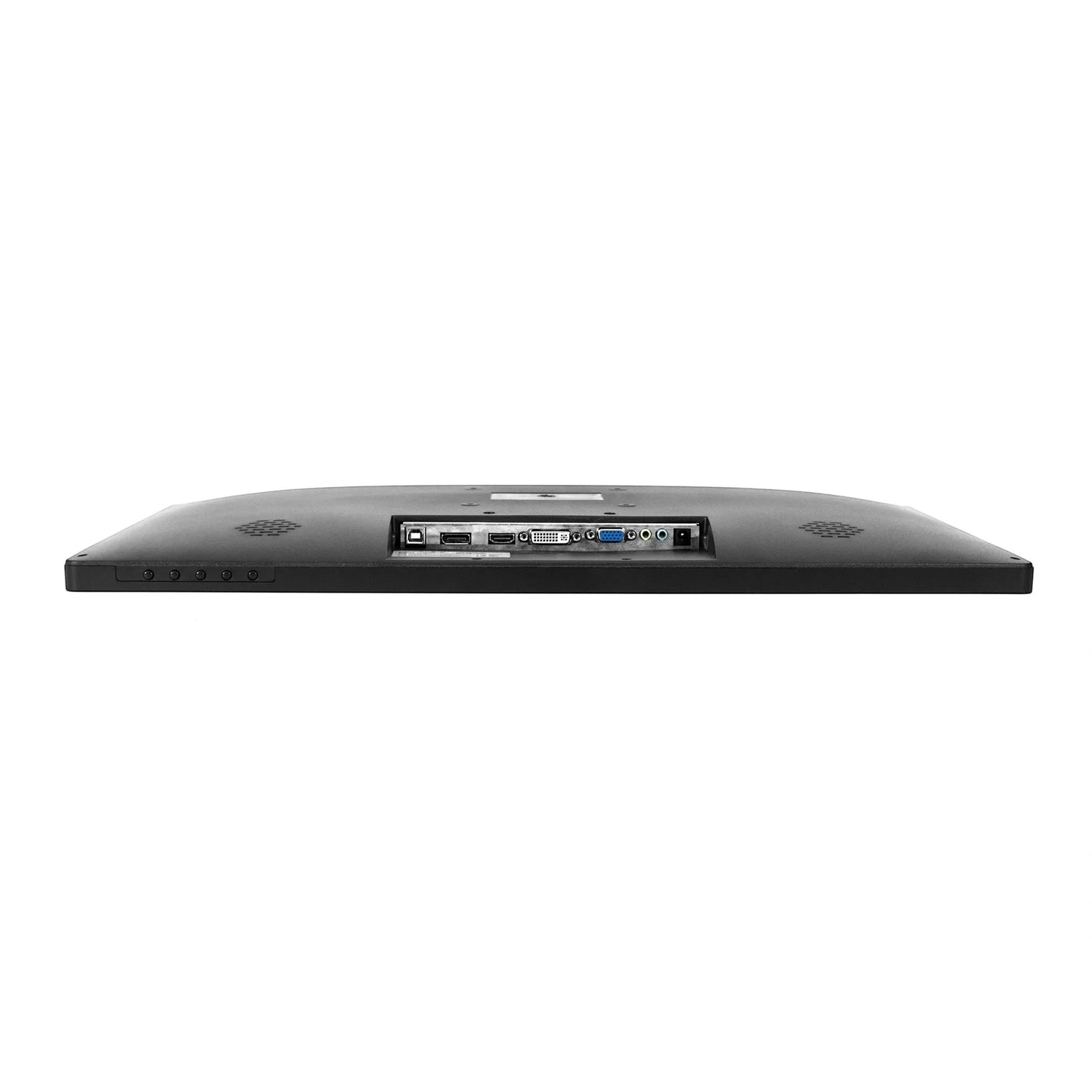

Video inputs are 1 × DisplayPort; 1 × HDMI 1.3 (HDCP); 1 × DVI-D; 1 × VGA. Touch runs over 1 × USB B-Type, and audio is on 3.5 mm.
Can I Run A Longer USB Cable To My PC?
The included USB touch cable is 6 ft. Any run longer than that needs an active USB extender — a passive extension cable will not reliably carry the touch signal.
How Does It Mount?
It uses a 100 × 100 mm pattern, and 4× M4 VESA screws are included. A desktop stand is also in the box and requires light assembly; tools are not included.
Is This Rated For Continuous Operation?
Yes. The LED backlight carries a 50,000-hour MTBF rating and the touch layer is rated for unlimited touch activations, which is why the series is sold as a 24/7 commercial display rather than a consumer monitor.
What Does The IP65 Rating Cover?
The front face is rated IP65 — sealed against dust and low-pressure water jets — while the rear housing is IP40. The sealed TRU-Flat glass front is what allows the screen to be wiped down routinely without liquid tracking into a bezel seam.
Which Size Should I Buy?
The 22″ fits tight bays, kiosks, and enclosures and supports portrait orientation. The 24″ is the balanced pick for most simulator control screens at only 9 lb. The 27″ is the largest panel and the only one with a 5 MP camera and an aluminum rear housing.
Does It Have Speakers Or A Camera?
This model does not include a built-in camera. Only the 27″ FHD 24/7 Touch Monitor in this series carries a 5 MP camera and integrated 5 W speakers.
What Is Included In The Box?
1× touch monitor, 1× desktop stand, 1× 10 ft power supply, 1× 6 ft USB touch cable, 1× 6 ft HDMI video cable, 1× 6 ft DisplayPort video cable, and 4× M4 VESA mounting screws.
What Warranty Comes With It?
A 3-year commercial warranty. Warranty claims and technical questions are handled through Elite Sim Golf rather than routed to an unrelated support queue.
Can I Add This To A Simulator Package?
Yes. A touch monitor can be added to any build configured through the Build Your Own SimKit tool, and it is the standard way to keep simulator software off the impact screen.
Bought From A Simulator Company, Not A Monitor Warehouse.
Commercial touch panels get sold into a dozen industries. Elite Sim Golf sells them into golf simulator bays, which means the sizing advice, mounting guidance, and cable planning come from people who build these rooms.
Specified For Bays
Size, brightness, and mounting recommendations based on bay layout, throw distance, and where the golfer stands.
Packed For Transit
Glass-front displays ship double-boxed at 15.0 lb with the stand and cabling secured separately.
Full Simulator Catalog
Launch monitors, projectors, enclosures, mats, and PCs from one source, so the whole build is quoted together.
Post-Purchase Support
Setup questions, mounting help, and 3-year warranty claims handled directly by Elite Sim Golf.
Bottom line: the 22″ FHD 24/7 Touch Monitor is a sealed, 500+ nit, 10-point commercial touch panel rated for continuous duty — at $649, with a 3-year warranty and a simulator company behind it.
