SportScreen Vanish Series Retractable Golf Enclosure
A Complete Golf Bay That Disappears When You’re Done
The SportScreen Vanish Series is a fully retractable golf simulator enclosure that mounts to your ceiling or wall and rolls up in under five minutes. Five models cover single-car garages to commercial-width bays — all sharing a 5 ft side screen depth, a 3-ply proprietary impact screen, and a rear blackout membrane that’s included standard.
Built Different — Retractable from the Ground Up
Every component of the Vanish Series was designed around the retraction mechanism — not adapted from a fixed enclosure. That means the impact screen, side baffles, ceiling panel, and blackout membrane all roll up cleanly together, every time.
3-Ply Proprietary Impact Screen
Custom polyester blend spacer material — approximately 1/8″ thick — developed over 10 years of testing. Quieter on impact, resists puckering, and holds up against high-spin, high-velocity shots without burn-in marks over time.
Rear Blackout & Impact Membrane
A separate blackout membrane sits behind the impact screen and serves double duty: it absorbs the initial ball impact (extending main screen life), eliminates ambient light bleed for sharper projection, and prevents balls from slipping behind the enclosure.

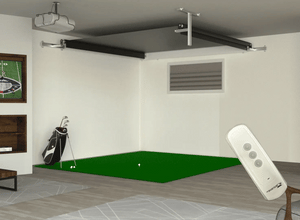

Motorized or Hand Crank
The 120V/280W motor retracts the full enclosure in under five minutes via remote control. No power nearby? The hand crank option rolls everything up in approximately 30 seconds. Both options include the same aluminum roller tube and universal brackets.
Universal Ceiling or Wall Mount
Aluminum brackets mount to wall or ceiling with four mounting points for load-rated stability. Versatile bracket kits project up to 25″ from the surface for clearance over garage door rails, openers, or lighting. 2-ft extension kits available for ceilings above 115″.
Full Enclosure — No Gaps
Two side screens (5 ft depth), a ceiling panel, corner pieces, side baffles, and a front baffle seal every opening in the deployed position. Ball containment is complete on all six sides — same as a fixed enclosure, without the permanent footprint.
Lifetime Frame Warranty
The aluminum roller tube and frame carry a lifetime warranty. All other components — screen, side panels, motor, and accessories — are covered for two years when using an approved SportScreen impact screen.
Who the Vanish Series Is Built For
The retractable format solves specific problems. These are the four most common situations where the Vanish Series is the right answer.
Garage Multi-Use
The car still needs to park there. The Vanish Series deploys in minutes and retracts just as fast — no floor anchors, no permanent frame standing in the way. The space is yours again when the round is over.
Bonus Room or Basement
Wants a real simulator bay without giving up the room for workouts, movies, or VR. A fixed enclosure commits the space permanently — the Vanish rolls up and the room returns to normal.
Non-Standard Ceilings
Low ceilings, garage door rails, openers, or lighting fixtures that make a freestanding enclosure impractical. The Vanish’s bracket system projects up to 25″ from the surface and clears most common obstacles.
Clean Aesthetic Preference
Does not want the visual clutter of a frame and netting standing in the room year-round. When the Vanish retracts, the only thing visible is the ceiling bracket — no tubes, no screen, no netting.
Dimensions, Ceiling Requirements & Construction
All five Vanish models share the same 5 ft enclosure depth, aluminum roller system, 3-ply impact screen, and included blackout membrane. Width and ceiling requirements vary by model.
Model Dimensions & Projectable Area
| Model | Bracket-to-Bracket Width | Screen Width | Projectable W × H | Screen Ratio | Enclosure Depth |
|---|---|---|---|---|---|
| Vanish 9 | 98″ (8 ft 2″) | 93″ | 89″ × 89″ | 1:1 | 5 ft |
| Vanish 11 | 128.5″ (10 ft 8.5″) | 124″ | 120″ × 90″ | 4:3 | 5 ft |
| Vanish 13H | 152.5″ (12 ft 8.5″) | 148″ | 143″ × 107.5″ | 4:3 | 5 ft |
| Vanish 16 | 191.5″ (15 ft 11.5″) | 187″ | 183″ × 90″ | 16:9 | 5 ft |
| Vanish 16H | 191.5″ (15 ft 11.5″) | 187″ | 183″ × 102″ | 16:9 | 5 ft |
Ceiling Height Requirements by Model
| Model | Min Ceiling | Max Ceiling (standard brackets) | Enclosure Height (deployed) | Notes |
|---|---|---|---|---|
| Vanish 9 | 108″ (9 ft) | 126″ (10 ft 6″) | 8 ft 3″–8 ft 6″ | Single-car garage; fits between side-mount opener rails |
| Vanish 11 | 108″ (9 ft) | 126″ (10 ft 6″) | 8 ft 3″–8 ft 6″ | Most popular model; standard two-car garage |
| Vanish 13H | 125.5″ (10 ft 5.5″) | 143.5″ (11 ft 11.5″) | 9 ft 8″–9 ft 11″ | “H” = increased enclosure height; requires taller ceiling |
| Vanish 16 | 108″ (9 ft) | 126″ (10 ft 6″) | 8 ft 3″–8 ft 6″ | Two-car garage width; 16:9 widescreen projection |
| Vanish 16H | 120″ (10 ft) | 138″ (11 ft 6″) | 9 ft 8″–9 ft 11″ | Max image height; tallest ceiling requirement of the lineup |
Room Clearance Requirements
| Clearance | Required | Notes |
|---|---|---|
| Back wall | 8″–12″ | Rear impact membrane needs clearance to absorb ball impact |
| Each side wall | 6″–8″ | Measured from side screen edge |
| Min. room depth | 204″ (17 ft) | Total room length including hitter-to-screen distance (8–10 ft) |
Construction & Materials
| Component | Specification |
|---|---|
| Roller tube | Aluminum |
| Brackets | Aluminum, universal wall or ceiling mount, 300 lb load-rated |
| Mounting points | 4 — brackets project up to 25″ for obstacle clearance |
| Impact screen | 3-ply custom polyester blend spacer material, ~1/8″ thick, proprietary weave |
| Rear membrane | Blackout / impact support membrane — included standard |
| Side screens | 2 × 5 ft depth, included standard |
| Ceiling panel | Included standard |
| Corner pieces | 2 × included standard |
| Baffles | 2 side baffles + 1 front baffle — all included standard |
| Motor (motorized option) | 120V ∼ 60Hz, 280W / 2.4A; thermal cutoff at 4 min; 15 min cooldown |
| Power requirement (motorized) | Standard 110V/120V outlet; cord routes to either side |
| Hand crank option | No power required; retracts in ~30 seconds |
| Custom widths | Available up to 16 ft; 2-ft height extensions available |
| Warranty | Lifetime frame / 2-year all other components (with approved screen) |
Not Included
| Launch monitor, simulator computer, golf simulator software |
| Projector |
| Hitting mat and landing pad |
Which Vanish Is Right for Your Room?
Five models cover every common bay width — from a single-car garage stall to a full two-car width with extra image height. Match screen ratio, width, and ceiling requirements to your space before ordering.
Vanish 9
- Ceiling: 108″–126″
- Depth: 5 ft side screens
- Square 1:1 ratio — great for any launch monitor
- Fits between single-car garage rails
- Most compact model in the lineup
Vanish 11
- Ceiling: 108″–126″
- Depth: 5 ft side screens
- 4:3 ratio — most common golf sim aspect
- Fits standard two-car garages
- Most popular Vanish model
Vanish 13H
- Ceiling: 125.5″–143.5″
- Depth: 5 ft side screens
- Taller enclosure height for wider image
- Wide rooms with higher ceilings
- “H” = extra vertical projection height
Vanish 16
- Ceiling: 108″–126″
- Depth: 5 ft side screens
- Full two-car garage width
- 16:9 widescreen projection
- Cinematic bay feel
Vanish 16H
- Ceiling: 120″–138″
- Depth: 5 ft side screens
- Maximum image height in the lineup
- 16:9 widescreen + extra vertical
- Best for large bonus rooms or commercial spaces
High Contrast Gray Triple-Layer Screen
Premium gray screen material vs. the standard white screen found on most fixed enclosures — deeper blacks and richer projection contrast in any lighting condition.
Built-In 1 ft Wall Stand-Off
Installs directly against the wall with no extra rear clearance needed. No guesswork on depth planning.
EMT Pipe Frame Kit Included
Frame pipes included standard — no sourcing required. RipStop fabric surround and heavyweight foam-lined flaps are also included.
12 ft Wide × 9 ft Tall × 6 ft Deep
138″ W × 103″ H viewable screen. Blackout sheet included standard to eliminate light bleed at the bottom.
WHAT’S INCLUDED STANDARD
- High contrast gray triple-layer impact screen
- EMT pipe frame kit — no sourcing separately
- RipStop fabric surround for complete containment
- Bungee bottom — screen-to-turf transition
- Heavyweight foam-lined flaps
- Blackout sheet — eliminates light bleed at bottom
- Built-in 1 ft wall stand-off — mounts flush to wall
Choose a Projector for the Vanish Series
The right projector depends on room depth, ceiling height, and whether a ceiling-mounted overhead launch monitor will be installed. Use the Projector Fitment Tool to confirm mounting distance before purchasing — especially critical with the Vanish since bracket placement affects projector positioning.
BenQ AK700ST — 4K Laser Short-Throw
- 4K UHD resolution
- 4,000 ANSI lumens
- Throw ratio: 0.69–0.83:1
- Laser light source — 20,000 hr rated
- Auto Screen Fit, Golf Mode, IP5X dust protection
Optoma GT2400HDR — 1080p Ultra-Short-Throw
- 1080p Full HD resolution
- 4,200 ANSI lumens
- Throw ratio: 0.496:1 fixed
- DuraCore laser — 30,000 hr rated
- 8.4ms lag, IP6X, HDR10/HLG, 360° placement
Not Sure Which Projector Fits Your Room?
Ceiling height, bracket position, and launch monitor clearance all affect projector placement for the Vanish Series.
Pair the Vanish Series with a Complete SimKit
The Vanish Series handles the enclosure. These pre-configured SimKit packages pair it with a launch monitor, projector, and hitting mat — everything needed for a full golf simulator in one order. Add the Vanish as your enclosure during the SimKit configuration.
VTrack Premium 4K SimKit
The complete overhead build. VTrack ceiling-mount launch monitor + 4K projector, pre-configured and ready to install. Select the Vanish Series as your enclosure at checkout.
- VTrack Overhead Launch Monitor — ceiling-mounted, out of swing path
- BenQ AK700ST 4K laser projector — overhead-monitor compatible
- Enclosure choice at checkout — select the Vanish Series model
- Ideal for any Vanish model with ceiling-mount capability
Eye Mini Lite SimKit
Ground-based tracking for rooms where ceiling mounting is not practical or preferred. Camera-driven, no ceiling hardware required.
- Uneekor Eye Mini Lite — ground-based, camera-driven tracking
- BenQ AH700ST 1080p laser projector — bright, short-throw
- Enclosure + Elite ProTee 5×5 mat + 6×12 landing pad included
- Best for rooms where ceiling mounting is not practical or preferred
Questions on the Vanish Series?
Ceiling height, bracket placement, projector compatibility, and launch monitor clearance all factor into a Vanish Series order. The ESG team can confirm your room fits before you purchase.
Contact Elite Sim Golf →SportScreen Vanish Series — FAQ
How much ceiling height do I need for the Vanish Series?
Ceiling height requirements vary by model. The Vanish 9, 11, and 16 require 108″–126″ (9 ft–10 ft 6″). The Vanish 13H requires 125.5″–143.5″. The Vanish 16H requires 120″–138″. Standard brackets cover ceiling heights from 62″ to 115″; 2-ft extension kits are available for ceilings above 115″. Contact Elite Sim Golf to confirm ceiling compatibility before ordering — the “H” models in particular need taller ceilings than they might appear to require.
Which Vanish model should I choose?
The Vanish 11 is the most popular model and fits standard two-car garages with 9 ft ceilings. The Vanish 9 is the compact choice for single-car stalls or tight rooms. The Vanish 13H adds width and image height for rooms with taller ceilings. The Vanish 16 and 16H provide full two-car-width bays with 16:9 widescreen projection — the 16H adds extra vertical height for rooms with 10 ft or taller ceilings. If unsure, contact Elite Sim Golf with your room dimensions for a recommendation.
What is included with the Vanish Series?
Each Vanish Series purchase includes: one rear blackout/impact support membrane, one 3-ply premium impact screen, two side screens (5 ft depth each), one ceiling panel, two corner pieces, two side baffles, one front baffle, universal aluminum mounting brackets, and all assembly hardware. Not included: launch monitor, simulator computer, golf simulation software, projector, hitting mat, and landing pad.
What is the difference between motorized and hand crank?
The motorized option uses a 120V / 280W motor controlled by a wireless remote. The full enclosure retracts in under five minutes. The motor has a built-in thermal cutoff at 4 minutes of continuous operation; allow 15 minutes to cool before operating again. The hand crank option requires no power and rolls the enclosure up in approximately 30 seconds — a good choice when a standard outlet is not accessible near the roller tube. Both options use the same aluminum roller tube and bracket system.
How far off the back wall and side walls does the Vanish need to be?
Plan for 8″–12″ of clearance behind the rear impact membrane (this allows the membrane to absorb ball impacts properly). Each side screen needs 6″–8″ of clearance off the side walls. Total room depth should be at least 204″ (17 ft) to accommodate enclosure depth plus hitter-to-screen distance (typically 8–10 ft depending on launch monitor type).
Can the Vanish Series be used with a ceiling-mounted overhead launch monitor?
Yes. The Vanish Series is compatible with ceiling-mounted overhead launch monitors such as the VTrack. However, bracket placement for the Vanish and the launch monitor mount must be planned together to avoid conflicts. The BenQ AK700ST projector is confirmed compatible with overhead monitor setups; the Optoma GT2400HDR’s ultra-short throw ratio requires additional verification. Use the Projector Fitment Tool and contact Elite Sim Golf before purchasing if an overhead launch monitor is part of your setup.
What projector works best with the Vanish Series?
The BenQ AK700ST is the premium 4K option and is confirmed compatible with overhead ceiling-mounted launch monitors. The Optoma GT2400HDR is the best-value 1080p laser option, but its 0.496:1 ultra-short throw ratio requires special attention to mounting position when an overhead launch monitor is present. Use the Projector Fitment Tool to confirm throw distances before ordering.
Can I install the Vanish Series myself?
The Vanish Series is designed for owner installation. The universal bracket kit mounts to wall or ceiling at four points, and the versatile bracket system can project up to 25″ from the surface to clear garage door rails, openers, or light fixtures. Assembly instructions and a video walkthrough are available (links above in the specs section). For ceiling heights above 115″, 2-ft extension kits are available separately.
How long does the Vanish Series screen last?
The 3-ply polyester blend impact screen is designed for durability — it resists puckering, pot marks, and burn-in from high-spin, high-velocity shots. The included rear blackout/impact membrane absorbs the most direct impact, extending the life of the primary screen. Replacement screens are available separately from SportScreen if needed. The frame carries a lifetime warranty; all other components including the screen are covered for 2 years when using an approved SportScreen impact screen.
Does the Vanish Series work for left-handed and right-handed golfers?
Yes. The fully enclosed bay — side screens, ceiling panel, baffles, and corner pieces — contains ball flight regardless of swing direction. Both left- and right-handed setups are accommodated without any configuration changes.
What is the difference between the Vanish Series and the ESG fixed enclosures (Birdie 10, Eagle 12, Albatross 13)?
The Birdie 10, Eagle 12, and Albatross 13 are freestanding fixed enclosures with a powder-coated steel tube frame — they occupy floor space permanently and require no ceiling mounting. The Vanish Series mounts to the ceiling or wall and retracts fully when not in use, reclaiming the room. The fixed enclosures are the better choice when the space is dedicated full-time to golf simulation; the Vanish is the better choice for multi-use rooms, garages that still need to park a car, or setups where a clean look when not in use matters. For a permanent premium bay, the PRO Series 12x9 is also worth reviewing.
