BenQ AH700ST: Ultimate Short Throw Golf Simulator Projector

Name: BenQ AH700ST: Ultimate Short Throw Golf Simulator Projector
Brand: BenQ
SKU: AH700ST-001
Price: 2299.00 USD
Availability: InStock

By BenQ

$2,299.00

Shipping calculated at checkout.

🎄

Extra Holiday Savings In Cart

Apply the coupon at checkout to unlock an additional discount.

Holiday Deal

Use code: HOLIDAY10

Discount applies in cart when the coupon is entered.

🎁 Limited-time holiday promotion. Coupon must be applied before checkout.

🚚

Ships in 3–5 business days

Processing time may vary slightly during peak holiday volume.

BenQ AH700ST 4000-Lumen Short-Throw 1080P Laser Golf Simulator Projector

The BenQ AH700ST is a purpose-built 1080P short-throw laser golf simulator projector that’s all about fast setup, bright visuals, and safe projector placement. With 4,000 ANSI lumens, Full HD (1920×1080) resolution, and a golf-tuned short-throw lens, it fills your impact screen with a clean, punchy image that holds up in typical garage and sim-room lighting. :contentReference[oaicite:0]{index=0}

One-button Auto Screen Fit and Quick Focus take care of image sizing and sharpness from the remote, while a 0.69–0.83:1 short-throw ratio and low 102.5% offset let you mount the projector safely above and behind the hitting area, keeping it out of the swing path and away from pop-up shots. Add a laser light source rated up to 20,000 hours and an IP5X dustproof sealed engine, and you’ve got a “set it and forget it” 1080p golf projector for serious sim bays. :contentReference[oaicite:1]{index=1}

Bright 1080P Laser Engine for Sim Bays

Built on BenQ’s golf-first platform, the AH700ST delivers bright, accurate visuals tuned for simulator play.

Resolution: Full HD 1080P (1920×1080) for sharp sim UI and ball flight data :contentReference[oaicite:2]{index=2}
Brightness: 4,000 ANSI lumens for clear images in garages and bonus rooms :contentReference[oaicite:3]{index=3}
Contrast: up to 3,000,000:1 dynamic contrast for punchy whites and deep shadows :contentReference[oaicite:4]{index=4}
Laser light source: up to ~20,000-hour life for low-maintenance operation :contentReference[oaicite:5]{index=5}
Color: ~95% Rec.709 coverage for natural, believable course color :contentReference[oaicite:6]{index=6}

Short-Throw, Low-Offset Golf Design

The AH700ST’s optics are tuned specifically for golf simulator layouts where safety and shadow reduction matter.

Throw ratio: 0.69–0.83:1 – big image from a short distance :contentReference[oaicite:7]{index=7}
Projection offset: ~102.5% for a low, sim-friendly image height :contentReference[oaicite:8]{index=8}
Zoom: 1.2× optical zoom to fine-tune screen fill without moving the mount :contentReference[oaicite:9]{index=9}
Optimized to sit behind and above the golfer, reducing shadows and shank risk :contentReference[oaicite:10]{index=10}

Auto Screen Fit & Quick Focus

One of the AH700ST’s biggest advantages is how quickly it dials in your impact screen.

Auto Screen Fit: one-button setup that detects and fills your impact screen border :contentReference[oaicite:11]{index=11}
Supports 16:9, 16:10, 4:3, and 1:1 aspect ratios while maintaining optimal resolution :contentReference[oaicite:12]{index=12}
Quick Focus: remote-based focus adjustment from the hitting area—no ladder needed :contentReference[oaicite:13]{index=13}

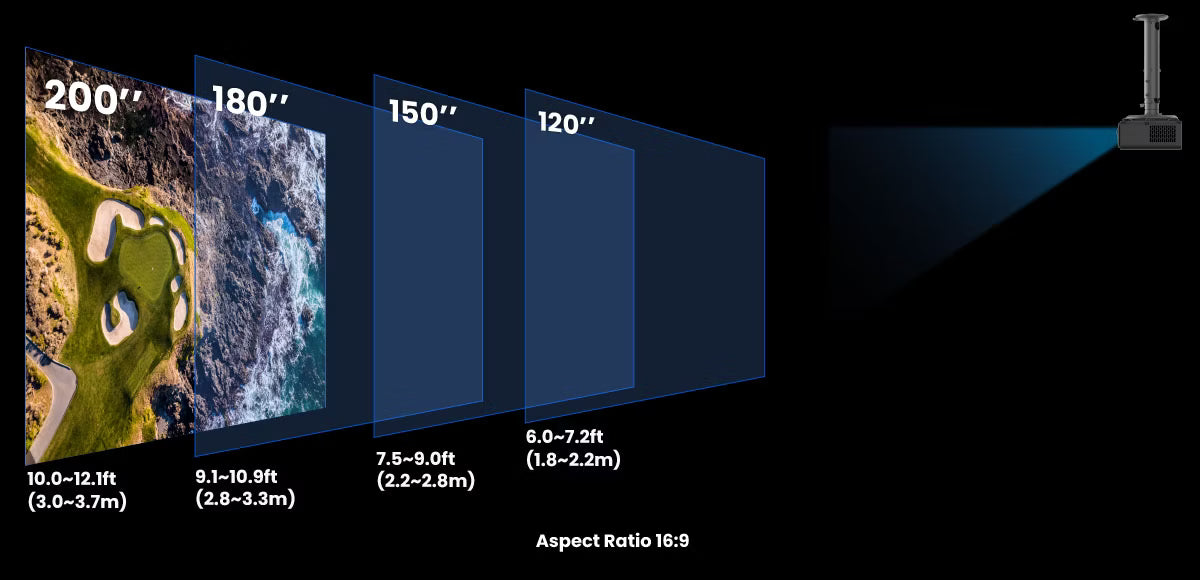

Up to roughly 200" diagonal screen size for a large, immersive hitting window :contentReference[oaicite:14]{index=14}

Golf Mode, HDR & Sim-Ready Performance

Color, contrast, and responsiveness are tuned to make modern sim software look and feel right.

BenQ Golf Mode for realistic turf, sand, and sky tones on popular sim platforms :contentReference[oaicite:15]{index=15}
HDR10 / HLG support for deeper contrast and more dynamic visuals :contentReference[oaicite:16]{index=16}
Game Mode input lag ~16 ms at 1080p/60 for responsive ball flight and swing feedback :contentReference[oaicite:17]{index=17}
Excellent choice if you use your bay for golf, sports, and console/PC gaming

Garage-Ready Durability

The AH700ST is built to live where your simulator lives—often a garage, basement, or flex space.

IP5X dustproof sealed engine to help protect optics from dust and debris :contentReference[oaicite:18]{index=18}
Rated to operate in typical garage-style temperatures (approx. 32–104°F) :contentReference[oaicite:19]{index=19}
No traditional lamps or filters to replace thanks to the long-life laser design :contentReference[oaicite:20]{index=20}
“Set it and forget it” reliability for heavy practice and frequent sim sessions

Key Specifications (At a Glance)

Resolution: Full HD 1080P (1920×1080)
Brightness: 4,000 ANSI lumens
Contrast: up to 3,000,000:1 (dynamic)
Light Source: Laser, up to ~20,000-hour life
Throw Ratio: 0.69–0.83:1
Zoom: 1.2× optical
Aspect Ratios: Native 16:9; supports 16:10, 4:3, 1:1
Screen Size: ~32" to 200" diagonal, sim-dependent
Inputs: 2× HDMI 2.0, USB-C, USB-A, audio out, LAN, RS-232
Wireless: Wi-Fi-ready with optional BenQ dongle
Weight: ~7.3 lbs, compact chassis

Who the BenQ AH700ST Is For

Choose the BenQ AH700ST if you want a premium 1080P golf simulator projector that:

Delivers bright, accurate 1080p visuals on 4:3 or 16:9 impact screens
Makes setup easy with Auto Screen Fit and Quick Focus from the remote
Mounts safely behind the hitting area with a short-throw, low-offset lens
Uses a long-life laser light source and dustproof design for garage-friendly reliability

Paired with an Elite Sim Golf enclosure, the AH700ST is a “best in class” 1080P choice for golfers who want fast setup, bright laser performance, and golf-optimized features without moving up to 4K pricing.

Compare BenQ 1080P Golf Simulator Projectors

Good – BenQ AW30ST

LED short-throw golf projector for compact, budget-conscious bays and low ceilings.

Resolution: 1080p-capable (accepts up to 1920×1200 input)
Brightness: ~3,200 ANSI lumens
Light Source: LED (up to ~20,000–30,000 hours, mode dependent)
Throw Ratio: 0.72–0.87:1
Zoom: 1.2× manual
Aspect Ratio: 16:9 / 16:10 / 4:3 / 1:1 support
Golf Features: Golf Mode, low-offset design for low ceilings
Input Lag: ~33 ms (1080p/60)

Best For: Smaller, low-ceiling sim bays where you want an affordable, LED-based short-throw projector that still handles 1080p golf sim content cleanly.

Better – BenQ AH30ST

Full HD 1080p 4LED short-throw projector with lower input lag and Golf Mode.

Resolution: Full HD 1080p (1920×1080)
Brightness: 3,000 ANSI lumens
Light Source: 4LED (up to ~20,000–30,000 hours)
Throw Ratio: 0.69–0.83:1
Zoom: 1.2×
Aspect Ratio: Native 16:9 (supports 16:10, 4:3, 1:1)
Golf Features: Golf Mode, Auto Screen Fill, low-offset for low ceilings
Input Lag: ~16–17 ms (Game Mode)

Best For: Dedicated home sim bays that want true 1080p, better motion and input lag, and long-life 4LED with simple golf-focused setup.

Best – BenQ AH700ST

Laser-powered 1080p golf projector with Auto Screen Fit and higher brightness for serious bays.

Resolution: Full HD 1080p (1920×1080)
Brightness: 4,000 ANSI lumens
Light Source: Laser (up to ~20,000 hours)
Throw Ratio: 0.69–0.83:1
Zoom: 1.2×
Contrast: up to 3,000,000:1 (dynamic)
Aspect Ratio: Native 16:9 (supports 16:10, 4:3, 1:1)
Golf Features: Auto Screen Fit, Quick Focus, Golf Mode, dust-resistant design
Input Lag: ~16 ms (Game Mode)

Best For: Premium 1080p golf simulators that need extra brightness, faster/easier setup, and a laser light engine for “set it and forget it” reliability.
