Albatross 13XD Golf Simulator Enclosure by Elite Sim Golf
The Albatross is the MAC DADDY of all Golf Simulator Enclosures. It has all the premium features you thought you could only dream of being able to afford but at the affordable price of most of your value priced Golf Sim Enclosures. Constructed of 1-1/4”/32mm Thick Wall Steel Tubing, the Albatross is built for the long haul. The Albatross by Sim Golf Superstore comes in at a massive 13 feet wide, 10 feet tall, and 10 feet deep with a Screen Aspect Ratio of 4:3.
We also offer the Albatross in a 5 foot Standard Depth option here.
Features
- 4K ULTRA Premium Triple Layer Premium Impact Screen
- Premium Velvet Inner Lining w/ Vinyl Exterior
- Premium Velvet Enclosure Flaps for seamless transition from enclosure lining to impact screen using hook and loop fasteners.
- Heavy Duty 1-1/4”/32mm Powder Coated Steel Frame w/ anti-collision padding along top rail.
- Easy Assembly, frame snaps together, no tools required. Estimated 60-90 Minutes for the Albatross Model, two people recommended for assembly.
NOTE: Hitting Mat and Landing Pad not included with Simulator Enclosures.

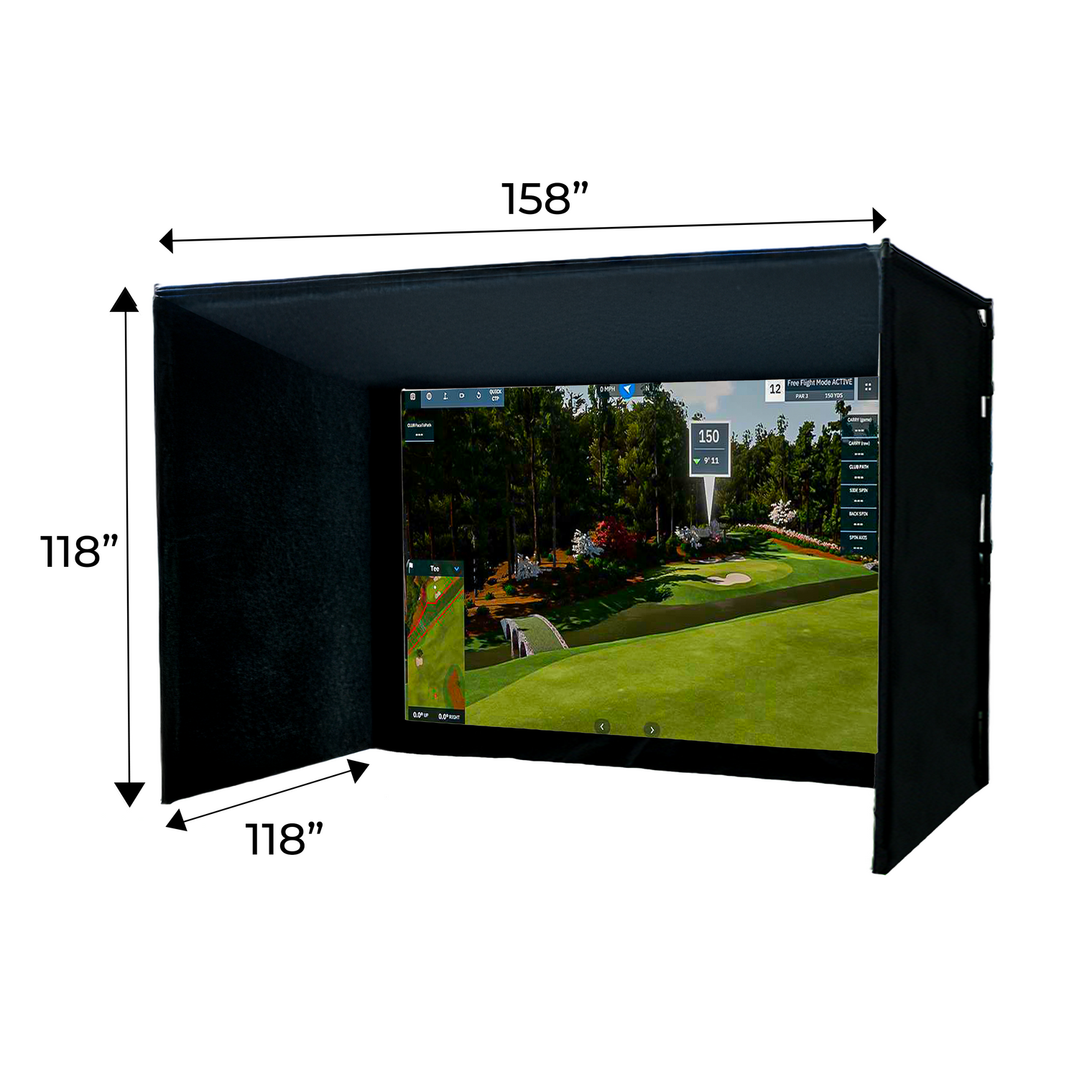

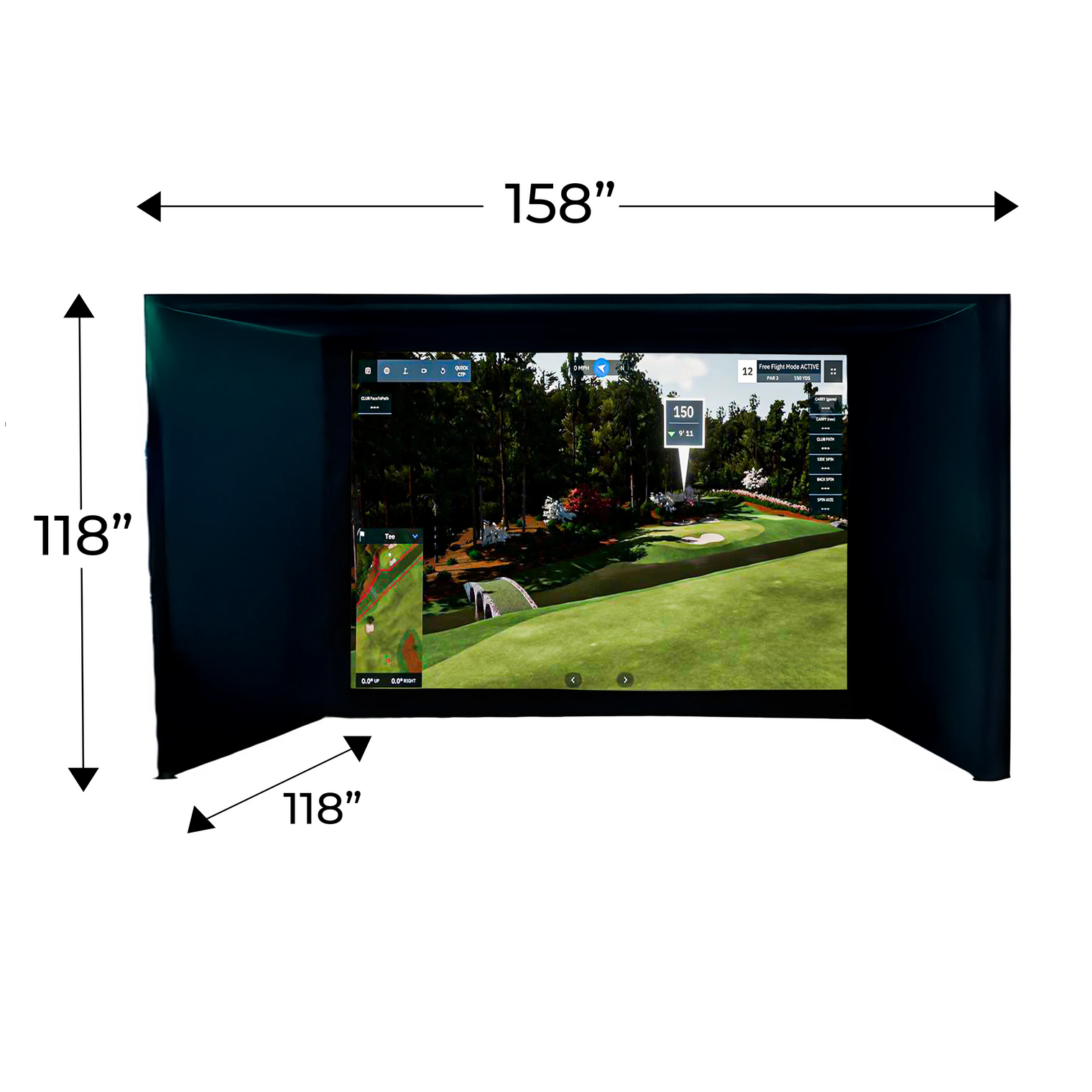

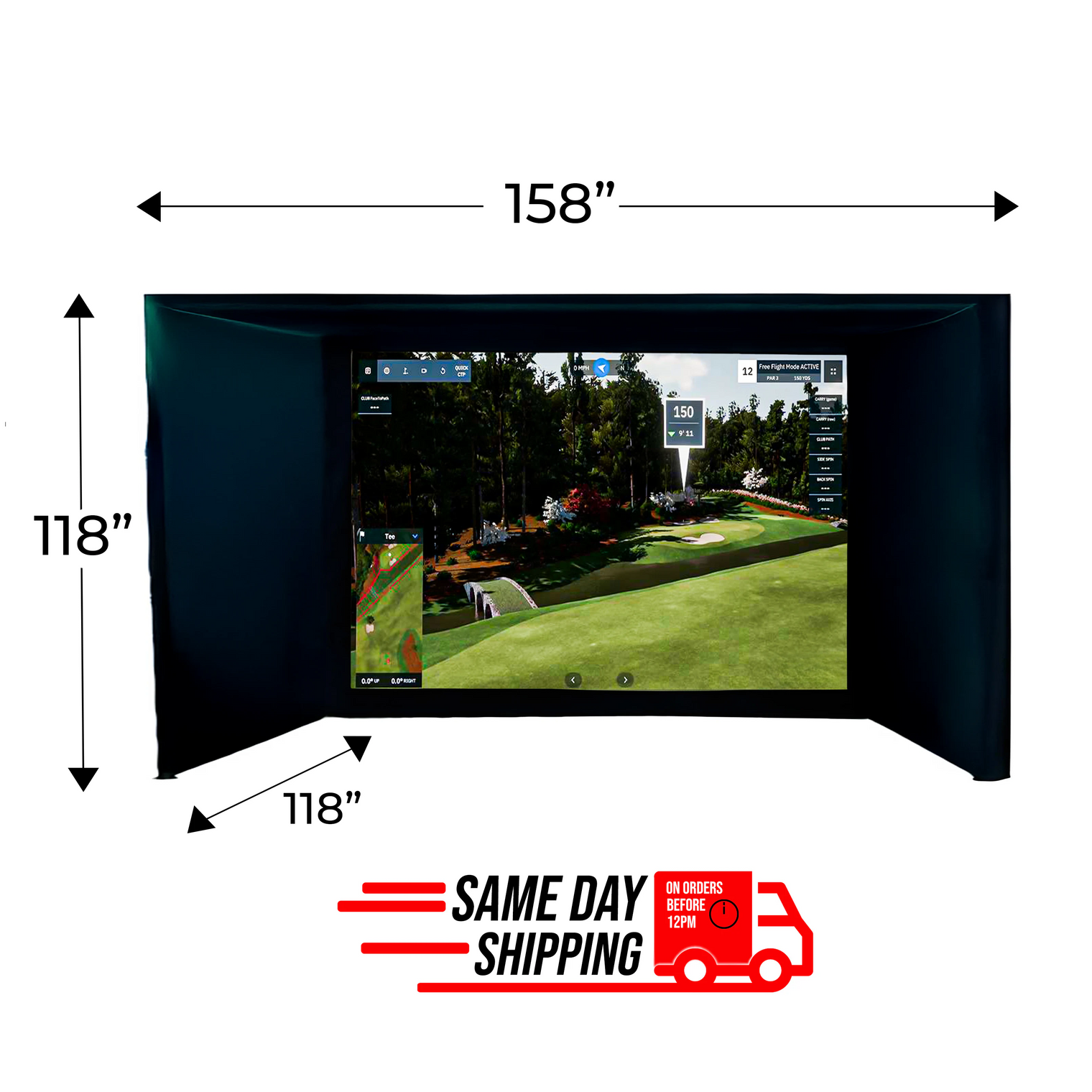

Dimensions
- Width: 158" / 13ft / 4m
- Height: 118" / 9ft 10in / 3m
- Depth: 118" / 9ft 10in / 3m
Assembly Manual
Albatross 13 Extended Depth Simulator Enclosure
The 4K ULTRA Premium Triple Layer Impact Screen is engineered to provide an exceptional visual experience for golf simulation and other indoor sports activities. This product is designed with advanced materials and construction techniques to ensure durability and performance.
One of the standout features of this impact screen is its premium velvet inner lining, which is complemented by a robust vinyl exterior. This combination not only enhances the aesthetic appeal but also contributes to the screen's ability to withstand repeated impacts without compromising its integrity. The triple-layer design effectively absorbs shock, thereby extending the lifespan of the screen.
The enclosure of the impact screen is equipped with premium velvet enclosure flaps that facilitate a seamless transition from the enclosure lining to the impact screen itself. This design utilizes hook and loop fasteners, ensuring a secure fit that minimizes any potential gaps or misalignments, which can detract from the overall experience.
Constructed with a heavy-duty 1-1/4” (32mm) powder-coated steel frame, this impact screen is built to endure the rigors of regular use. The frame includes anti-collision padding along the top rail, providing an additional layer of protection for both the screen and the users. This thoughtful design element helps to prevent damage from accidental impacts, ensuring that the screen remains in optimal condition.
Assembly of the Simulator Enclosure is designed to be straightforward and user-friendly. The frame snaps together easily, requiring no tools for assembly. It is recommended that two people assist with the setup to ensure efficiency and accuracy. The estimated assembly time for the Albatross Extended Depth Model is between 60 to 90 minutes, while all other models average 45-60 minutes, making it a manageable task for most users.
In summary, the Elite Sim Golf Simulator Enclosure combines high-quality materials, thoughtful design, and ease of assembly to deliver a superior product for golf simulation and other indoor sports applications. Its robust construction and aesthetic features make it an excellent choice for both amateur and professional users seeking a reliable and visually impressive golf simulator enclosure.
Golf Simulator Setup & Safety FAQ
How far away should I stand from my impact screen?
For the safety of both the golfer and the screen, we recommend standing a minimum of 10–12 feet away from the screen.
How much space do I need for a golf simulator enclosure?
When planning your golf simulator space, make sure to account for:
- Buffer space – Avoid placing the enclosure directly against walls or ceilings to help prevent bounceback and reduce the chance of damage.
- Enclosure footprint – Always verify the exact enclosure dimensions when planning your layout.
- Safe hitting distance – Golfers should stand approximately 10–12 feet away from the screen.
- Golfer height – Taller golfers require additional ceiling clearance for a full swing.
- Club length – Drivers require more swing space than irons.
- Turf thickness and obstacles – Consider HVAC ducts, soffits, lighting fixtures, and flooring height.
- Room layout – Ensure there is adequate space for walkways, furniture, and access to doors.
Can I iron or steam a golf impact screen?
We do NOT recommend ironing your golf screen, because it is very easy to damage the screen material. Our goal is for your impact screen to last as long as possible.
When it comes to wrinkles and fold marks, the best solution is prevention. Unpack your new screen immediately after receiving it, and if you need to store it temporarily, fold it very loosely.
Mounting the screen with proper tension using zip ties or ball bungees and allowing it to relax for a couple of days will smooth out most wrinkles naturally.
That being said…
We have also had success using a clothing steamer to remove wrinkles and fold lines. Using a clean consumer-grade steamer with distilled water can help accelerate the process while avoiding water marks on the screen.
Can I wash my golf screen material?
For detailed cleaning instructions and best practices, please see our article:
“How to Clean Your Golf Impact Screen.”
Are there safety concerns when using a golf simulator?
We want your indoor golf setup to be fun, help improve your game, and remain safe for everyone.
Always follow these safety guidelines:
- Follow the assembly manual provided with your enclosure.
- Keep children, pets, and spectators outside of swing range.
- Protect ceilings, walls, windows, vehicles, and nearby property.
- Ensure your enclosure and impact screen are properly tensioned.
- Always use equipment as intended for indoor golf simulator use.
What happens if the black enclosure material gets hit by a golf ball?
The enclosure material is not designed to absorb direct golf ball impacts. During normal use, golf balls should strike the impact screen first.
If a ball contacts the screen and then lightly rebounds into the enclosure fabric, it typically will not cause any issues.
Can I get a replacement impact screen for the enclosure?
Yes. Replacement impact screens are available if your current screen becomes worn or damaged.
Contact our customer support team and we can help match the correct screen size and material for your enclosure.
Proper installation and correct tensioning can significantly extend the life of your golf simulator screen.
How long does it take to assemble the enclosure?
Most DIY golf simulator enclosures assemble in about 45–90 minutes, depending on the enclosure size.
Installation is typically faster with two people. Assembly instructions and reference materials are included to guide the process.
What pipes are required to build the enclosure frame?
DIY golf simulator enclosures require 1-inch EMT (Electrical Metal Tubing) to construct the frame.
You have two options:
- Add a Pipe Framing Kit so pipes arrive pre-cut to the exact lengths.
- Purchase EMT conduit from a local hardware or building supply store.
Your enclosure kit will include the exact pipe lengths and quantities required.
What are EMT pipes?
EMT stands for Electrical Metal Tubing, also known as electrical conduit. These metal pipes are used to construct the frame structure of simulator enclosures.
Important: Do not substitute PVC pipe for EMT. PVC lacks the strength required and will not properly fit EMT fittings.
Do I need to use a golf hitting mat?
Golf hitting mats provide a cushioned surface for standing and swinging your golf club. They help protect your joints during impact and allow you to tee the ball at the proper height for realistic practice.
When choosing a hitting mat size, consider the needs of the golfer and the available simulator space.
- 4' × 5' – Allows most golfers to comfortably swing a driver with their heels near the edge of the mat.
- 5' × 7' – Provides additional stance room for wider swings.
- 4' × 9' – Ideal for simulator setups used by both right- and left-handed golfers.
Larger mats are also helpful when multiple players will be using the simulator.
